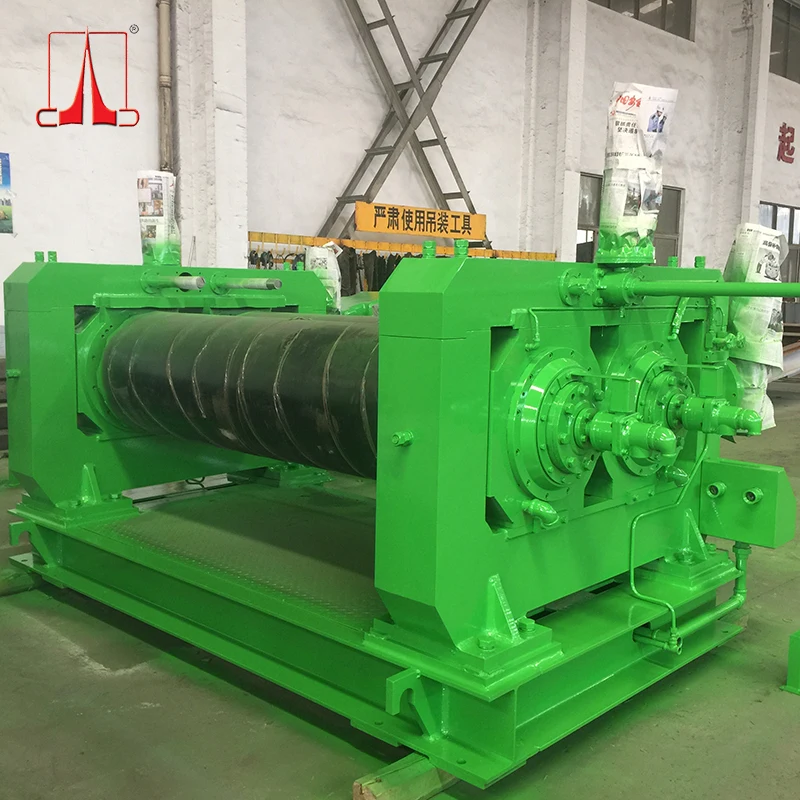

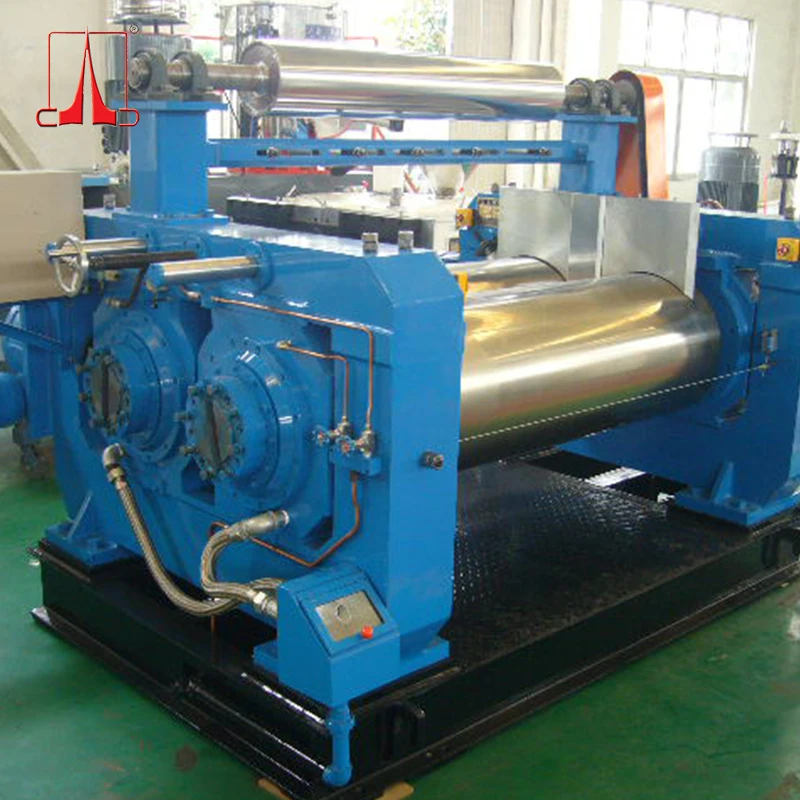

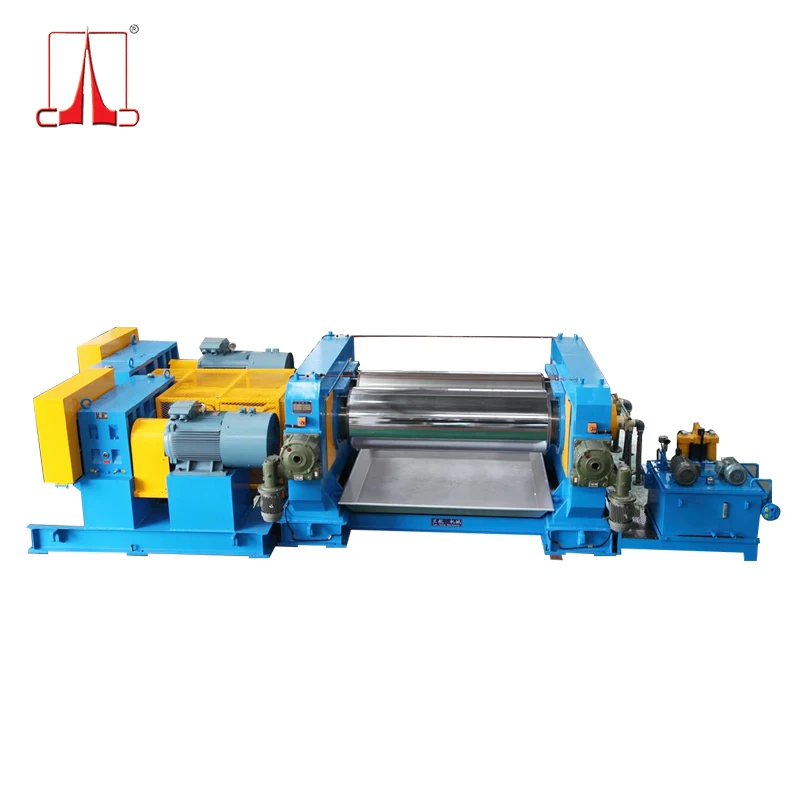

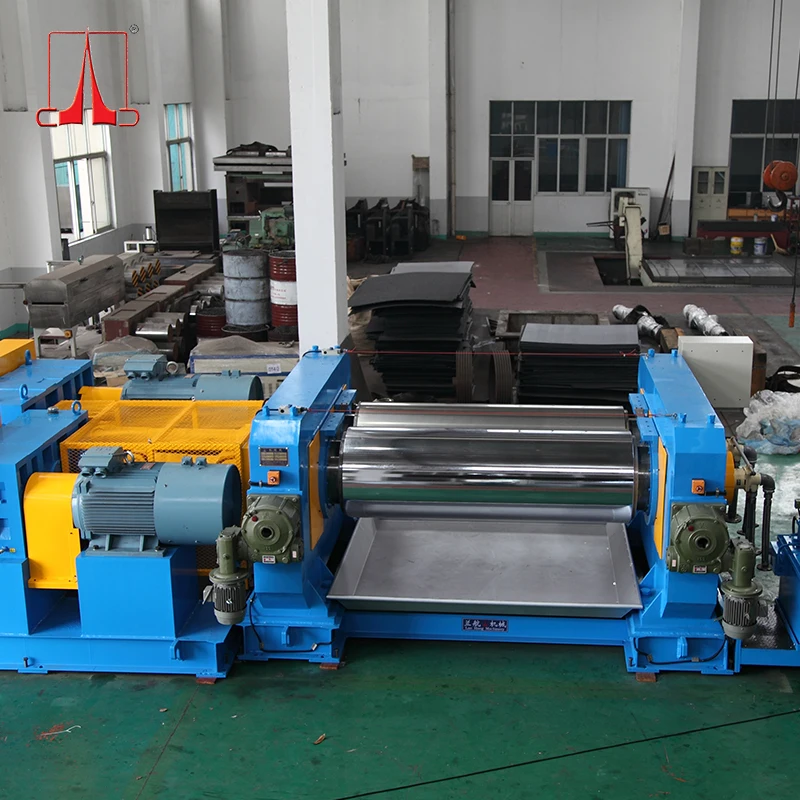

silicone rubber plastic mill mixer mixing machine for sheet open mixing mill with hollow roller

Product name

New model Customized industrial silicone rubber mill mixer machine price

Project\\Model

SK400×1000

SK450×1200

SK560×1830

SK610×2030

SK660×2300

SK760×2800

Roll diameter(mm)

400

450

560

610

660

760

Working length(mm)

1000

1200

1830

2030

2300

2800

Main motor power(kw)

45

55

75

90

132

220

Reducer speed box

Hard toothed

Type of drive

Cardan shaft

Roll bearing

Two rigid pillars with removable tops carry the rolls, which are placed either in friction/bush bearings or high quality anti-friction roller bearings. Roller bearings are pretty much standard nowadays, as they allow for 20 – 30 % in power-savings. A lubrication system is no longer required.

Roll nip setting

Adjustment of the front roll used to be made by hand (manual by ratchet) or later motorized by worm gear.

Nowadays hydraulic pistons adjust the rolls and also protect rolls from high forces that can build up in between the rolls (roll safety). They also open roll gap immediately when pushing the safety bar in front or back in case of emergency (required by European Safety standards CE).

Rolls

A mixing mill has 2 horizontal rolls set up back to back. They are made of ground chilled cast iron, with surface hardness ranging from 475 – 520 HV (Vickers hardness) up to 520 – 580 HV (or 68 - 72 HSD)
