Best Price Storage Tank Dewar Manufacturer Cryogenic Liquid Gas Cylinder For oxygen/nitrogen/argon
- Category: >>>
- Supplier: South China Special Gas Institute Co. Ltd.
Share on (60837712416):
Product Overview
Description
Product Description
The DPL series containers are vacuum insulated, Stainless steel containers designed to store
And transport cryogenic liquid oxygen, nitrogen or argon. Containers may be used for over the road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications.
As rugged, long holding time, self-contained gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h, with a delivery pressure of approximately 100psig (6.9bar/690Kpa)
Product Specification | |||||||||||||||
Product Model | DPL-100 | DPL-175 | DPL-195 | DPL-210 | DPL-410 | DPL-450 | |||||||||
Diameter*Height(mm) | 454*1247 | 508*1500 | 508*1620 | 508*1707 | 750*850*1770 | 750*850*1900 | |||||||||
Working Pressure(MPa) | 1.33 | 1.4 2.01 2.88 | 1.4 2.01 2.88 | 1.4 2.01 2.88 | 1.4 3.17 | 1.4 3.17 | |||||||||
Pressure Relief Valve(MPa) | 1.59 | 1.59 2.41 3.45 | 1.59 2.41 3.45 | 1.59 2.41 3.45 | 1.59 3.45 | 1.59 3.45 | |||||||||
Inner Container Bursting Disc(MPa) | 2.60 | 2.60 3.62 5.17 | 2.60 3.62 5.17 | 2.60 3.62 5.17 | 2.60 5.70 | 2.60 5.7 | |||||||||
Maximum Liquid Capacity(L) | 100 | 175 | 195 | 210 | 410 | 450 | |||||||||
Usable Liquid Capacity(L) | 95 | 166 | 185 | 197 | 389 | 427 | |||||||||
Normal Evaporation Rate ((LN2)) | ≤2.1% | ≤2.1% | ≤2.1% | ≤2.1% | ≤1.8% | ≤1.8% | |||||||||
Tare Weight(Kg) | 70 | 110 | 117 | 123 | 282 | 289 | |||||||||
The Filling Quality | Oxygen(kg) | 100 | 172 | 191 | 205 | 443 | 487 | ||||||||
Nitrogen(Kg) | 73 | 121 | 135 | 145 | 315 | 346 | |||||||||
Argon(Kg) | 127 | 208 | 233 | 250 | 548 | 602 | |||||||||
Natural Gas (Kg) | ---- | 70.1 | 76 | 86.3 | 161 | 176 | |||||||||
CO2(Kg) High Pressure only | ---- | 138 | 154 | 164 | 325 | 357 | |||||||||
N2O(Kg) High Pressure only | ---- | 191 | 213 | 227 | 448 | 492 | |||||||||
Main Features

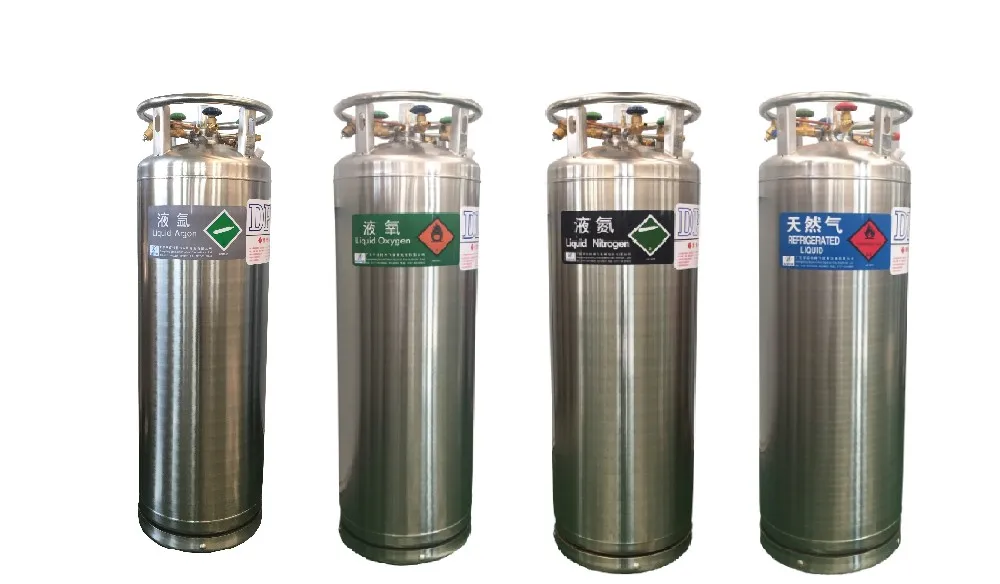

* Mainly used in storage and transportation of liquid oxygen, liquid nitrogen, liquid argon, and liquefied natural gas
* Adopted high multi-layer insulation method to ensure the low evaporation rate.
* Inner vaporizer provides a 10Nm3/h stable continuous gas.
* Solar installation use in the priority of gas-pressure and gas space.
* Adopt the international CGA standard tie-in and all the valves installed imported from USA(Rego)
* Unique design of damping ring meets the needs of frequent transportation.
* Suitable for electronics, research, chemical industry, welding, and LNG supply industries.
Detailed Images
S30408 Refined Polish.
Each of our cylinder must strictly go through degreasing and refined polish.
Digitail level gauge
we provide digital level gauge for option, which is show by precision percentage
Anti-Shock Rubber Cushion
The thicken rubber cushion can
greatly prevent the inner container
from any Sudden shock and buffer
the impact.
25 layers of Vacuum insulated quiit
We use 25 layers of mutiple thermal insulated quilt to ensure the vacuum effectiveness

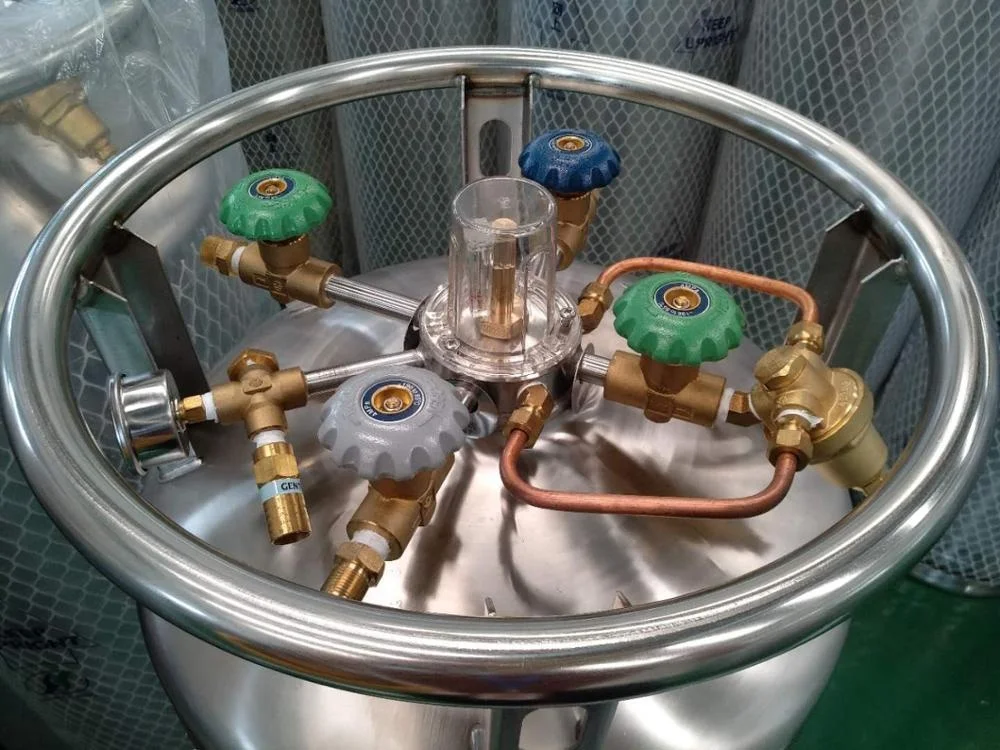

Protective ring
Each of our cylinder has two protective rings to protect the brass vaporizer coils and pressure built coils from any deformation
Firm Foundation Structure
Our DPL-450L&410L serials are all fabricated by bolts and nuts with strong frame foundation
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine,
* Engineers available to service machinery overseas.
Packing & Delivery
