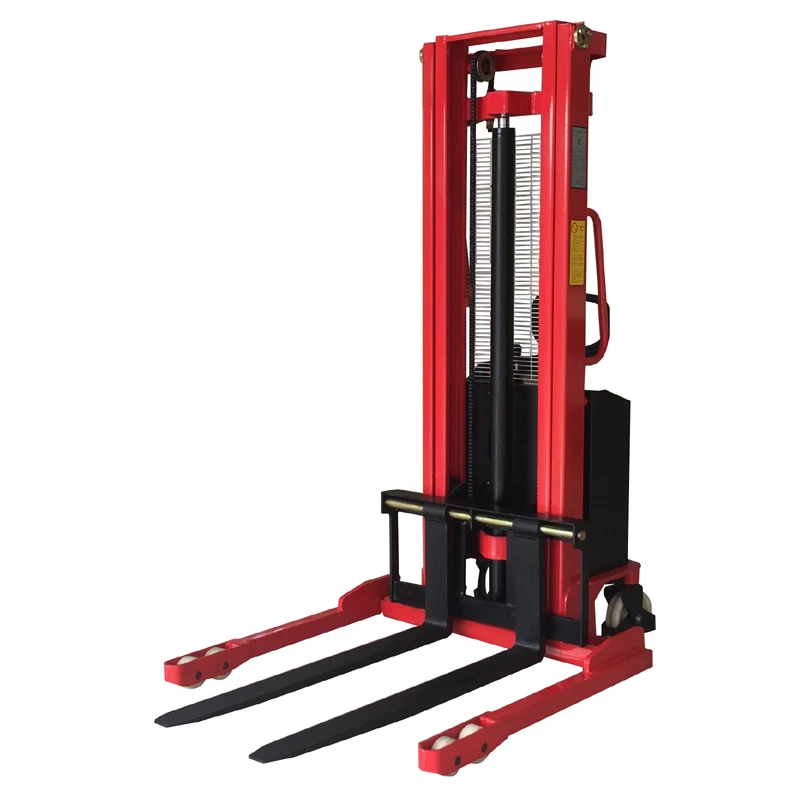

Semi Electric Forklift Truck with straddle legs

Product Overview

Description

With high quality lift pump station.

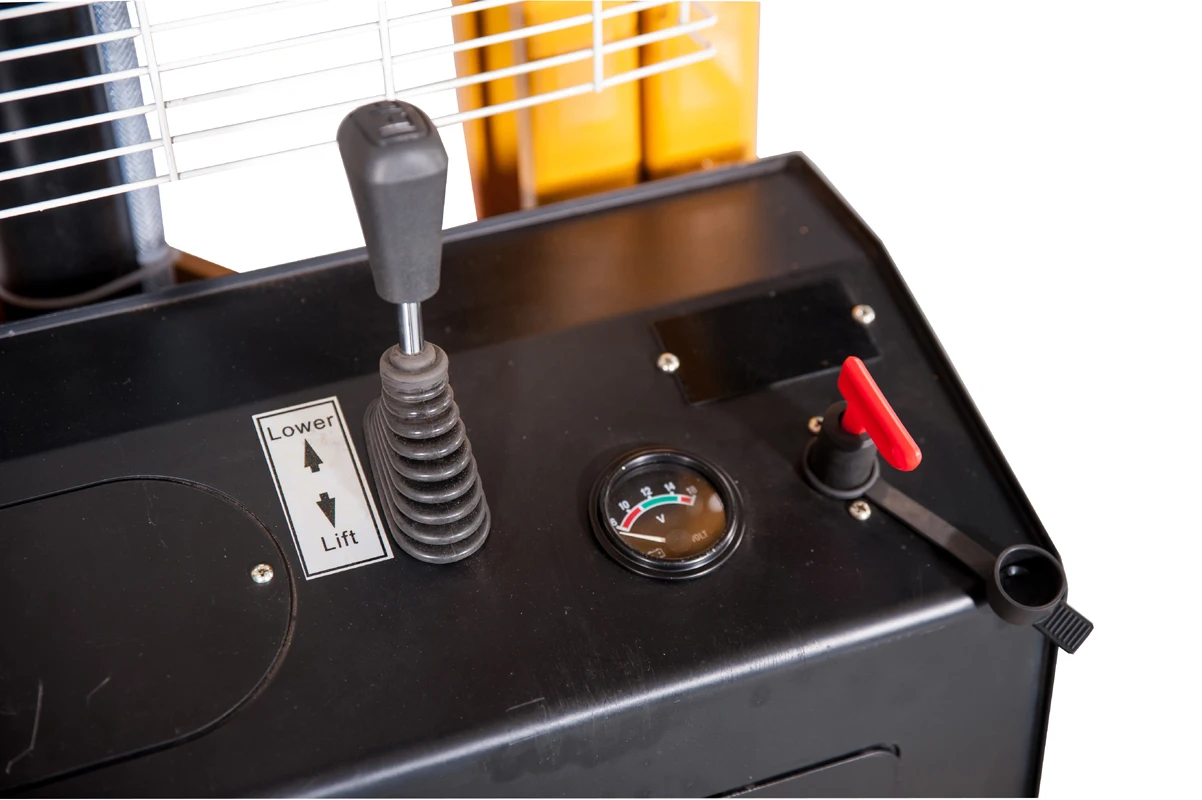

Precise lifting and lowering via hand lever.

Integrated 120AH maintenance free battery.

Forged adjustable forks for wider applications.







Model		EPM1016W	EPM1025W	EPM1030W	EPM1033W
		EPM1516W	EPM1525W	EPM1530W	EPM1533W
Capacity	kg	1000/1500
Lowered Fork Height	mm	75	75	75	75
Max.Lifting Height	mm	1600	2500	3000	3300
Fork Length	mm	1150	1150	1150	1150
Adjustable Overall Fork Width	mm	190-800	190-800	190-800	190-800
Load Center	mm	600	600	600	600
Turning Radius	mm	2200	2200	2200	2200
Overall Length	mm	1550	1550	1550	1550
Overall Width	mm	1080-1360	1080-1360	1080-1360	1080-1360
Overall Height	mm	2020	1770	2020	2170
Front Wheel Diameter	mm	100	100	100	100
Rear Wheel Diameter	mm	200	200	200	200
Lift Motor	KW	1.6KW
Battery	V/Ah	12V/120Ah
Net Weight	kg	366	448	468	480
		390	472	493	513
