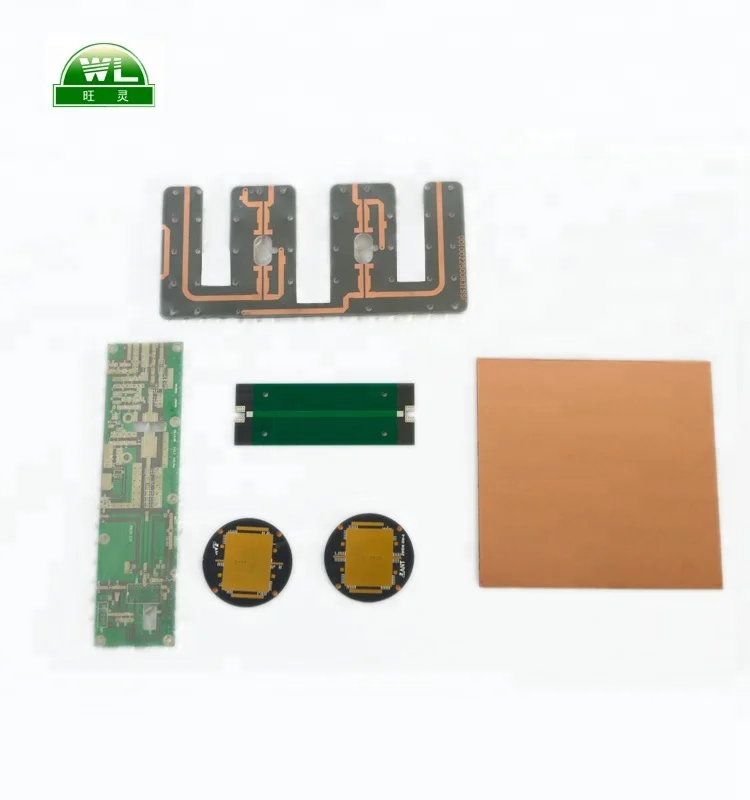

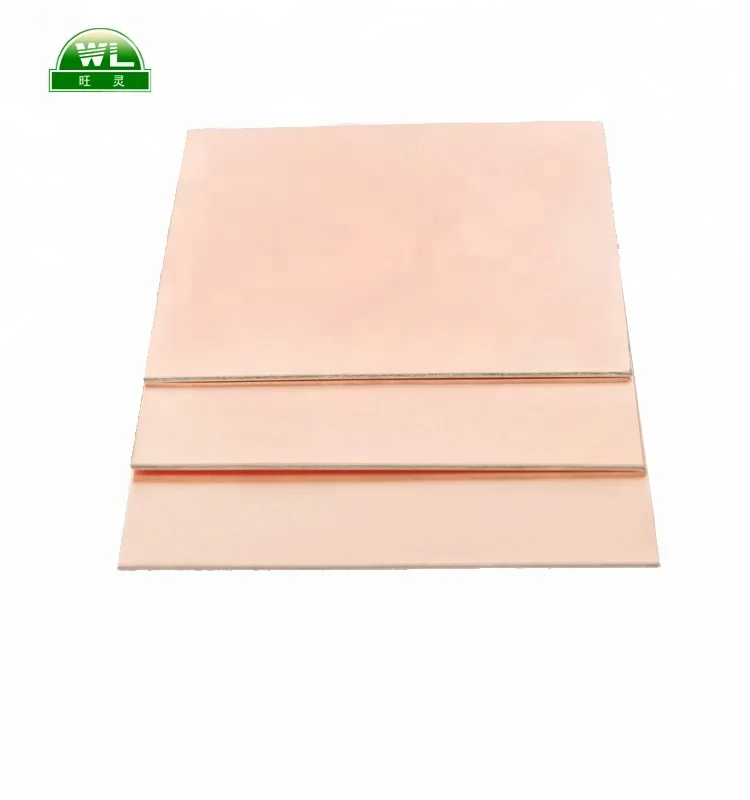

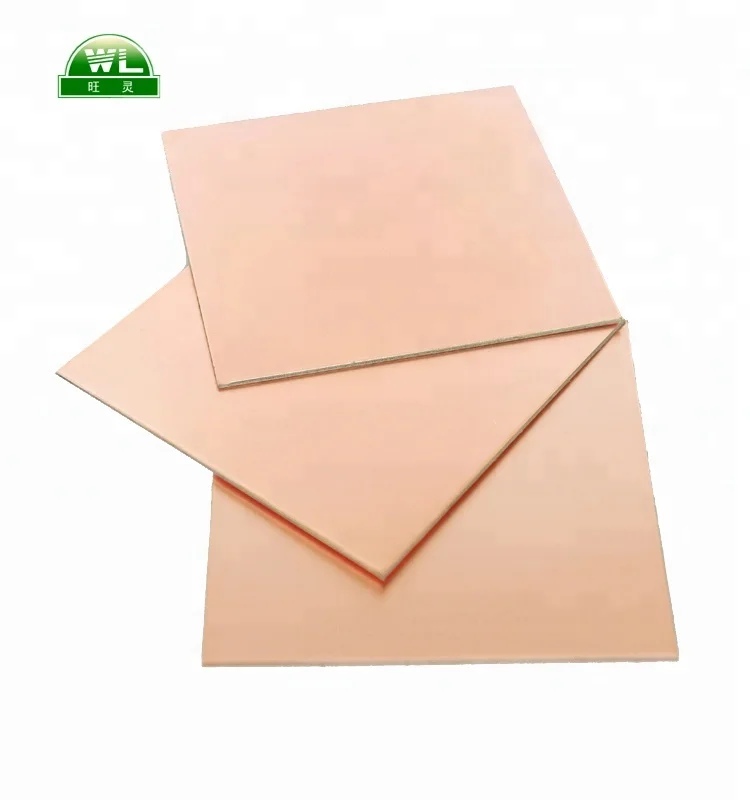

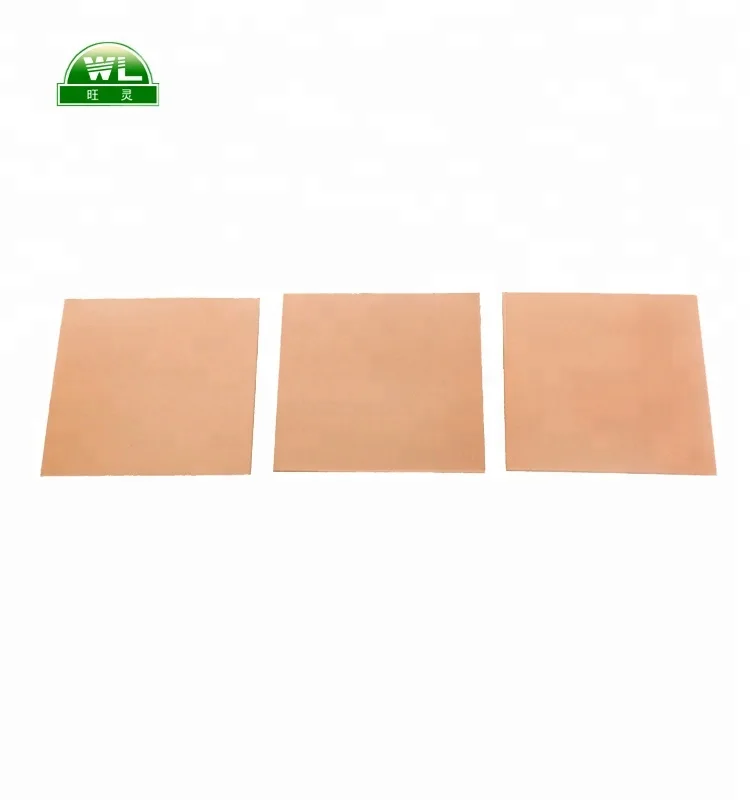

F4BTM350 DK3.50 Ptfe copper clad laminate materials and filler with the Nano ceramic(F4BTM350)ptfe ceramic dielectric material

Types

Double side,  Single side,  Original side

Dimensions (mm)

460X610mm(18''X24''),  500X600mm(19.7''X23.7''),  914X1220mm(36''X48''),  1000X1220mm(39.4''X48''), 1000X1500mm(39.4''X59'')

Special dimension can be customized according to customer’s requirement.

Dielectric Constant (@10GHZ)

3.50±2%

Dielectric layer thickness and Tolerance(mm)

0.254±0.025,  0.508±0.05,  0.762±0.05,  0.787±0.05,  1.016±0.05, 1.27±0.05,  1.524±0.05,   2.0±0.075,   3.0±0.09,  4.0±0.1,

5.0±0.1,   6.0±0.12,  9.0±0.18,  10.0±0.18,  12.0±0.2

Copper thickness

(OZ)

Dissipation factor

(tgδ)

Test condition: 10GHz

 DK: 2.55~3.0

 ≤1.5×10^-3

 DK: 3.0~3.5

 ≤2.0×10^-3

 DK: 4.0~10.2

≤2.5×10^-3

 Copper peel strength

(1oz copper)

≥18N/cm

Coefficient of thermal expansion(ppm/℃)

(typical)

X  Axis

Y  Axis

Z  Axis

Test ondition: -55℃ to 288℃

DK: 2.55-3.0

  X <15

  Y <15

  Z <65

DK: 3.2-3.5

  X <15

  Y <15

  Z <55

DK: 4.0-10.2

  X <12

  Y <14

  Z <50
