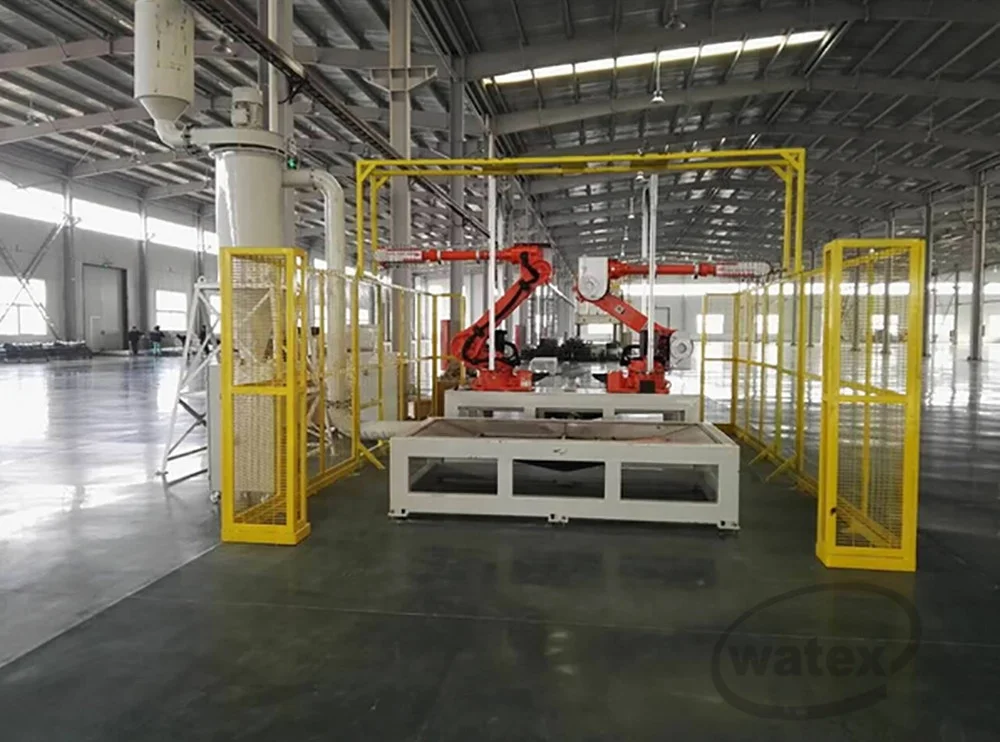

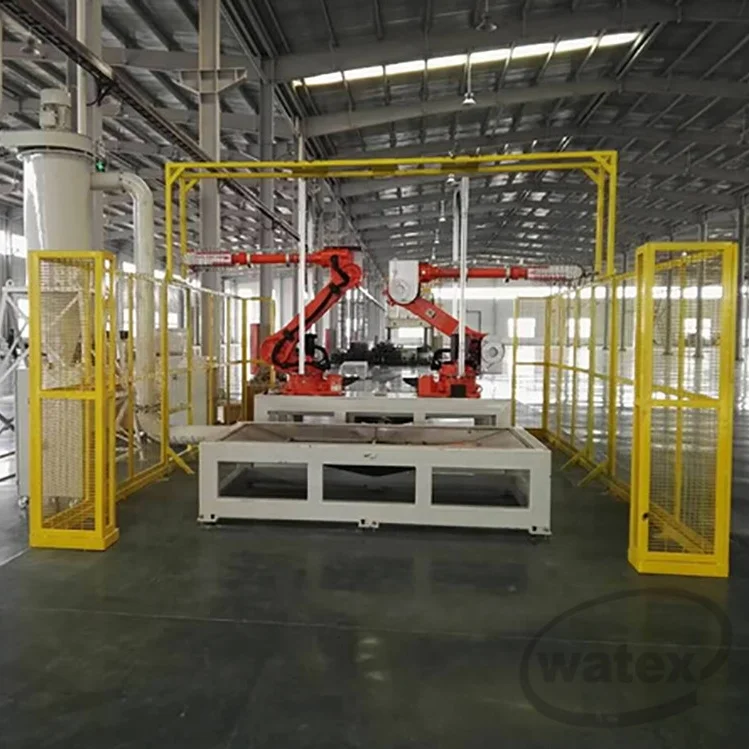

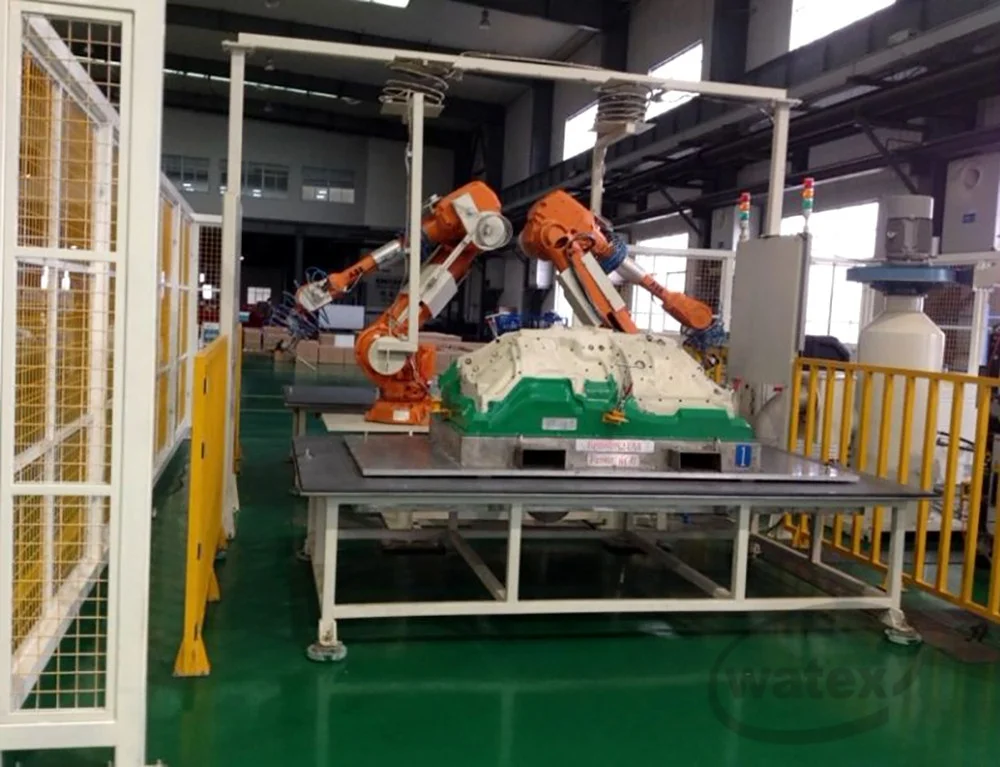

Robot water jet cutter machine for metal stone foam plastic carbon fiber cutting water jet cutting pure water cutting system cnc

Product Application

Watex robot waterjet cutting machine are used to cut, drill, and clean a variety of materials. The robotic end-of-arm-tooling directs the high pressure stream or jet of water. Waterjet robots are commonly used in several industries including aerospace, automotive, electronics, food, textile and packaging industries.

Watex sells new and reconditioned water jet robots from manufacturers such as: Motoman, FANUC and ABB. Each robot is customized to meet the customer's needs and all of the reconditioned robots have undergone a very rigorous refurbishment process. We provide the best in customer service and give added benefits to our robotic systems, such as the Watex Value Package.

Safety is our number one priority. Each system is equipped with a variety of safety features (such as light curtains or scanners) designed to separate the operator from the trimming area, which results in a safer and more ergonomic operating environment.

Watex industrial robot technology specializes in robotic cutting and trimming applications and related flexible material removal, material handling and parts cleaning. Our robotics manufacturing applications utilize multiple processes that are requirements based to fit your specific production and environmental needs.

We've developed a range of robotic cutting technologies through many years of experience that put us above all other robotic integrators.

Some examples of our custom tech:

Watepro - for converting, trimming, and milling paths generated in CAD/CAM software into complete 6-axis robot programs.

TrimPro - a custom DRS software package that eliminates the complexity of programming intricate shapes and paths

AccuFind - for detecting part location using IR sensors and automatically adjusting the robot cutting path

Watex robot work cells are flexible cost effective solutions for cutting complex shapes on 2 or 3D surfaces using for cutting, routing, trimming or compliant knife tooling, with high speed and precision, without additional finishing steps. Watmaster automatically programs smooth error-free tool motion and transitions, exploiting your cutting technology parameters to cut accurate shapes and true arcs, and flexible control of external axes.

Advantages for trimming and cutting applications

Robot programming for trimming and cutting paths can be generated automatically from the CAD model and subsequently modified with minimal effort to adjust for:

Diameter of cutter

Depth of cut

Number of cuts

Tool orientations can be managed automatically to optimize the program for minimal wrist rotation and maximize robot reach

Ability to manage and optimize entries and exits

Main Features

The machine is made of several parts:

1. UHP system: It is the key part of space waterjet cutting system, and it will pressurize water to max. 400Mpa, and through cutting head. Watex Edgestream or other USA made pump will be available .

2. Vacuum absorption system: This system has two functions.

A. Produce the vacuum, and absorb the interior ornament in the oriented mould to assure the cutting precision.

B. Take the scrap in the absorbed bucket, and separate the water.

3. Robot system

Robot system is the executant of cutting track.

WATEX ROBOT CHOOSE

4. UHP pipe system

Convey water from UHP system to cutting head to finish energy transformation, forming high speed waterjet and cutting the interior ornament.

5. Safety Guard system

Because the robot waterjet cutting system operates in high speed, and UHP waterjet is unconquerable, the system setting has the perfect safety guard system and UHP process protection system. The invasion of human and material will force the system stop, to assure the safety of human and system.

6. Water Softening System

Water softening system will soften the waterjet, and remove ions, such as Ca, Mg. In case scale forms in the UHP pipes and UHP sprues to raise the service life of UHP parts and seals

Machine Parts

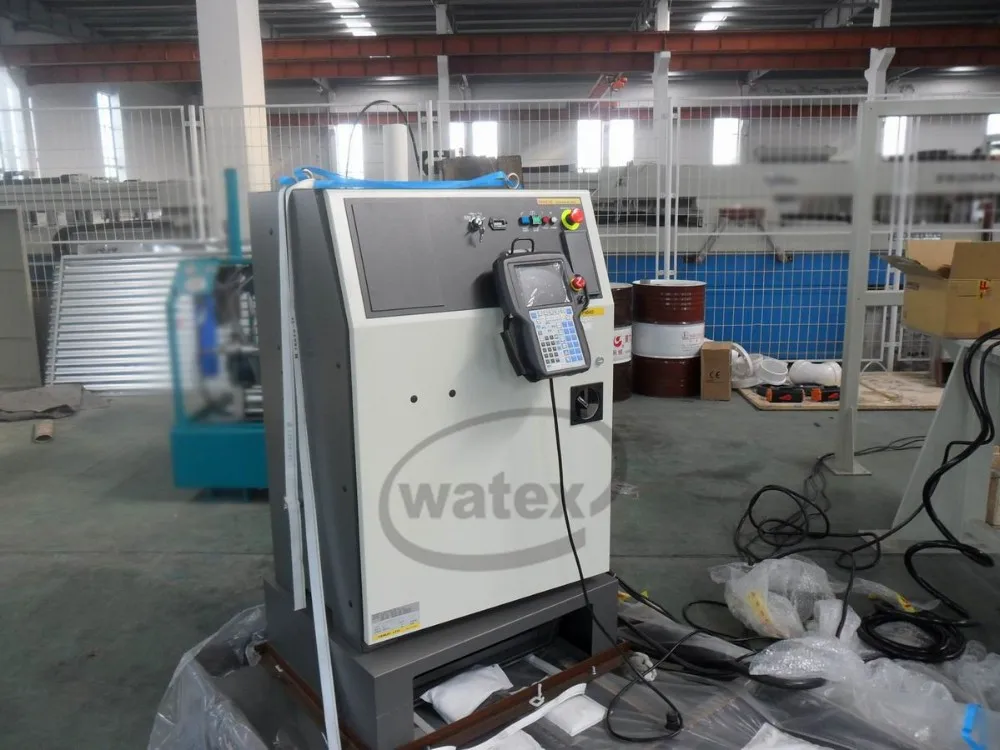

Name: Robot

Brand:Fanuc

Original: Japan

The brand of the rbot you can choose according to you like

Main Features

Name: Absorption and separated system
Brand:  SEIMENS MAIN MOTOR
Original: Germany
Watex absorption system will get the cutting piece on the A area and get all of the debris into the separating system together

Machine Parts

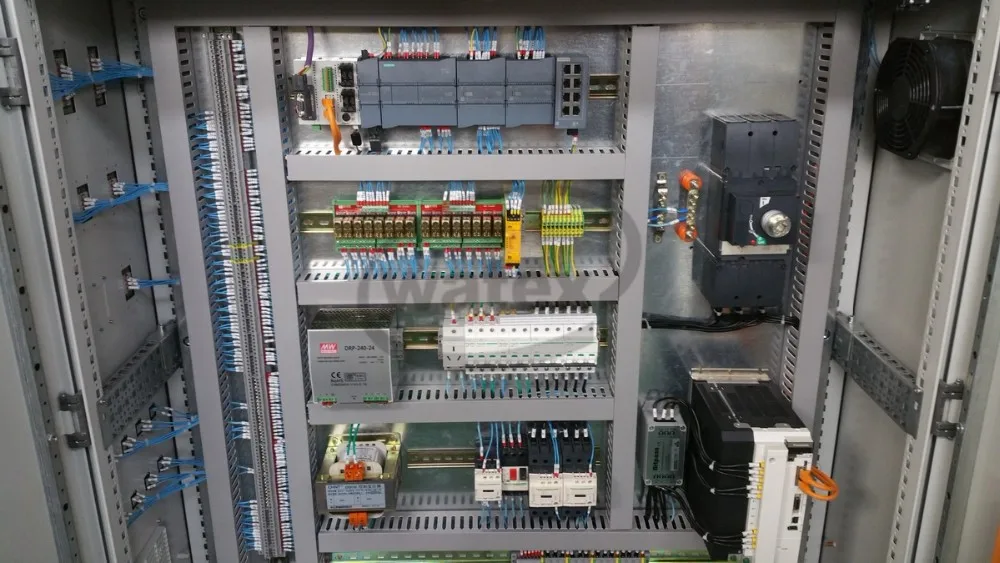

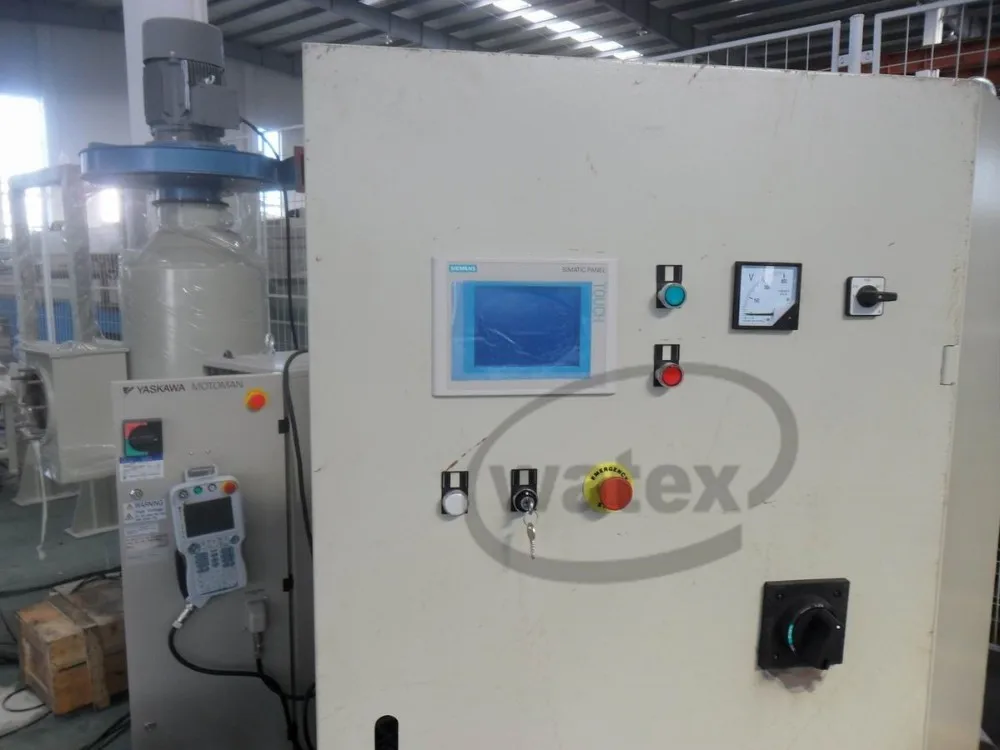

Name: Electrical compoents parts and PLC
Brand: Schneider & SIEMENS
Original: France & German
All of the relay ,switch and PLC purchased from SIEMENS &Schneider

Main Features

Name: Centrifuge
Brand:  Watex
Original: China
Getting all of the cutting debris into the collecting system
