M30 Connector Type DC 2 Wire Metal Detector Inductive Proximity Sensor Switch 5Vdc/12V/24VDC IP67 Waterproof (IBEST)

Product Overview

Description

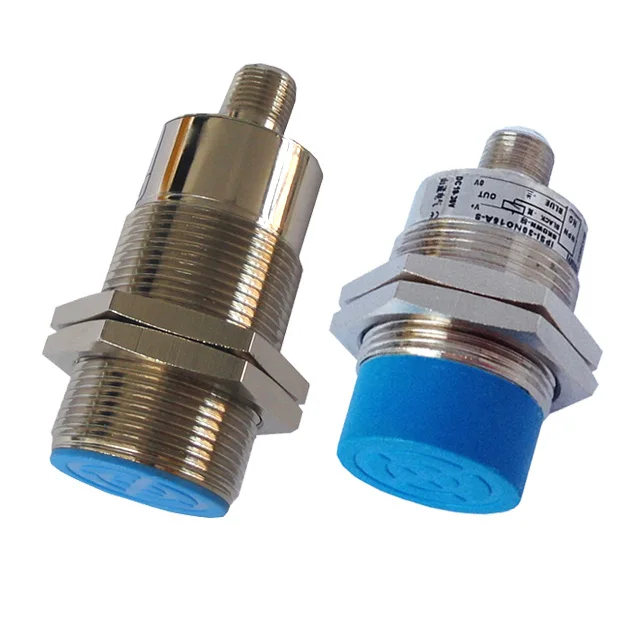

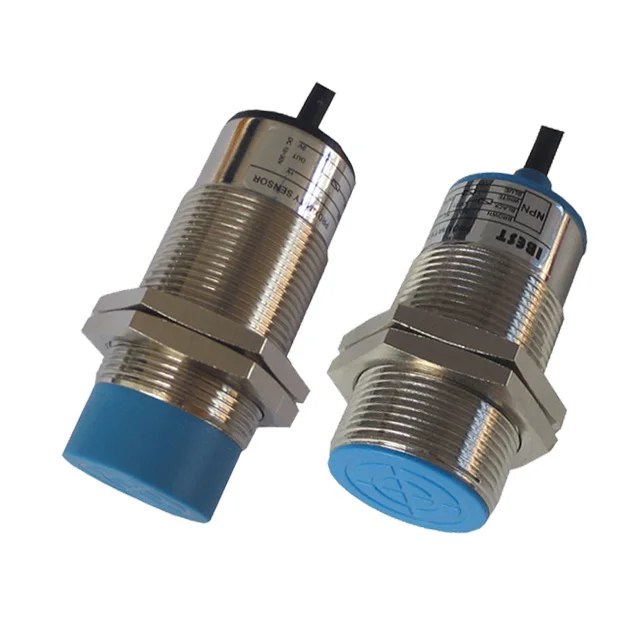

IBEST M30 Connector Inductive Proximity Sensor/Switch

DC 2 Wires NO Or NC Output

1. Features :

--     Inductive proximity sensor, style: cylinder, diameter: 30mm.
--     Detect Distance: Unshielded 10mm or shielded 15mm type . (Extended distance is available, Flush 13-14mm or non-flush 19-20mm)
--     DC 2-wire (10-30V DC), DC 3-wire(10-30V DC), DC 4-wire(10-30V DC),AC 2-wire (90-250 AC) type

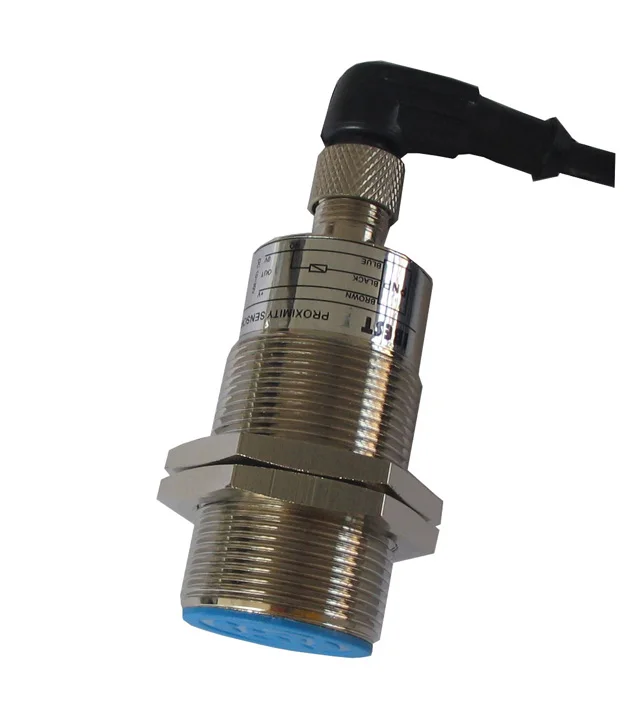

--     Connection mode: with 2 meter PVC cable. (M12 connector type is available also)

--     With LED operation indicate lamp, easily identifiable
--     Brass chrome plated, proof of oil, water acid, alkaline
--     Standard sensing object: iferrous metals.
--     Over load, short circuit protection , against polarity reversal.
--      IP ratings: IP67.

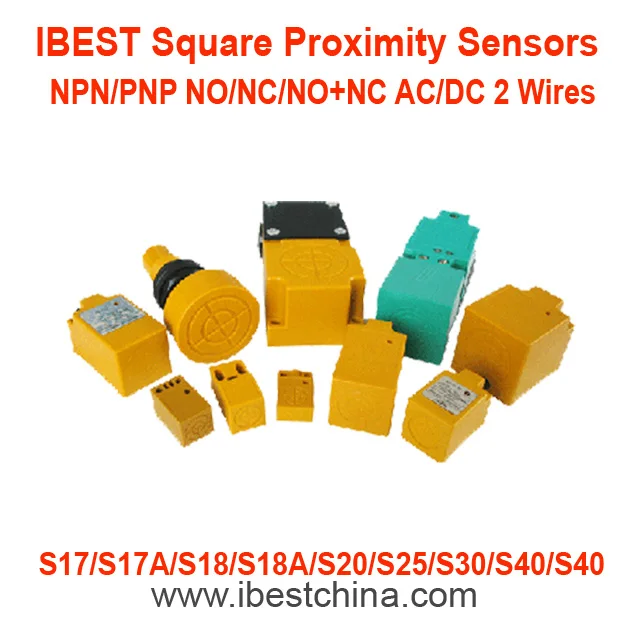

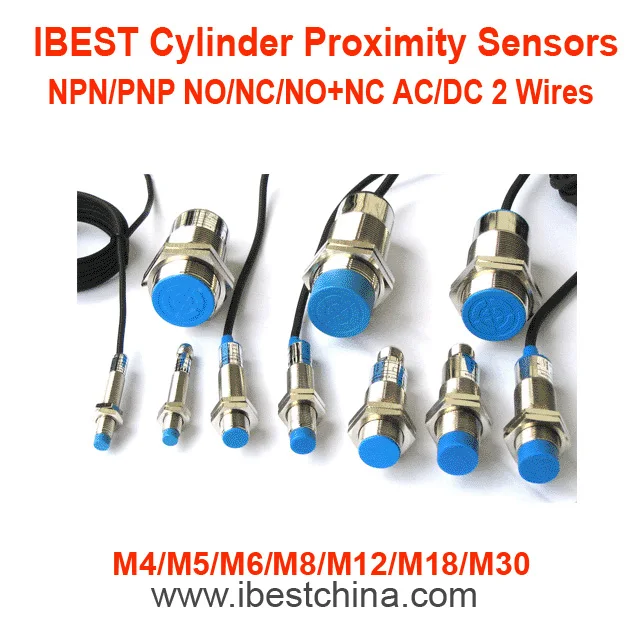

--      Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
--      Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc .

--      Reliable quality to replace famous brands .

2.Ordering code:

IPSI/L-30NO10B	NPN NO	10mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30NC10B	NPN NC	10mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30NO15B	NPN NO	15mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30NC15B	NPN NC	15mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30NOC10B	NPN NO+NC	10mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30NOC15B	NPN NO+NC	15mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30PO10B	PNP NO	10mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30PC10B	PNP NC	10mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30PO15B	PNP NO	15mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30PC15B	PNP NC	15mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30POC10B	PNP NO+NC	10mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30POC15B	PNP NO+NC	15mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30DO10B	DC 2 Wire NO	10mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30DC10B	DC 2 Wire NC	10mm,shielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30DO15B	DC 2 Wire NO	15mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30DC15B	DC 2 Wire NC	15mm,unshielded	≤200mA	DC 10-30V	Plug-in connector
IPSI/L-30AO10C	AC 2 Wire NO	10mm,shielded	≤300mA	AC 90-250V	Plug-in connector
IPSI/L-30AC10C	AC 2 Wire NC	10mm,shielded	≤300mA	AC 90-250V	Plug-in connector
IPSI/L-30AO15C	AC 2 Wire NO	15mm,unshielded	≤300mA	AC 90-250V	Plug-in connector
IPSI/L-30AC15C	AC 2 Wire NC	15mm,unshielded	≤300mA	AC 90-250V	Plug-in connector



3. Technical Specifications:

Property project Specific parameter Mounting distance shielded: 10mm / unshielded : 15mm (Or  special extended distance) Sensing distance shielded: 0-9.0mm / unshielded : 0-14.0mm Power supply DC 10-30V / AC 90-250V Frequency DC:  ≤500Hz / AC:≤20Hz Current output DC:≤ 200mA / AC: ≤ 300mA Ambient temperture -15-+65 C Protection DC:Over-Load & short circuit protection. IP rating IP67 Water Spray Resistant

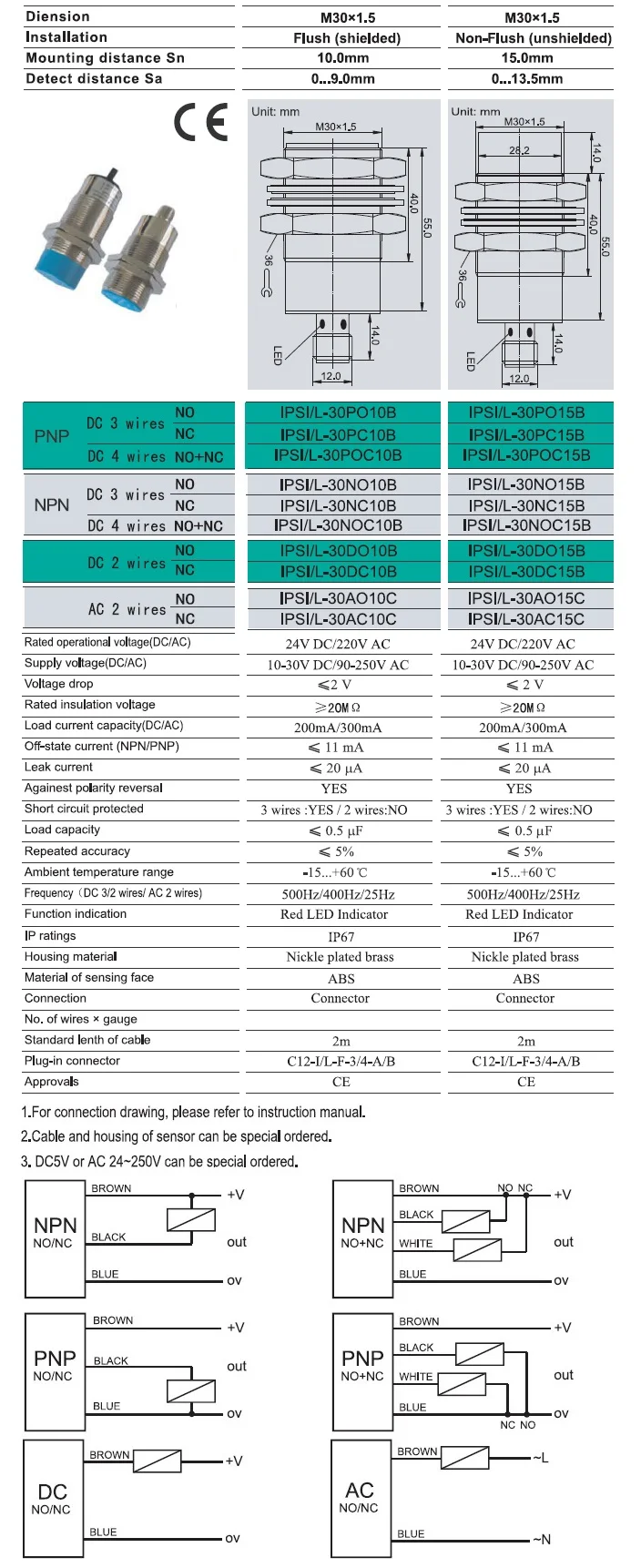

4. Dimensions:
