(at 5.0 mA, +25ºC, 2.0V cut off. The capacity restored by the cell varies according to current drain, temperature and cut off voltage.)
--------------------------------------------------------------------------------------------------------------------------- ♦ Rated voltage 3.6 V
--------------------------------------------------------------------------------------------------------------------------- ♦ Maximum recommended continuous current 600 mA (to get 50% of the nominal capacity at +25ºC with 2.0V cut off. Higher currents possible. Consult ACT.)
--------------------------------------------------------------------------------------------------------------------------- ♦ Pulse capability: varies according to pulse characteristics (frequency and duration), temperature, cell history (storage conditions prior to usage) and the application's acceptable minimum voltage.
--------------------------------------------------------------------------------------------------------------------------- ♦ Maximum pulse current capability 1000 mA ---------------------------------------------------------------------------------------------------------------------------
♦Storage (recommended) 30ºC max (possible without leakage) -55º+125ºC
--------------------------------------------------------------------------------------------------------------------------- ♦Operating temperature range -55º / +85ºC (Operation at temperature different from ambient may lead to reduced capacity and lower voltage plateau readings.)

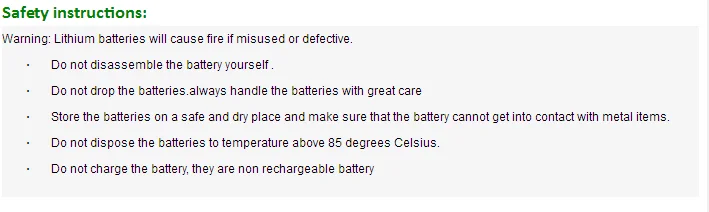

WARNING: Fire, explosion and severe burn hazard. Do not recharge, crush, disassemble, heat above 212ºF (100ºC), incinerate, or expose contents to water.

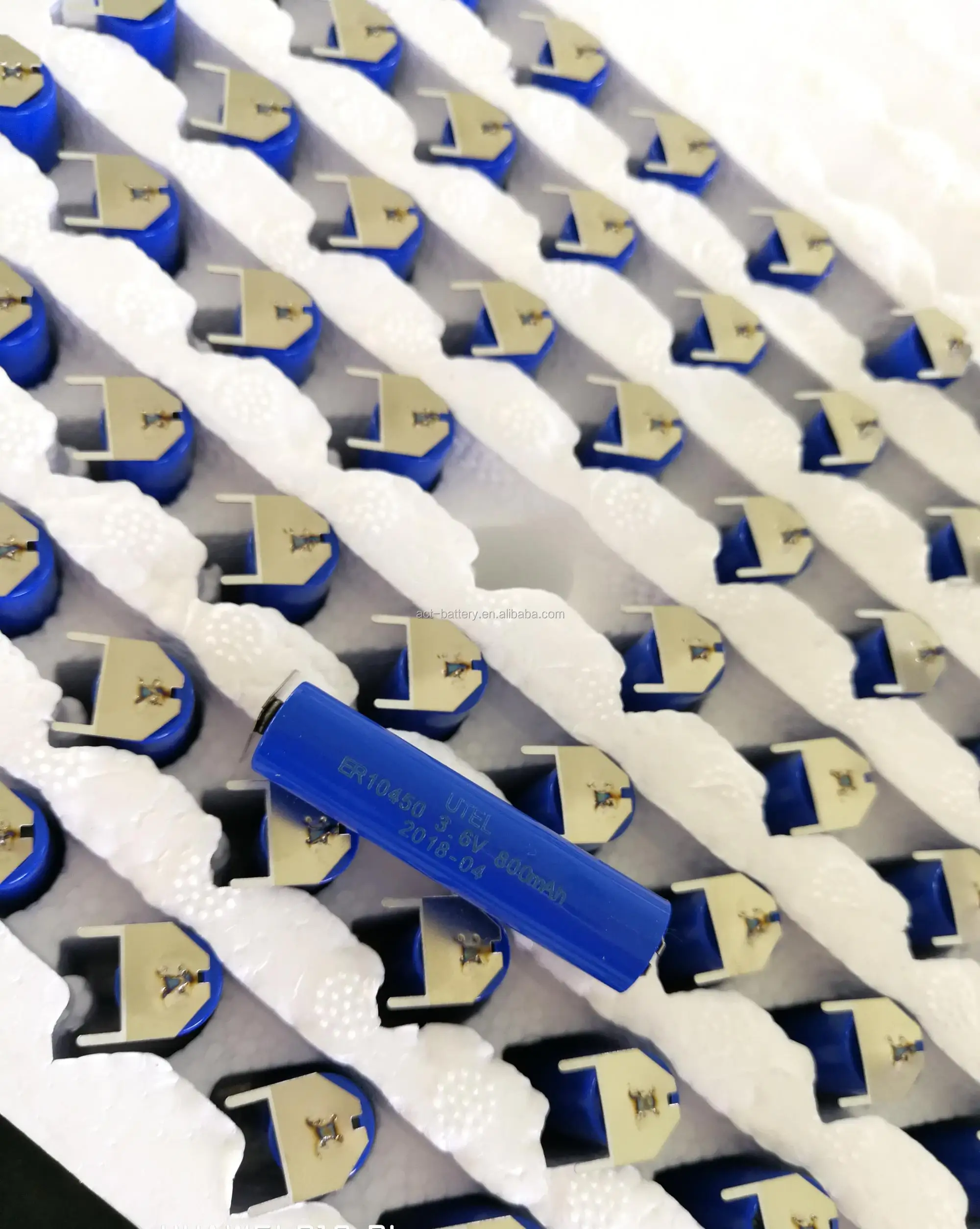

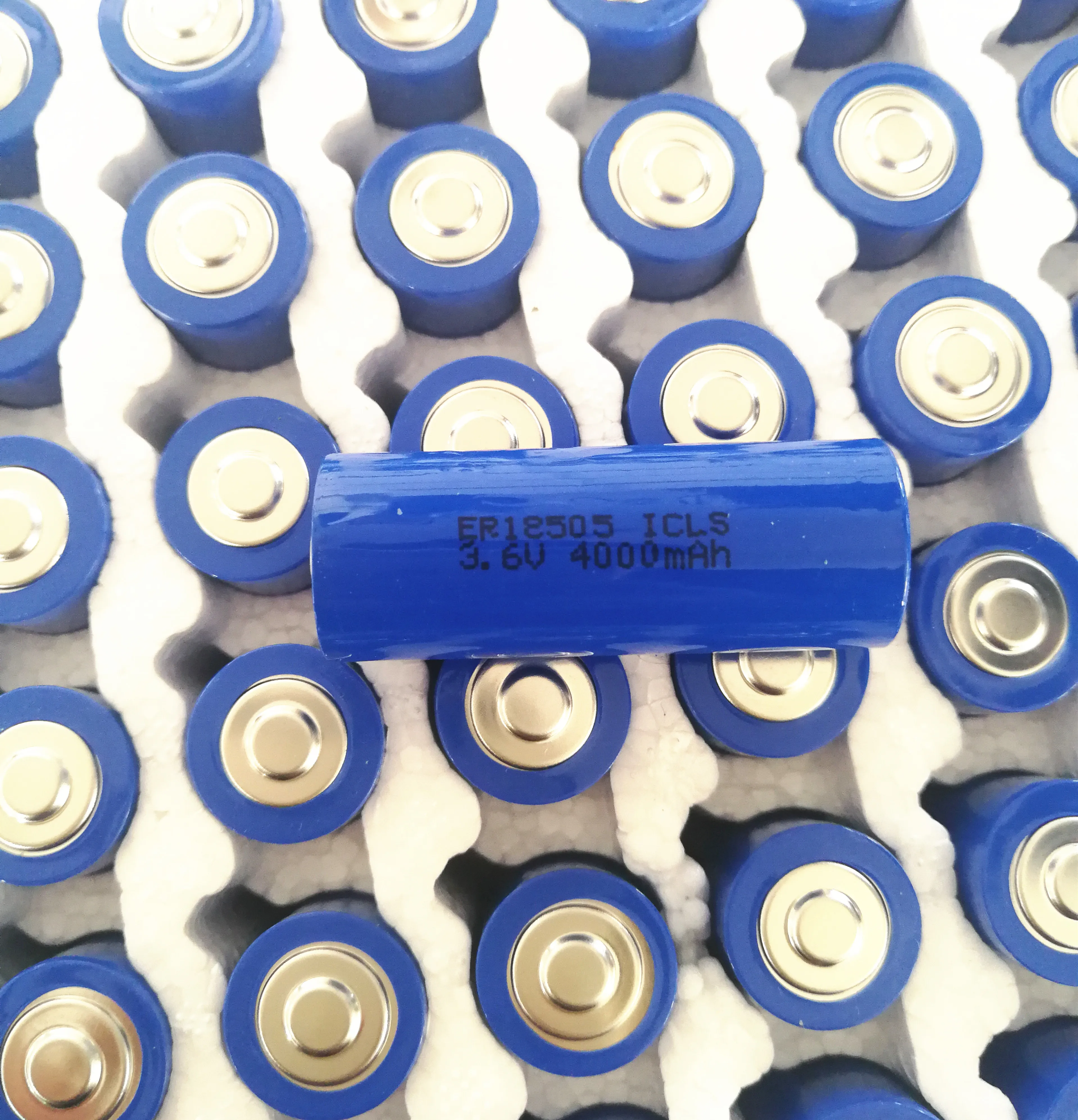

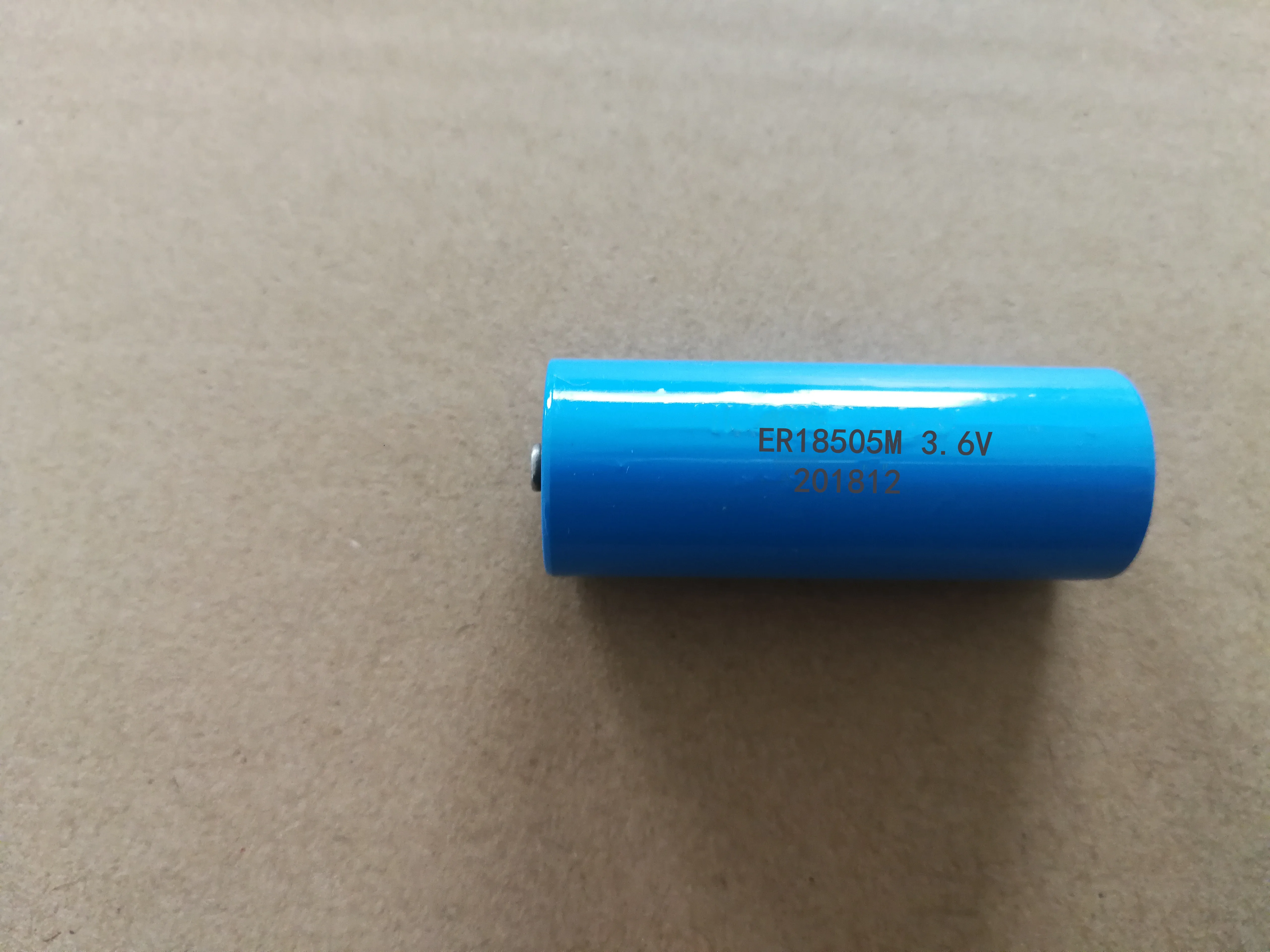

Battery View:

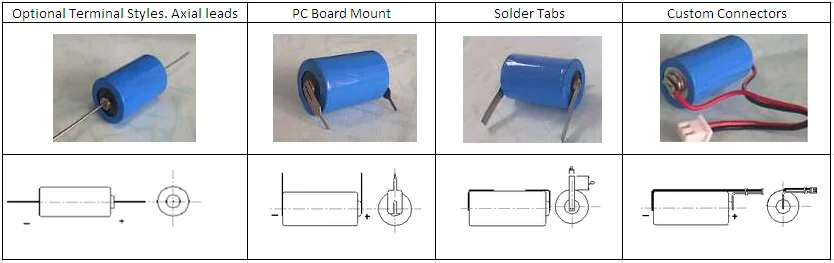

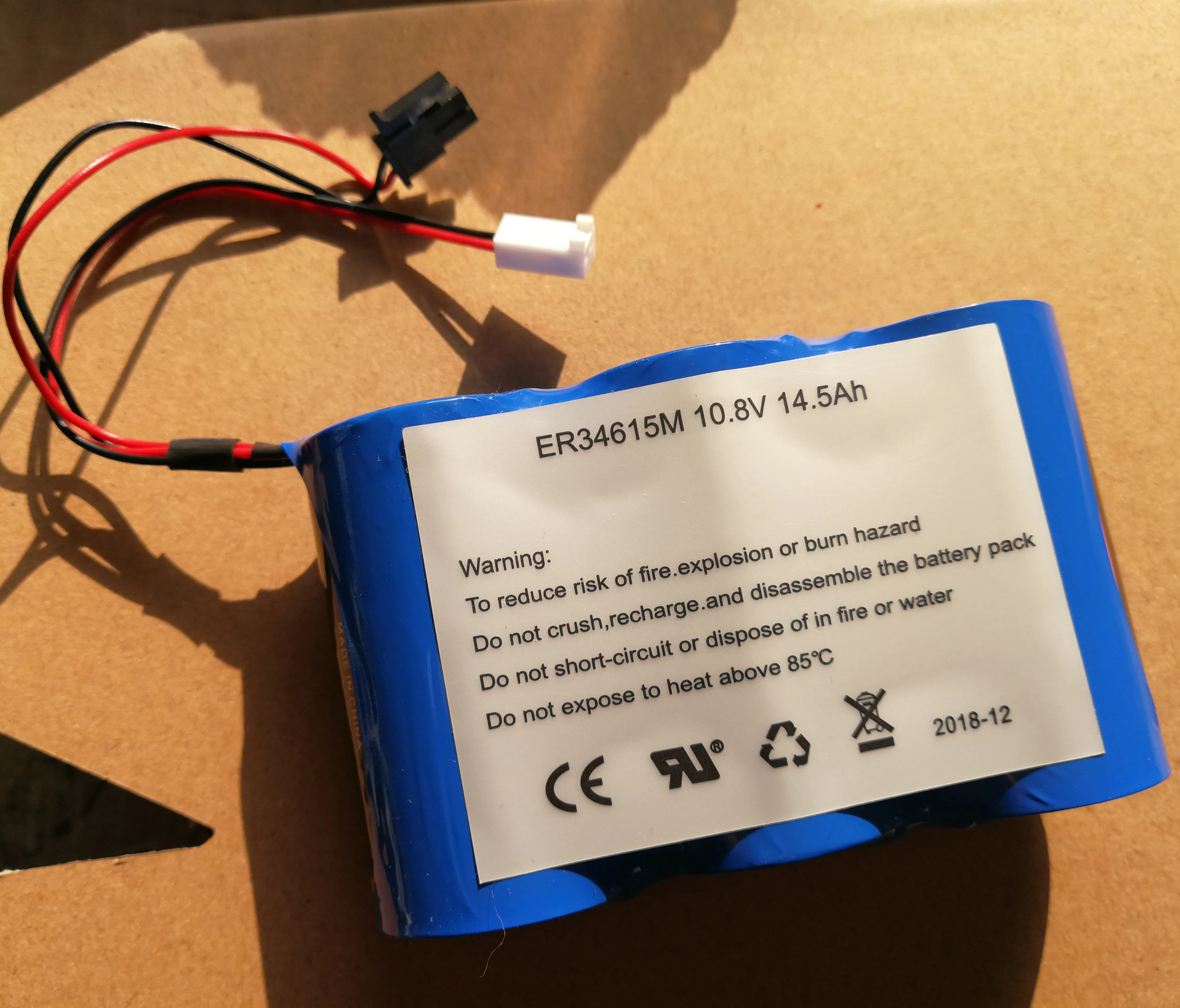

And you can customze the requirement battery with Nickel strip and Solder:
Battery feature:
High and stable operating voltage
High minimum voltage during pulsing
Low self-discharge rate(less than 1% after 1 year of storage at +25 °C)
Safety in use,Non-flammable electrolyte
Light weight, small size and high performance
Small internal resistance
Pollution free, long discharge life
Existing stock for short delivery time,Low price, high quality
OEM orders are available (battery pack, battery with spot welding ect,)
Hermetic glass-to-metal sealing
