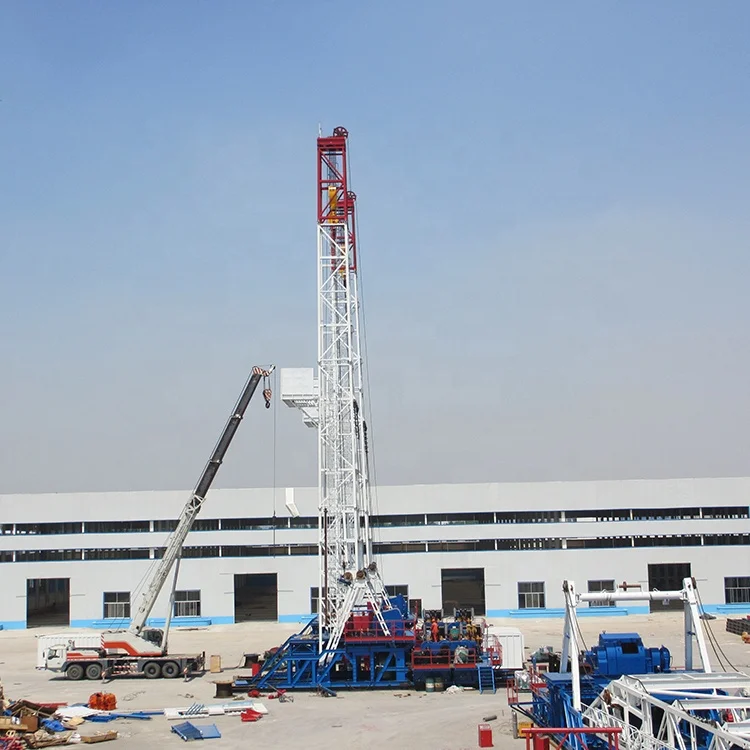

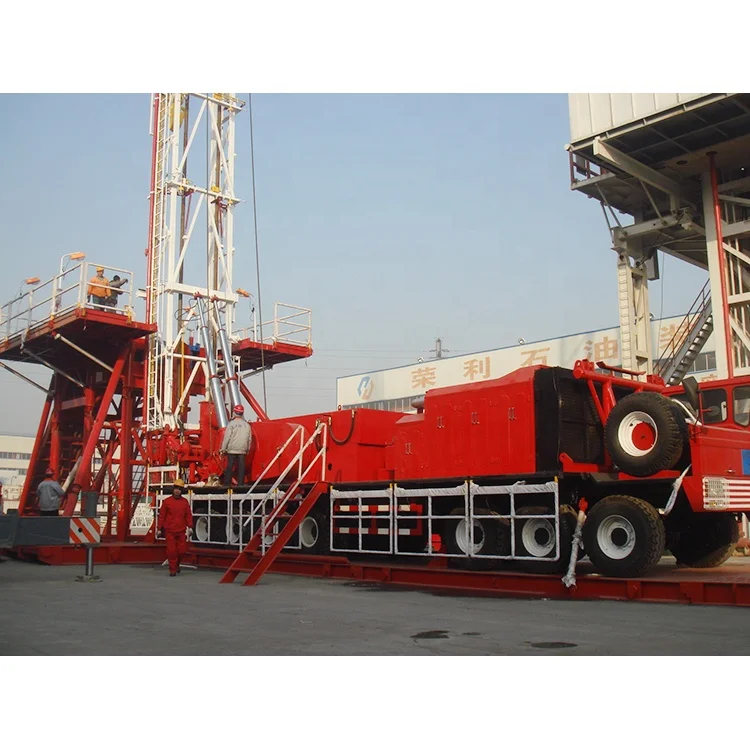

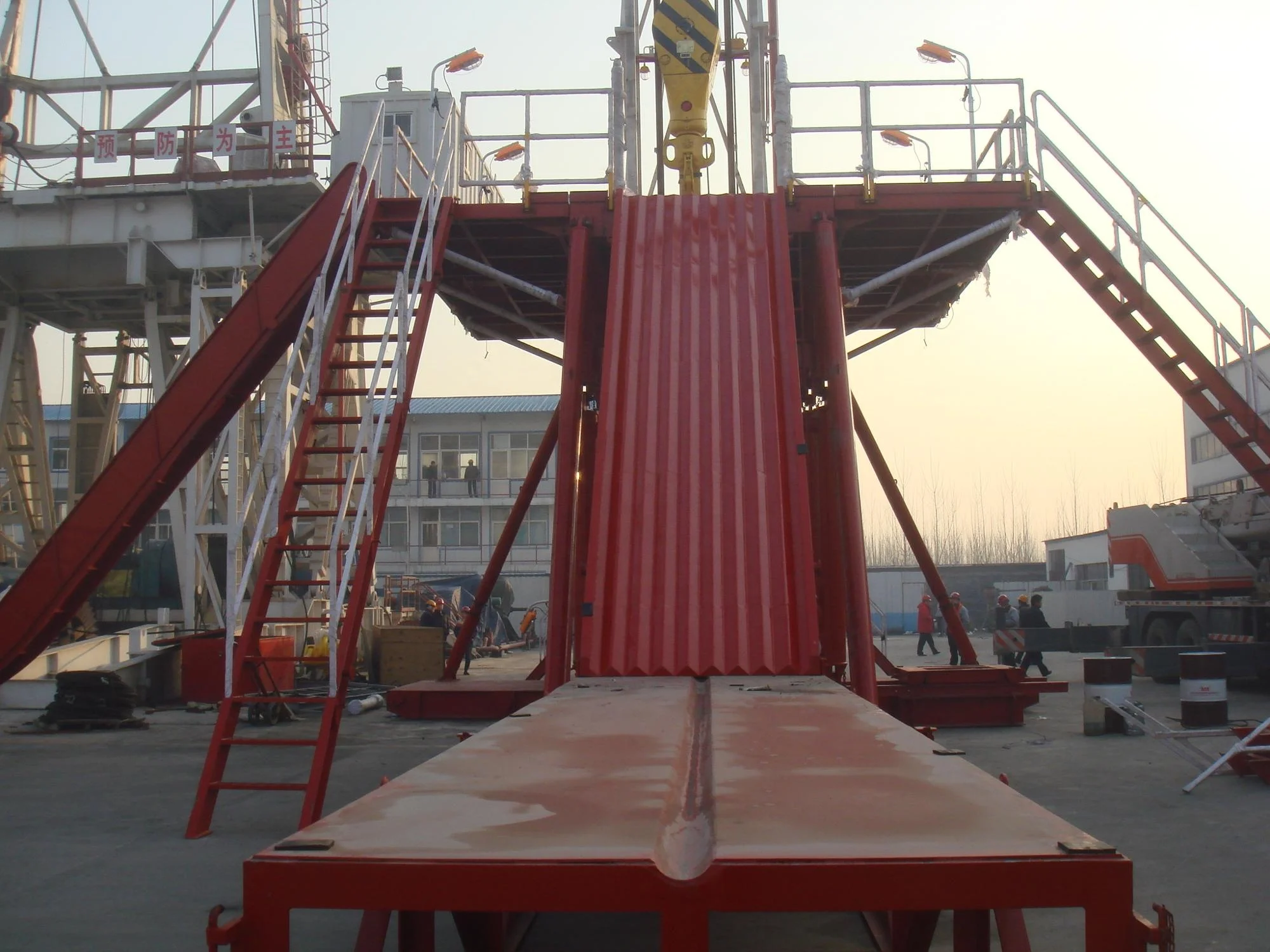

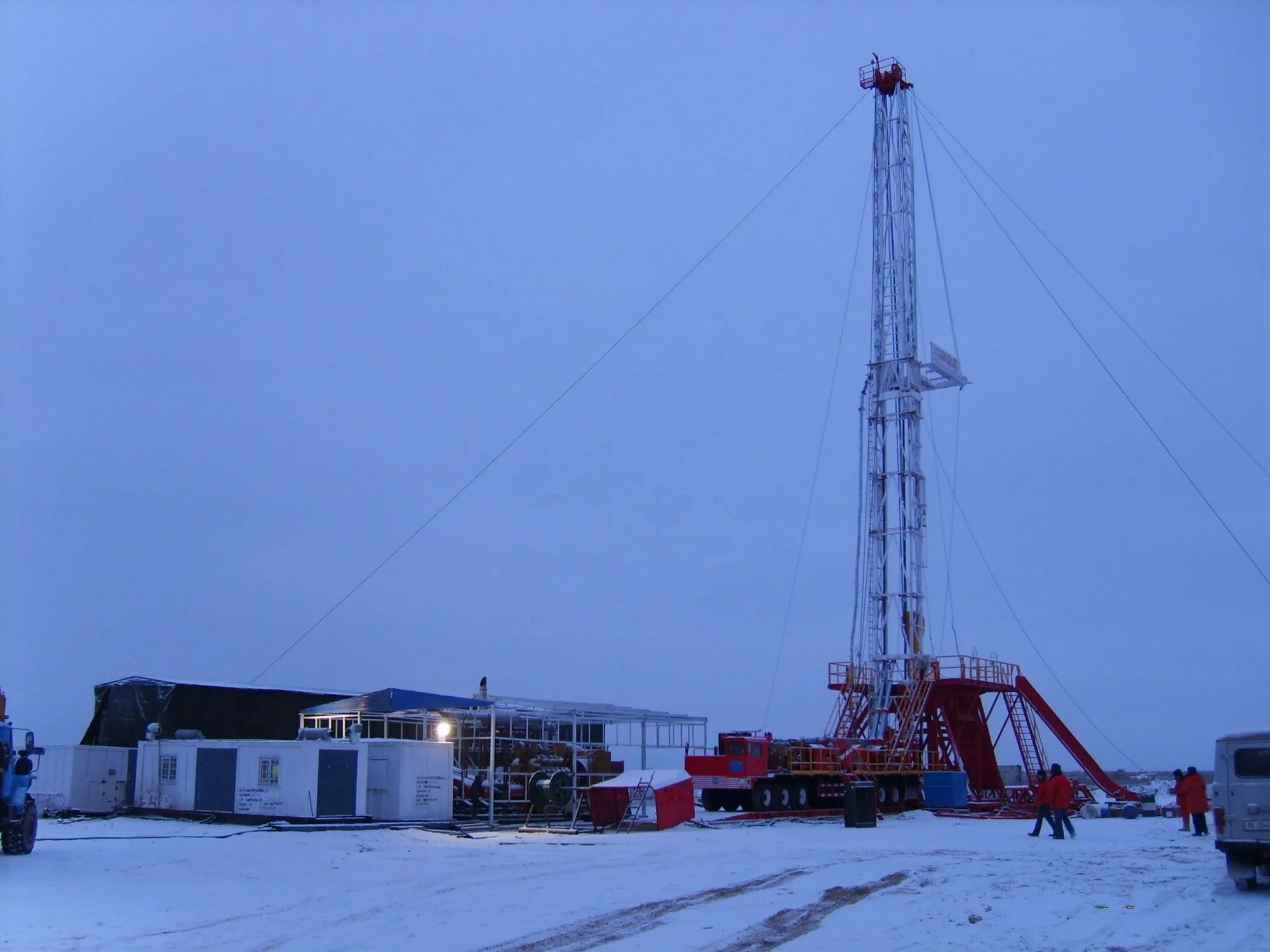

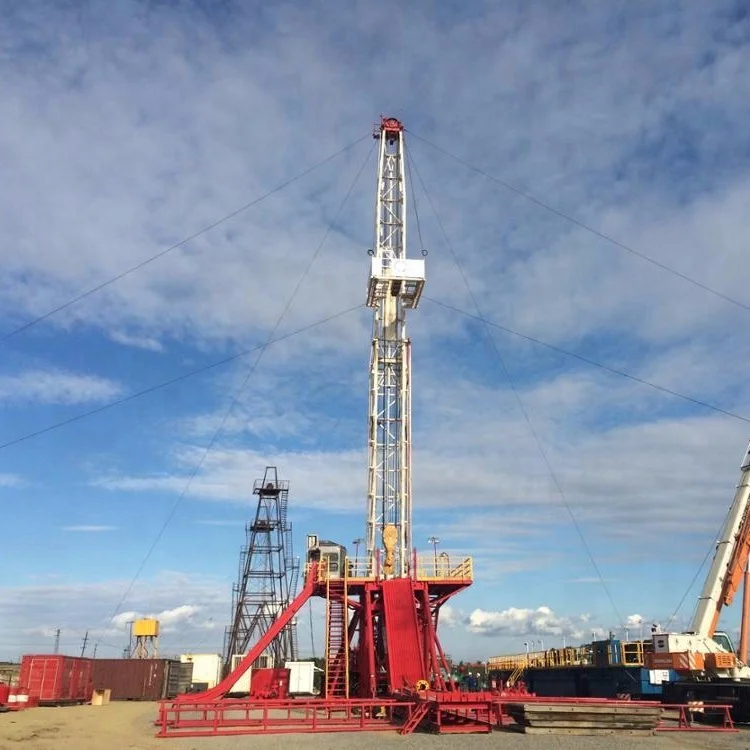

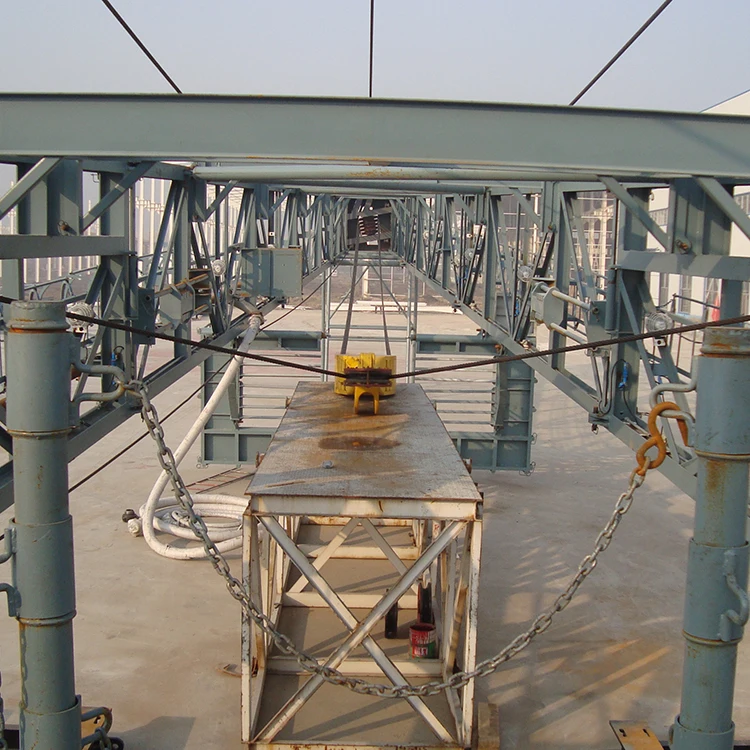

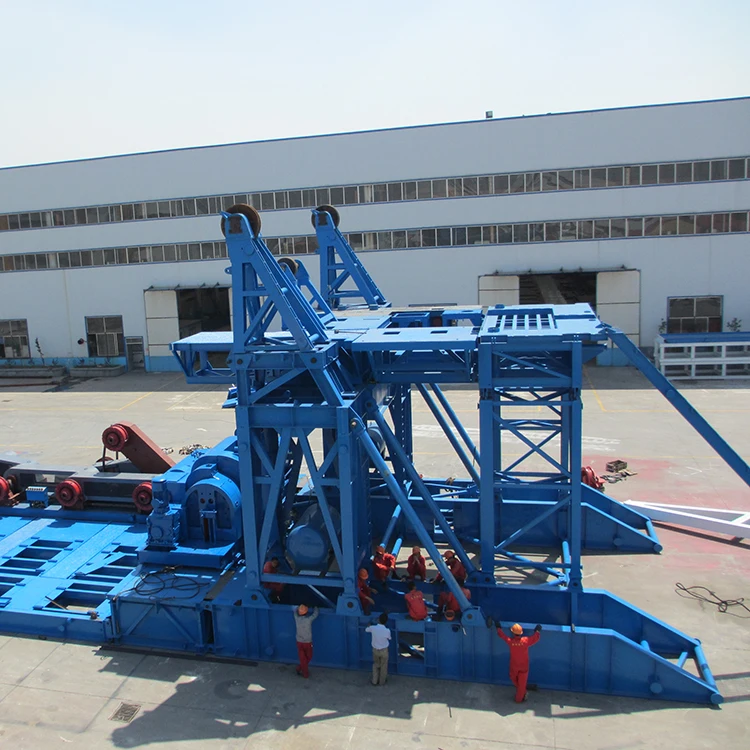

Machinery Drilling Depth Skid Mounted Oil well drilling rig

 Rig Model

ZJ15CZ

ZJ20CZ

ZJ30CZ

ZJ40CZ

NO.

ITEM

Specification

Specification

Specification

Specification

1

Installed Power

540HP (402KW)

630HP (470KW)

630 HP×2 (470 KW×2)

630 HP×2 (470 KW×2)

2

Max.Hook Load

1350kN

1580kN

2250kN

2250kN

3

Max. Drill String Load

500kN

700KN

1150KN

1150KN

4

Drawworks Rated Power

450HP

600HP

1000HP

1000HP

5

Transmission Mode

Hydraulic+Mechanical

Hydraulic+Mechanical

Hydraulic+Mechanical

Hydraulic+Mechanical

6

Drive Mode

10×8

12×8

14×10

14×10

7

Nominal Drilling Depth (4 1/2"DP)

1500m

2000m

4000m

4000m

8

Mast Height

33m

35m

38m

38m

9

Rig Floor Height

4.5m

4.5m

6m

6m

10

Wirerope Diameter

26mm

29mm

32mm

32mm

11

Hydraulic System

14MPa

14MPa

21MPa

21MPa

12

Pneumatic System

0.8MPa

0.8MPa

0.8MPa

0.8MPa

13

Overall Size

19.37×3.05×4.49m

(Including Mast)
14.6×3.05×3.1m

(Without Mast)

20.1×3.05×4.49m

(Including Mast)
15.56×3.05×3.1m

(Without Mast)

23×3.2×4.8m

(Including Mast)
16. 56×3.2×3.2m

(Without Mast)

23×3.2×4.8m

(Including Mast)
16. 56×3.2×3.2m

 (Without Mast)
