Washing machine door lock, door lock, Interlock

Share on (60837830506):


Price:

Quantity:


Product Overview

Description


Product Description

Door Lock for Washing Machine

Model No.: NVDL-04
Specifications:

Rating: 16(6)A 250 VAC

Dielectric Strength: 1450VAC 1 minute

Insulation Resistance: >100MΩ

Terminals: 6.3 ×0.8

Locking Time(20℃): 2s~6s

Unlocking Time(20℃): 35~65s


Material: Plastic

Color: White or black


Use: Control washing machine door open or close

Detailed Images

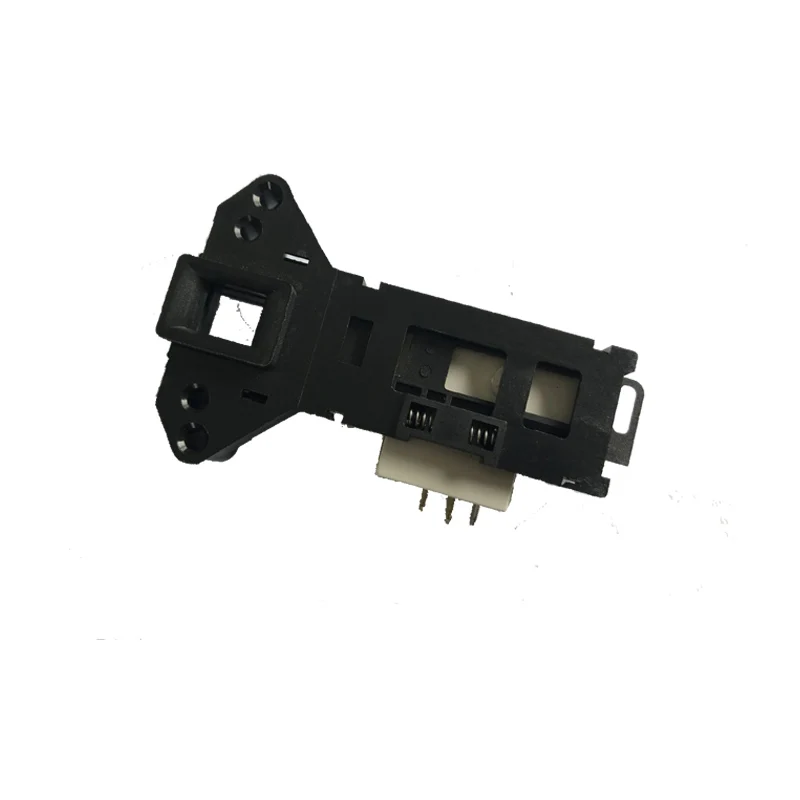

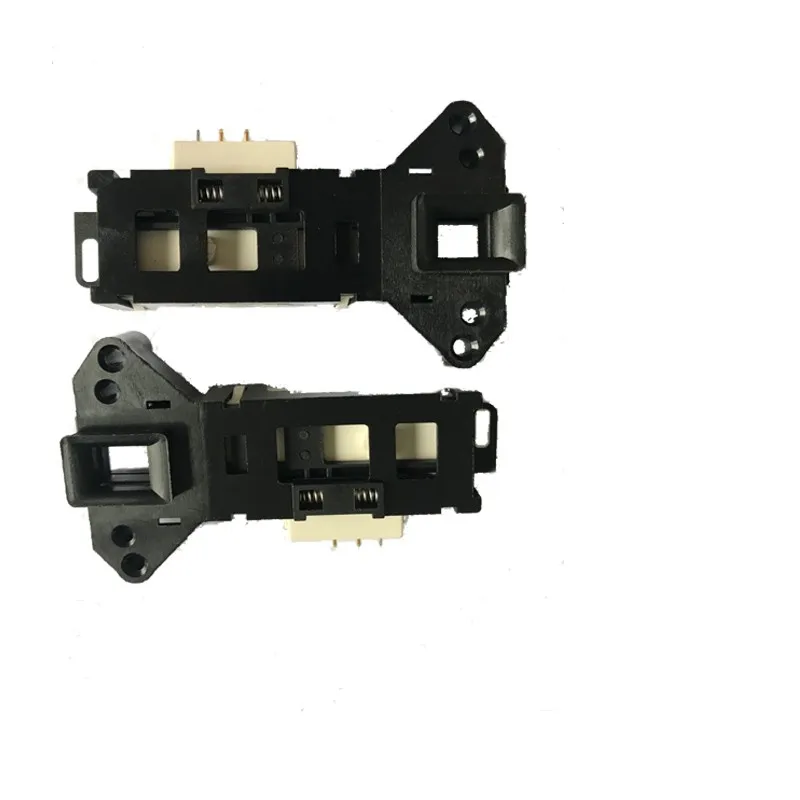

Complete picture.

 For total review

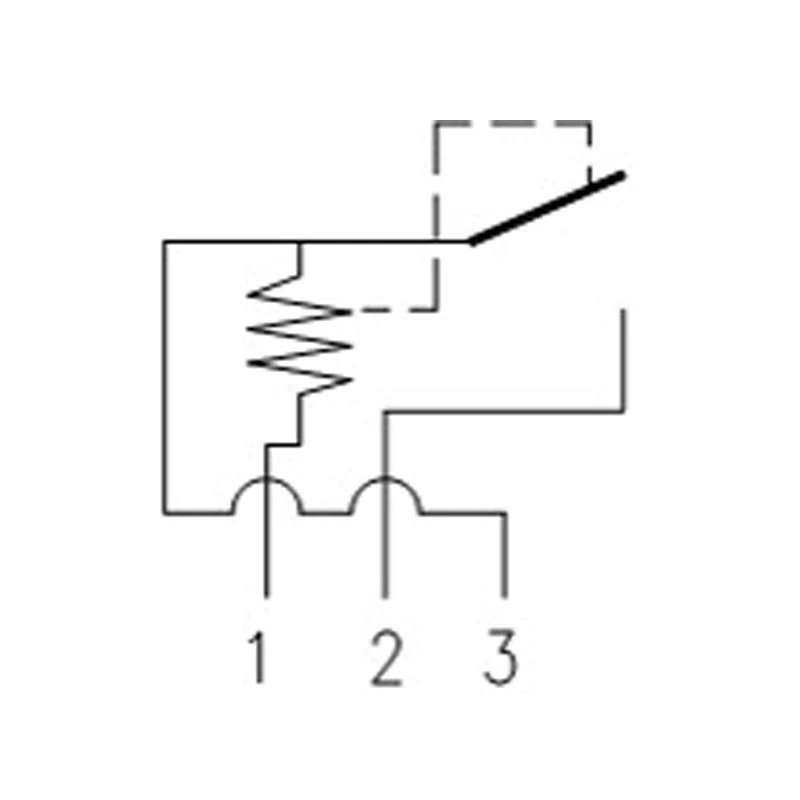

Circuit Diagram.

Instructing the connecting

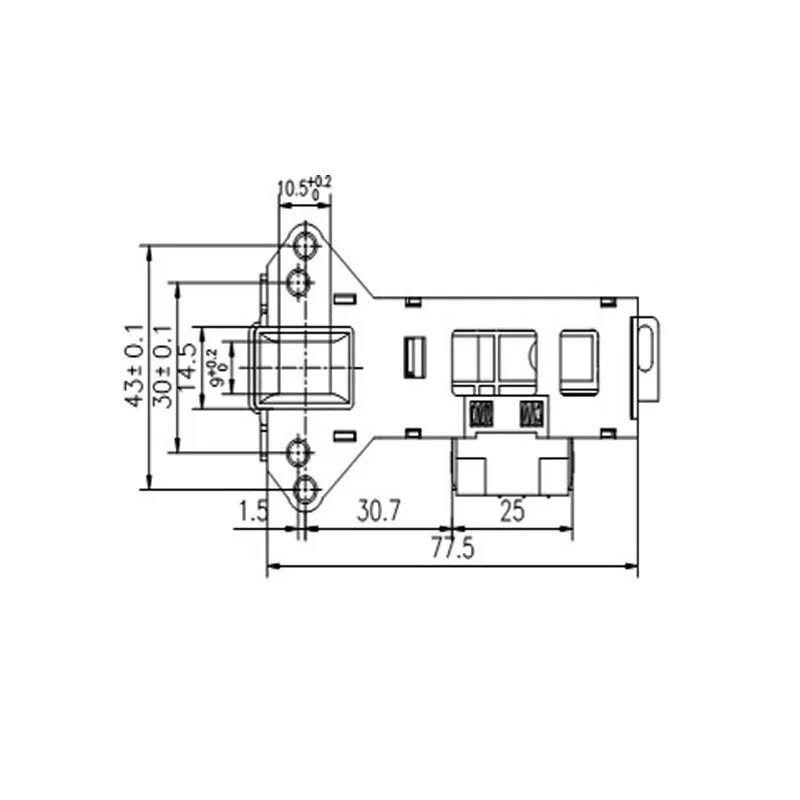

Dimensions.

For size checking

Packing & Delivery

200pcs/carton

Master carton with pallet
