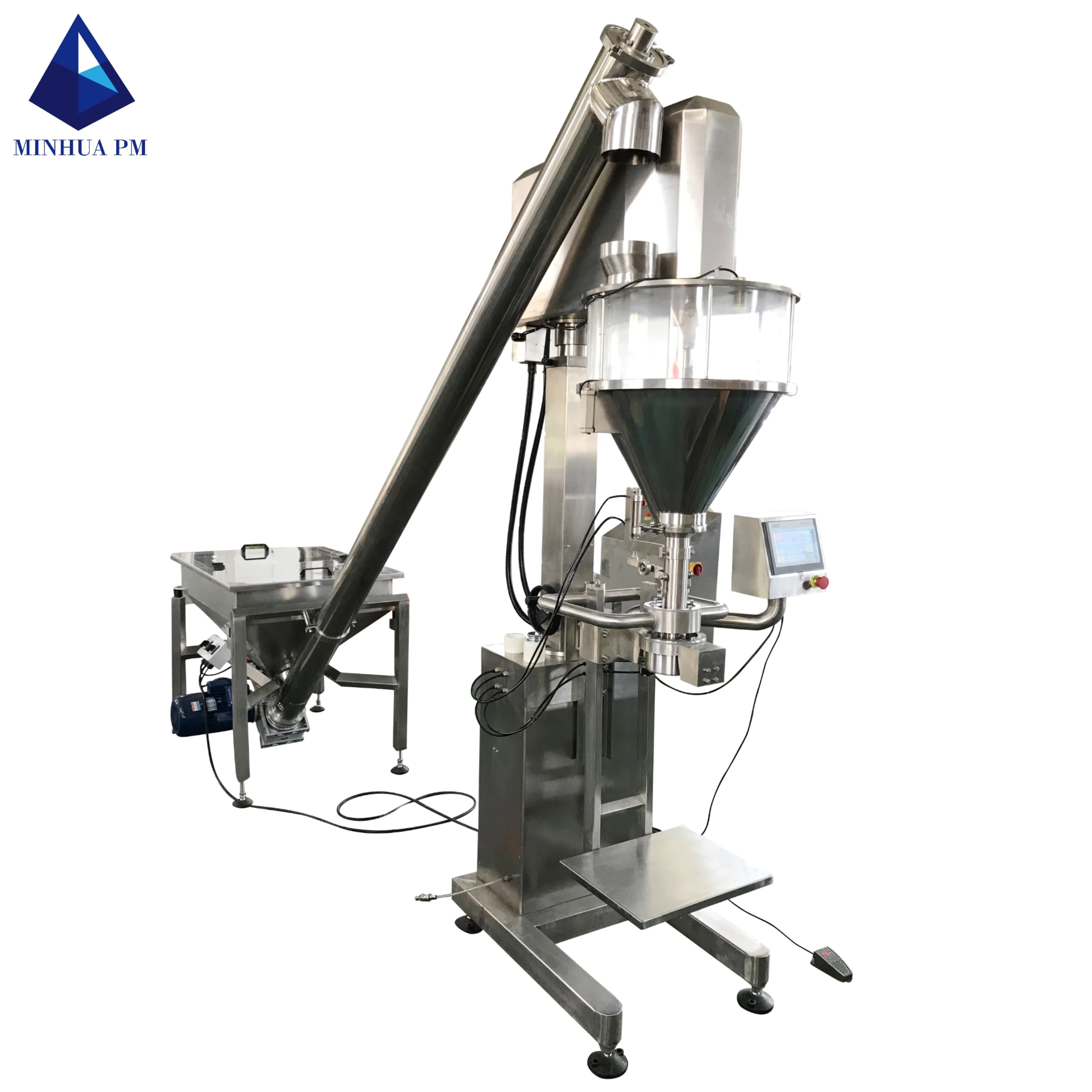

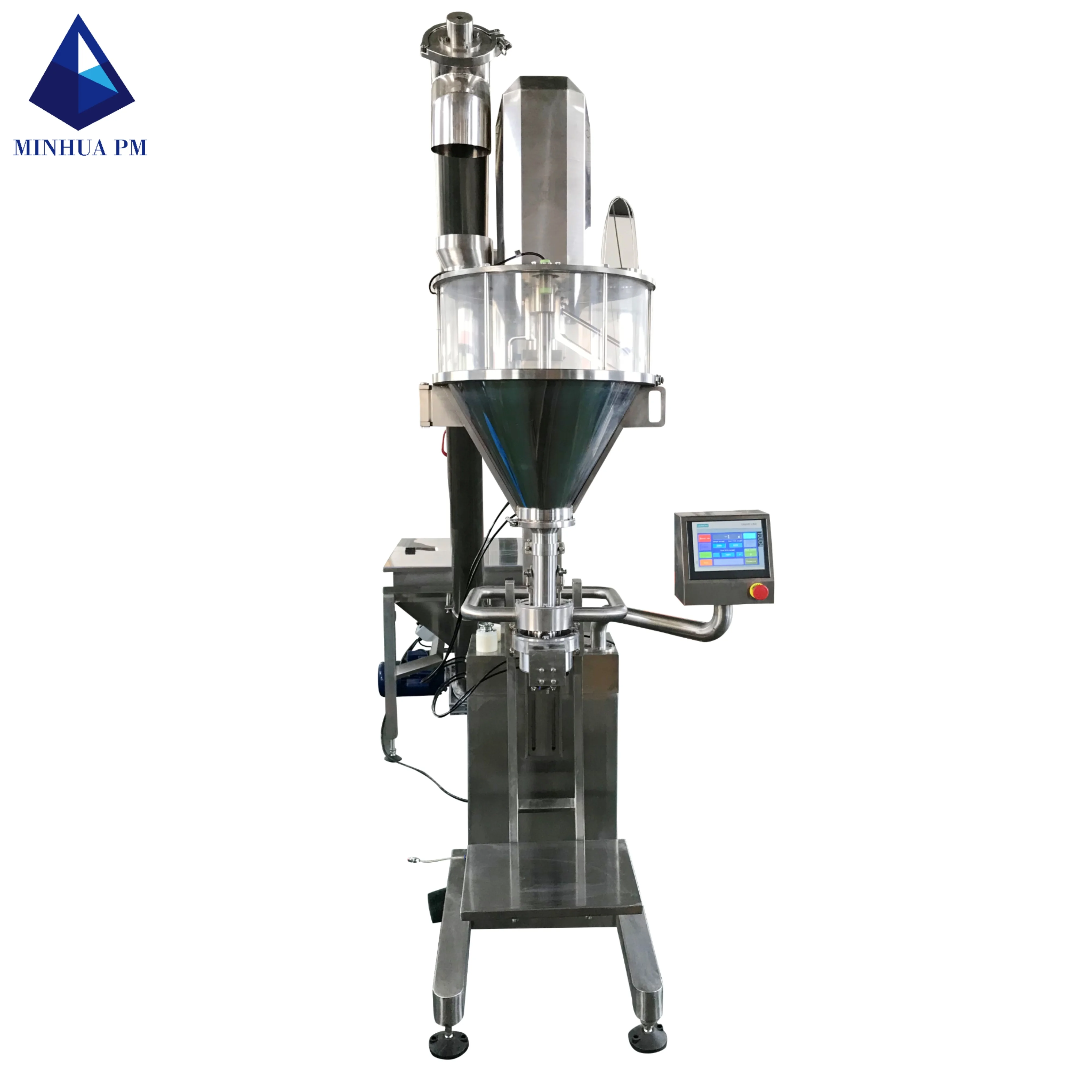

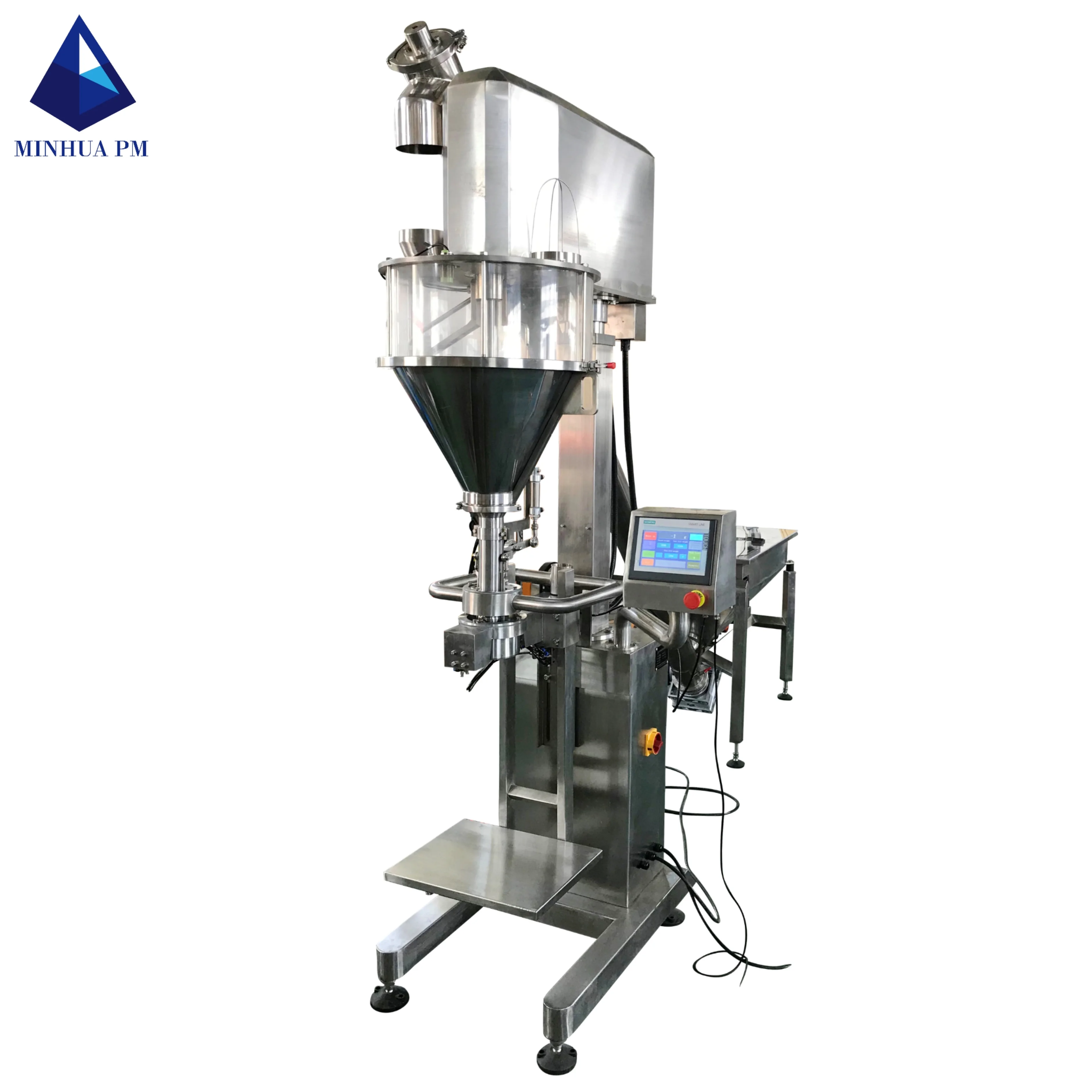

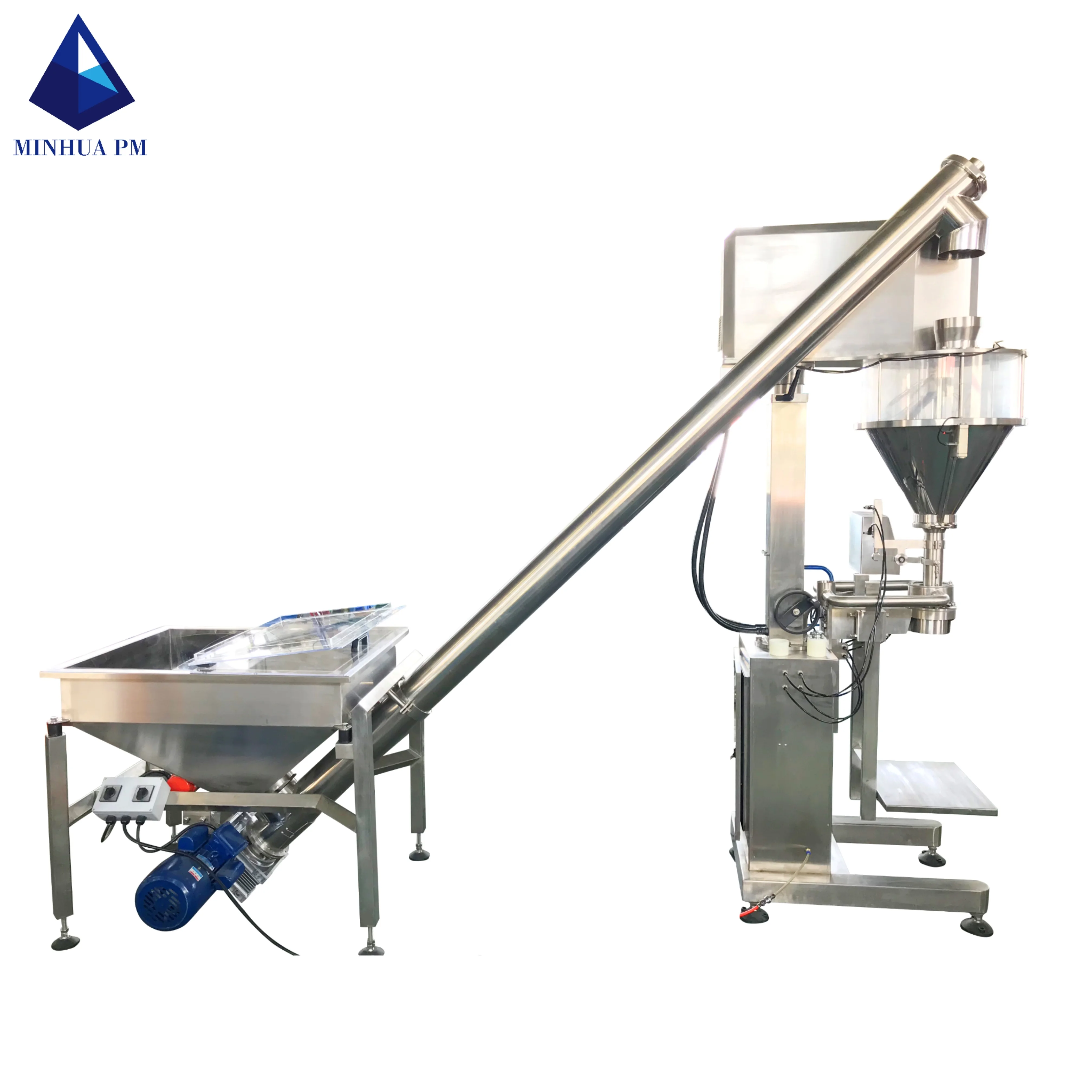

Vertical Automatic Auger Filler Screw Conveyor powder Filling Machine
———Descriptions———
This model is designed mainly for the fine powder which easily to spout dust and height-accuracy packing requirement .based on the feedback sign given by below weight sensor ,this machine do measuring ,two-filling ,and up-down work ,etc ,it is specially suitable for filling carbon powder ,dry powder of fire extinguisher ,and other fine powder which needs high packing accuracy .
Main Features :
Weight sensor is below the tray ,to do fast filling and slow filling based on the pre-set weight , to guarantee the high packing accuracy .
Servo motor does up-down work driving with tray together ,the up-down rate can be set randomly ,no dust spouts out when filling,

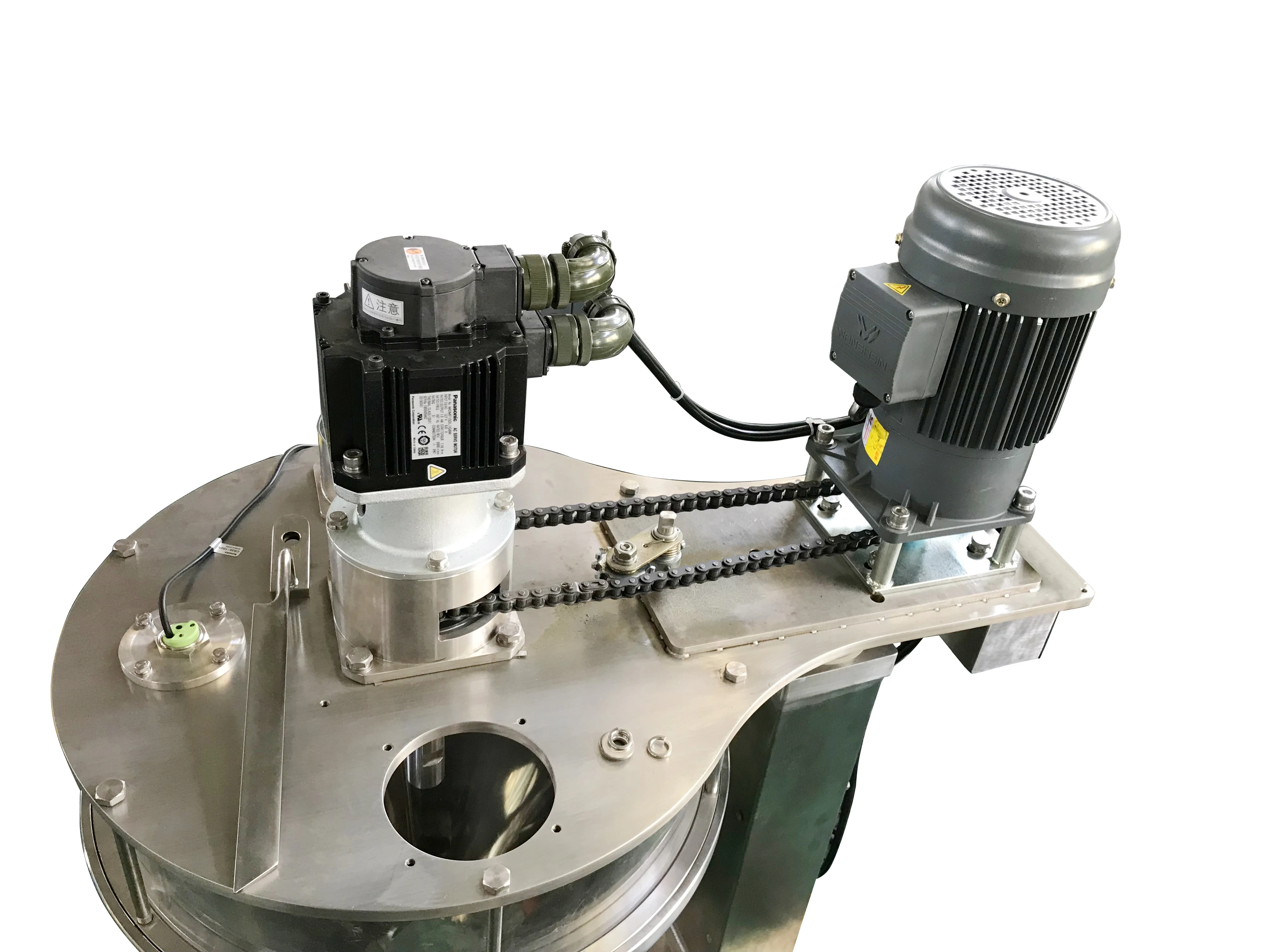

With servo motor and servo driver controlled auger ,perform stably ,and with high accuracy .

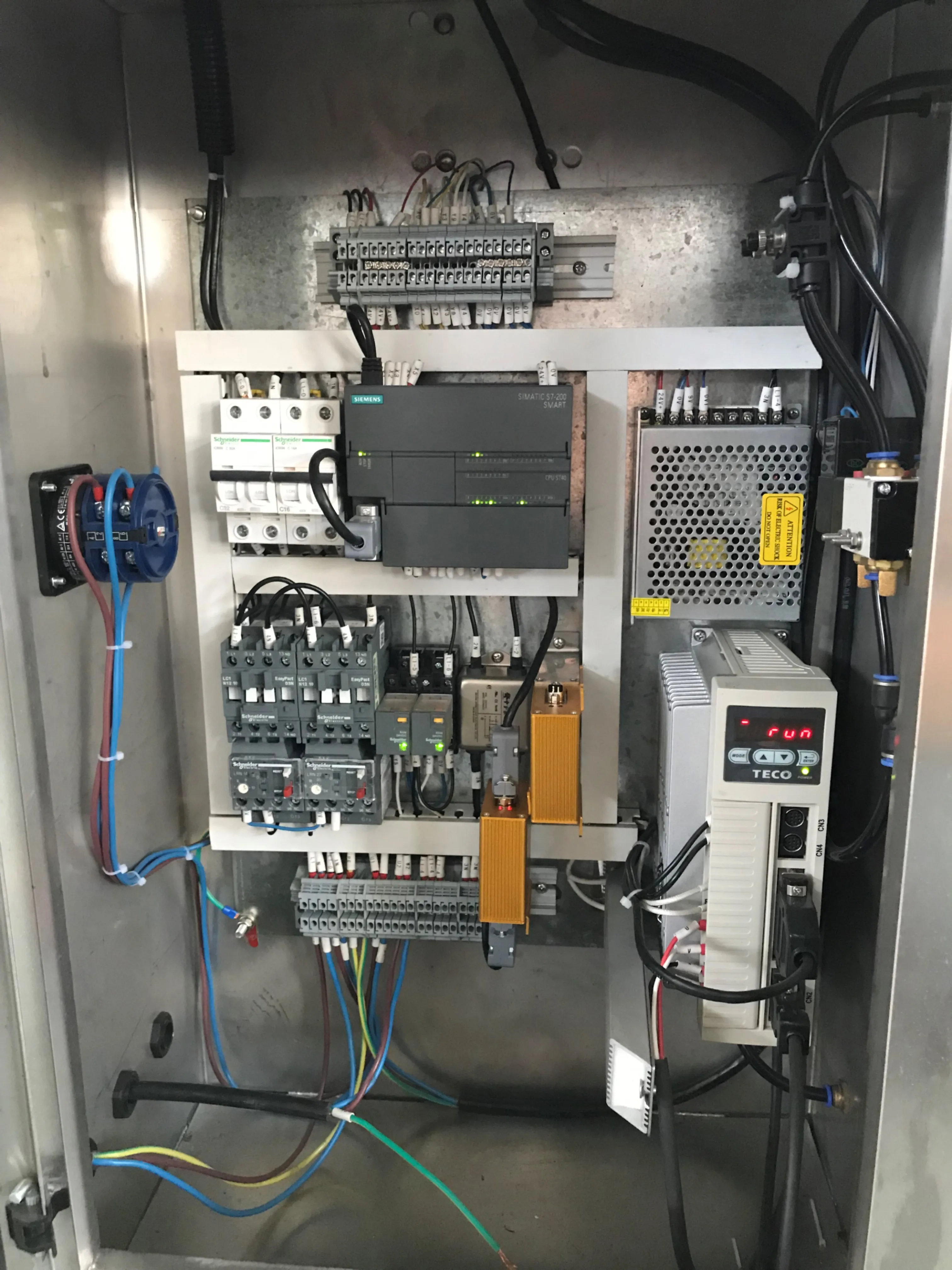

PLC control ,touch screen display ,easy to operate .

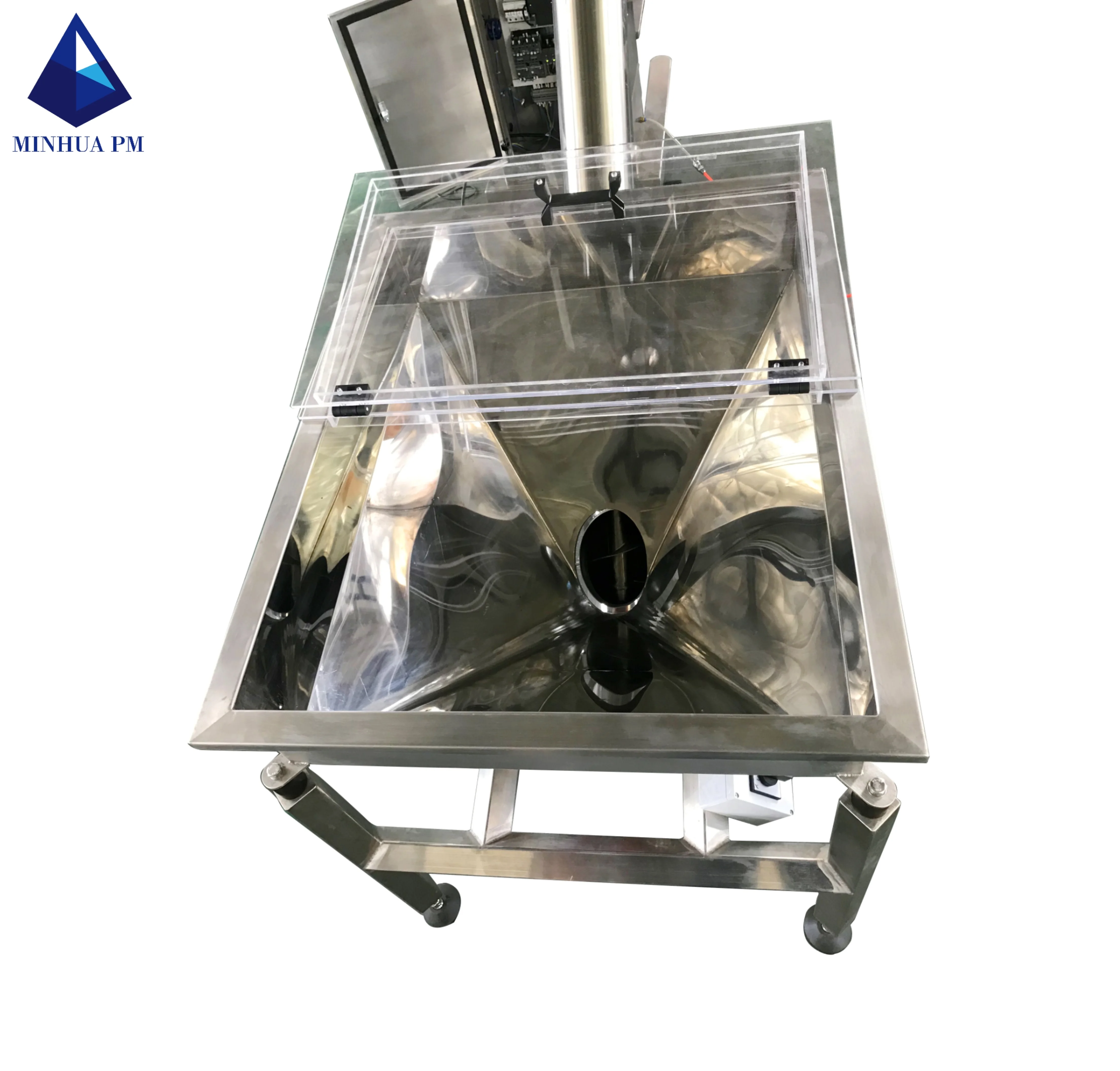

Made of stainless steel ,combined hopper ,easily to be cleaned ,
With hand wheel-to adjust the height ,easy to fill many kinds of weight .

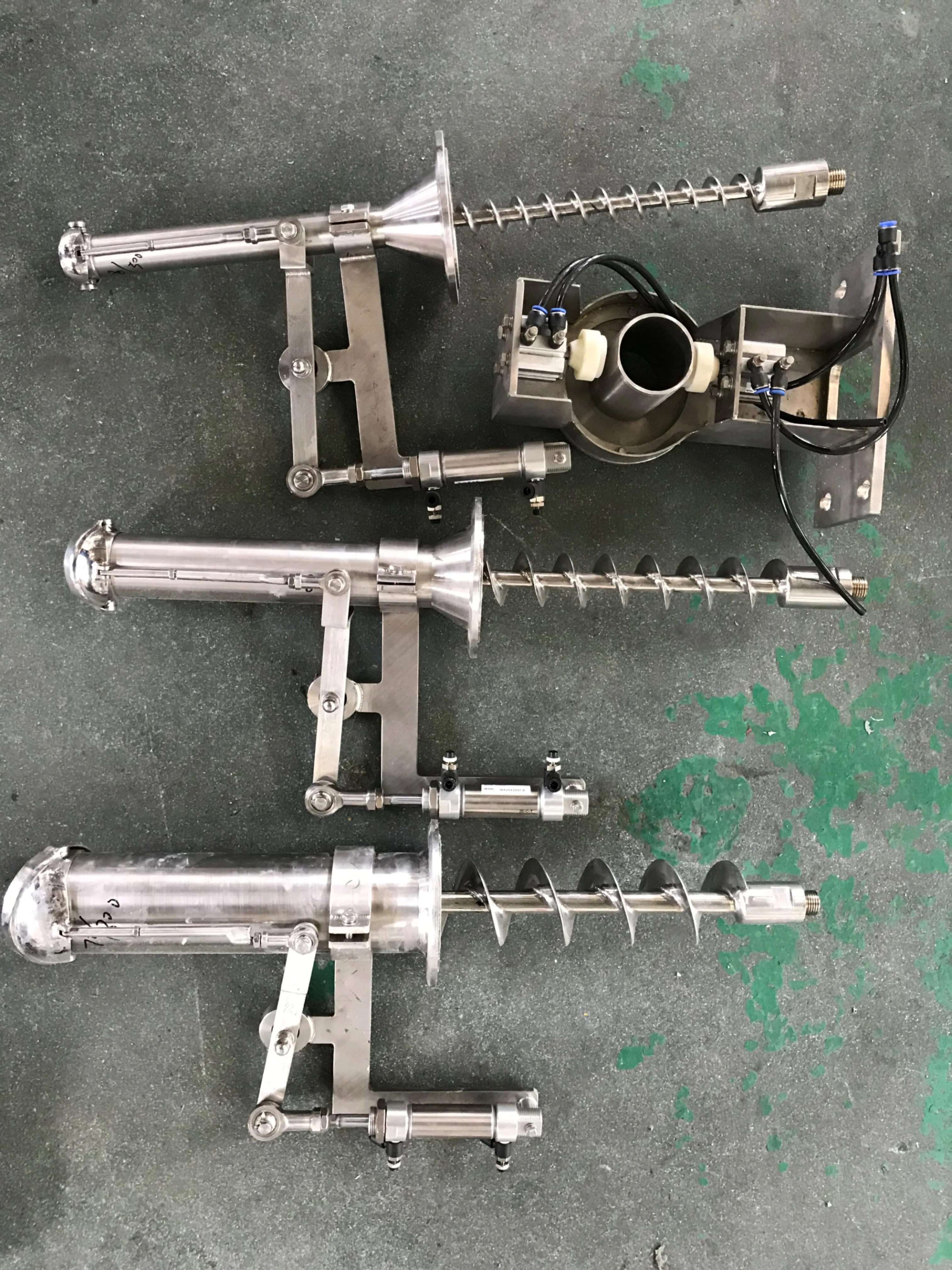

With fixed screw installation ,the material quality won’t be effected .
Process : put bag /can (container ) on the machine –container raise – fast filling ,container declines --- weight reaches the pre – set number ---slow filling ---weight reaches the goal number --- take the container away manually .
———Technical Parameters———
Model | DCS-5B-1 | DCS-5B-2 |
Feeding Mode | 100g-10kg | 1-50kg |
Filling Weight | 100-1000g,≤±2g; >1kg, ≤±0.1-0.2% | ≤±0.1-0.2% |
Filling Rate | 5-30 times/min | 5-25 times/min |
Power Supply | 3P AC 208-415V 50/60Hz | 3P AC 208-415V 50/60Hz |
Total Power | 2.2kw | 2.7kw |
Total Weight | 350kg | 400kg |
Overall Dimensions | 1000x850x2300 mm | 1100x950x2500 mm |
Hopper volume | 70L | 100L |

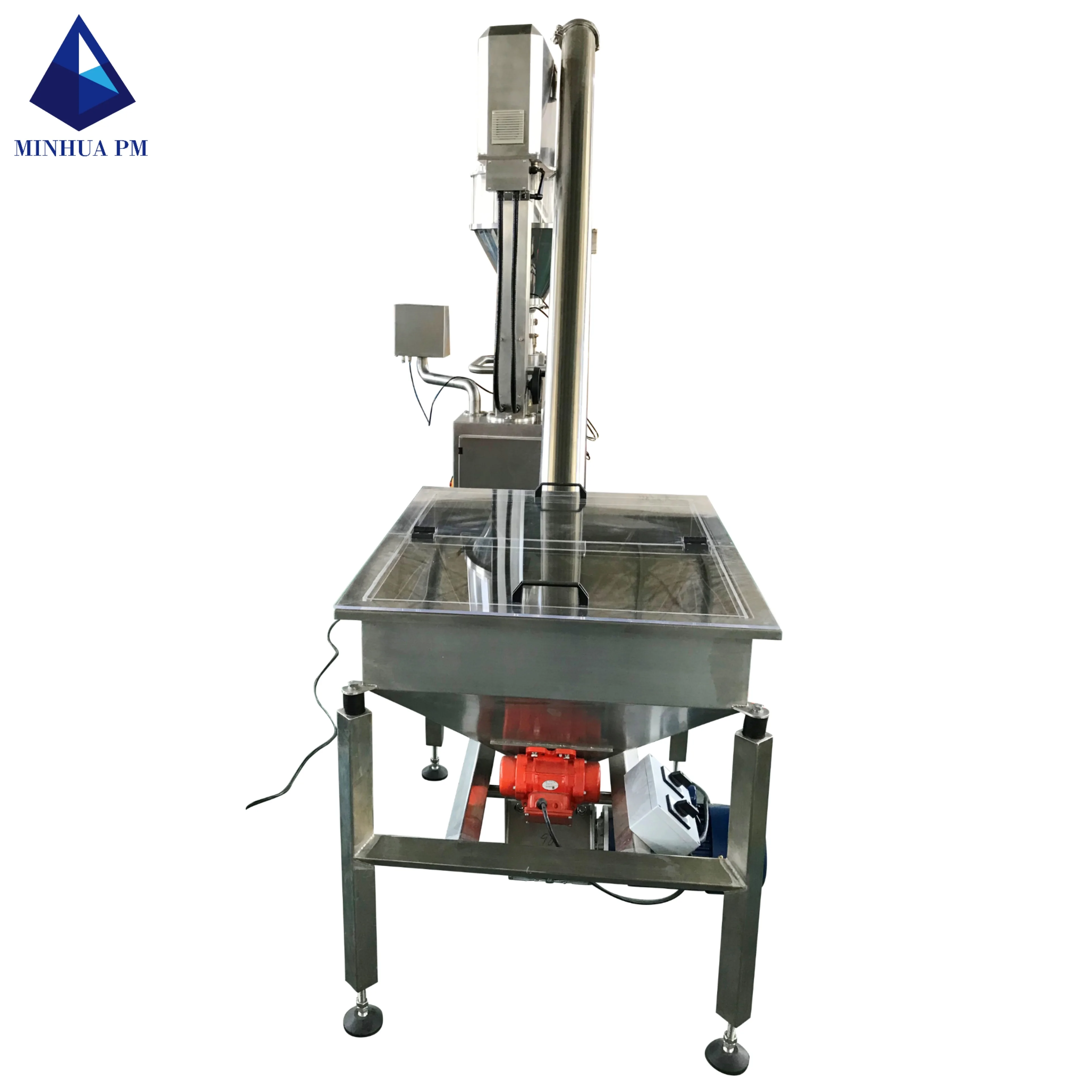

———Product image———
Features
——Features——
1. Weight sensor is below the tray, to do fast filling and slow filling based on the pre-set weight, to
guarantee the high packaging accuracy.
2. Servo motor does up-down work driving with tray together, the up-down rate can be set randomly,
no dust spouts out when filing.
3. With servo motor and servo driver control auger, perform stably, and with high accuracy.
4. PLC control, touch screen display, easy to operate.
5. Made of stainless steel, combined hopper, easily to be cleaned.
6. With handwheel to adjust the height, easy to fill many kinds of weight.
7. With fixed screw installation, the material quality won't be effected.
8. Process: put bag/can(container) on the machine → container raise → fast filling, container declines →weight reaches the pre-set number → slow filling → weight reaches the goal number → take the container away manually.
Note: the pneumatic bag-clamp equipment and can-hold set is optional, they are suitable for can or bag
filling separately.
