Galaxy Jet X 6090 ceramic 3d printer wedding invitation card printing machine a1 uv printer

Product Overview

Description

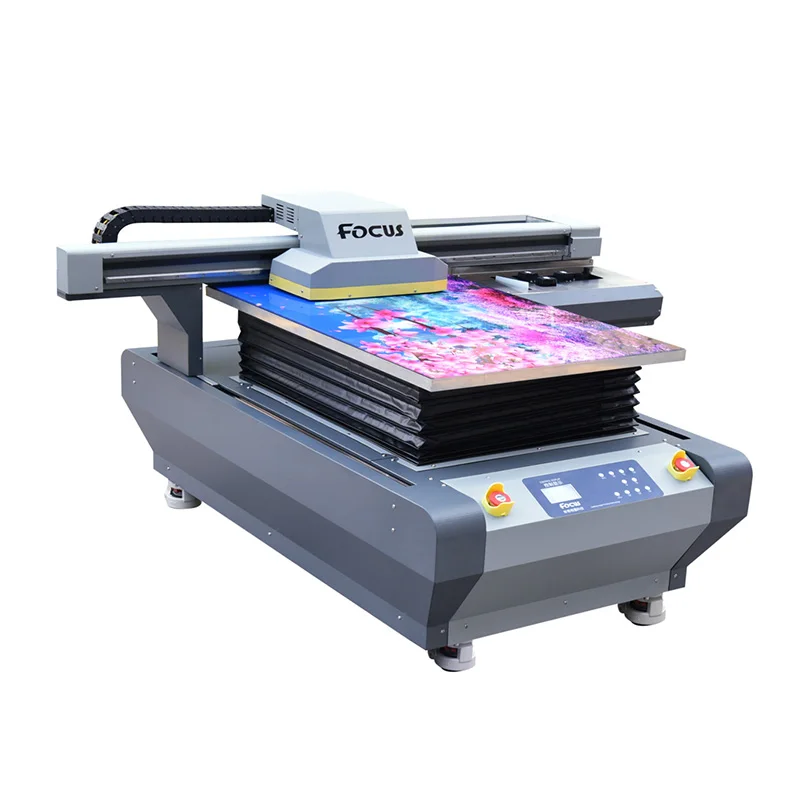

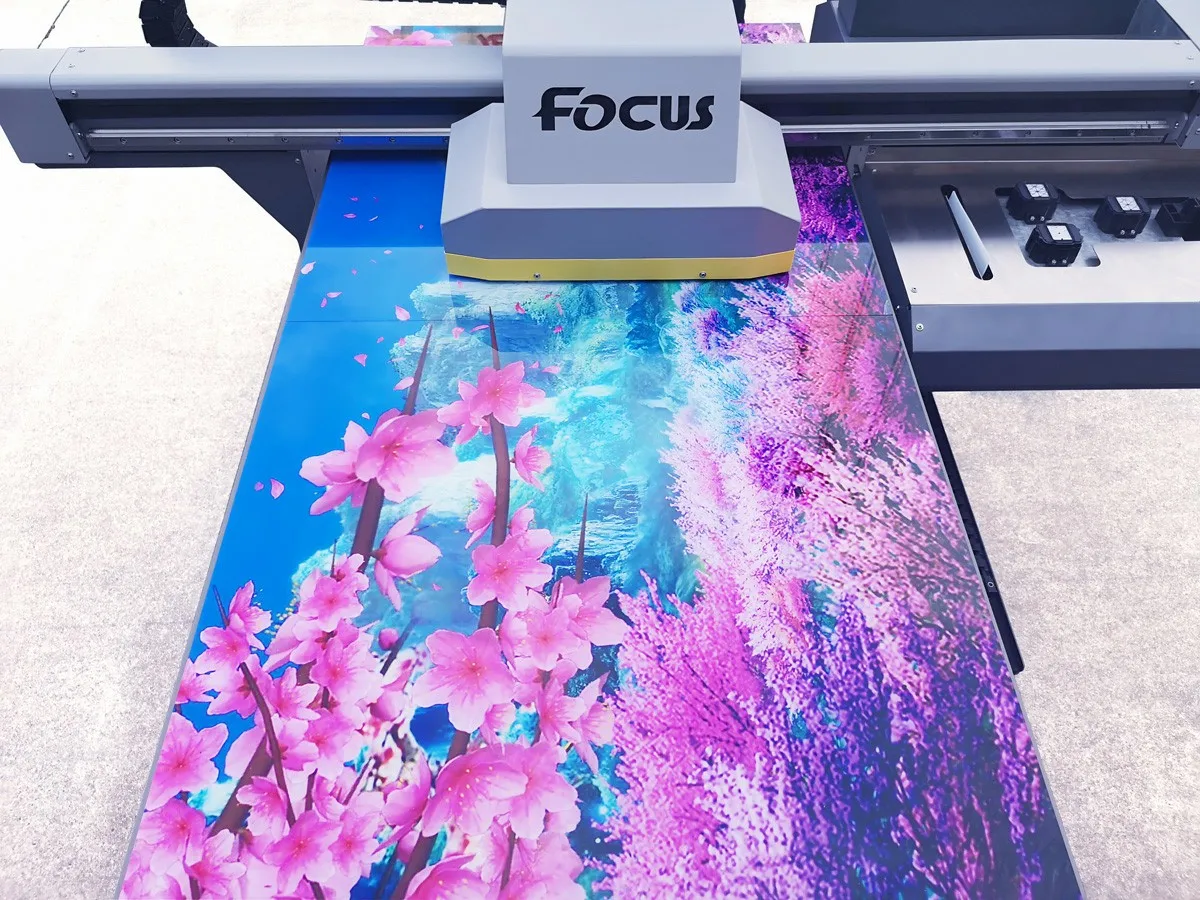

Galaxy-Jet X 6090 ceramic 3d printer wedding invitation card printing machine a1 uv printer

Product Application

Our Galaxy-Jet X 6090 ceramic 3d printer wedding invitation card printing machine a1 uv printer is designed with 3 XP600 print heads , compatible with XP600, TX800, DX5, DX7 and other printhead models.



The teflon coated adsorption vacuum platform can print on the flexible material but without scratch the print head Can achieve white, color, varnish with the same time. Greatly improve print speed and material compatibility.



60*90CM oversized print format for compatibility with more printed materials such as acrylic, ceramic, and glass. PVC, advertising billboard, mobile phone case, decorative painting, wall painting, cylinder, etc.





Main Features of Galaxy-Jet X a1 uv flatbed printer:

1). 60*90CM large print format, which is compatible with more printing materials.



2). Adjustable cylindrical print tooling supports digital UV printing on any cylindrical material.



3). 8-color ink cartridge design, CMYK+LC+LM two spot colors. Makes the print color more vivid, the effect is more realistic, and the color is more natural. At the same time, each ink cartridge has a liquid level sensor, which automatically alarms when there is no ink.



4).  Automatic print head wipe and keep wet system. Automatic flushing when power on and keep wet when off. Just for prevent print head clog during idle and after printing.



5). The laser engraved margin rule marked at the X and Y axis of the printing table. Easy for printing position and improve the printing effective.



Specification



Model	Galaxy-Jet X 6090 ceramic 3d printer wedding invitation card printing machine a1 uv printer
LED-UV Function	UV lamp system	High-brightness LED instant curing technology
	UV Power	100W
	UV lamp life time	50000hours
	UV light wave length	390-400nm
	Light power	500mw/w
	Cooling type	Water circulation
	Cooling adjustment	Automatic on/off between 25-30c
	Control Software	Ultra RIP
Repeat printing precision		Overlap small than 0.1mm
Head maintain		Head clean during/after printing, Keep-wet system when idle.
Ink system		Automatically Ink damper refill system
Max. printing size		A1+: 600mm*900mm
Print head		one/two/three DX5/DX7/XP600/TX800
Print color		CMYK+LC+LM+W+Varnish
Print direction		Unidirection / Bidirection
Print speed		A2(1440dpi)/ 120s
Max. media thickness		130mm
Max. media weight		15kg
Max. printing resolution		5760DPI*2880DPI*1440DPI*720DPI
Ink volume		1L
Ink type		UV environmentally ink
Height adjustable		Manual / Automatic
Print head protection		Intellictive automatic detect
Working power		110-220V 50-60HZ 75W
Interface		USB2.0 /IEEE1394
System require		Windows XP / Vista/ Win7 / MAC I Linus
Net weight/Gross weight		220KG/250KG
Printer size		140CM*140CM*90CM
Packing size		160CM*160CM*118CM



Product Description

Our Galaxy-Jet X 6090 ceramic 3d printer wedding invitation card printing machine a1 uv printer can print glass, ceramic tiles, acrylic, metal, wooden board,cylinder, aluminum plastic board, foam board, leather printing, 3D background wall, home crafts, gifts, mobile phone case , industrial accessories code, LOGO customization and personalized printing customization and so on.

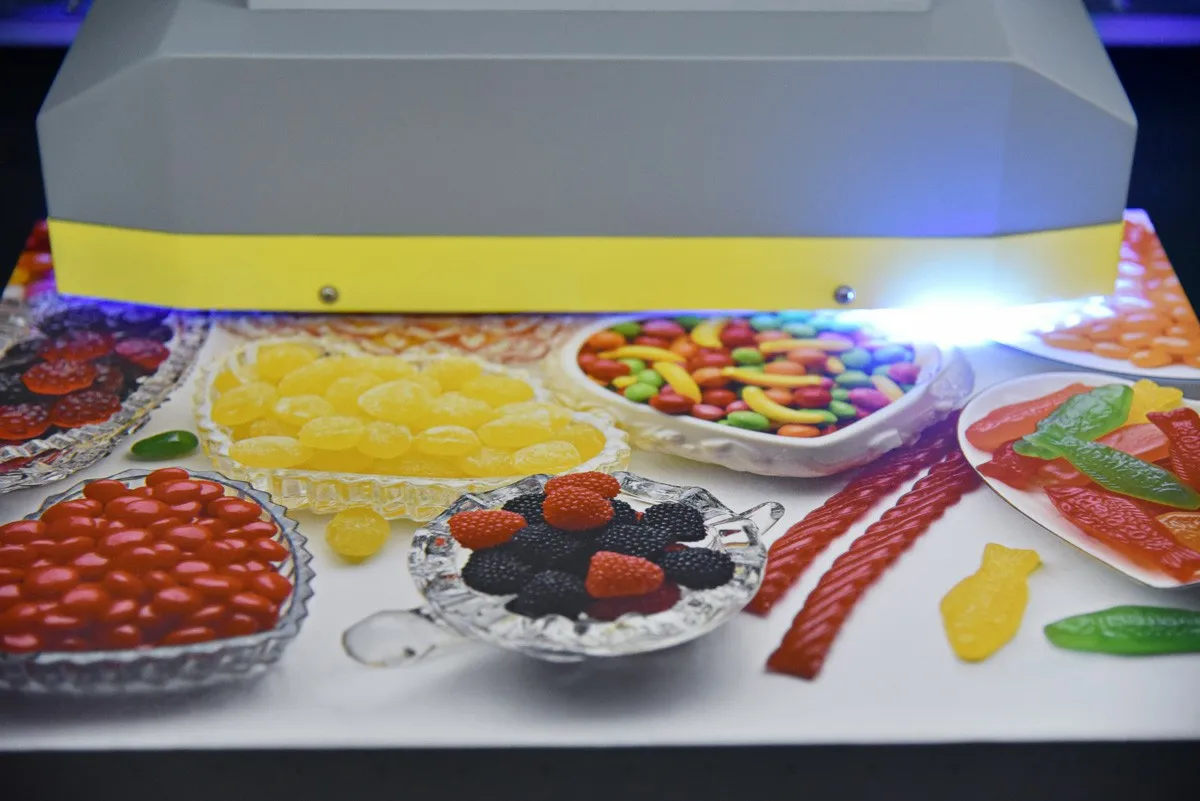

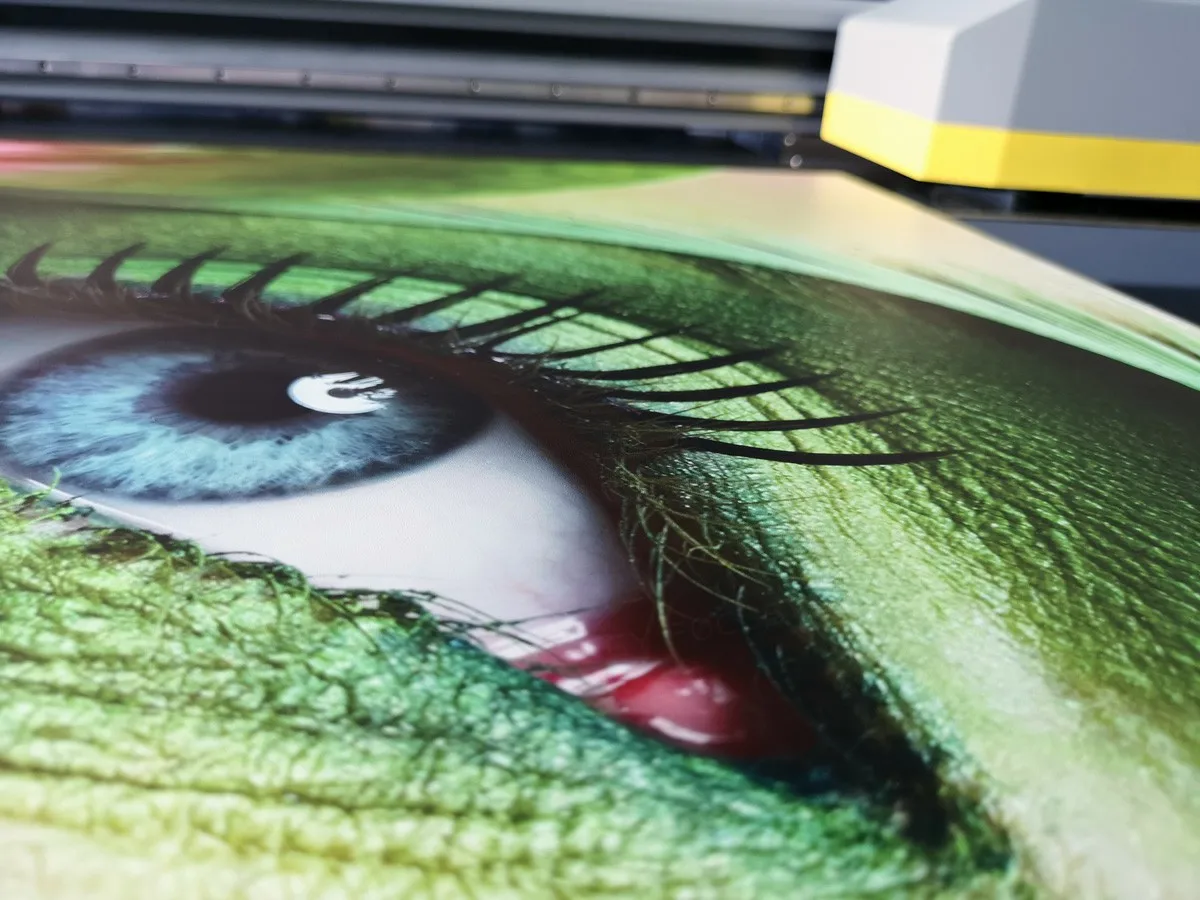

1.Some of Printing Samples as follows:



glass printing:

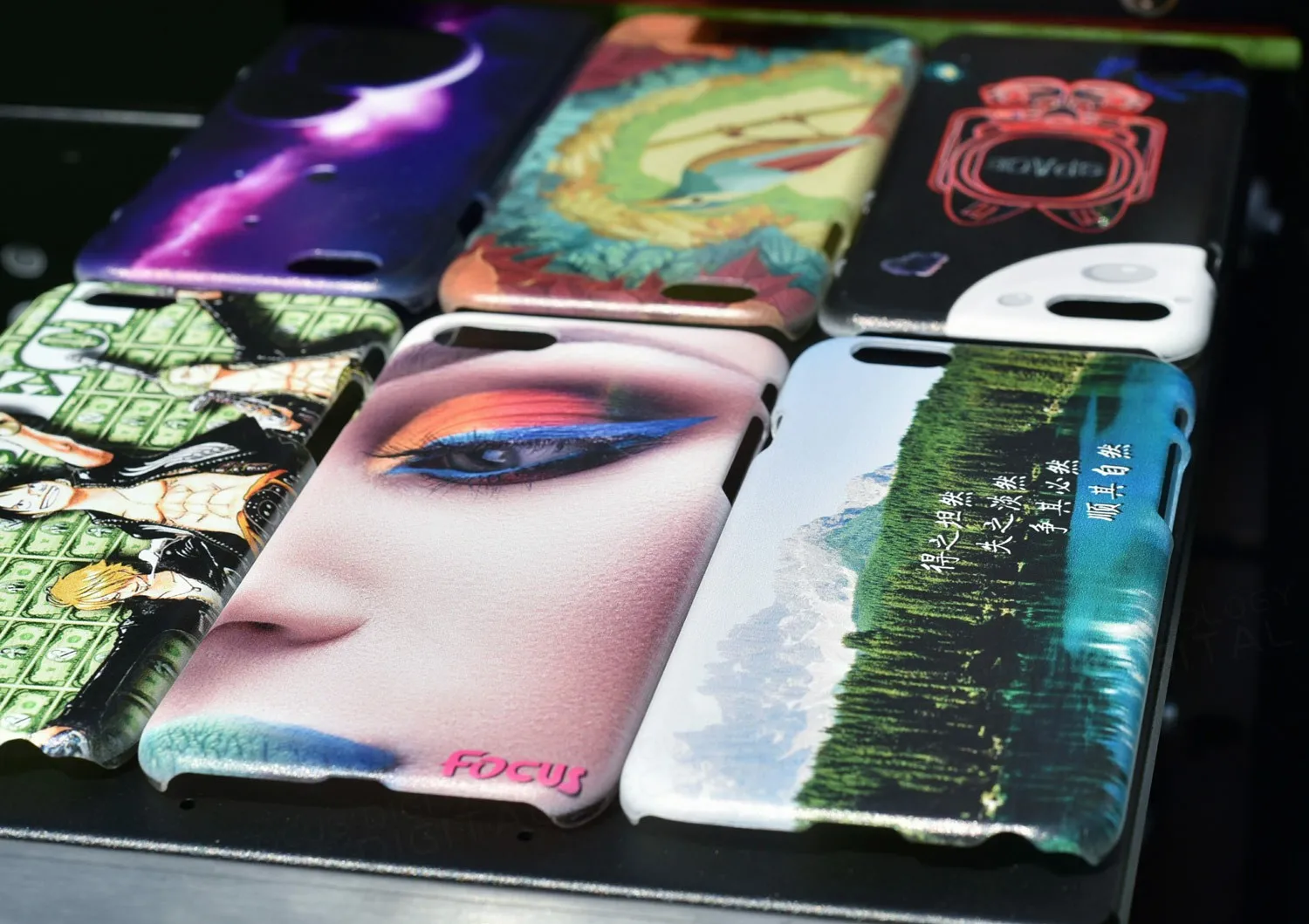

phone case printing:



Ceramic tile printing:

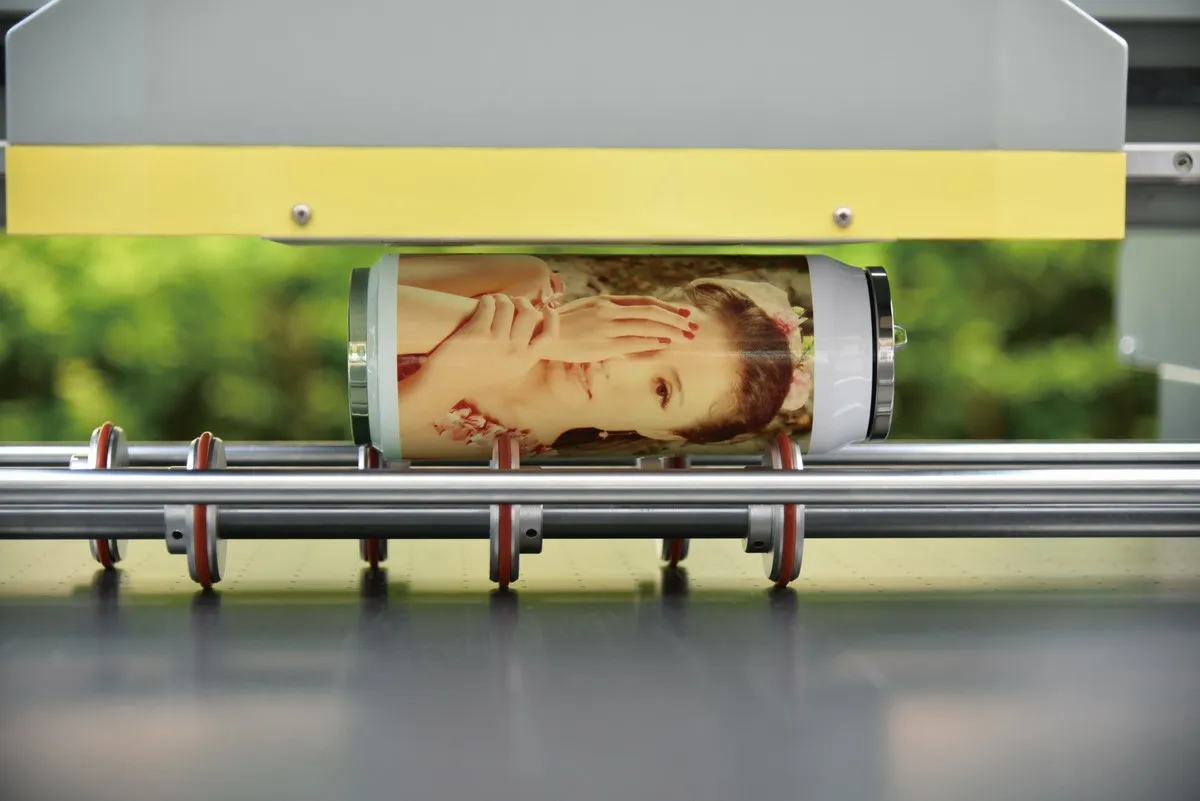

cylinder:

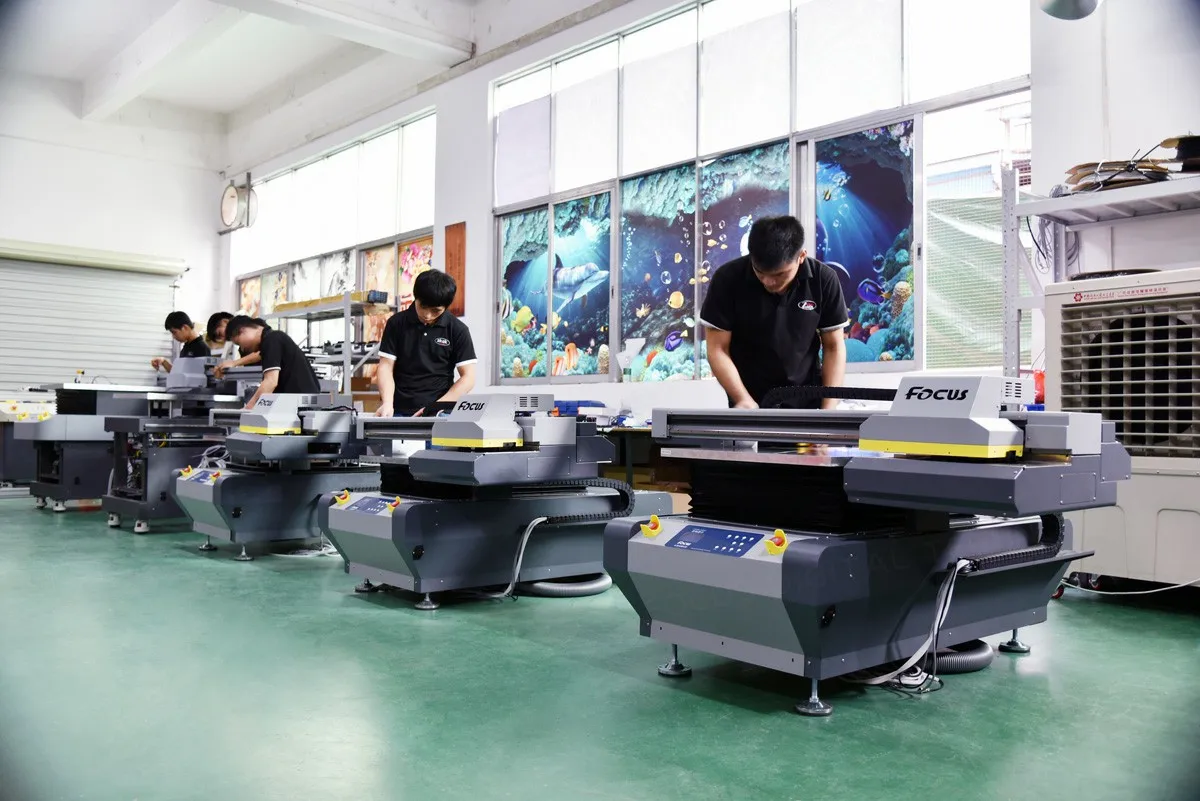

2. Our stock of Galaxy-Jet X 6090 ceramic 3d printer wedding invitation card printing machine a1 uv printer:

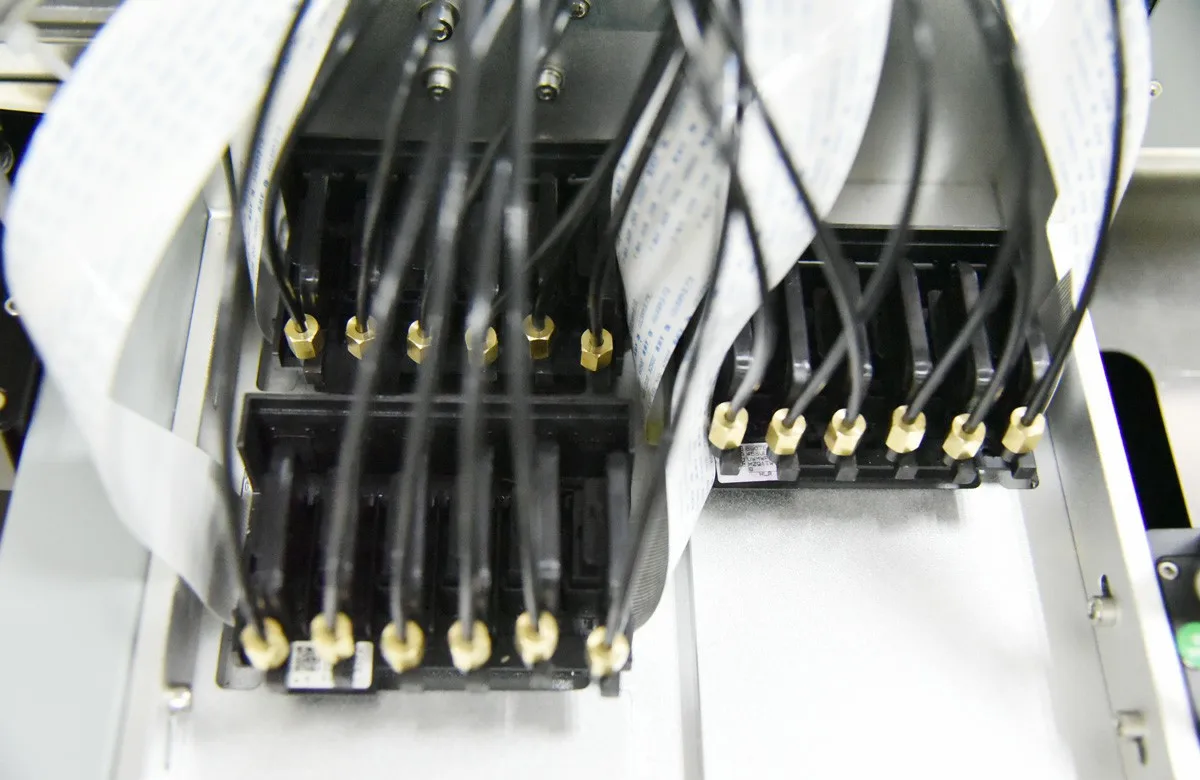

3. 8 color ink cartridge design, CMYK + LC+LM+W+varnish oil, make the printing color more natural and vivid, the printing effect more lifelike,  At the same time, each cartridge is equipped with a level sensor, the ink automatic alarm.





4. Complete installation instruction video and specification , allows you get familiar with the printer shortly.
