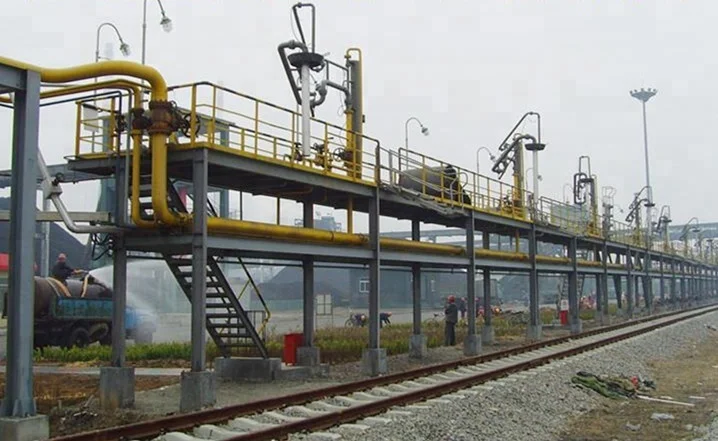

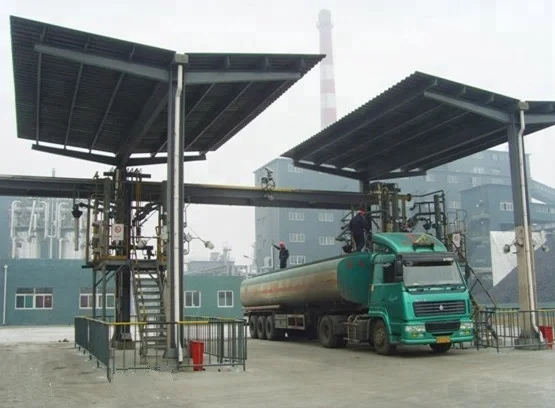

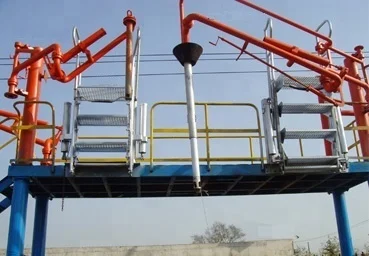

hot dip galvanized steel portable folding stairs step ladder for access to truck / train
- Category: >>>
- Supplier: Lianyungang Saiweite Fluid Equipment Co. Ltd.
Share on (60837867534):
Product Overview
Description
Product Description

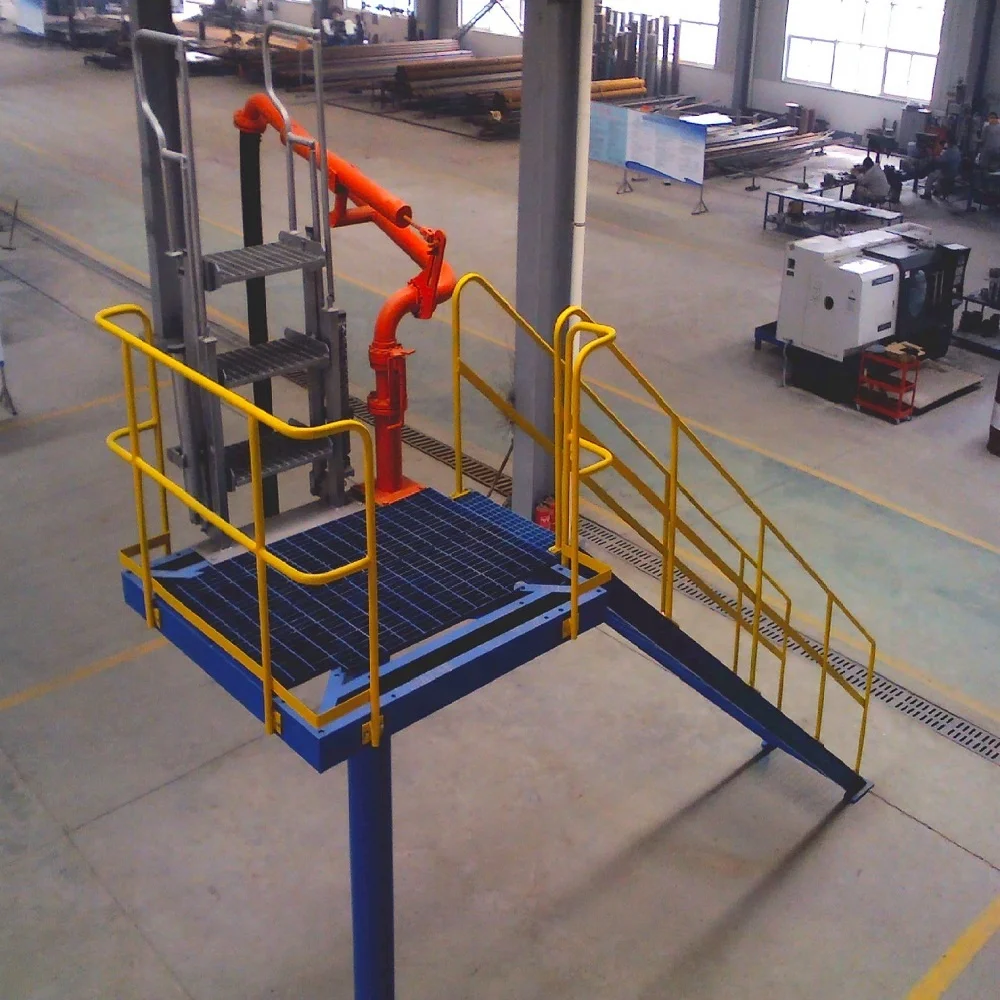

Folding Stairs
The principle is four-bar mechanism, parallelogram shaped, keeping each step parallel to the ground during stair rotation to ensure the operator standing upright while walking.

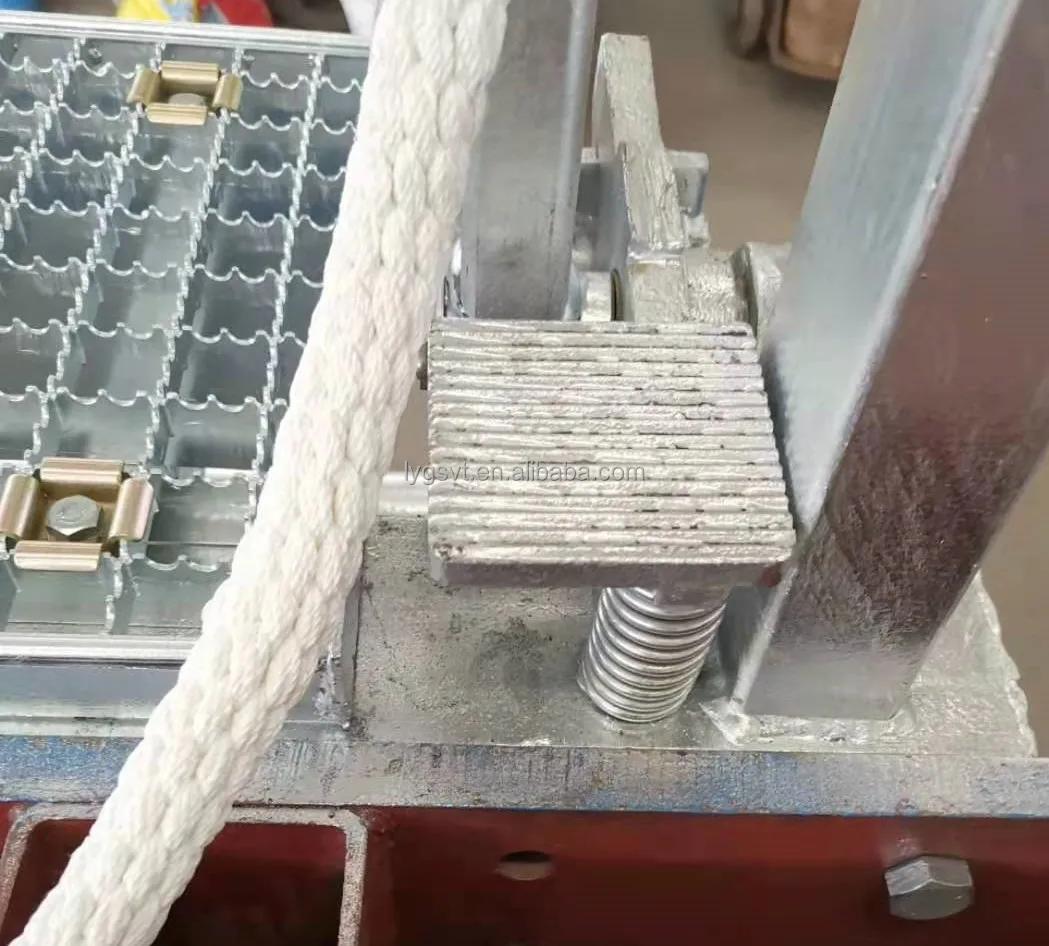

Over-turning moment of the stair keeps balance by spring cylinder consisting of several sets of inbuilt spring, saving labor
during folding and unfolding operation. A folding stair mainly consists of steps, handrail, spring cylinder balance system and locking mechanism, featuring novel structure, easy operation (by one person), reliable and safe operation.
The whole body is made of carbon steel and hot-dip galvanized with nice appearance, anti-corrosion and durability. The steps are with good non-skid performance. Contact area employs oil-resistant rubber part to prevent from spark caused by collision. The surface treatment of spring cylinder is sand blasting and painted.
* Full hot-dip galvanizing treatment, anti-corrosion, rust-proof and durable.
* Fully balanced self levelling steps to automatically adjust to varying tanker heights

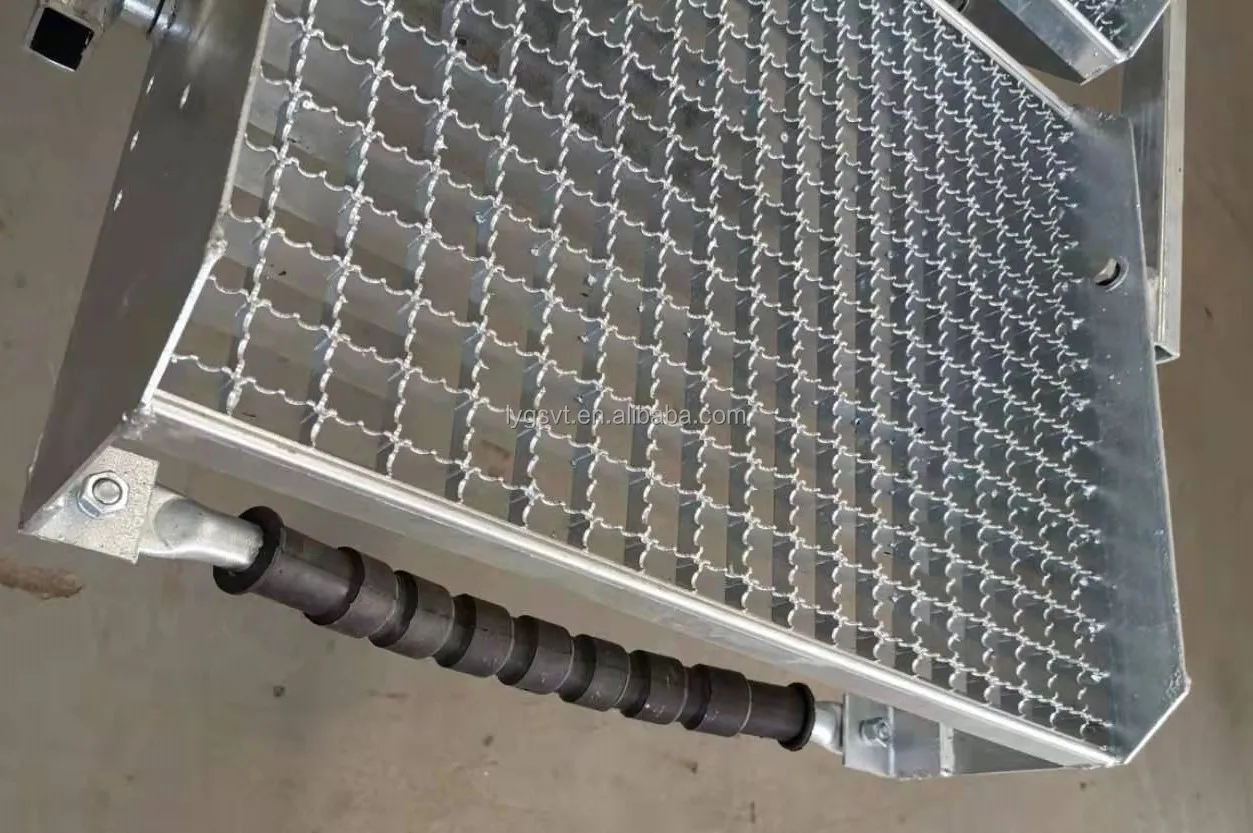

* Anti-slip grating steps
* Safety handrails and knee guards fitted as standard
* Rubber bumper to prevent tanker damage and static discharge
* Pull-rope to assist returning stairs to ‘rest’ position
* Fully balanced self levelling steps to automatically adjust to varying tanker heights
* Anti-slip grating steps
* Safety handrails and knee guards fitted as standard
* Rubber bumper to prevent tanker damage and static discharge
* Pull-rope to assist returning stairs to ‘rest’ position
Product Paramenters

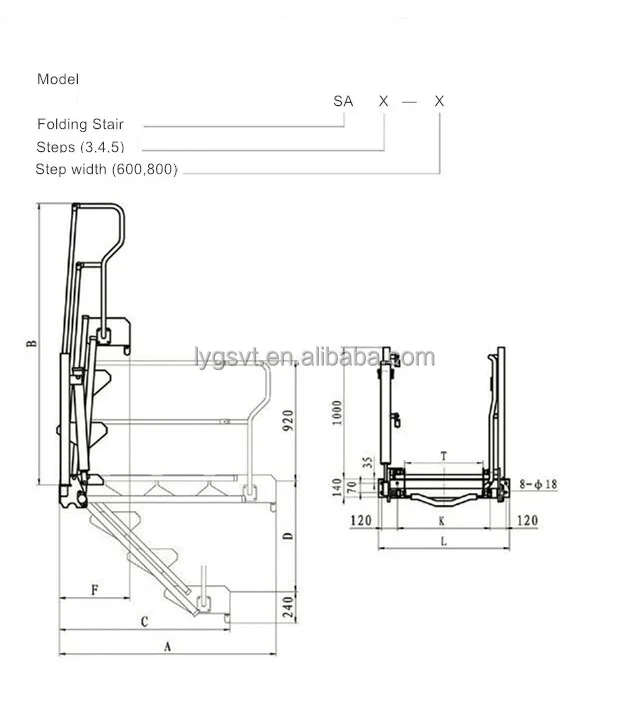

Folding Stair Model | |||||||||
SA3-800 | SA4-800 | SA5-800 | SA3-600 | SA4-600 | |||||
T | 800 | 800 | 800 | 600 | 600 | ||||
K | 1010 | 1010 | 1010 | 810 | 810 | ||||
L | 1300 | 1300 | 1300 | 1100 | 1100 | ||||

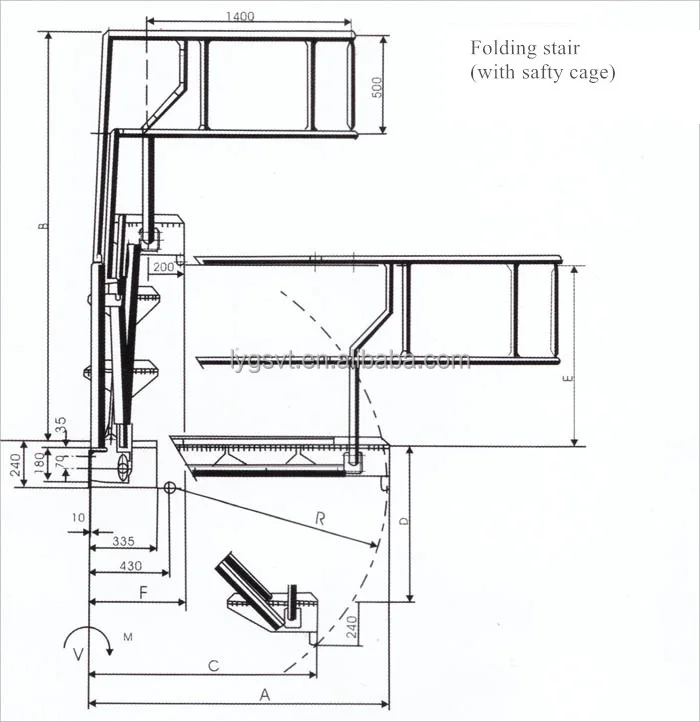

Folding Stair Model | |||||
SA3-(800,600) | SA4-(800,600) | SA4-600 | |||
A | 1250 | 1650 | 2050 | ||
B | 1750 | 2150 | 2550 | ||
C | 1000 | 1300 | 1600 | ||
D | 580 | 850 | 1140 | ||
F | 600 | 660 | 720 | ||

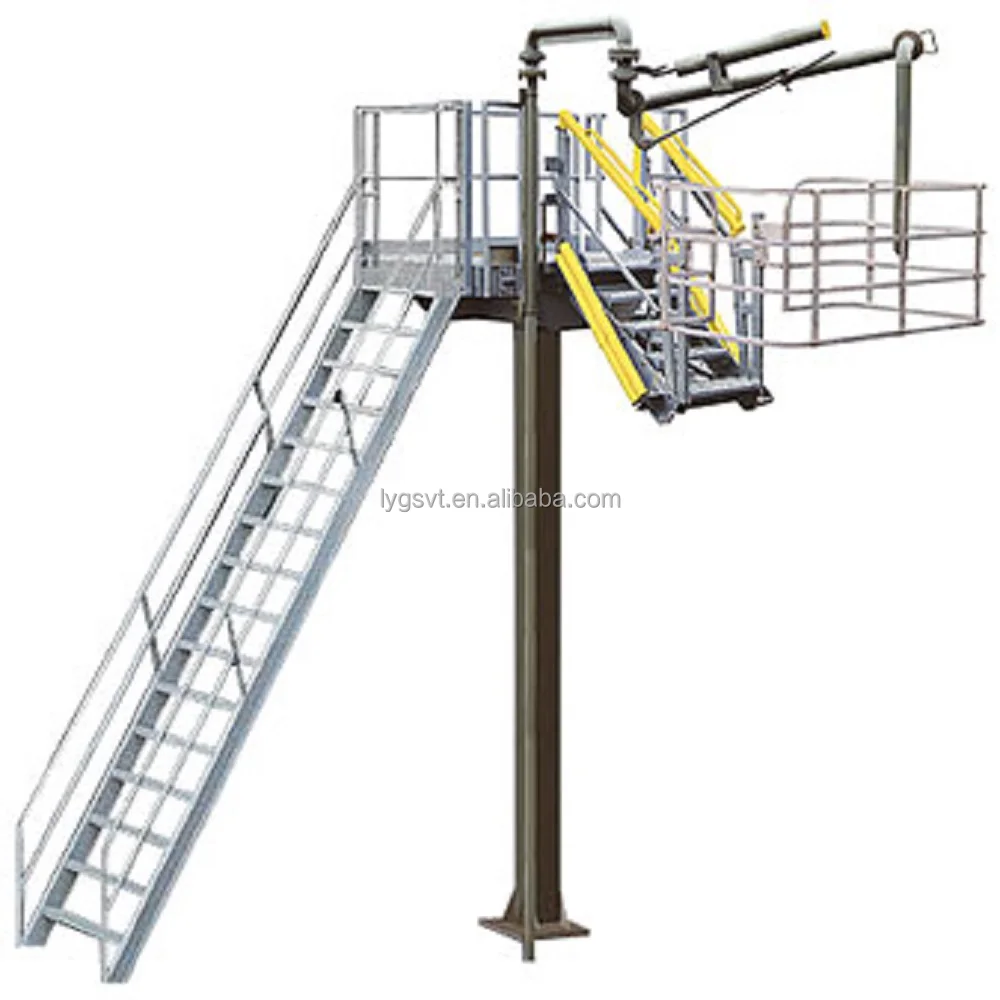

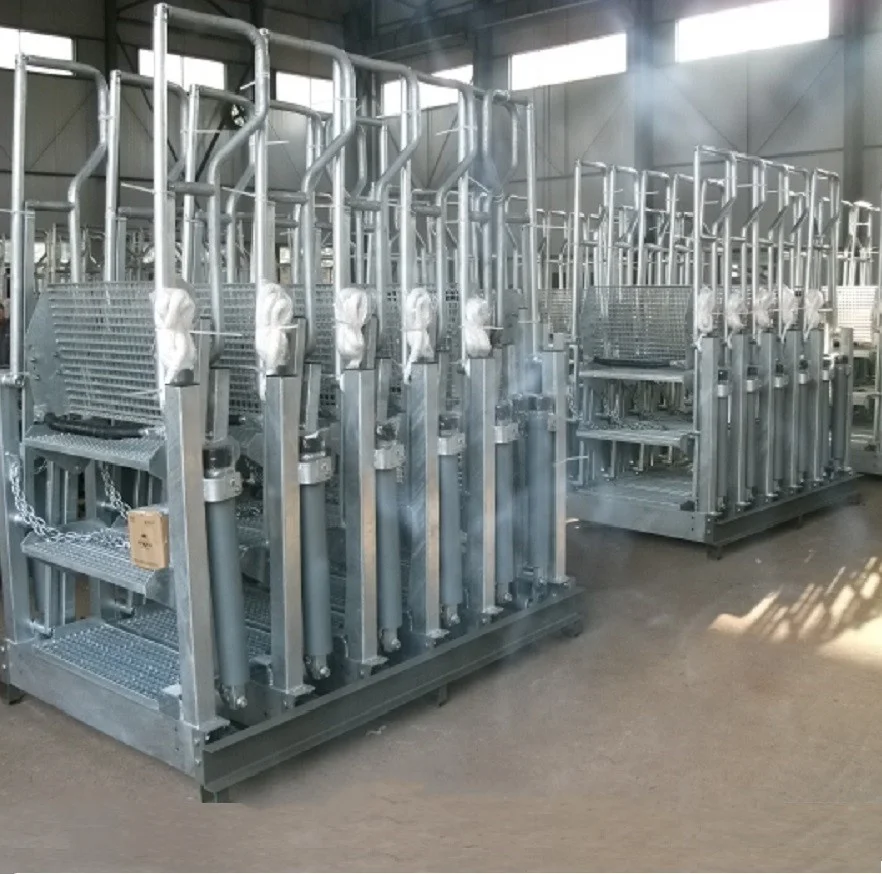

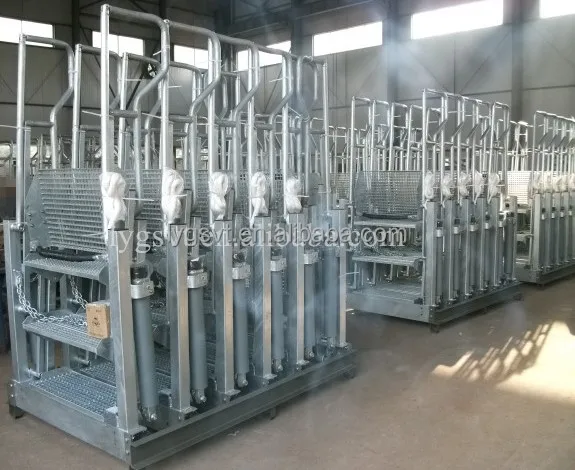

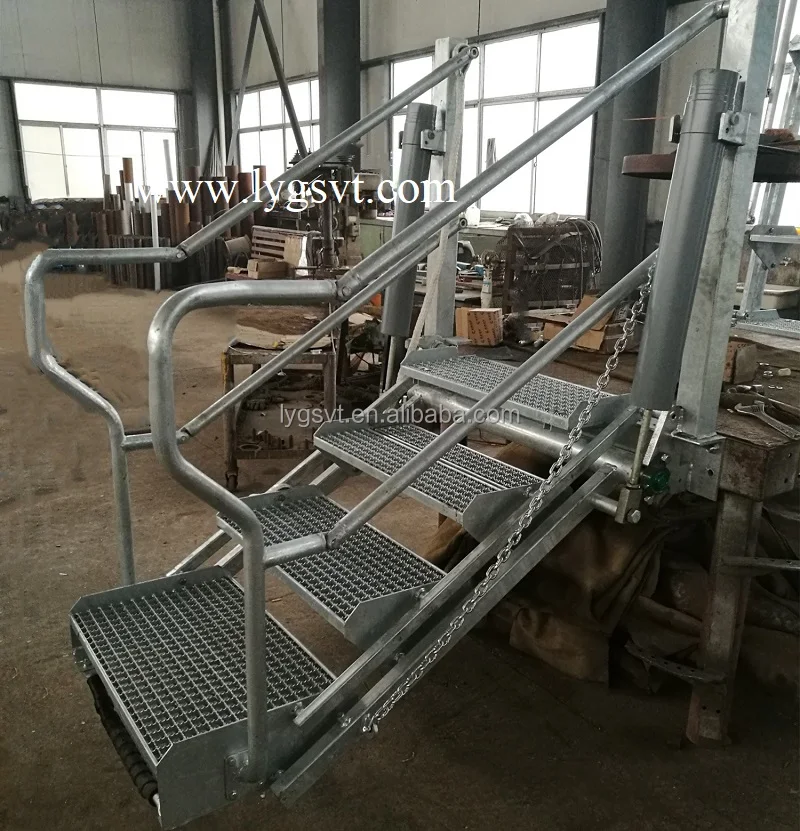

Detailed Images
Related Products

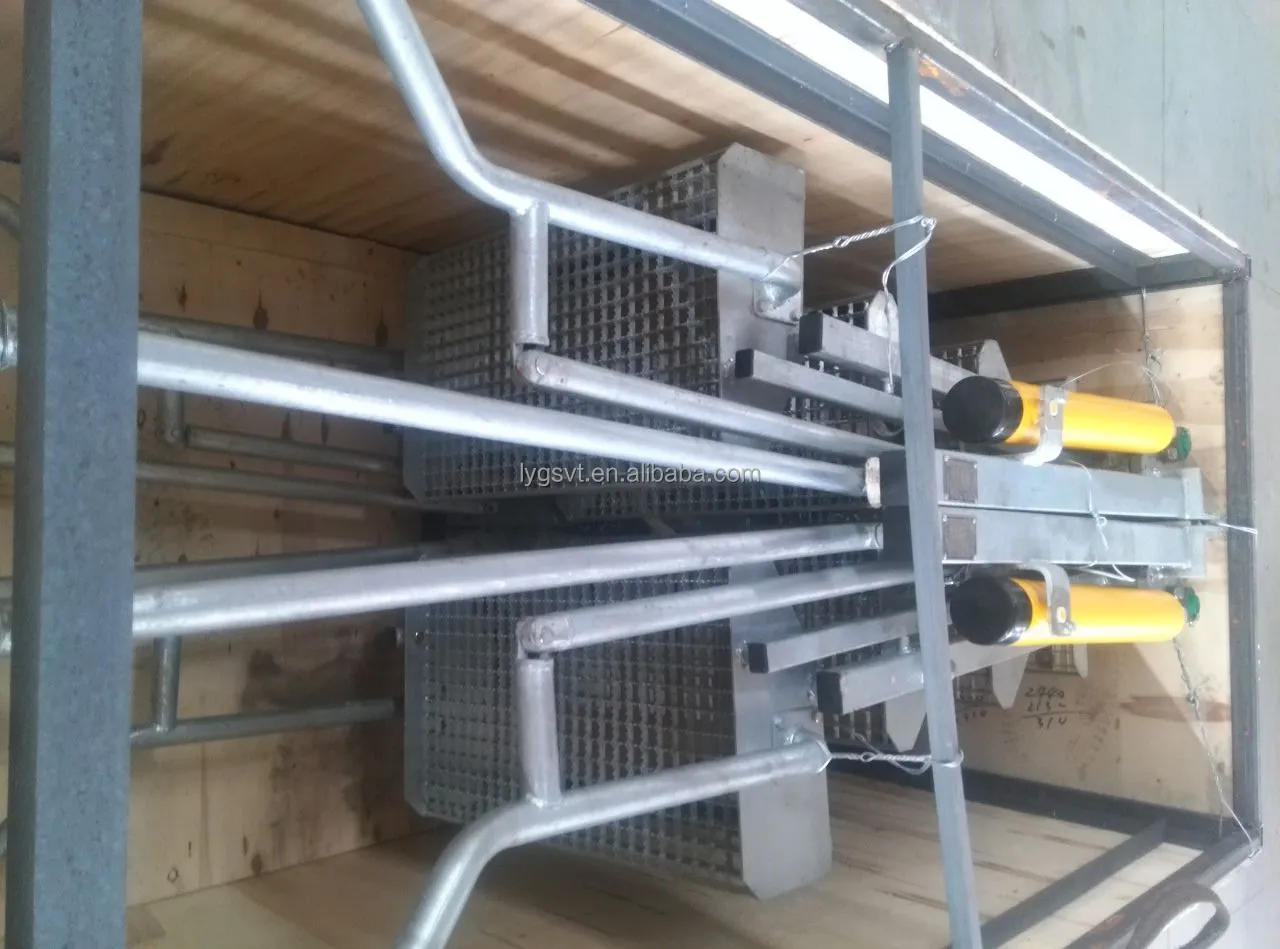

Packing&Shipping
After Sales Service
LYGSVT provide On-site Service and After-sales Service for installation, commissioning, maintenance for all our products.
The warranty period will be 12 months from date of startup or 18 months after delivery, whichever happens first.
The warranty period will be 12 months from date of startup or 18 months after delivery, whichever happens first.
