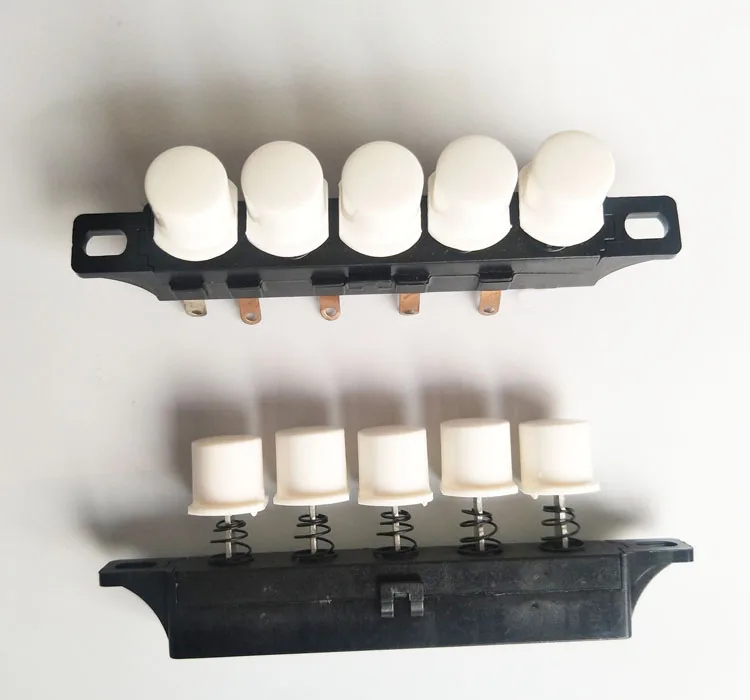

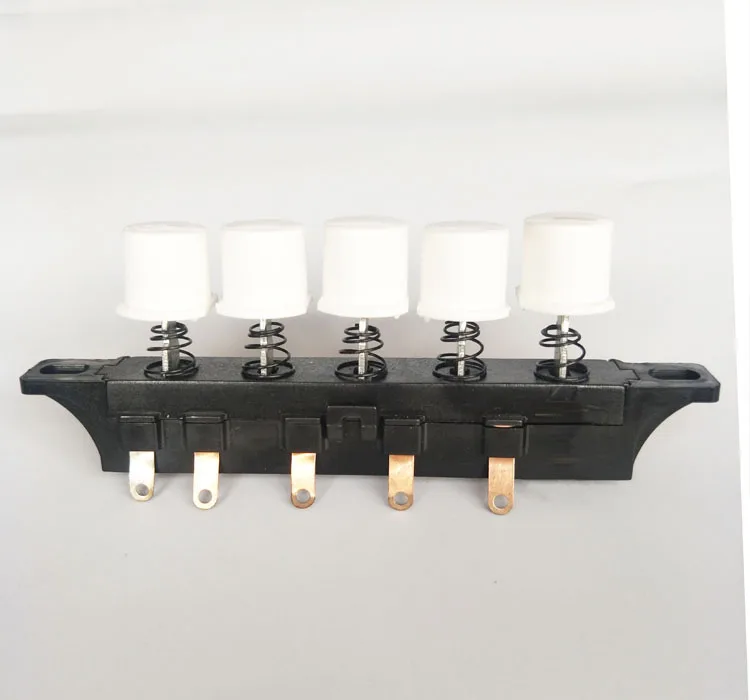

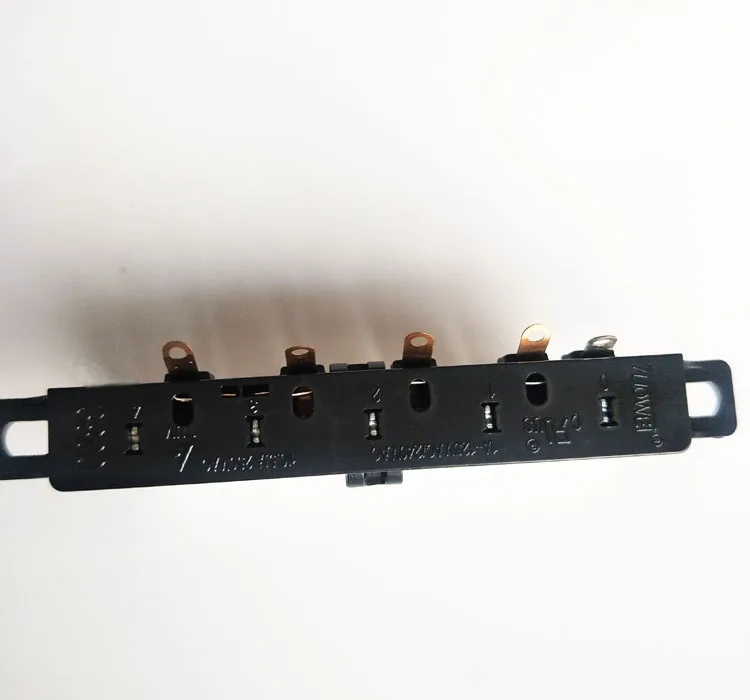

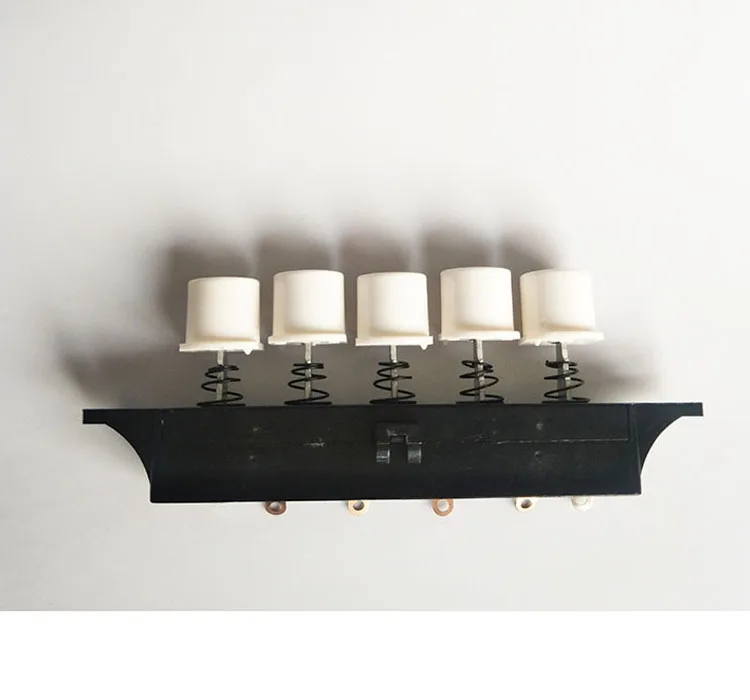

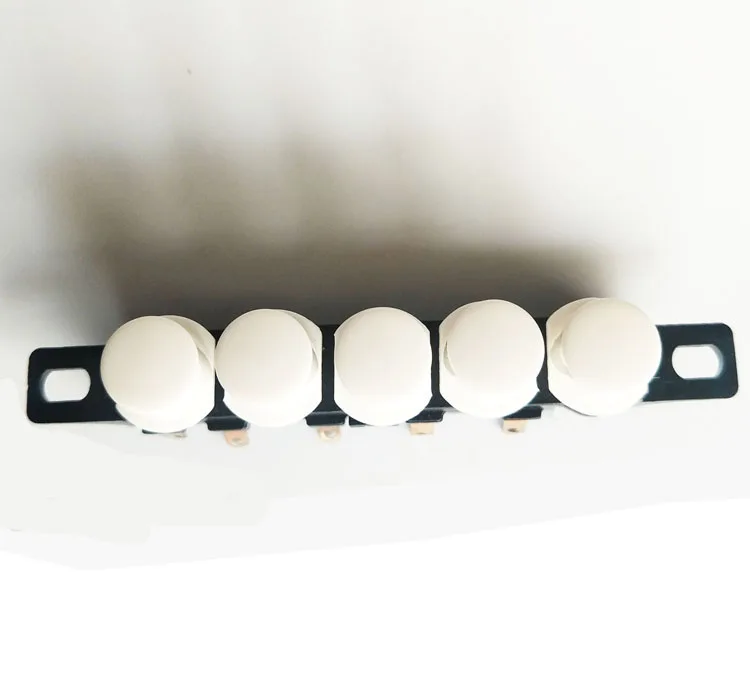

Electric fan piano switch 5 key 3 speed soldering wiring white push button keyboard mechanical switches
- Category: >>>
- Supplier: Shenzhen Towei Electronics Co. Ltd.
Share on (60837945658):
Product Overview
Description
Product Description

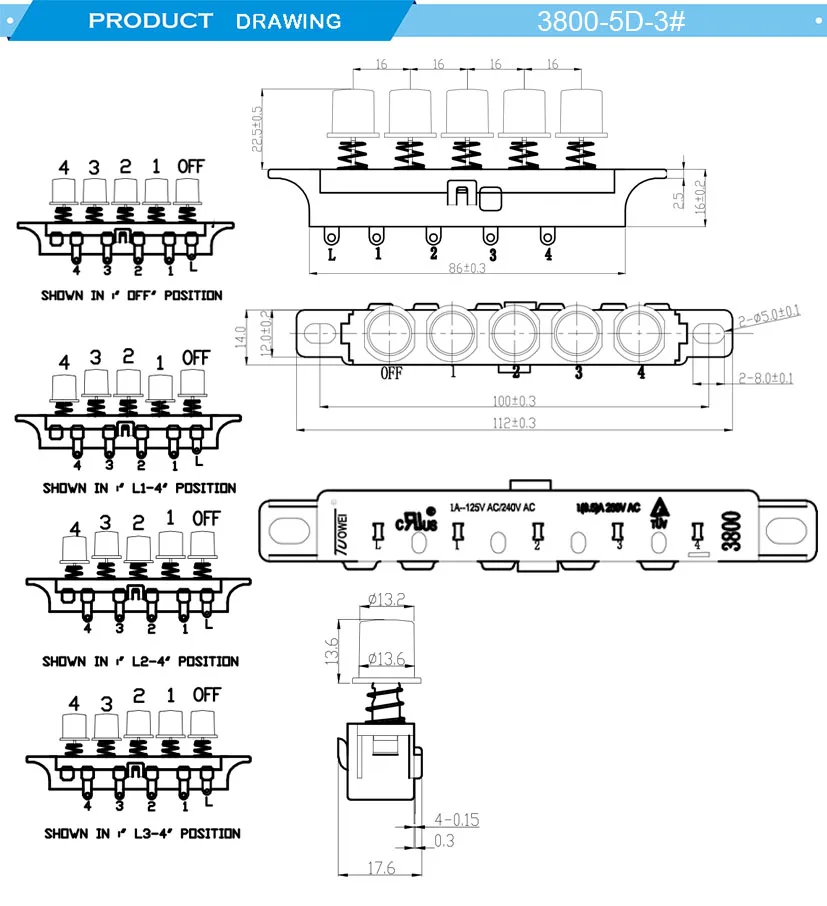

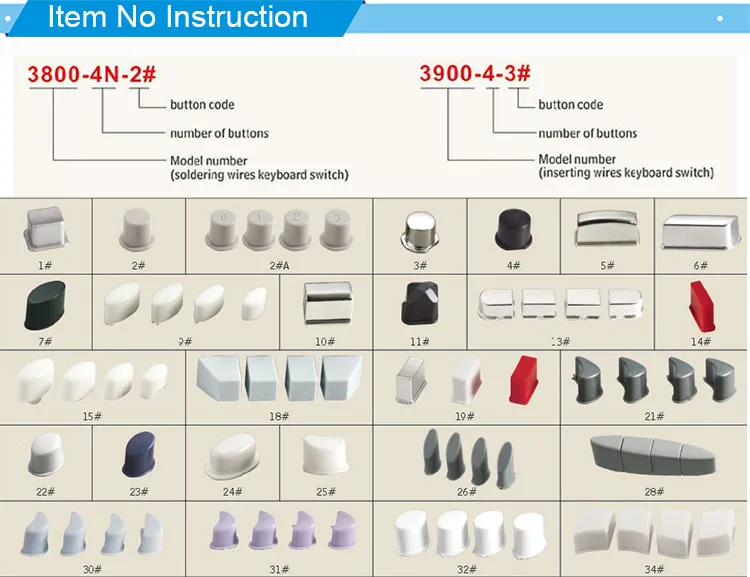

TUOWEI New Electric fan 5 key 3 speed soldering wiring white push button keyboard switch Item No.:3800-5D-3#
Technical Parameter | |
Electrical Rating | 1A ~120V.AC. 1(0.5)A~250V.AC. |
HZ | 60/50 |
| Load | Res/ Mot |
| Temp(C) | 75°C |
| Pol/Thr | 1/ 1 |
| PP/Circuit | --/A |
| Endur | 10K |
| SPCOA | 24-18AWG UL1015 |
Material: | |
| Housing: PC Flame rating: V-0 Temperature: 130°C Blocking plate: Steel | |
| Cover: PC Flame rating: V-0 Temperature: 130°C Terminal spring: stainless steel | |
| Push block: PA66 Flame rating: V-0 Temperature: 130°C Stationary terminal:Copper alloy | |
| Actuating Tip:Copper Spring: Steel LPush spring : steel Button : Stainless steel | |
| Locking plate: Zinc Plating Iron | |

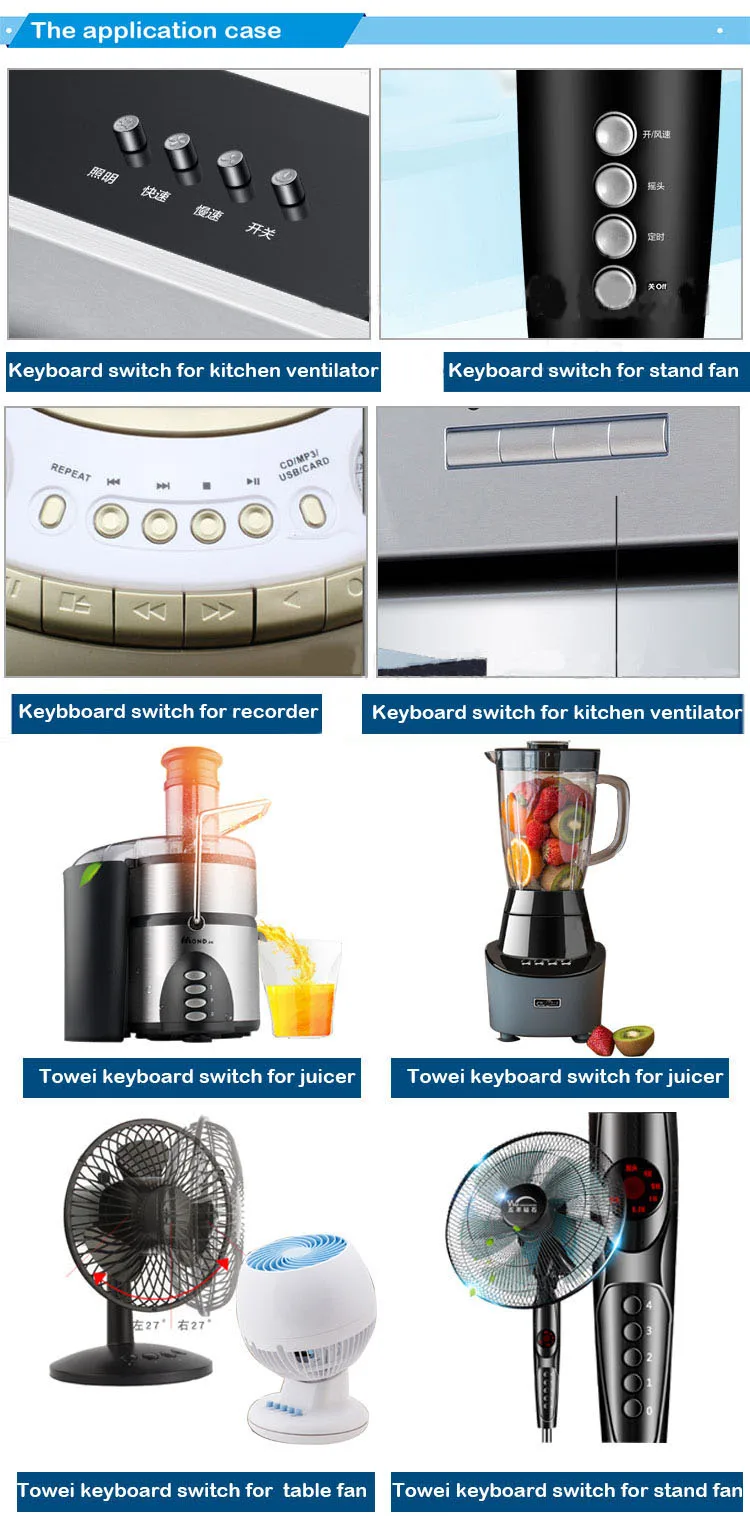

| Apply to: | |
| Electric FAN and other home appliances. | |
Packaging & Shipping

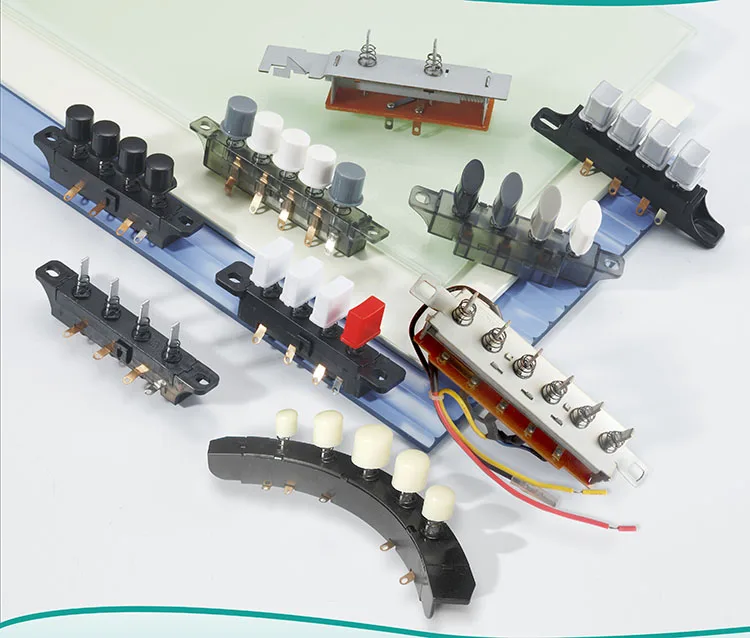

Our other products
 |  |  |  |
 |  |  |  |
