Product Overview

Description

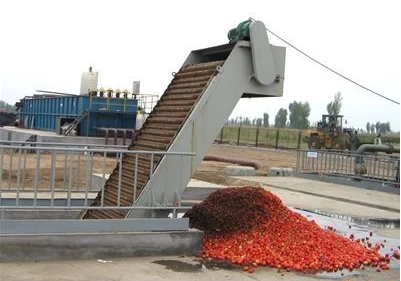

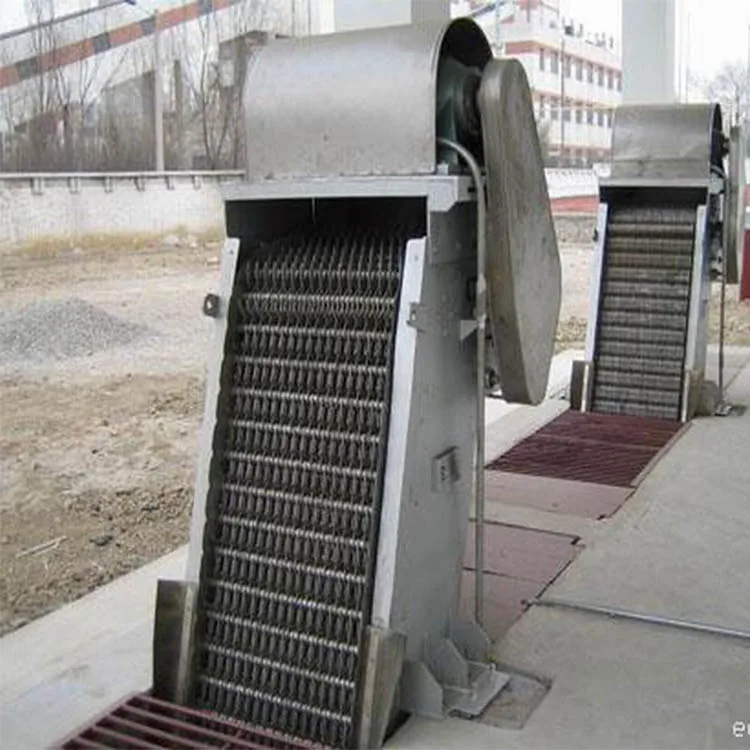

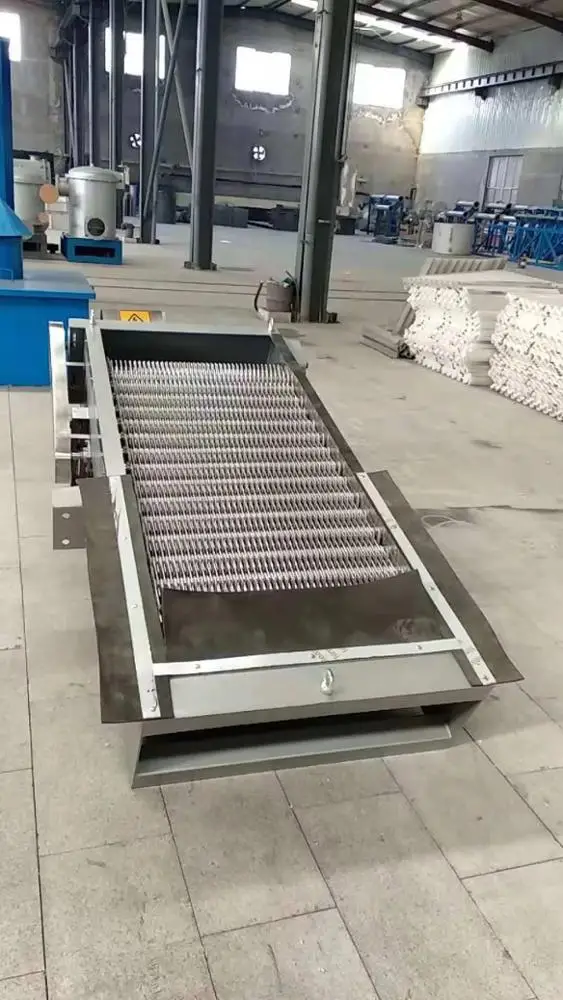

pumping / pump station sewage pre treatment mechanical bar screen





Function & application



Mechanical Bar Screen Grille (Circulation Toothed Harrow Mud Cleaner) is an important equipment for wastewater pre-treatment which can continuously and automatically intercept and remove various shapes of debris in fluid.

It is used for separating the bigger matters in waste water treatment system;

And as the first separating equipment at the water inlet; and slaughtering house, printing waste water, dyeing waste water, paper making waste water, domestic waste water, animal feeding waste water.



It can be applied for drainage pumping plant, urban wastewater, industry wastewater, and coarse or fine screen.





Feature & advantage



The greatest advantages of the equipment are high automation, high separation efficiency, low power consumption, no noise, good corrosion resistance, and can ensure continuous and stable work under the condition of no one to take care of it.

The overload safety protection device is set up when the equipment fails.

 The equipment can adjust the running interval of the equipment according to the needs of

Due to the reasonable structure design of the equipment, it has a strong self-purification ability when the equipment is working, and it will not be blocked, so the daily maintenance workload is very little.







Technical specification





Model	XGS3	XGS4	XGS5	XGS6	XGS78	XGS9	XGS10	XGS11	XGS12	XGS13	XGS14	XGS15
Installing angle	60-80°
Power (kw)	0.37		0.56			0.75		1.1			1.5
Rotational speed (m/min)	2
Ditch width (mm)	400	500	600	700	800	900	1000	1100	1200	1300	1400	1500
Ditch depth (mm)	1000-12000 user opinion
Equipment width (mm)	300	400	500	600	700	800	900	1000	1100	1200	1300	1500
Medium temperature (℃)	≤80
Dumping height (mm)	400-1000 user opinion



01. We are a manufacturer and we have import and export rights.

02. We produce wonderful environmental protection machines and solutions, pulp and paper making machines and solutions as well as tissue paper converting machinery and solutions,

03. Our main manufacturing facility which spans nearly 30,000m2.

04. We have achieved a total of 32 patents over the past few years.

05. Each year the output value of our products can reach up to 150 million RMB, to domestic and overseas.
06. We are in very close proximity to a very famous port city – Qingdao in northern China, and this location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea. Also.

 1. Detailed installation manual and maintenance guideline are provided with the equipment.

  2. Technical training and site-commissioning are available for you.

  3. Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.







 1. How to buy your idea products?

  A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).

2. How to pay?

  A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.

3. What is the delivery time?

  A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

4. How to pack the products?

  A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

5. How to keep your equipments from corrosion?

  A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.

6. How do you manufacture your equipment ?

  A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.

7. How to install after the equipments arriving destination?

  A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
