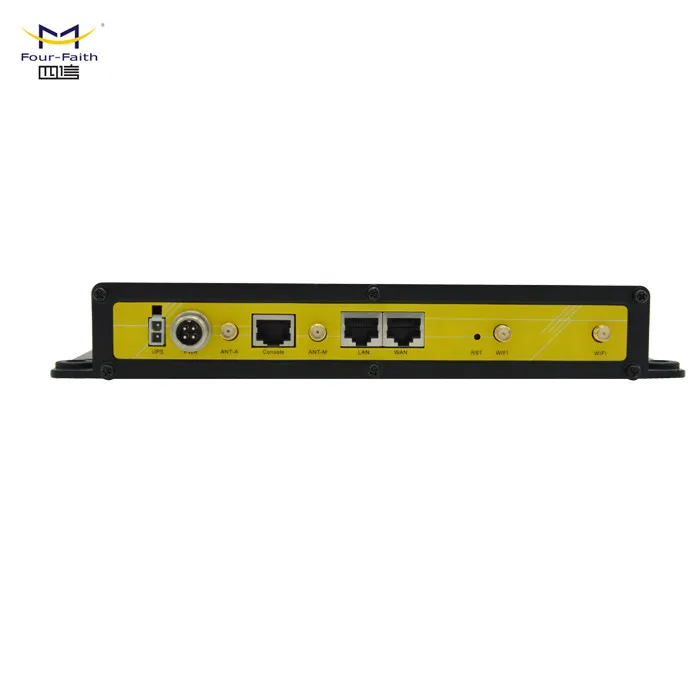

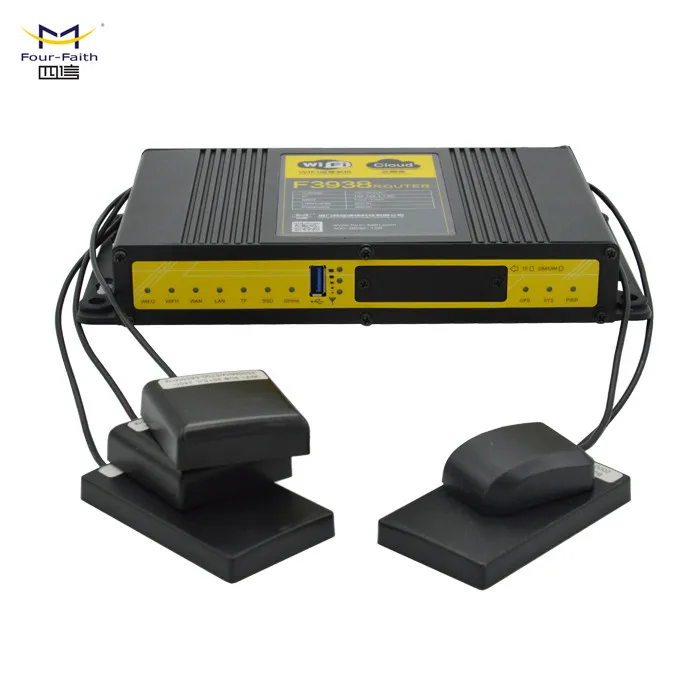

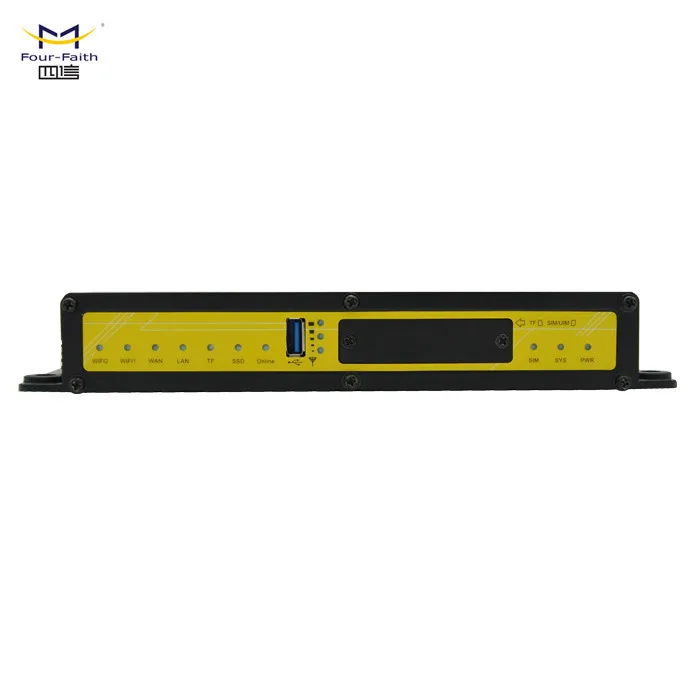

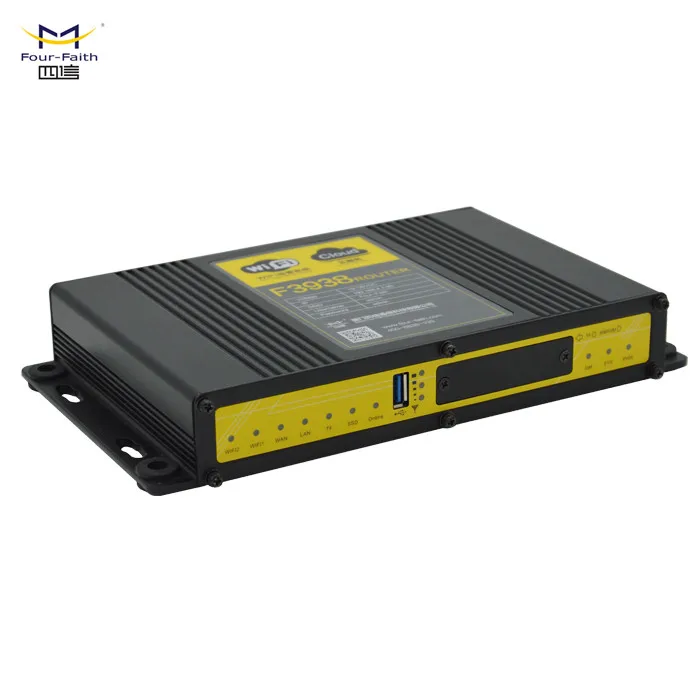

F3936 7836H GPS 4G Wireless Router Bus WIFI Hotspot router with SIM and Captive Portal for Networking and Advertisement
- Category: >>>
- Supplier: Xiamen Four-Faith Communication Technology Co. Ltd.
Share on (60837970971):
Product Overview
Description
F3936-7836H 4G LTE Router with GPS for Bus Metro Train Media WIFI Router
Product Description
GPS Specification
Item | Content |
GPS Module | Industrial GPS module |
Receiver Type | 50-channel |
Max. update rate | 4 Hz |
Accuracy | Position: 2.5m CPE |
Acquisition | Cold starts: 29S |
Sensitivity | Tracking: -160dBm |
Timing accuracy | RMS: 30ns |
Time pulse | Configurable, 0.25 to 1000Hz |
| Cellular Specification | ||
| Item | Content | |
| Cellular Module | High-performance cellular module | |
| Standard and Band | Support:LTE FDD 2600/2100/1800/900/800MHz(Band 1/3/7/8/20)700/850/1700/1900/2100MHz (Band 2/4/5/13/17/25)(optional) Support:DC-HSPA+/HSPA+/HSDPA/ HSUPA/WCDMA/UMTS 2100/1900/900/850/800MHz(Band 1/2/5/6/8) Support:EDGE/GPRS/GSM 850/900/1800/1900MHz | |
| Bandwidth | LTE FDD(Download speed:100Mbps,upload speed:50Mbps) HSUPA:5.76Mbps(upload speed) / HSDPA:7.2Mbps(download speed:) UMTS:384Kbps (download speed/upload speed) HSPA+: 42Mbps(download speed) 5.76Mbps(upload speed) | |
| TX power | <24dBm | |
| RX sensitivity | <-109dBm | |
| WIFI Specification | ||
| Item | Content | |
| Standard | IEEE802.11b/g/n, 2.4G, 2*2 MIMO,AP model, Station model(optional) | |
| Bandwidth | IEEE802.11b/g: 108Mbps (max) IEEE802.11n: 300Mbps (max) | |
| Security | WEP, WPA, WPA2, etc. WPS (optional) | |
| TX power | 20dBm(11n),21.5dBm(11g),26dBm(11b) | |
| RX sensitivity | <-75dBm@54Mpbs | |
| Hardware System | ||
| Item | Content | |
| CPU | High-performance 32bits CPU | |
| FLASH | 32MB(Extendable to 64MB) | |
| DDR2 | 256MB | |
| SSD | 128GB(Extendable to 2TB) | |
| TF | 32GB(optional) | |
| Interface type | ||
| Item | Content | |
| WAN | 1 10/100 Mbps WAN port(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | |
| LAN | 1 10/100 Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection | |
| Serial | 1 RS232(or RS485/RS422) port, 15KV ESD protection Data bits: 8(optional 5, 6 ,7,) Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space(optional), mark(optional) Baud rate: 2400~115200 bps | |
| Indicator | “PWR”,“SYS”,“SIM”,“Online”,“SSD”,“TF”,“LAN”,“WAN”,“WIFI”, "Signal Strength" | |
| Antenna | Cellular: 1 Standard SMA female interface, 50 ohm, lighting protection(optional) WIFI: 2 standard SMA male interface, 50 ohm, lighting protection(optional) | |
