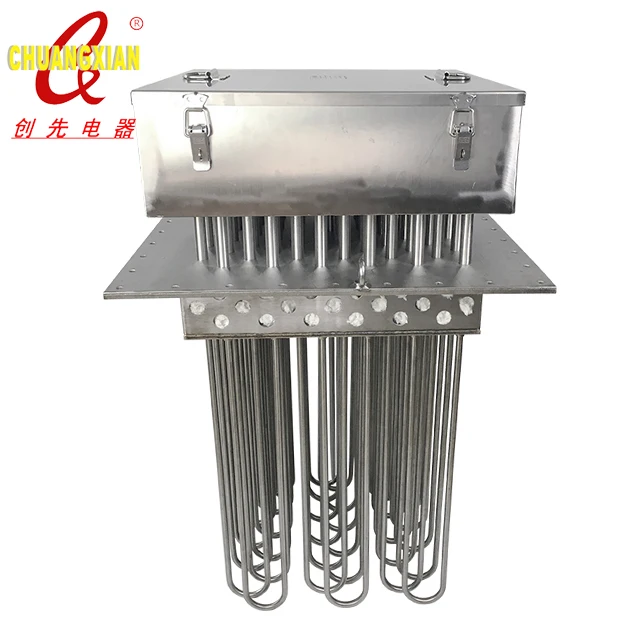

Hot sale TZCX Brand Custom tubular industrial Process forced air duct heater
- Category: >>>
- Supplier: Taizhou Chuangxian Electrical Appliance Co. Ltd.
Share on (60837985086):
Product Overview
Description
Product Description

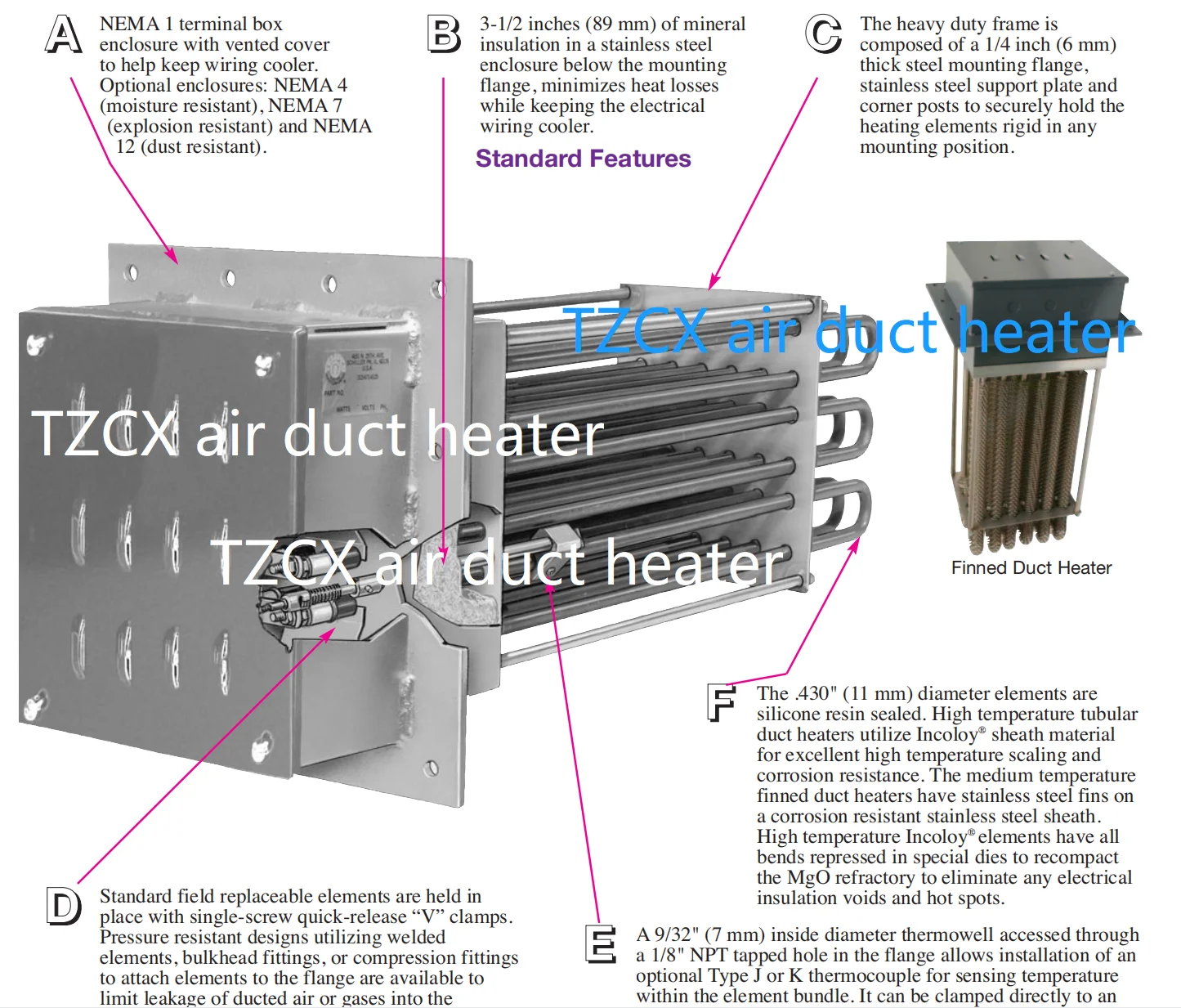

1.Process air duct heaters are used for tempering forced air in many industrial processes. Heater wattage is dependent on air outlet temperature (up to 1200°F [650°C]) and air velocity. Smaller duct heaters can be tandem mounted in place of one large unit to meet space limitations and simplify installation.

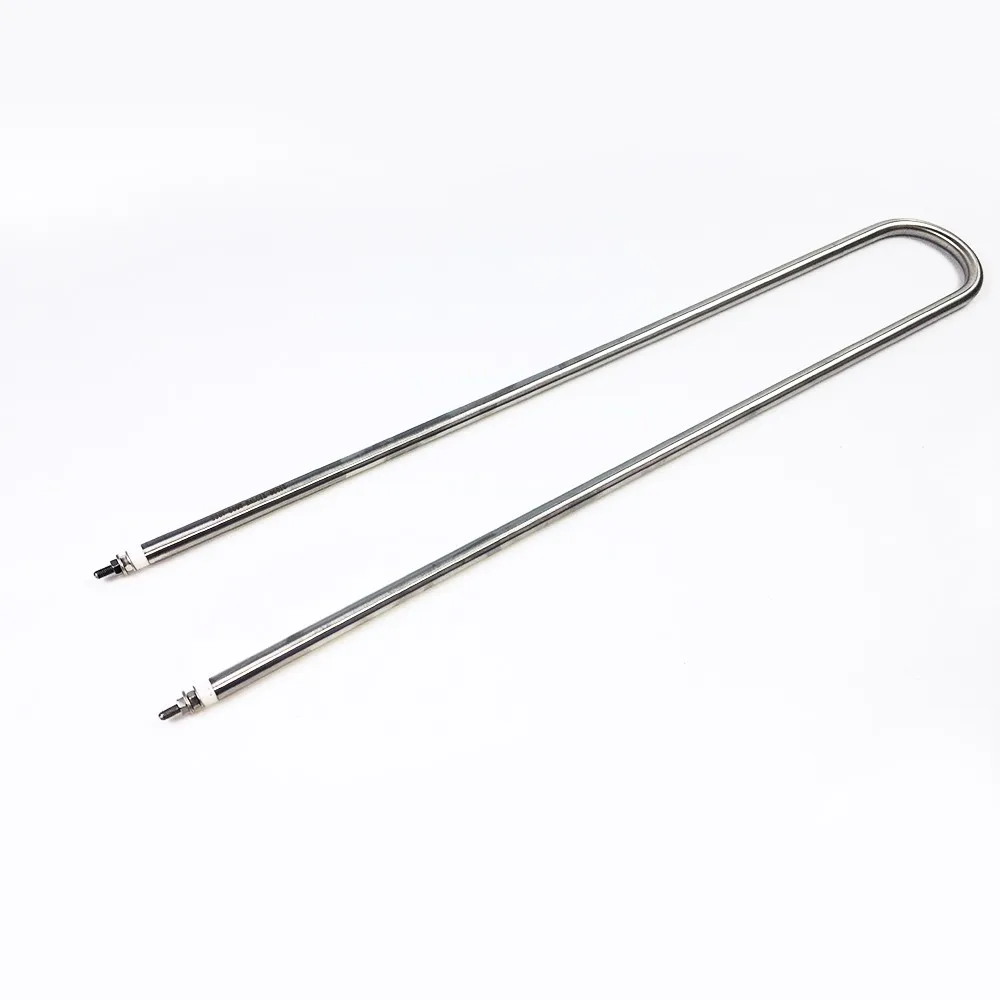

Heavy wall Incoloy tubular heating elements (replaceable) provide protection against corrosive air environments and resistance to vibration when compared to open coil elements.
2.Custom the Flange size, sheath material, watt,voltage, heating length, according to applications.
3.Process air duct heaters are CE,ATEX, CQC,ISO9001,ROHS,UL,CSA certified.
Specification | ||

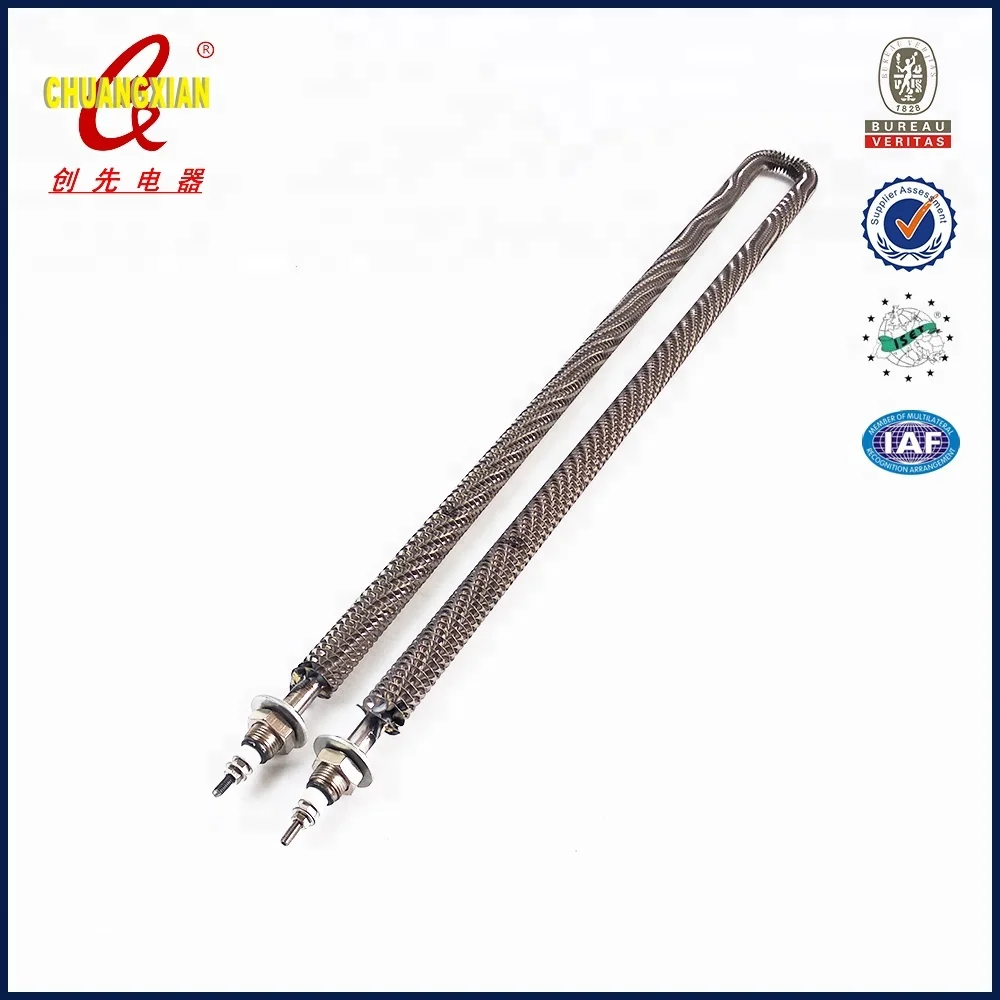

Type | tubular heater & finned tubular heater | |
Material： | stainless steel 304/316L/310S/321 incoloy 800/825/840 | |
mounting： | Flange | |
Tube length： | Customized | |
Volt： | 120v/220v/380V or Customized(12v-1200V) | |
Watt： | 15/30/50/100/300KW or Customized(1kw-1000kw) | |
Temperature control | If required thermostat/thermocouplePID controller box/cabinet | |
Customization
TZCX also can design and manufacture a duct heater to meet your requirements.Please specify the following:
· Voltage(V), power(W) ,phase.
· Duct size, inlet and outlet temperature.
· Duct size, inlet and outlet temperature.
· Number of elements(circuits).
· Element sheath material.
· Element sheath material.
· Flange size. element length.
· Temperature controller, thermostat,thermocouple,(if required).
· If you have drawing or product pictures in hands,will be much better and helpful for exact price calculation.
· If you have drawing or product pictures in hands,will be much better and helpful for exact price calculation.
Packing&Shipping
Company Introduction
FAQ
- Q: Are you a factory or trading company?
A: We are a professional direct manufacturer on the field of electric tubular heating element for 28 years from China.
- Q: Where is your factory located? How can I visit you there.
A: Our factory is located in ZhangGuo town, Xinghua City, Jiangsu Province, China. You can take airplane to Shanghai. Then we can pick you up from airplane port.
- Q: How many days do you need for samples and bulk production?
A: It will be 5 days and 15 days after we confirm all details.
- Q: What is your MOQ?
A: One piece for each item. And we provide customized service, no matter the voltage, power, dimension, material or thermostat, etc.
- Q: How can I know my order production condition?
A: Usually we will update the production condition regularly by email. If necessary, we also can take a video chat by social app, like wechat, facebook, skype or whatsapp.
- Q: Why choose us?
A: We are direct manufacturer, so we can completely control the quality and delivery time. And our price must be more cheaper on the same quality. 100% test before packaging according to the CE regulation. Our own brand TZCX is usually nominated from the final user. We are not only a professional manufacturer of heating elements, but also an excellent provider of heating solutions.
- Q: How can I get urgent feedback?
A; If you need contact with us urgently, please call: +86-13791585173. Any problems, welcome to contact us. We'll reply soon within 12 hours.
