Coal Railway Transportation Open Top Wagon

Name: Coal Railway Transportation Open Top Wagon
SKU: 60838007789
Price: $72,000.00 - $80,000.00 USD
Availability: InStock

Price:$72,000.00 - $80,000.00

Quantity:

Product Description

RTTW63 Open top wagon is specially designed for coal transportation by railway and can be used for mechanical unloading operations of a tipper.

The wagon adopts high-strength steel with a yield strength of 450 Mpa, and has the characteristics of light weight and heavy load.

Besides, the wagon can meet the transportation requirements of 10,000 tons Heavy Hual Train.

\t Main Parameters for RTTW63 Open Top Wagon
\t Tare weight	\t 19 tons
\t Payload	\t 63 tons
\t Capacity	\t 70.9 cubic meters
\t Axle load	\t 20.5 tons
\t Track gaue	\t 1067mm
\t Max. Operating Speed	\t 80km/h
\t Coupler center height from rail top	\t 889mm
\t Center distance of core plate	\t 9000mm
\t Wheel diameter	\t 762mm
\t Distance between two couplers	\t 26400mm
\t Brake type	\t AAR
\t Bogie type	\t Casting type

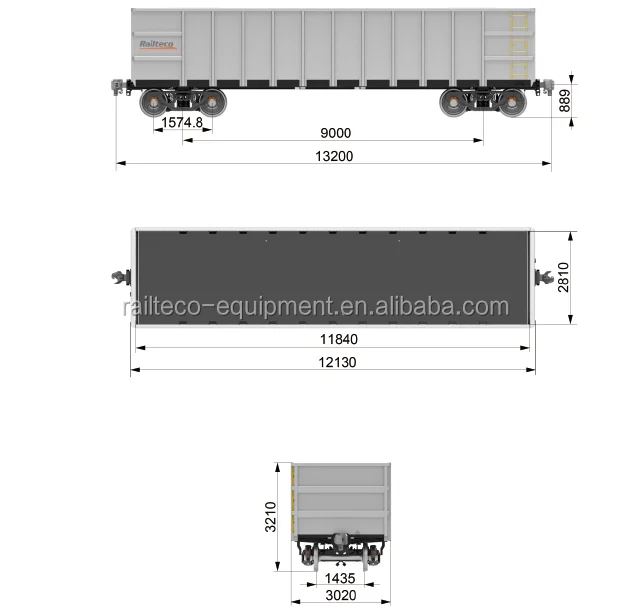

Detail Dimension

Manufacture Pictures

Delivery

Certifications
