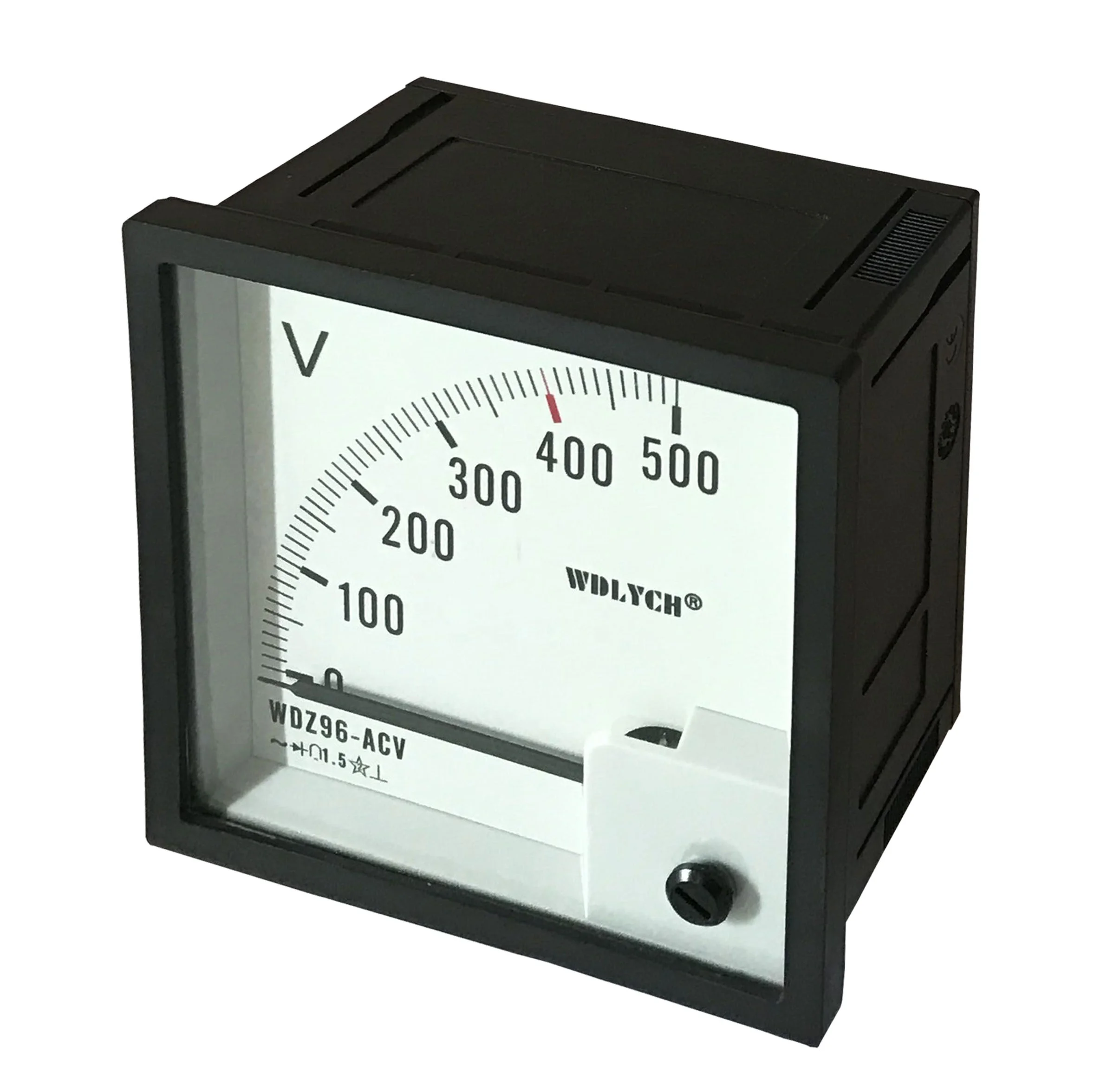

96mm Marine Type Analog Voltmeter Used in Switchgear
96mm Marine Type Analog Voltmeter Used in Switchgear
96mm Marine Type Analog Voltmeter Used in Switchgear

96mm Marine Type Analog Voltmeter Used in Switchgear

Share on (60838016857):


Price:

Quantity:


Product Overview

Description


Summary

Introduction & Application:


The Meters is analog display instrument, moving coil structure, which mainly measure AC/DC Voltage in transmission & distribution power system.

Standard: Comply with GB/T7676-98


Technical Parameters
\t
Item
\t
Technical Data
\t
International Standard
\t
Technical Standard
\t
GB/T7676-1998
\t
IEC60092-50
\t
Environment Standard
\t
GB8355-1987
\t
IEC92-504-74
\t
Safety Standard
\t
GB4793-20
\t
IEC61010
\t
Working Temperature
\t
-40℃-65℃
\t
\t
Temperature Influence
\t
-13-33℃, 100% comply with accuracy class
\t
Indicating Angle
\t
240-270° (Synchroscope meter:360°)
\t
Color of Shell
\t
Black/white , board frame , terminal plate : Black
\t
Color of Dial Plate
\t
Black/white, other colors are available on requests
\t
Mounting
\t
Vertical mounting
\t
\t

Dimension
\t
110*110mm,  80*80mm
\t
\t
96*96mm, 72*72mm, 48*48mm
\t
\t
Overshoot
\t
Less than 20% when scale reaches to 2/3
\t
Insulation Withstand
\t
Circuit & shell: AC2600V/1 minute(Water area)
\t
Vibration Resistance
\t
24.5m/s2
\t
\t
Impact Resistance
\t
147m/s2
\t
\t
Material
\t
Shell/terminal board: ABS;  Cover: Transparent Glass
Option

Optional Functions:

1. Can with transducing output, accuracy class: 1%;

2. Out of specification: Mark red or Red pointer

Our Company

Factory Building

Our General Manager

Office First Sighting

Workshop

R & D



Wei Dian Union sticks to the core value of "PURSUING FOR PRECISION AND PERFECTION", UNIFYING THINKING AND BEHAVIOR"as always. The WDLYCH technology study changes from mechanical machining mainly to more intensive, compact, electromechanical integration of mechanics & electrics fields. The world class experiment installation and testing facilities give strong R & D platform for Wei Dian Union continual creation and development.




Based on sufficient experience and understanding of industry automation field, the Wei Dian Union technical team continuously gives technology upgradation and renovation on electro-mechanical pneumatic components, focusing study on high frequency, intelligence, and low power technology, ex. multi-function meter, stern shaft tachometer, etc., just to make all products fits more for production, fits better for system, and achieve higher safety and stability performance.

Assemble Line

Alnico Installation

Electrical Welding

Balanced adjustment

Meter adjusting
