Full Spectrum Bar Led Grow Light 60w for Agriculture Cob full spectrum 100 watt led grow light

Product Overview

Description

Description: RX-TP5025-4H LED Grow Light Module, 4 individual spectrum channels design, Adjust the spectrum you need, ideal for different kinds of plants all-stage cultivation (including sprout, seedling, vegetative, budding, flowering and ripening). Available For plant factories, home planting, aquarium growth, and particularly suitable for lab plant factory germination and planting.

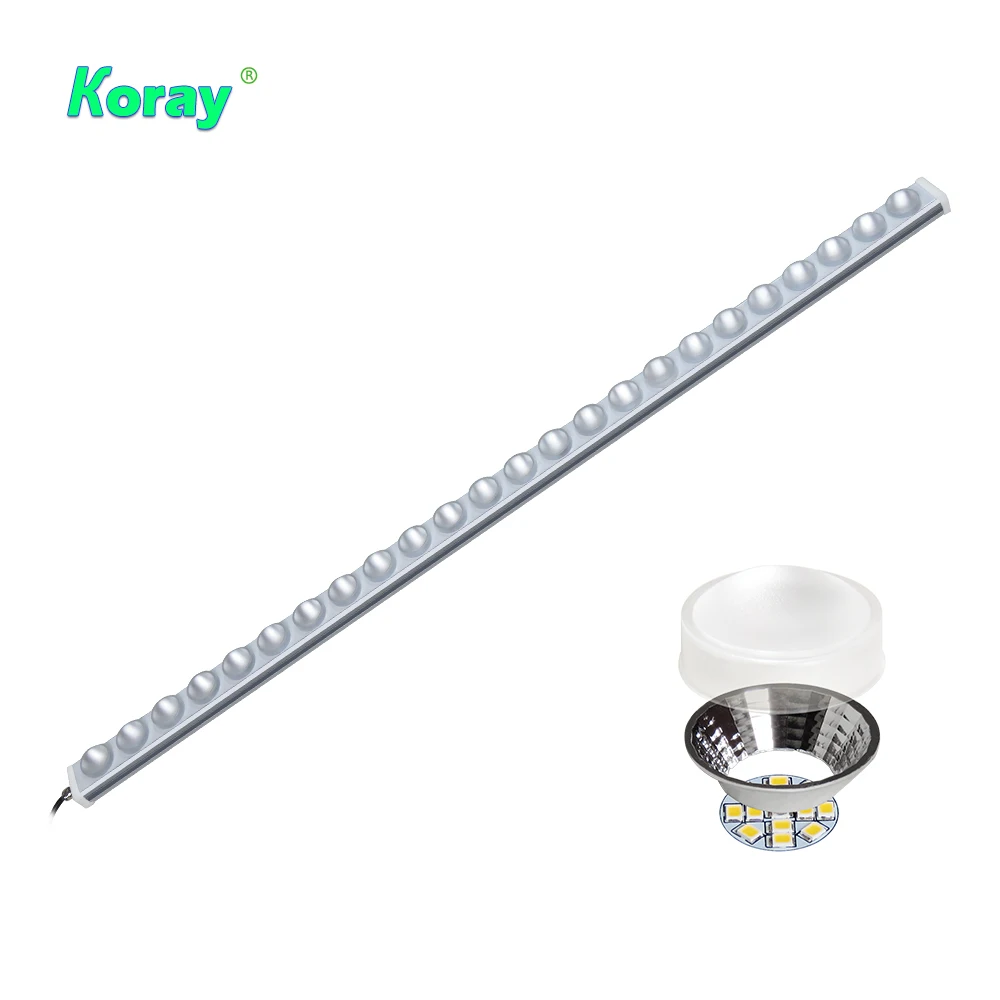

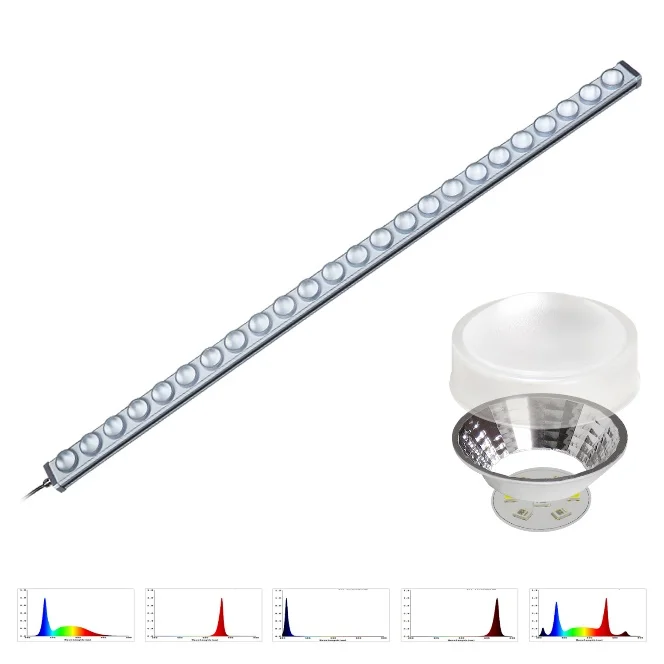

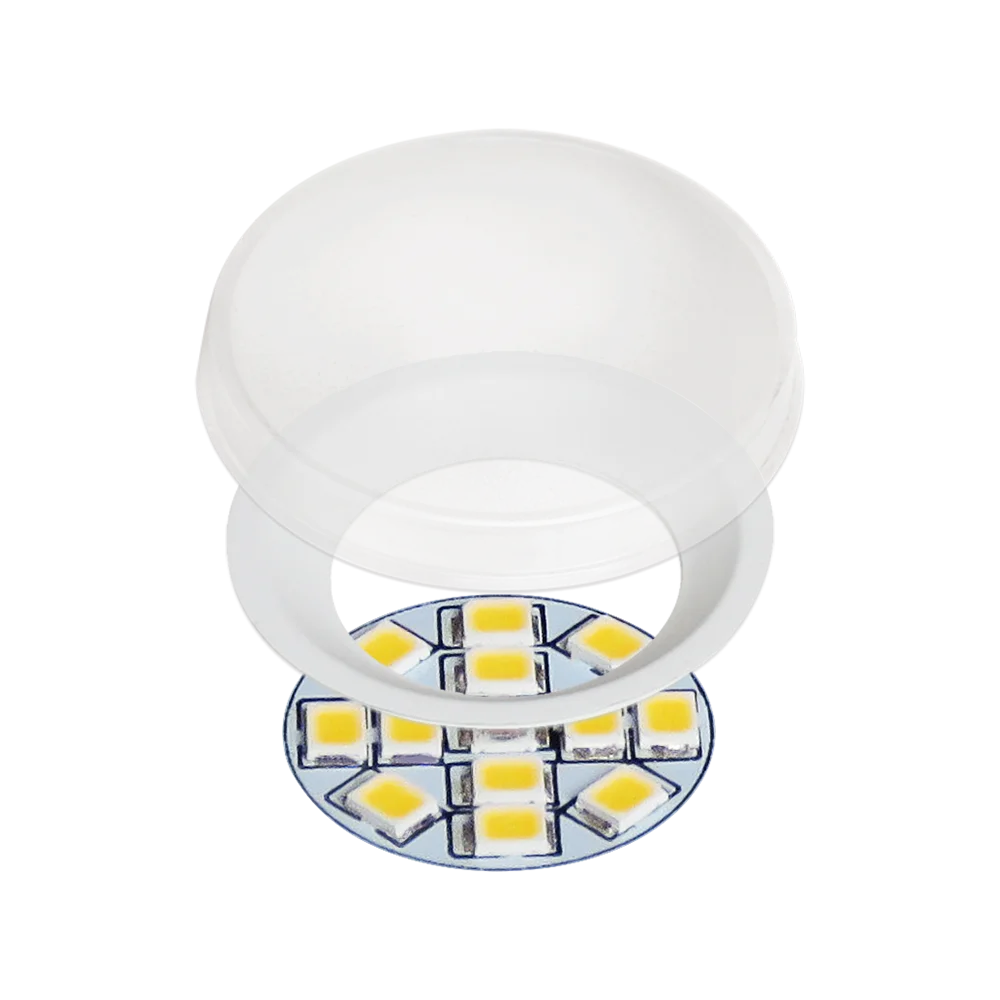

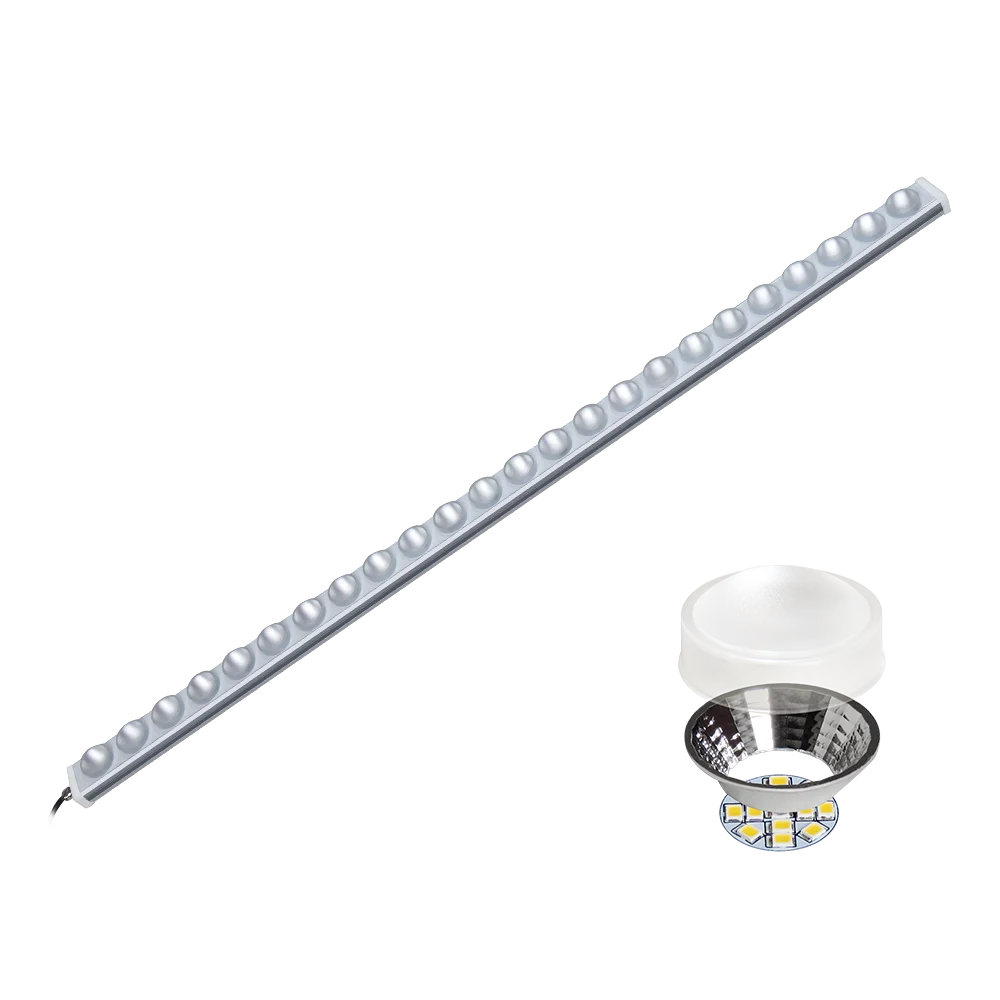

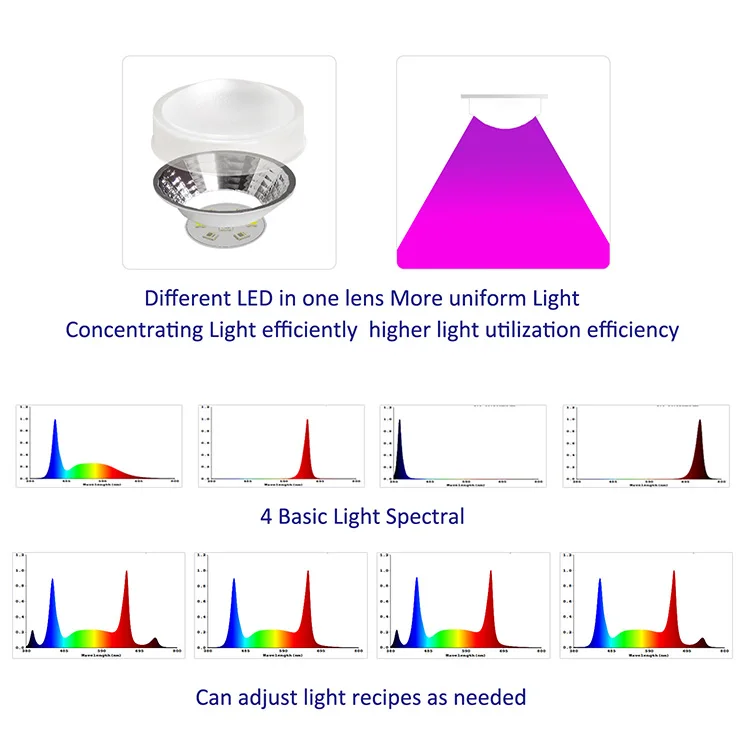

1.Different LED chips in one lens, Spectral radiation uniform, Lens + Reflector      cup, Concentrating radiation, Energy saving 50% 2.Four separate channel dimming control that adjust different spectra to meet      different light recipes for plant growth. 3. Optimized spectrum combinations: 450nm+white/CH1,660nm/CH2,     730nm/CH3,395nm/CH4 4.Plant incubator LED module - Growth Chamber Light module, Ideal for lab     scientific research, plant factory cultivation and family growth. 5. Optional Silicone potting waterproof IP65 6. New design, Patent No: 201620887642 7. Common anode design, can be driven by ordinary RGBW controller  8. CE RoHS FCC

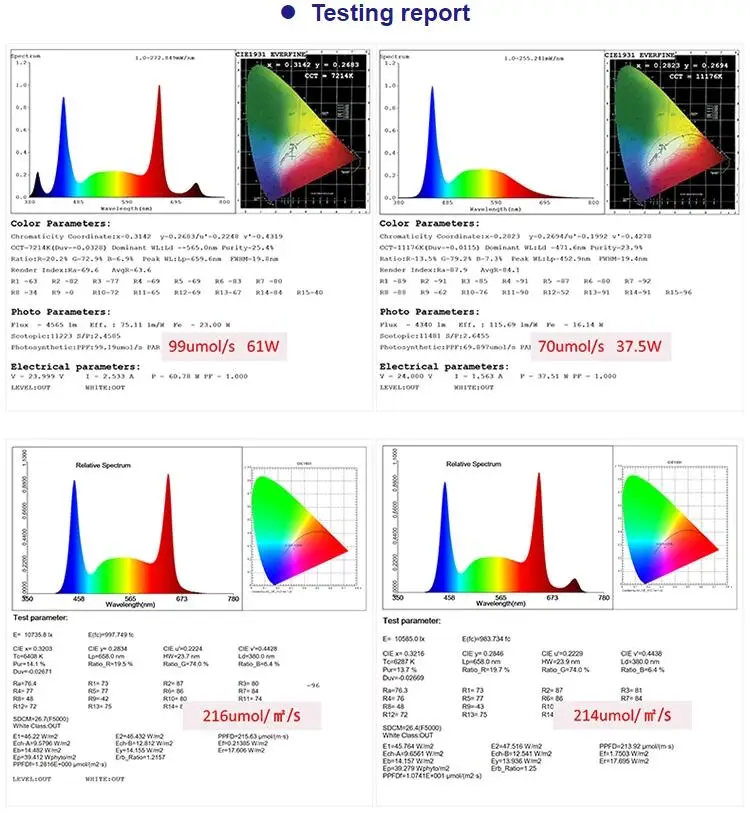

Model	Dimension	Spectrum and Channel	Photon PPFD µmol/m²/s	Luminous flux PAR Output	Power Input DC24V	Comment

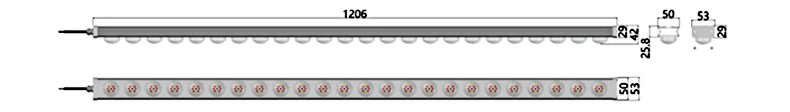

RX-TP5025-4H	1206x50x42mm	CH1 450nm+white	159.6µmol @0.3m 10236Lx	Flux 4340Lm PPF: 70umol/s PAR: 15920mW	37.5W	Tissue culture and nursery Aquarium lighting
		CH2 660nm	61.8µmol @0.3m 788Lx	Flux 385Lm PPF: 31umol/s PAR: 5629mW	15W	CH2 increased by 50% CH1 is suitable for vegetative growth
		CH3 730nm	3.4µmol @0.3m 2.1Lx	Flux 0.8Lm PPF: 0.16umol/s PAR: 28mW	5.5W	730nm adjustment flowering Promote plant stem growth
		CH4 295nm	0.4µmol @0.3m 3.5Lx	Flux 3.6Lm PPF: 1.4umol/s PAR: 406mW	4W	Stimulate plant stress response Increase pharmaceutical ingredients
		CH1 ~ CH4	216µmol @0.3m 10528Lx	Flux 4565Lm PPF: 99umol/s PAR: 21334mW	61W	Full spectrum, increased by 395nm, 730nm suitable for plant flowering and maturity
Surface temperature rise Tc 20°K , Operating temperature: -30 °C ~ 40°C , Lifespan: 50,000 hours (Note: Ta ≤ 25 °C) Tolerance range for optical and electrical data: ±10 %.

The above data is for reference only!











Recommended Products:

RX-GW78-120Z High power Top-light medicinal plant growth LED module array lampV2	RX-TP5025T-120Z  High PAR High Power toplighting Medical plants growth lights
RX-GW45-120 Waterpoof Plant Factory Vertical Farming Plant Grow Lights	RX-PT5-M  plant factory plant growth lamp economical waterproof plant light

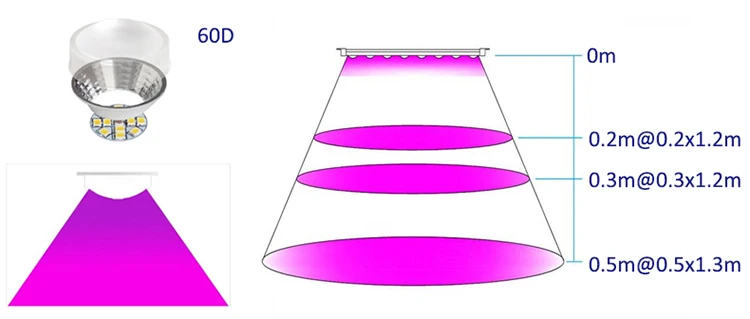

l60D Depth distance & Coverage:

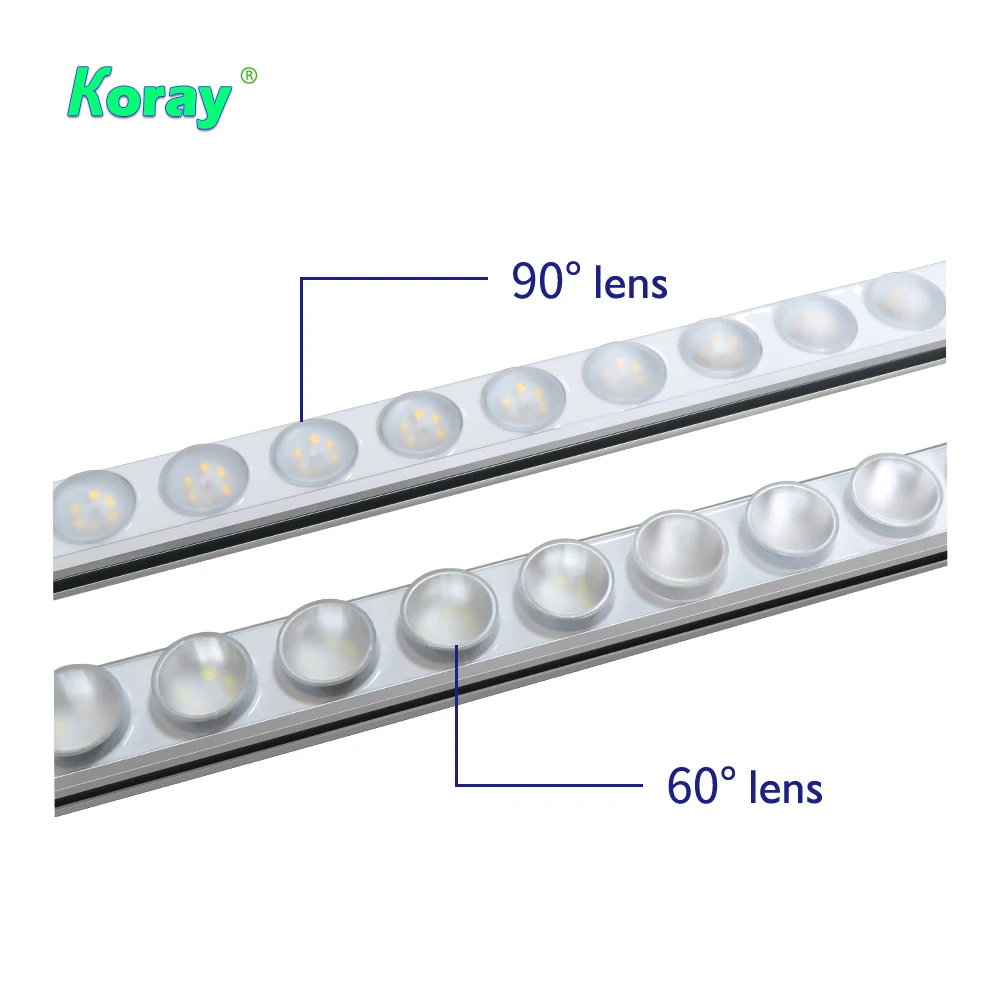

 The above is the same spectrum, the same power test, 120D FFP: 197umol / s light efficiency up to 2.5μmol / J, 60D  PPF180umol / s light effect 2.3μmol / J

 High light efficiency, high PPF, but the light does not reach the canopy of the plant, and the high efficiency is of no  practical use. Therefore, the koray plant grow lamp enhances the efficiency and, in the case of the same power  consumption, increases the average PPFD of the required illumination area, and makes the illumination uniform and the  spectrum uniform.

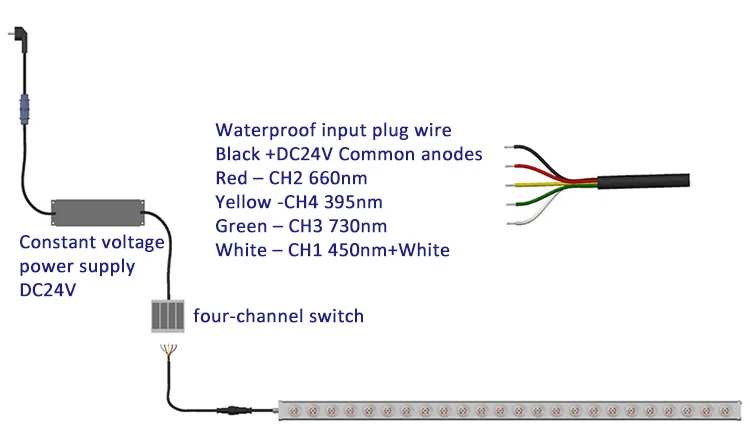

l Four independent channels, using different spectra, you can adjust the spectrum and adjust the light intensity according to the plant light recipes. Common anode

design, can use a general-purpose PWM constant

voltage DC24V dimming controller,

such as RGBW dimmer.

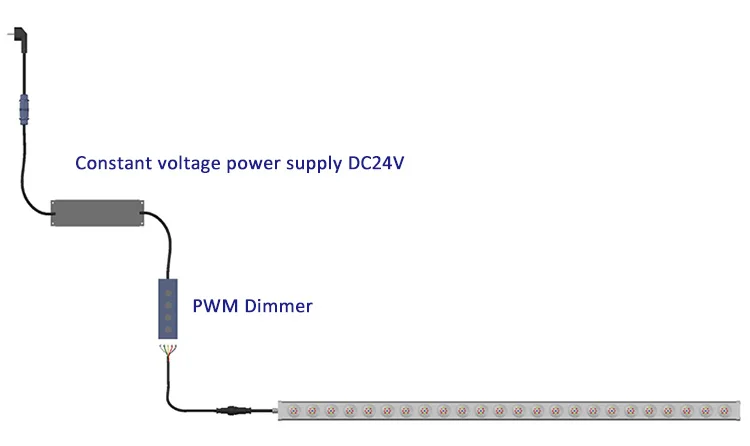

l Switching connection









l Four channel dimmer connection
