200kw NH3 R717 ammonia stainless steel evaporative condenser for industrial cooling
- Category: >>>
- Supplier: Jiangsu Victory Hot-Cooling Technology Co. Ltd
Share on (60838031223):
Product Overview
Description

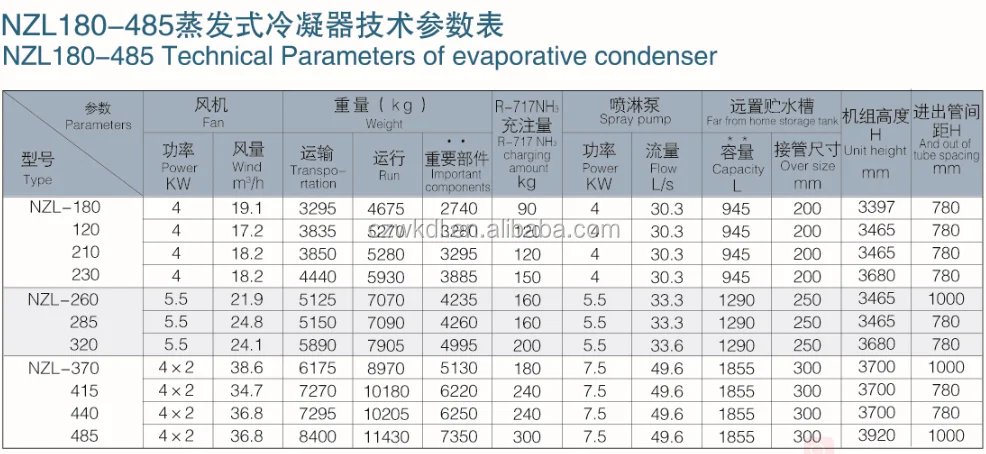

Product Description
Product Application

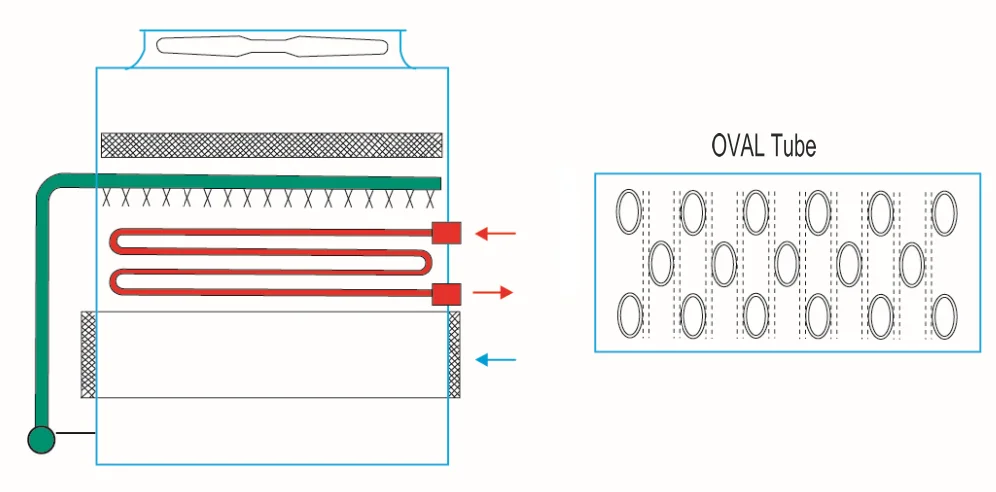

NZL series evaporative condenser is top counter blow design, only one time heat exchange, totally dependent on surface of cooling coil. Heat exchange coil apply seamless oval steel tube, tube pattern in compact space and smaller pitches, tube surface get larger in limited space. It extend water and tube heat exchange time and greatly improve thermal efficiency of coil.
Detailed Images
Machine Parts
Name: Heat exchange coil
Seamless stainless steel coil in oval shape, which can great enlarge heat exchange surface
Main Features
Name: Axial Fan
Brand: EBM / ZiEHL-ABEGG
Original: Germany
Good brand from Germany. We also have good China brand with competitive price.
Machine Parts

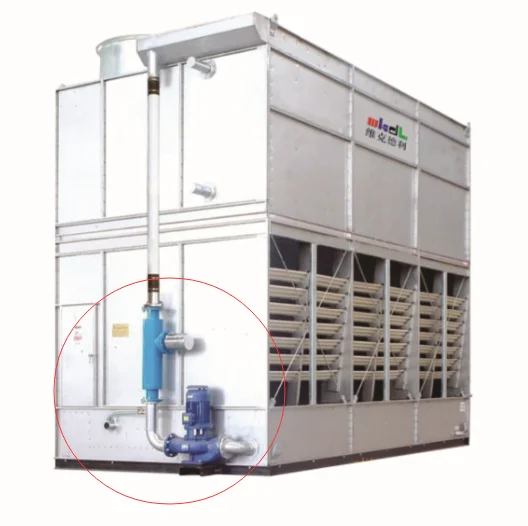

Name: Pump
Brand: Siemens
Original: Germany
We have Siemens pump and domestic good brand for choice with low noise.

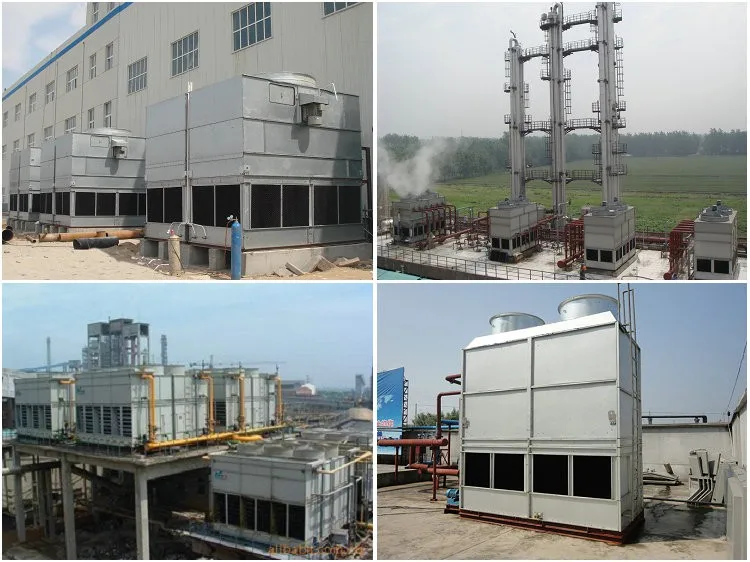

Customer Cases
Application Fields:
1. Commercial Buildings
2. Air Compressors
3. Data Centre
4. Injection Machines
5. Food Industry
6. Transformers
7. Hydraulic Stations
8. Foundry Shops
9. Melting Shops
10. Power Plants
11. Commercial Buildings

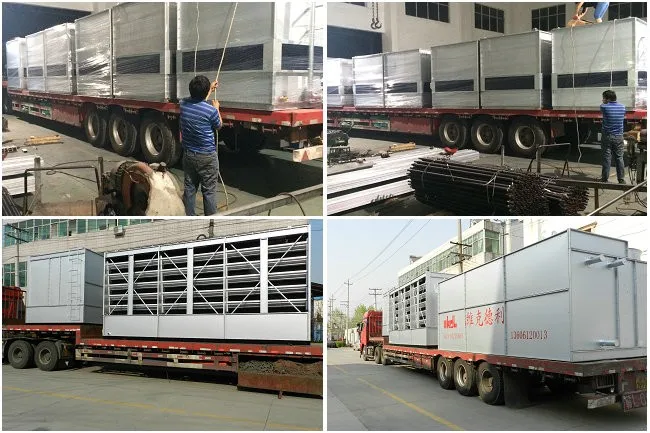

Packing & Delivery
Factory View
Jiangsu Victory Hot-Cooling Technology is a Manufacture and Technical Design company with over 15 years experience.
Our main products are as below :
* Heat exchange coil in all types
* Evaporator & air cooler ; condenser
* Evaporative condenser / cooling tower
Our heat exchange coil has been exported to USA, Canada, Australia, South Africa etc.
Related Products

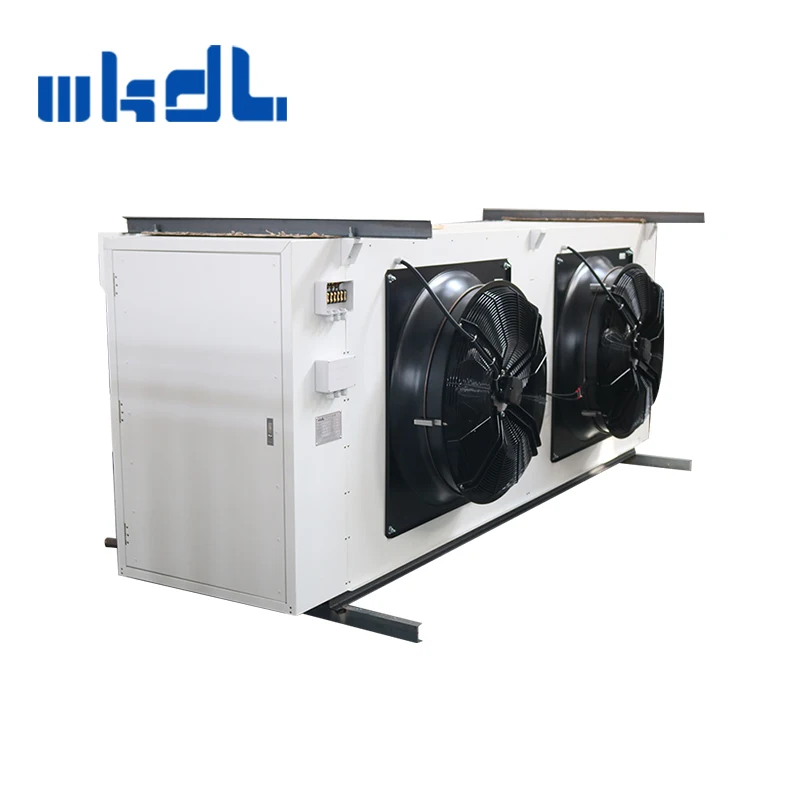

Blast evaporator coil
