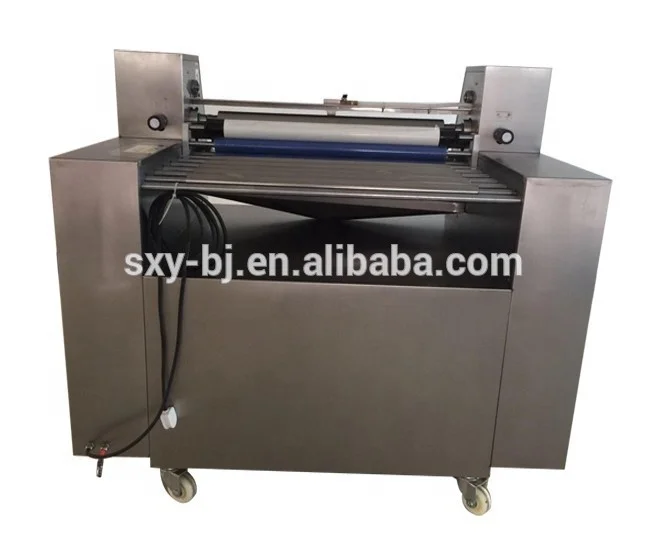

Metal Roller Coating Machine / Photoresist Ink Coating Machines

Double Side Roller Coating Machine / PCB dry film or solder photo resist ink coating machine

Power :  220V/0.3KW
Working width / Height :  650mm / 850mm
Plate Thickness :  0.05mm~3.2mm
Coating Thickness  : 8~15um
Coating Speed : 0~100HZ
Roller Details : 95mm *650mm L

Electric Control system:        1)PLC screen                                                          2)TAIWAN MEANWELL switches
                                                       3)XIAMEN JSCC Motor 200W                         4)WANXIN mixing motor 25W

Guide Rail :   TAIWAN HIWIN +/- 0.01mm
Machine material  : Stainless steel material
Machine dimension / Weight : 920x1200x1100mm / 300kgs

Introduction:

PCB dry film coating machine/ PCB solder mask resist ink coating machine is suitable for PCB industry or precision etching work.
