Indoor 698 2700MHz omni antenna omni directional ceiling mount antenna
- Category: >>>
- Supplier: Xiamen Dianchang Communication Technology Co. Ltd.
Share on (60838091861):
Product Overview
Description
Product Description

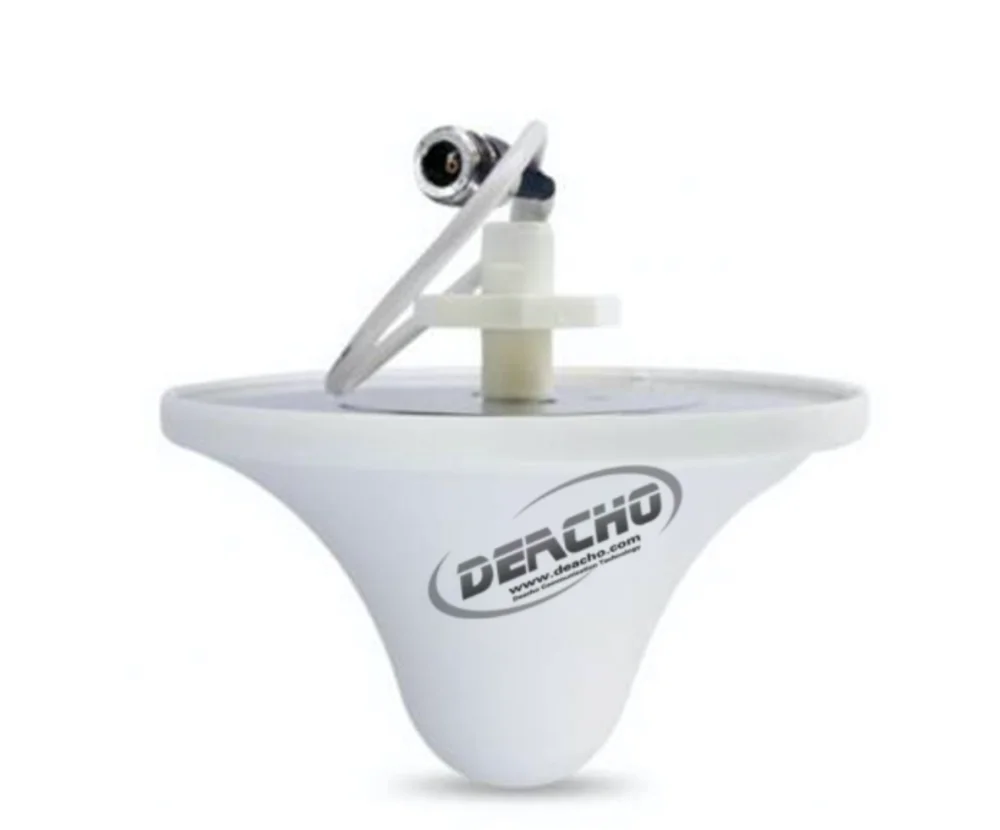

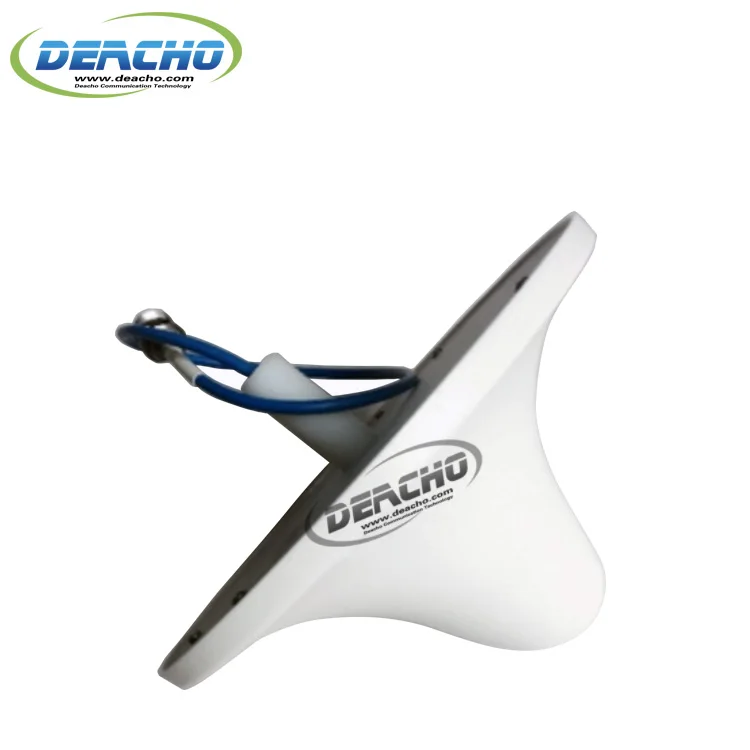

Indoor 698-2700MHz Omni Ceiling Antenna
Description.
Ceiling mount antenna is designed for indoor wireless
networks operating in the LTE, Cellular or 2.4GHz frequency range. This antenna is ideal for any indoor voice and data wireless system. Indoor Omni Antenna is placed at the end of the signal distributed network and connected to the distributed network, to coverage the area where mobile user exists in building. It is usually installed in the ceiling.
networks operating in the LTE, Cellular or 2.4GHz frequency range. This antenna is ideal for any indoor voice and data wireless system. Indoor Omni Antenna is placed at the end of the signal distributed network and connected to the distributed network, to coverage the area where mobile user exists in building. It is usually installed in the ceiling.
Application.
◆ CDMA / GSM / 3G / 2.4GHz WLAN / LTE
◆ Wireless pubic hotspot coverage
◆ Wireless communication & Data transmission
◆ Indoor signal coverage
◆ TDD/FDD-LTE
_____________________________________ TECHNICAL SPECFICATIONS _______________________________
Electrical Specifications | ||||
Model | OA2C-37J3-R2 | |||
Frequency Range | 680-960-MHz | 1710-2700-MHz | ||
Gain | 3 dBi | |||
Horizontal Half Power Angel | 360° | |||
Vertical Half Power Angel | 80+5° | 55+15° | ||
VSWR | ≤ 1.5 | |||
Polarization | Vertical | |||
Max Input Power | 50-W | |||
Input Impedance | 50 -Ω | |||
Connector Type | N female | |||
Cable Type | RG58, 30cm | |||
Lightning Protection | DC Ground | |||
Mechanical Specifications | ||||
Antenna Dimension | Φ164*95-mm | |||
Weight | 500-g | |||
Radome Material | ABS | |||
Working Temperature | -40°C ~ +65°C | |||
Color | White | |||
Application.
Related Products

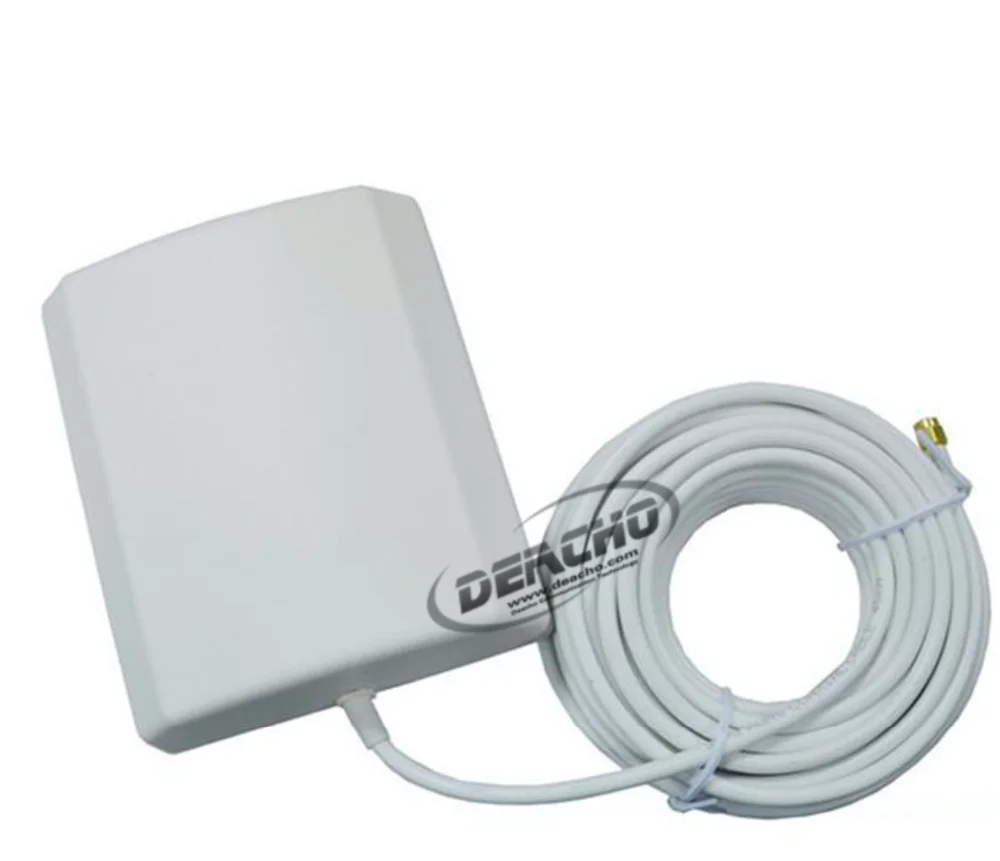

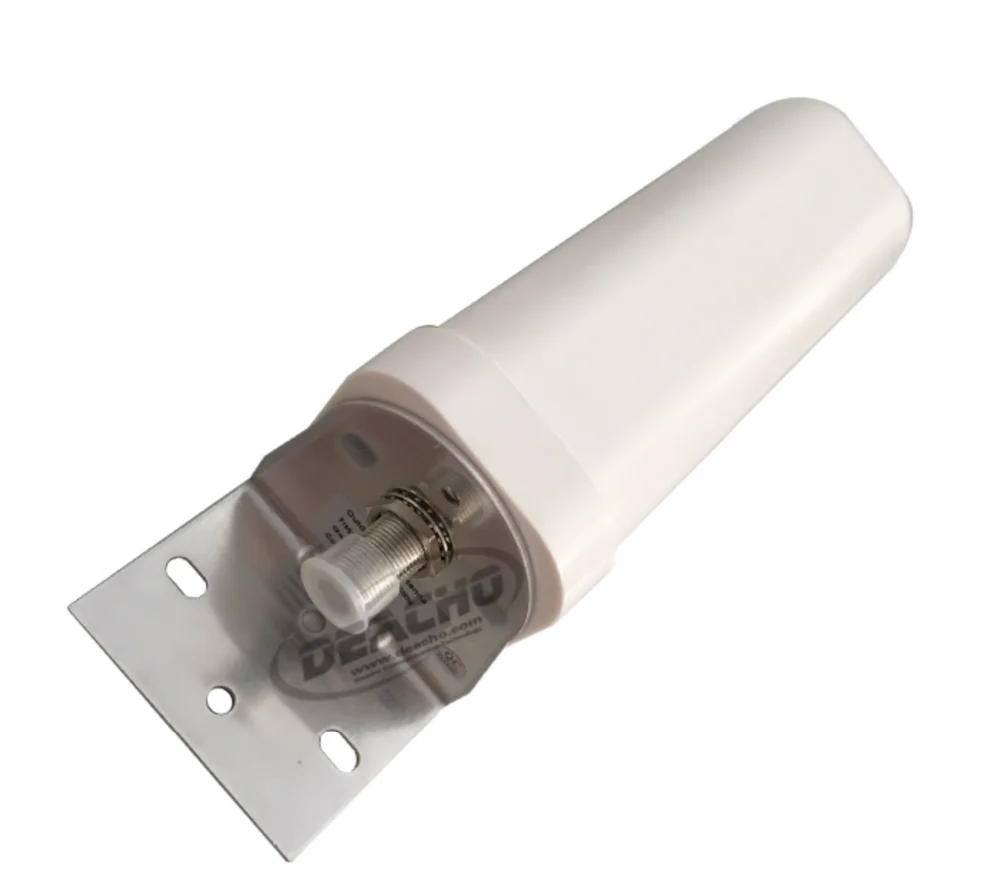

Indoor Omni Antenna Outdoor Omni Antenna Panel Antenna Log period antenna
