Safeagle Inspection Scanning Machine X Ray Baggage Scanner Price with Explosive Narcotic Alert
- Category: >>>
- Supplier: Shenzhen Jinjian Era Technology Co. Ltd.
Share on (60838103251):
Product Overview
Description
Product Description
Dual-energy Imaging of SE5030
7 color and Z-scan are designed to help operators detect a range of dangerous liquid and explosives & narcotics respectively in real time by marking a potential threat on the X-ray image. Safeagle® Systems detection algorithms are based on regulatory material analysis techniques. The scanning screen supports multiple Split-screen（3 screens） and Full-screen options for optimal viewing, operator can customize the color mode of the switchable main screen and the two auxiliary screens respectively.

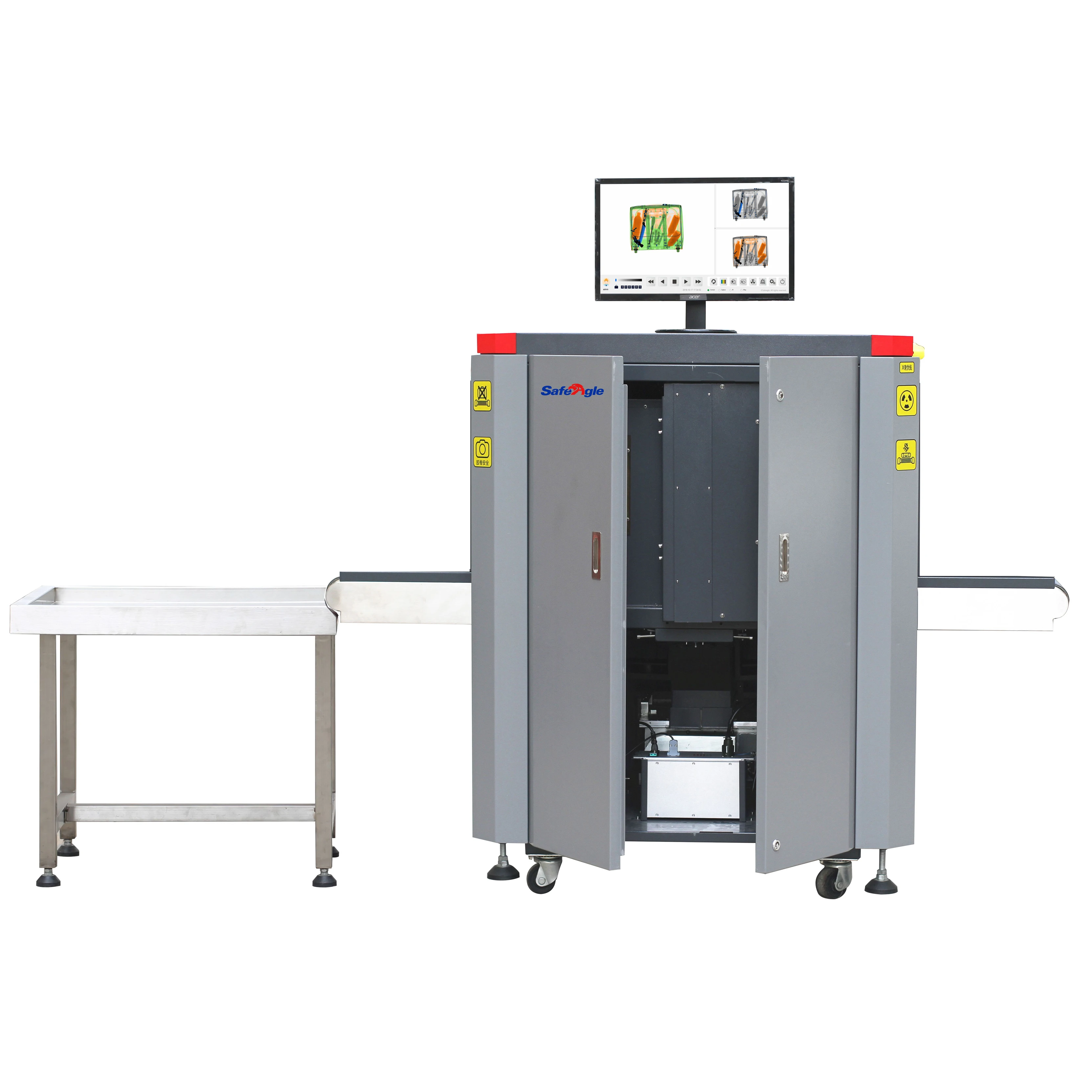

Door Design Side Panel for easy to maintain and update.
50*30cm tunnel opening with radiation safety labels
Double Layer Leaded Curtain to stop xray
Build-in side leaded curtain to stop xray
X-ray On Indicators in the four corners
Product Show
Safeagle X-RAY INSPECTION SYSTEM | ||||||
Tunnel Size | 556(W)x 355(H)mm | Film Safety | Guarantee ISO 1600 (33 DIN) | |||
Belt Speed | 0.23m/s (45ft/min) Forward | Display Type | 21.5" LCD Color Monitors | |||
Conveyor Load | 150 kgEvenly Distributed | Display Resolution | 1280 x 1024; 24 bit/pixel Color | |||
Voltage | 140KV | Operating Temperature | 0°C - 40°C | |||
Tube Current | 0.7mA | Humidity | Up to 95% Non-Condensing | |||
Cooling | Sealed Di-Electric Oil Bath with Forced Air | Power Requirements | 220VAC±10%, 50 / 60Hz, 10A Max | |||
Duty Cycle | 100% | Memory | 4GB RAM | |||
Beam Direction | Diagonally Upward | Storage | 1 TB SSD | |||
Auxiliary Detection Functions
• Single/Multi Energy Software
• Bidirectional Scanning• Recall Historical Image
• Query & Backup & Mark & Print Image
• Baggage Counter
• Multi-language Operation
• Auto Image Archiving
• Storage Type:PNG, JPEG, BMP
• Real-time Self-diagnostics
• Different Access Level Account
• Network Ready
• Secure Access Key
• 0.7 m Standard Extension Table
• Operator's Control Console

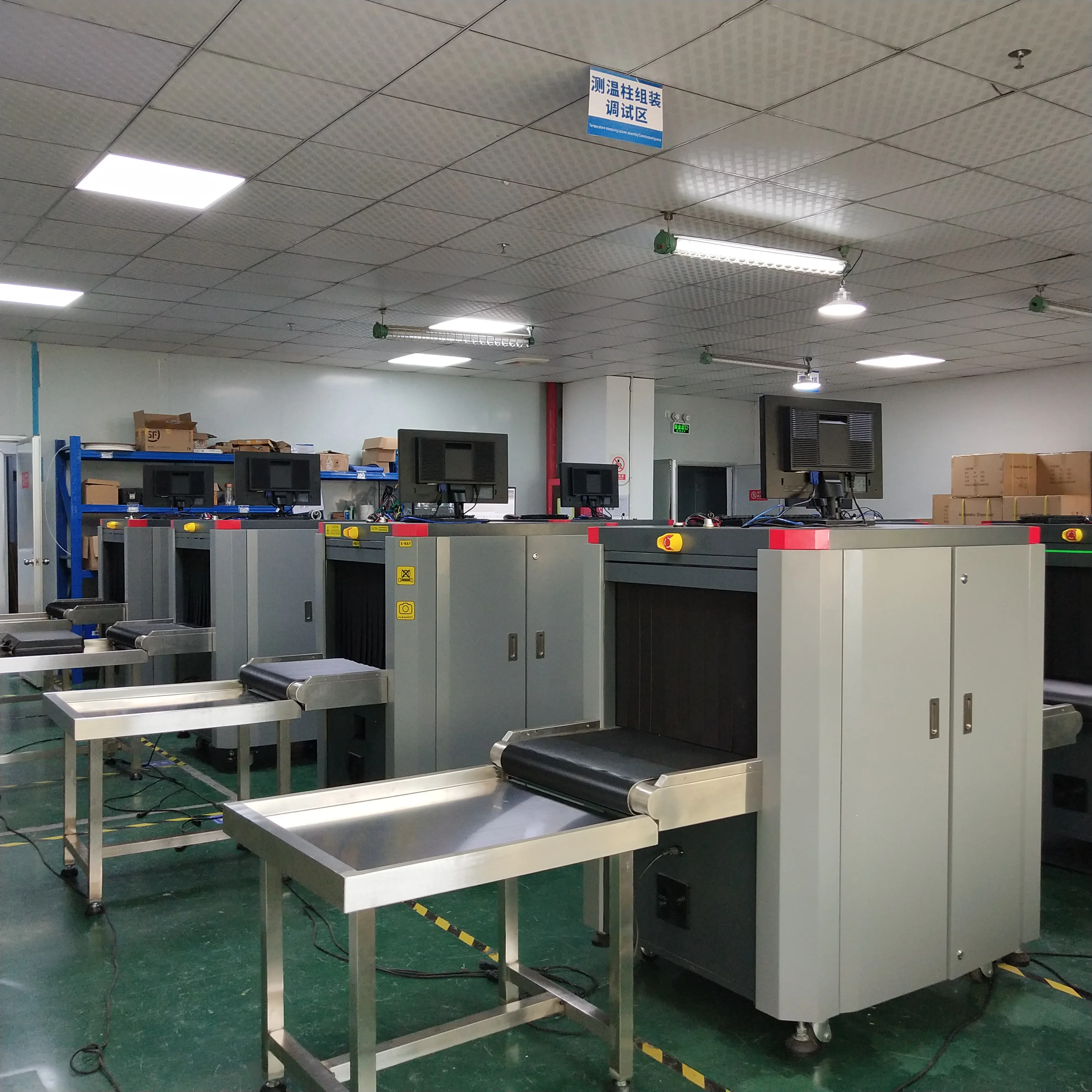

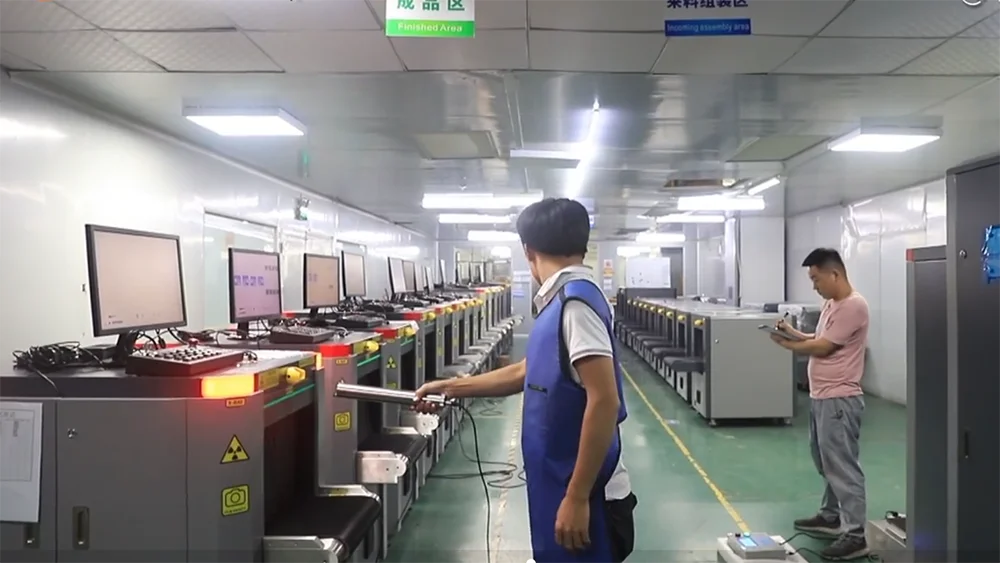

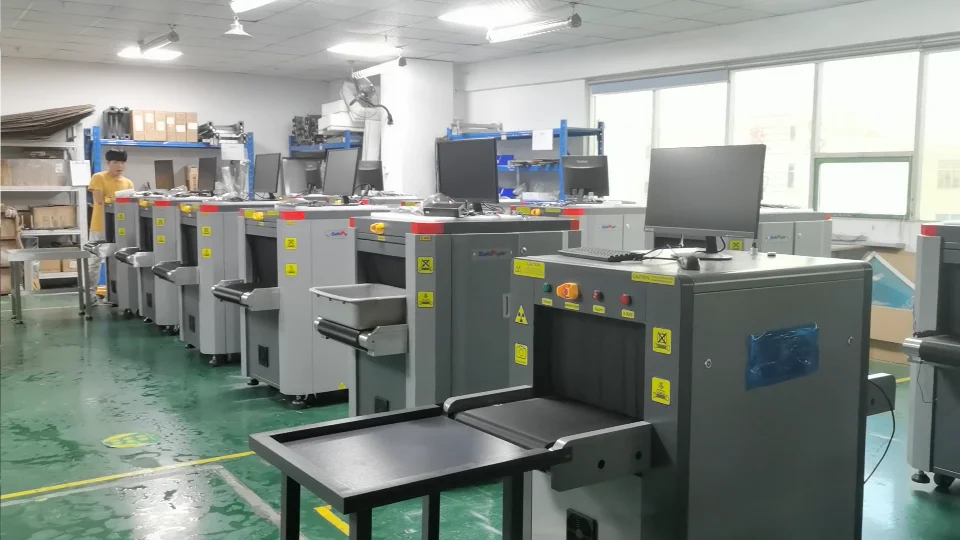

Working Shop
Case Assembly
Electrical Assembly
Aging Testing
Radiation Testing
Software Testing

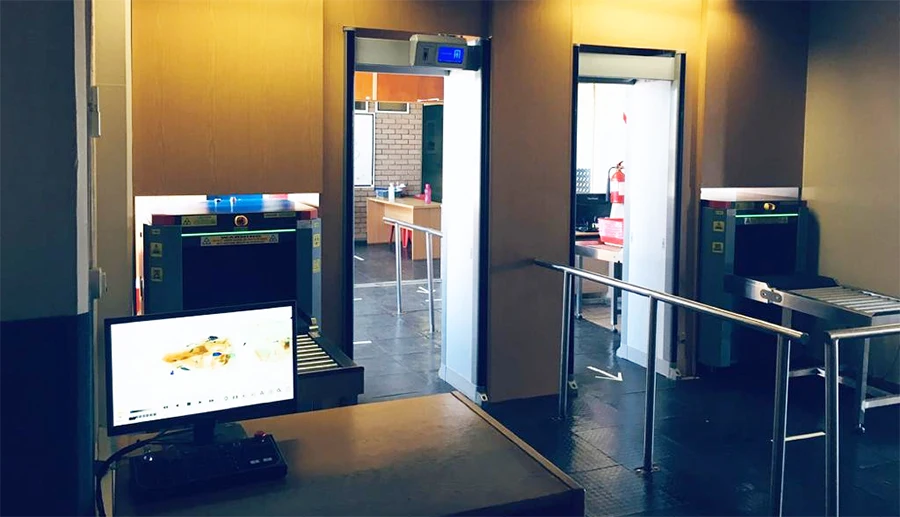

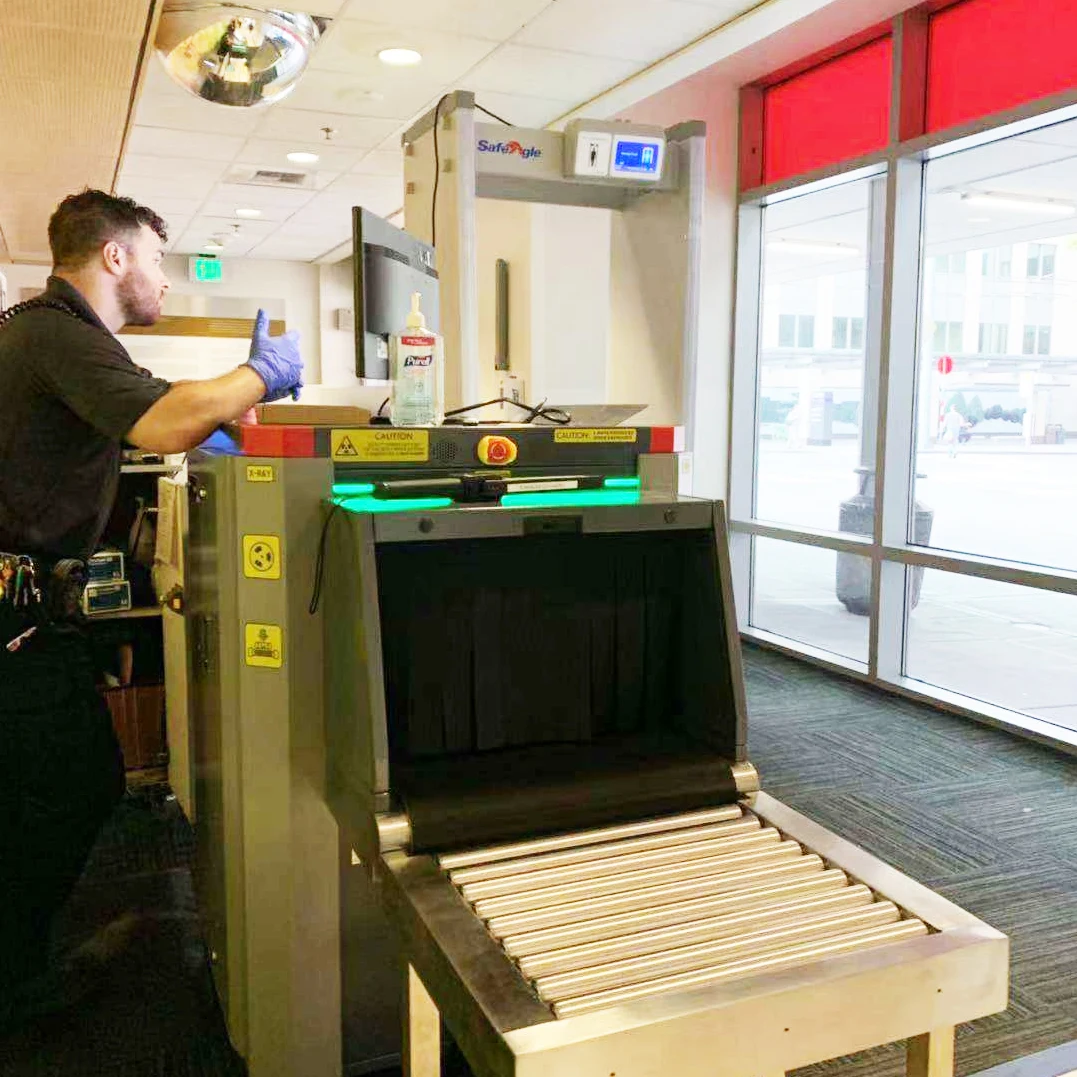

End User
Certificate and Radiation Limitation
Radiation Standard
The design of Safeagle system provides radiation leakage attenuation limited to 1.0 μSv/hr(0.1mR/hr) or lower at any accessible point at the distance of 0.1m from the external surface of the system.The dose rate intensity at the workstations of the personnel does not exceed 1.0 μSv/hr. Safeagle baggage X-ray inspection system strictly control the radiation leakage at it's source, the leaded rigid-steel tunnel, double layer leaded leaded curtain
Packing & Delivery
Packaging | ||
Size | 1460*960*1500mm | |
Weight | 480kgs | |
Packaging Details | The normal package is plywood case, non-fumigation. | |
Important Notice
About the Accessories and Installation of X-ray Baggage Scanner
1. If order a standard Safeagle X-ray baggage scanner, the packing list will be
1) Scanner machine *1
2) User manual, radiation test report, acceptance certificate *1
3) 21.5 inch display with wireless keyboard and mouse *1
4) 0.7m tunnel extension *1
5) 1.5m electric wire *1 (European/British/American/South Africa/France/Italy/Brazil/Australian standard etc.)
2. If received, you're required to install the scanner quickly with below 4 steps.
1) Take out and installed the monitor, keyorard from the tunnel
2) Install the tunnel extension
3) Power on
4) Start the software then test it
* All Safeagle scanner has embedded with wireless LAN for remote control, can do support anytime.
3. One-stop Service
1) If you're a professional agent who well understand the security products what we supplied, then you can enjoy a very good agent price and direct sales service and factory support from Safeagle.
2) If you're end user who have no idea about the product interested, then Safeale can provide with a profssional security solution for you.
2) If you're end user who have no idea about the product interested, then Safeale can provide with a profssional security solution for you.
FAQ
How to choose the right x-ray machine used at building entrance (Hotel, embassy, church, etc )?
The X-ray baggage scanners tend to same with different quality in the recent market, which let many consumers confused and alarmed, below is to teach you how to choose a x-ray baggage sanner correctly.
QUESTION 1: What objects are you trying to see through?
If machines will secure building entrances, it’ll likely be scanning briefcases, backpacks, purses and mail parcels. In that instance your best option will be scanners with narrow frames, perfect for fitting into the tight space.
QUESTION 2: Are you looking for drugs? Guns? Explosives?
If scanners will be looking for small knives and possibly guns. Briefcases and backpacks aren’t usually made of materials that are hard for X-rays to penetrate. In this case a smaller X-ray generator(80KV) should offer plenty of visibility. When combined with the X-ray imaging features, such as HD imaging and material discrimination offer operators the best opportunity to identify and isolate threats before they enter any buildings.
Our Company
Safeagle is an experienced high-tech manufacturers for security equipment in Shenzhen, China, thanks for all our honorable agents and clients, our oversea high-end brand "Safeagle" receive quite high reputation at home and abroad, we mainly specializing in:
• X-ray Baggage Scanner
• Walk Through Metal Detector
• Hand Held Metal Detector
• Explosive and Drug Trace Detector
• Under Vehicle Inspection System
• Under Vehicle Searching Mirror
• Anti-terrorist Road Blocker
• Anti-terrorist Rising Bollard
• Anti-terrorist Tire Killer
