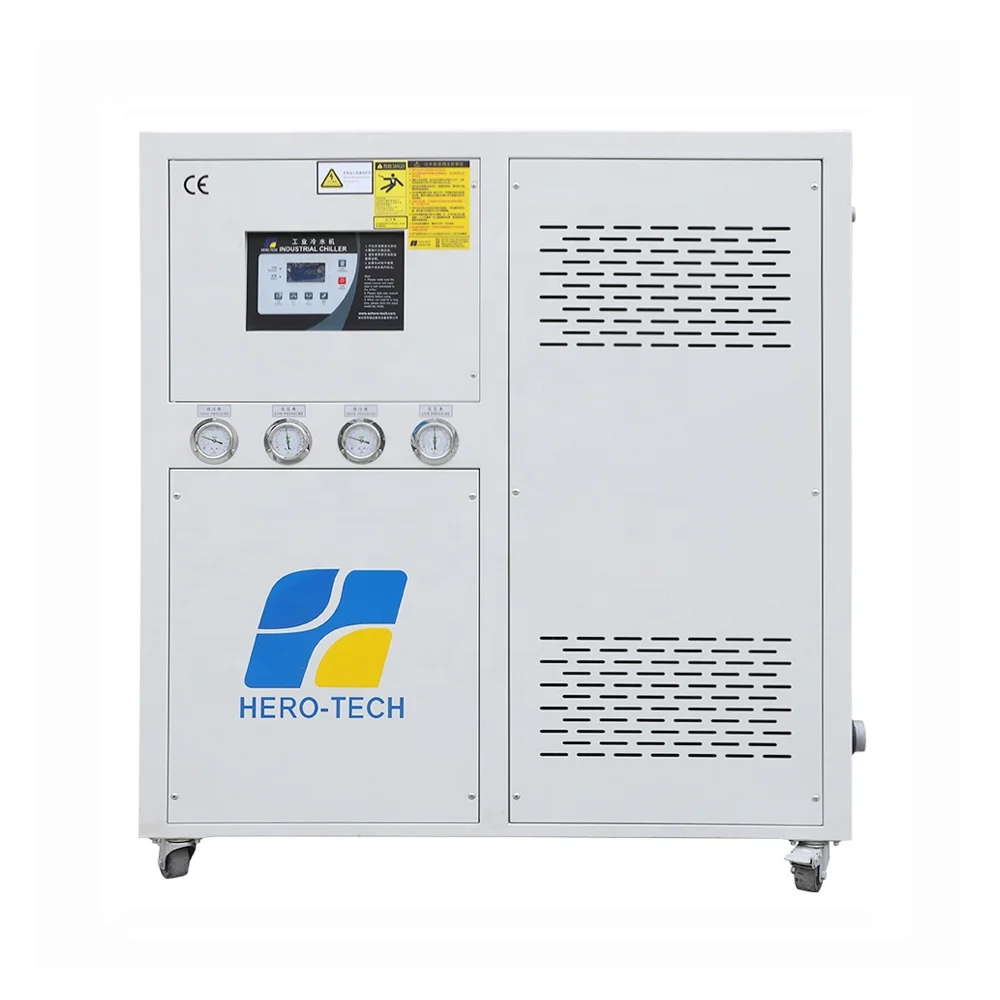

Standard CE Low temperature Chiller for milk and food processing industry

Product Overview

Description

HTLT-W series low temperature industrial chiller is specially designed by HERO-TECH ,which is widely applied in pharmaceutical, chemical and bioengineering industry. The temperature is adjustable in the range of -35℃ to +5 ℃. If you have a need for reliable low-temperature cooling for your industrial application, we have the equipment you need. Our scroll chillers are currently used around the world to guarantee a vast range of processes for many leading companies. We can create custom chilling solutions adapted to your specific cooling needs and find ways to add value to your process with our reliable and efficient low-temperature scroll chillers.

HERO-TECH products are designed to help lower environmental impact with next-generation, low Global Warming Potential (GWP) refrigerants and high-efficiency operation.

Emerson expansion valve

Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.

Refrigerant: R22 charged, CFC free type R410A R407Cfor option.

Multi-protection devices ensure the chiller unit running safety. Control for set and actual temperatures and safety alarms.

3PH 380V-415 50HZ/60HZ for standard design. Different design available on request.

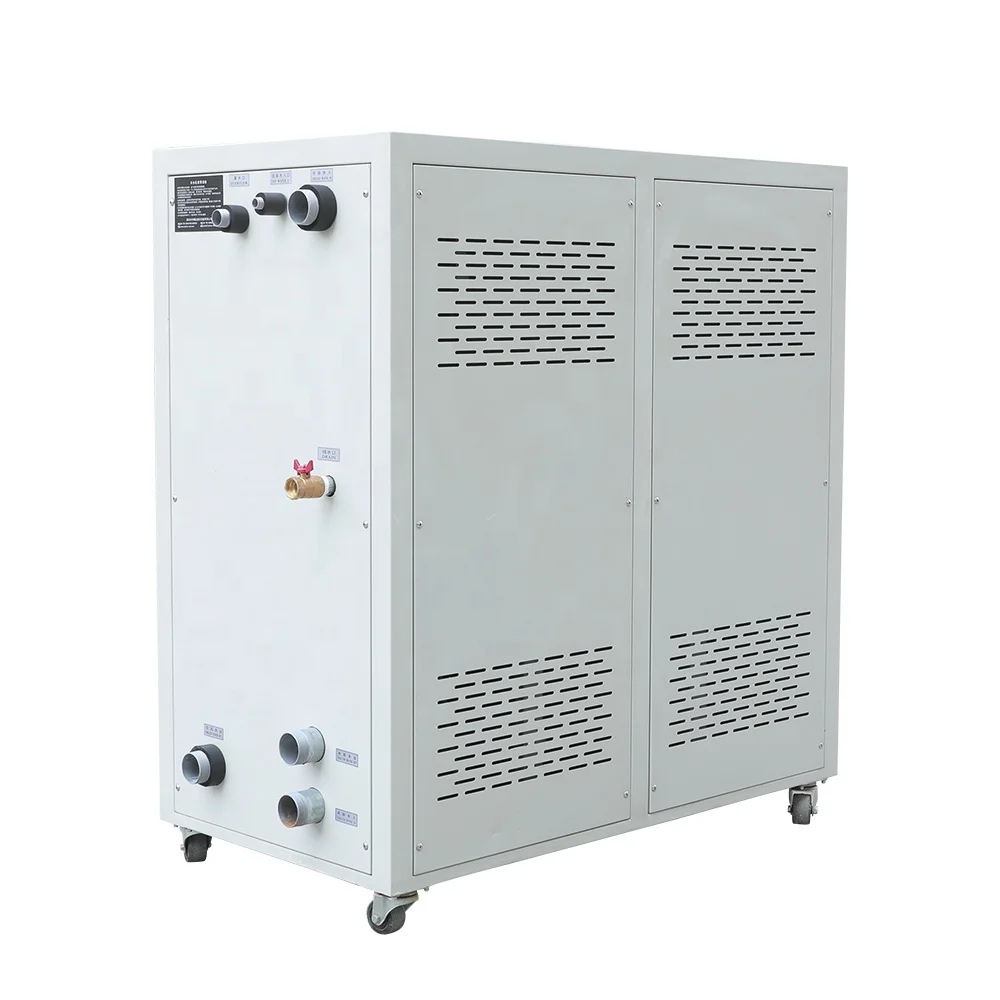

Removable side panels for ease of access.

Process circuit with thermal insulation.

Sight glass with low level switch.

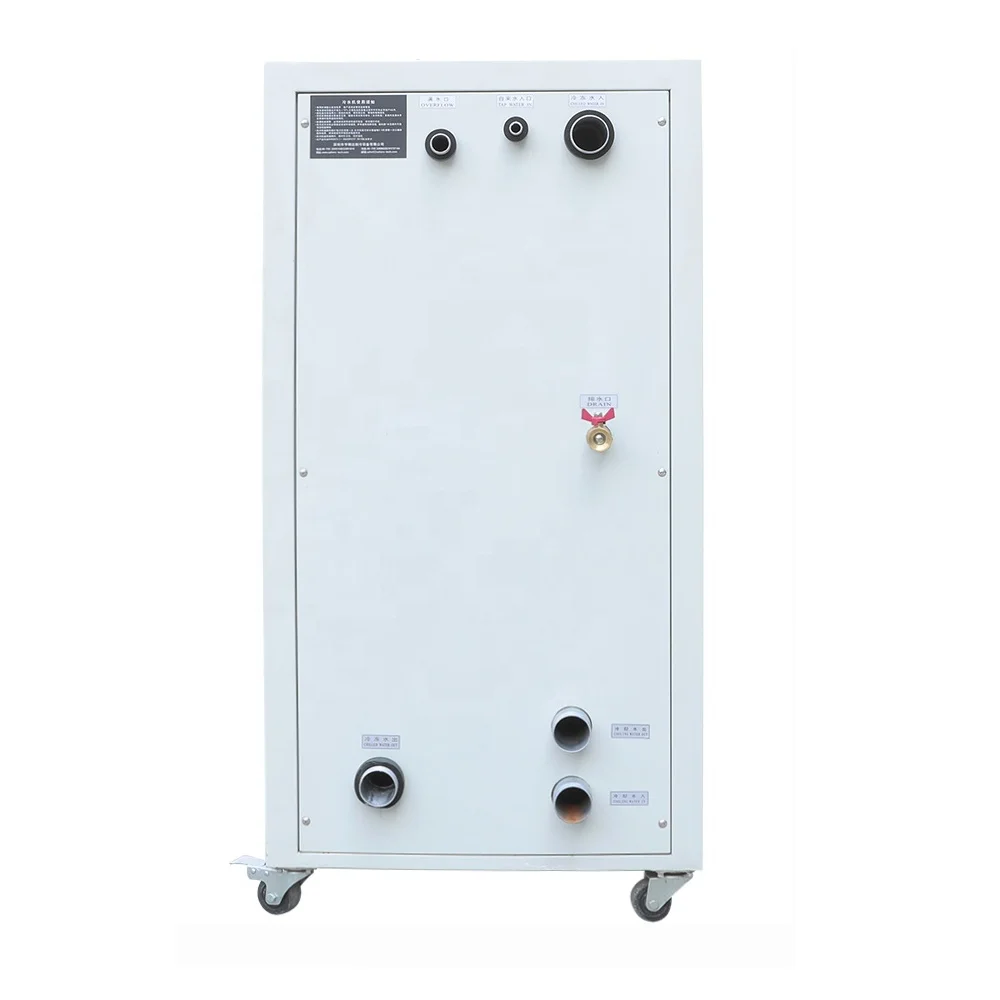

Threaded couplings for prompt connection to the user’s plant.

Swivel wheels for easy positioning.

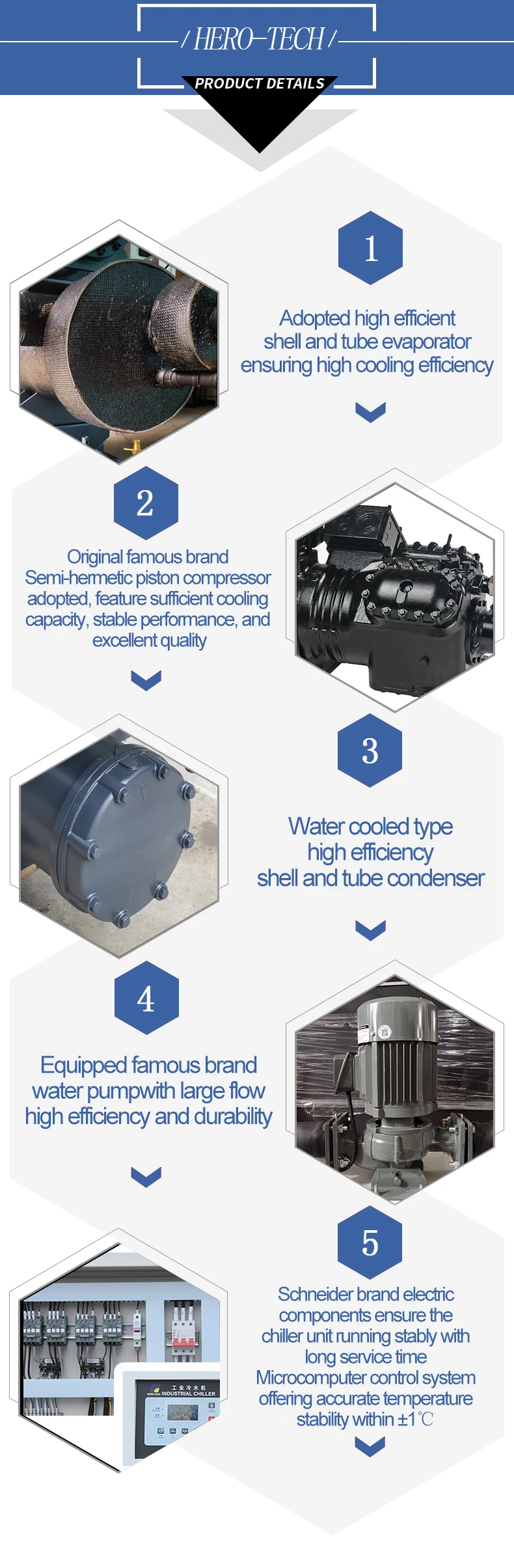

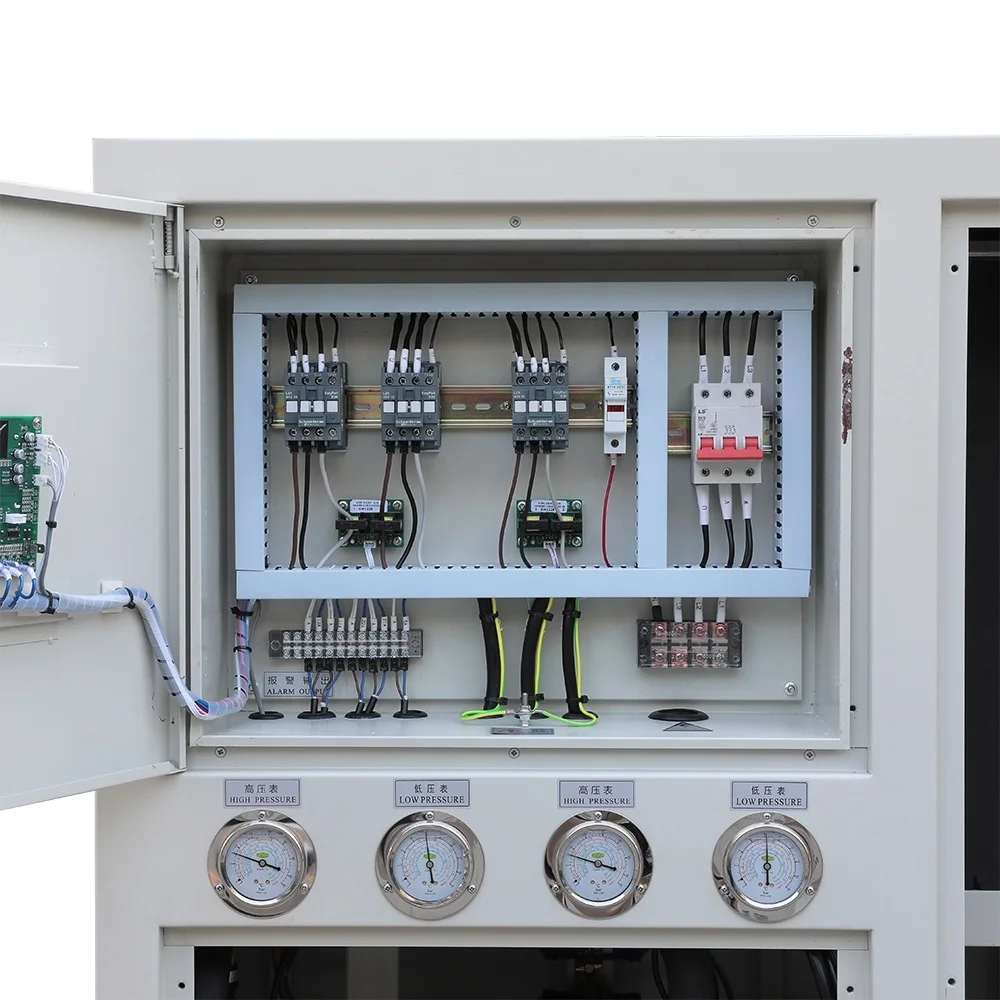

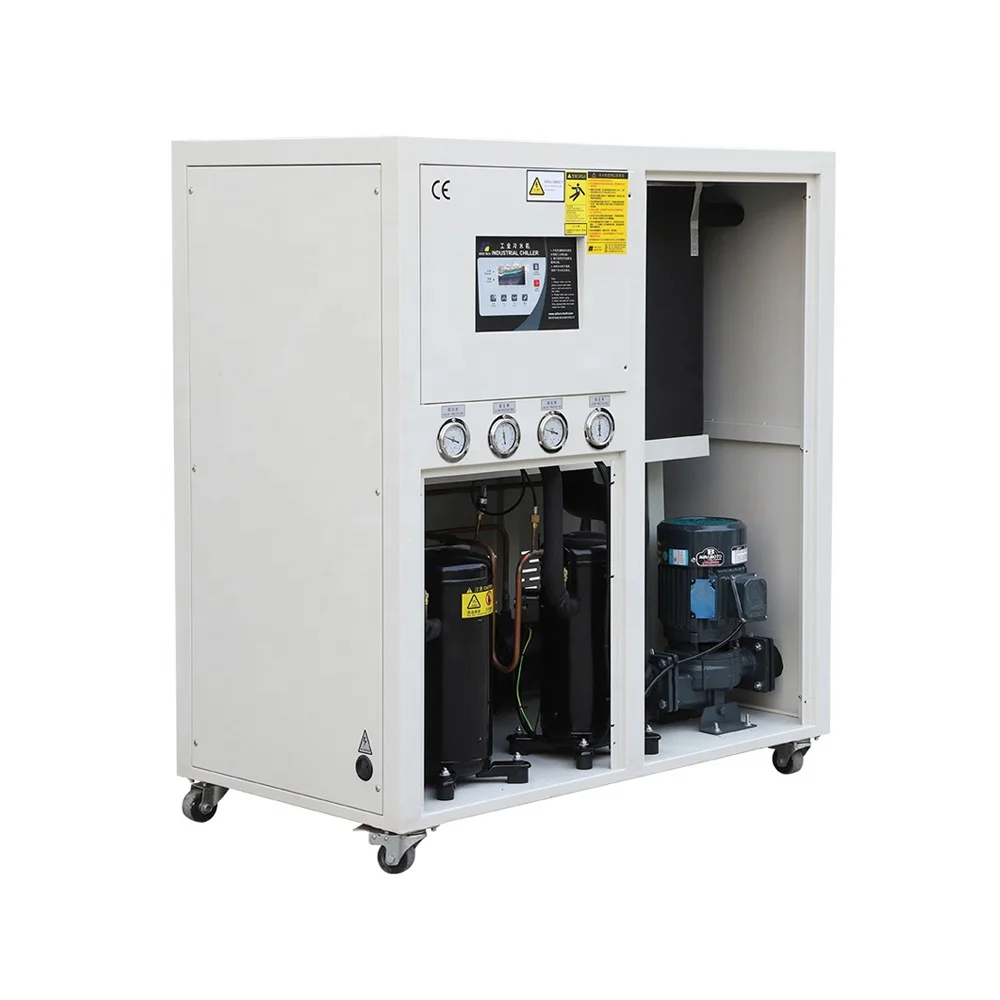

Refrigerant circuit with top brand semi-hermetic scroll compressor Control panel.

Complete with associated control equipment with digital microprocessor.

Compact design, easy to install and operate, convenient to clean and maintenance.

HERO-TECH chillers deliver value to a wide variety of applications with enhanced energy-efficiency options.

Dependable, versatile, high-efficiency cooling.

Model				HTLT-12WD
Nominal cooling capacity		-10℃	KW	19.2
		-20℃		12.2
		-30℃		5.6
		-35℃		3.8
Condenser	Type			Shell and tube
	Cooling water flow	-10℃	m3/h	4.27
		-20℃		2.37
		-30℃		1.3
		-35℃		0.89
	Pipe connection		inch	2
Evaporator	Type			Shell and tube / ss plate heat exchanger
	Chilled water volume	-10℃	m3/h	3.28
		-20℃		1.82
		-30℃		0.96
		-35℃		0.65
	Pipe connection		inch	2
Input power			kw	8.35
Power source				3PH 380V~415V 50HZ/60HZ
Refrigerant	Type			R22/R404A
	Control			Thermostatic expansion valve
Compressor	Type			hermetic scroll(semi-hermetic piston)
	Motor Power		KW	3.8*2
Pump	Power		Kw	0.75
	Lift		m	20
Safety devices	Compressor inner protection, over current protection, high/low pressure protection, over temperature protection, flow rate protection, phase sequence/phase missing protection, low level coolant protection, anti freezing protection, exhaust overheat protection
Dimension	Length		mm	1500
	Width		mm	760
	Height		mm	1385
Net weight			KG	530
The above specifications are according to the following design conditions: 1.    Condensing temperature 45 ℃ 2.    Volume fraction of glycol water solution 47.8% We reserve the right to modify the specifications without further notice

Medical Processing

Certain medical fabrication processes and storage requires reliable cooling to guarantee safety and effectiveness. When cooling failure isn’t an option, you need a low-temperature scroll chiller you can count on for:

Transforming various medical ingredients and compounds

Manufacturing highly sensitive medicines

Storage of medicines and human tissues for surgery

Testing of new drugs and procedures in extreme cold conditions

Product and Material Testing

Many types of clothing, materials and equipment need to be tested to -35°C temperatures. Our low-temperature industrial scroll chillers can be used for a wide range of testing applications, such as:

Automotive and transport equipment verification

Fabric and cloth cold temperature resistance and protection

Plastic, rubber and metal strength at freezing temperatures

Cold temperature performance of coolants, oils and fluids
