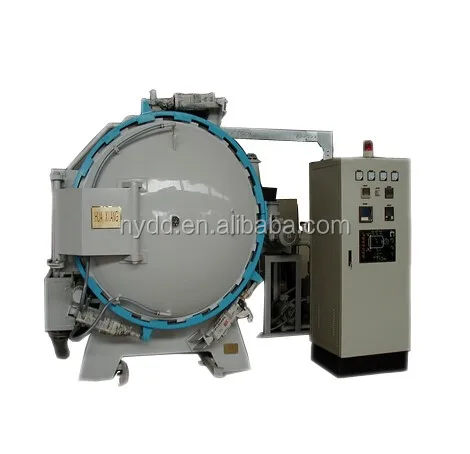

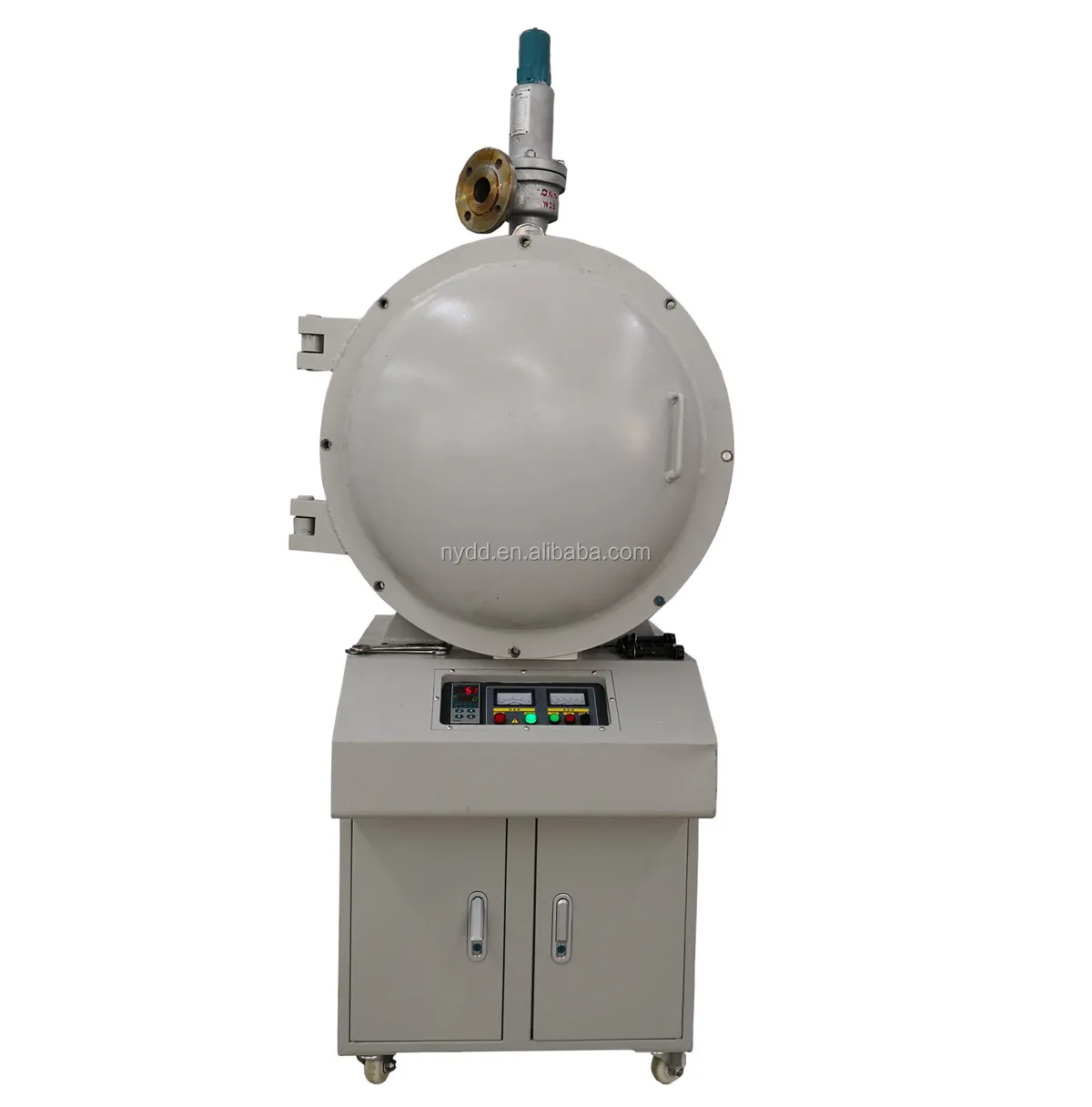

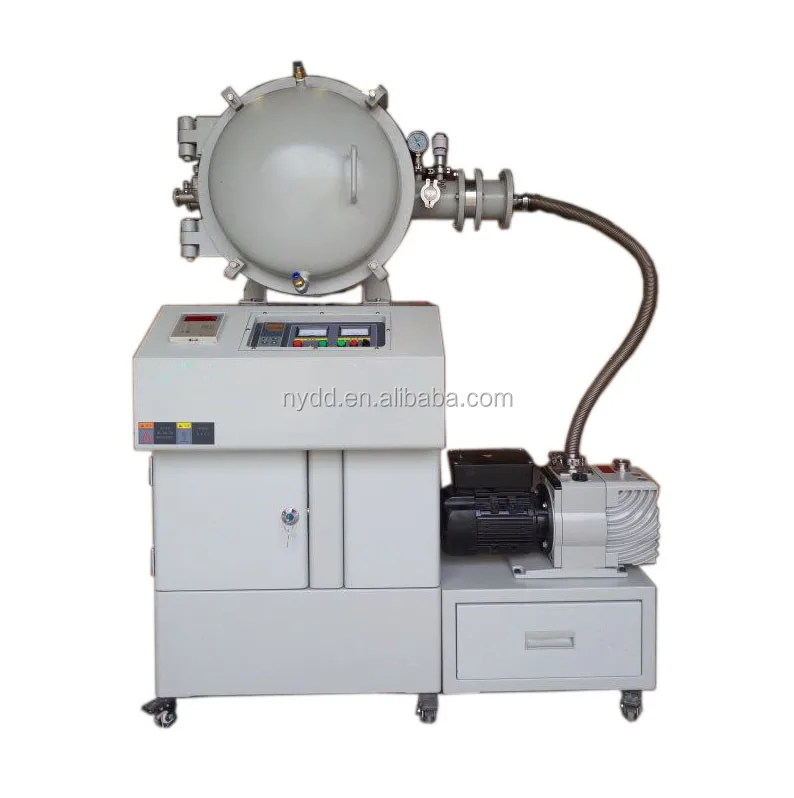

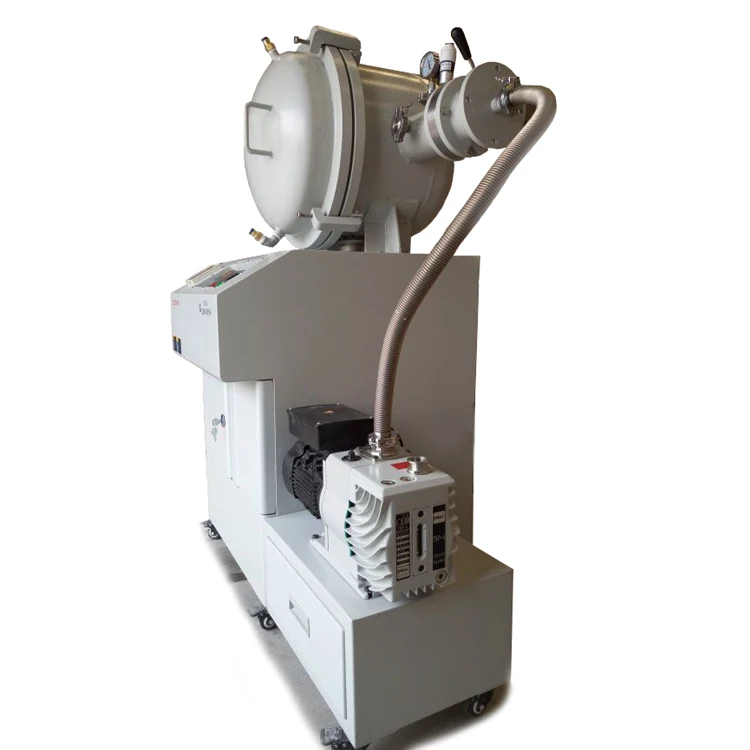

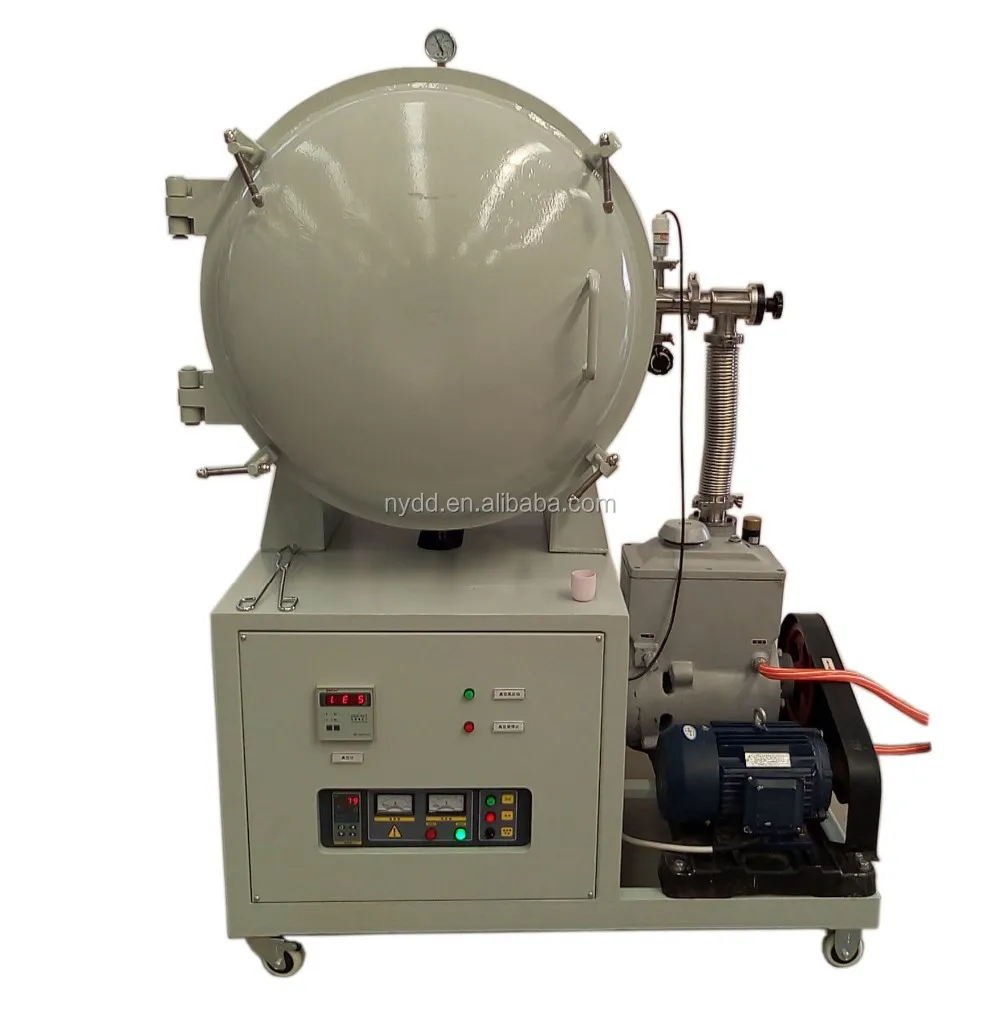

Heat Treatment Vacuum Hardening Furnace, Nitrogen Gas Vacuum Quenching Furnace, Metal Steel Alloy Vacuum Annealing Furnace
Heat Treatment vacuum furnace is widely used in the heat treatment of metallic material or ceramic parts in low or high vacuum, especially used in the vacuum Sintering/quenching/tempering/Annealing of the materials like stainless steel, high temperature alloy, hard alloy and nonferrous metal in reducibility or protective atmosphere. Can also be used for special heat treatment of materials such as carbon products in the development process of carbonation.
Heat treatment vacuum furnace used in materials science, metal materials’s sintering, quenching, annealing and tempering. Mainly vacuum heat treatment process:
600x400x400mm, Capacity: 96 Liter. Bigger size are available.
Chamber Material:
High quality alumina Ceramic fiber / Graphite / molybdenum (suit for demand clean working environment, likeTitanium Alloy)
Furnace shell
Carbon steel /stainless steel
Power:
18W Max. ( power cord is included )
Voltage:
AC 380V 50/60 Hz
Max. Temperature :
1200 °C for short time ;
Continuous Working Temperature:
1100 °C Max. ;
Max. Heating Rate:
0-30 °C /min,Suggest to be 20.C/min.
Temperature Controller :
PID automatic control and auto-tune function. 30/50 programmable segments for precise control. Built in protection for overheating and broken thermocouple. Large digital control panel for easy operation.
Temperature Accuracy :
+/- 1 °C
Heating Elements :
Electric resistance wire / Graphite / molybdenum
Thermocouple :
K type
Max. vacuum:
10Pa,1Pa, 10*-1pa, 10*-3pa optional.
Atmosphere :
Inert gas, Argon(Ar), Oxygen(O2),Nitrogen (N2), Hydrogen(H2) available .
Gas pressure:
0.02Mpa / 2 Bar /6Bar / 10Bar/ 12Bar optional;
Standard parts:
Vacuum pump 1pc,crucible tongs 1pc,high temperature gloves 1 pair,one user manual.
Optional parts:
PLC touch screen controller, paperless recorder,Remote communication control system, 2-3 gas channels mixing system desktop.
Others:
Support Sitering test in our factory(Need afford test cost)
