CSP-1010SWD

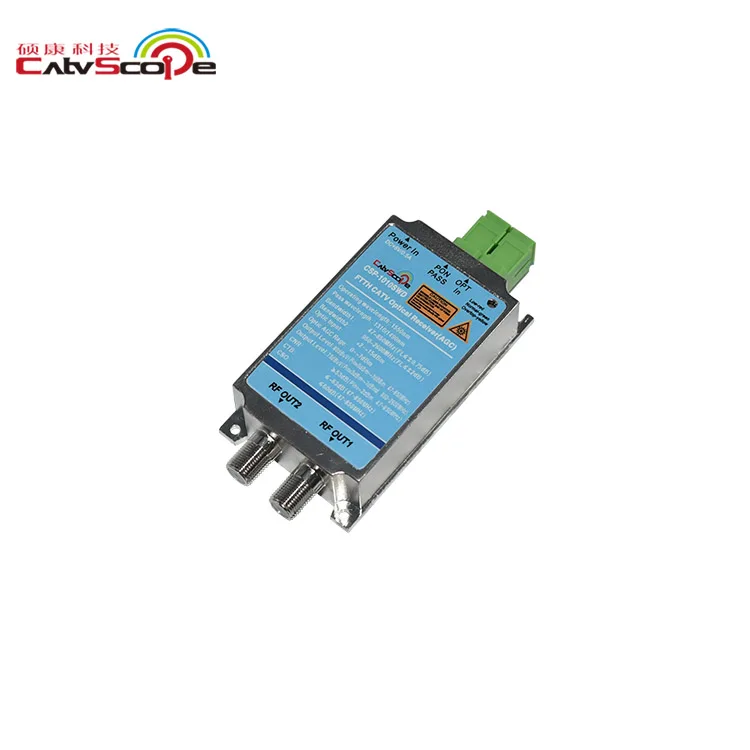

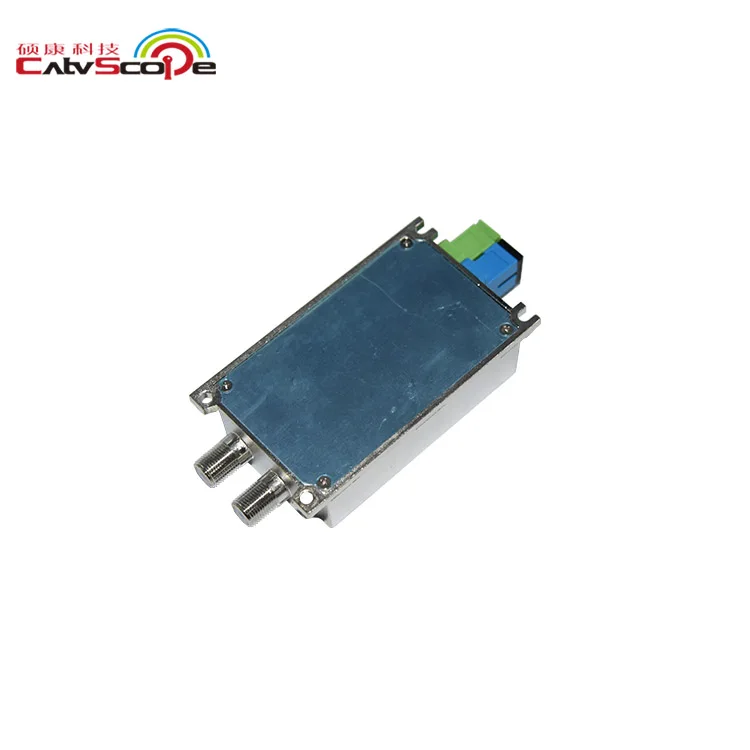

CSP-1010SWD optical receiver is one of the special products that we have released to deal with Satellite FTTH network. This product uses a high-performance PIN tube with WDM, small shell,internal circuit structure is compact and reasonable, with AGC function, excellent performance and index. It is the preferred product for Satellite FTTH.



Product Features:

Ÿ Frequency range: 47~2600MHz, impedance: 75Ω

Ÿ Use GaAs amplifier, can receive -15dBm optical power.

Ÿ Power supply: 5V DC

Ÿ Small size, easy to install



Product Specification:

Item	Unit	Specifications
Optical Feature
Receiving optical power	dBm	-15 ~ +2
Reflection loss	dB	>45
Optical input wavelength	nm	1550 (PON pass wavelength: 1310/1490)
Connector		SC/APC or FC/APC; SC/UPC or FC/UPC
Fiber type		Single mode
Link Feature
C/N	dB	≥53	-1dBm optical power receiving
C/CTB	dB	≥63
C/CSO	dB	≥60
RF Feature
Work Bandwidth	MHz	47~850MHz& 950-2600MHz
Flatness	dB	±0.75
Output level	dBuV	85±1 (1000MHz)    AGC range (-7 ~ 0)
Return loss	dB	≥16(47~850MHz), ≥14 (950-2600MHz)
Output impedance	Ω	75
Power consume	W	<1
Size	mm	96*50*23
