Product Overview
Description
Products Description
Blowing automatic screw machine to replace most industries that require manual screw locking. Adapt to screw range M1-M8. The servo lock mechanism performs precise point-to-point movement of the locking screw, which has high precision and fast efficiency. Using touch screen for software programming, simple to use and easy to operate. At the same time, it has the functions of detecting missing screws, floating locks, sliding teeth, etc.
Blowing type automatic screwing machine is that the screw is automatically blown to the bottom of the batch mouth through the compressed air, and the electric batch is automatically pressed down to automatically lock into the product. Among them, the screwing path is programmed and controlled by the touch screen software, and the pneumatic screw feeding system works together. The advantages of this mode are flexibility, stability, and high efficiency.
Applications
Widely used in assembly of household appliances industry (electric kettles, air purifiers, hair dryers, televisions, air
conditioners, washing machines, etc.)
Suitable for:
1 machine watches, industrial power supplies, motors, circuit boards, PCB, automotive electronics, TV set-top boxes, toys, mobile phones and other products to lock.
2. screw locking of various consumer electronics, e.g. wireless phone, calculator, navigator, audio device, camera, laptop, tablet PC, learning machine, small home appliances, etc.
conditioners, washing machines, etc.)
Suitable for:
1 machine watches, industrial power supplies, motors, circuit boards, PCB, automotive electronics, TV set-top boxes, toys, mobile phones and other products to lock.
2. screw locking of various consumer electronics, e.g. wireless phone, calculator, navigator, audio device, camera, laptop, tablet PC, learning machine, small home appliances, etc.

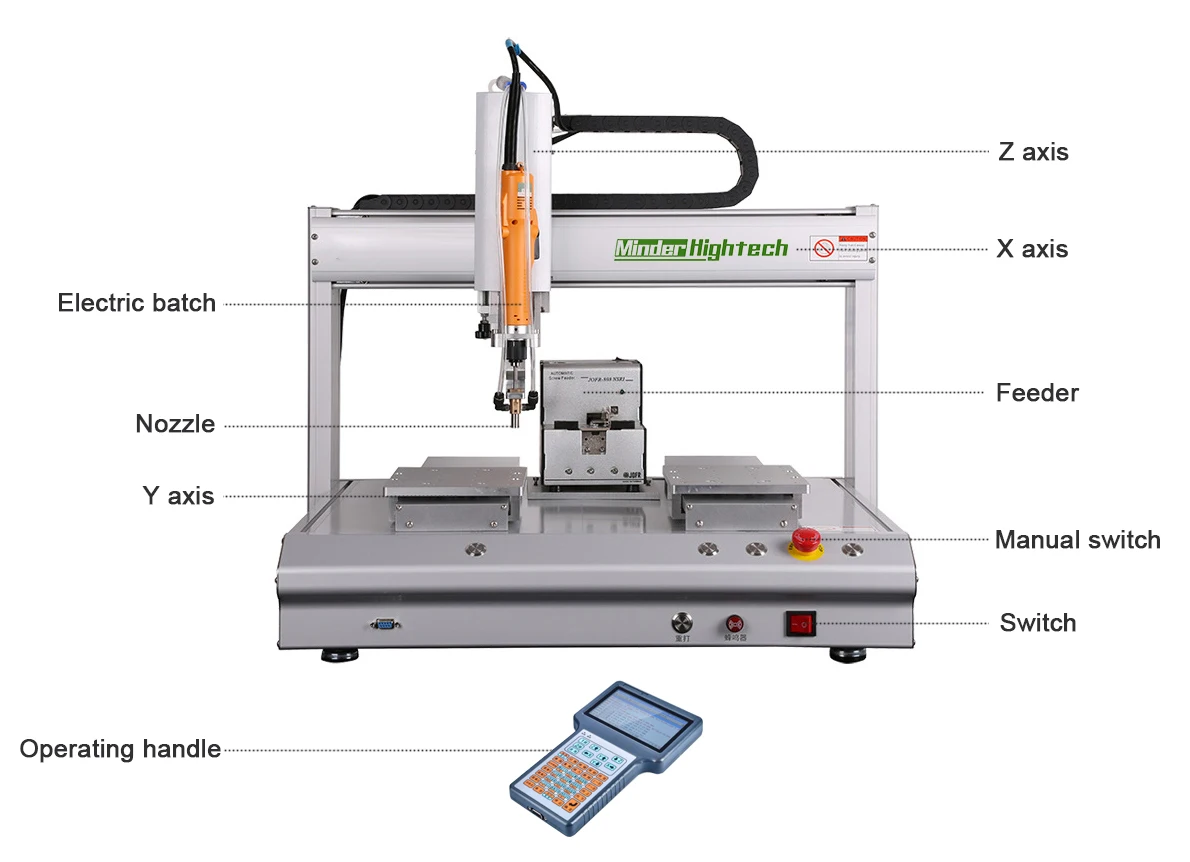

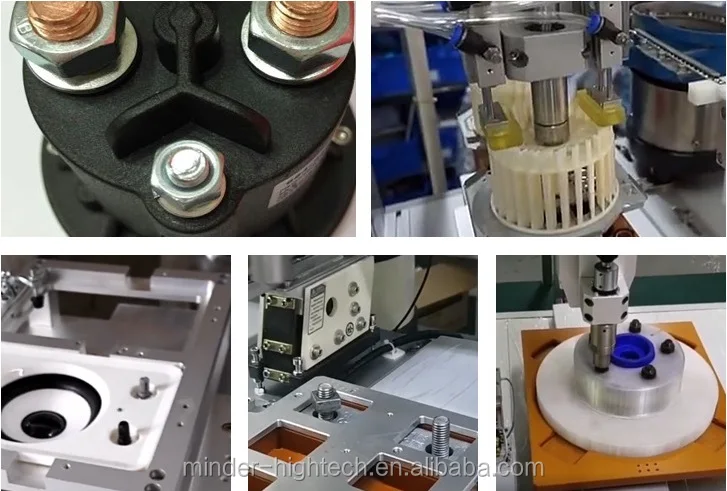

Details Images
Features
1.Double Y-axis platform, operator can alternate
2.Continuous feeding, can provide the screw countfunction and the anti-leakage fighting function
3.The screw goes directly to the batch, saving thetime to get the screw back and forth
4.Air blowing type feeding system
2.Continuous feeding, can provide the screw countfunction and the anti-leakage fighting function
3.The screw goes directly to the batch, saving thetime to get the screw back and forth
4.Air blowing type feeding system

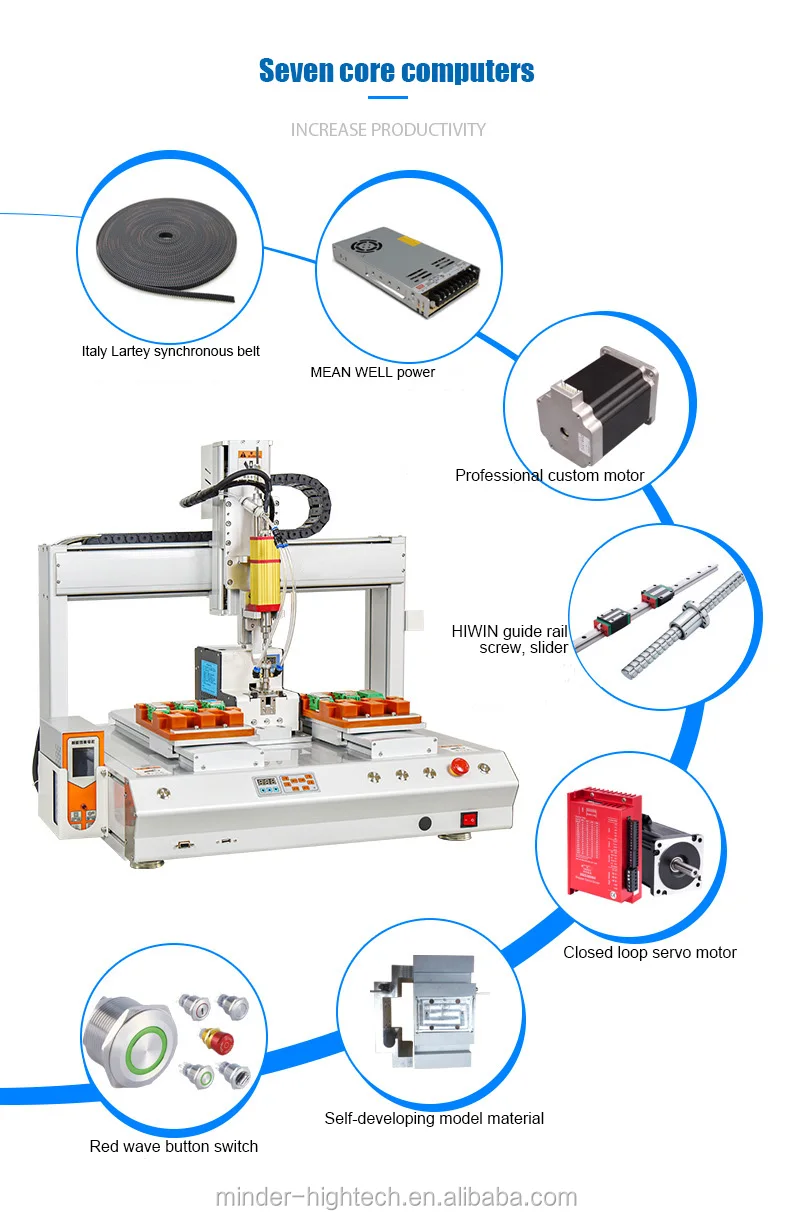

Main configuration.
●Double Y-axis working platform , aluminum profilemodule structure
●Manual type teaching programmable controller issimple and easy to usee
●Japan imported HIOS electric screwdriver for accuratelock payment.
●Z axis screw , laiwan silver guide rail
●Closed loop servo motor
●Manual type teaching programmable controller issimple and easy to usee
●Japan imported HIOS electric screwdriver for accuratelock payment.
●Z axis screw , laiwan silver guide rail
●Closed loop servo motor
Specification
Model | CQ5331 Blowing type automatic locking screw machine |
Electric Group | KILEWS Electric group |
Control system | Single chip + hand box control |
Mechanical platform travel range X/Y/Z(mm) | 500/300/300/100 |
Maximum load | 10kg |
Moving speed(mm/sec) | 0—1000 |
Lock one screw time | 0.6-1.5S |
Repeatability accuracy | ±0.02m/Axis |
Program record mode | The 999 group |
Display mode | LCD instruction |
Motor system | Research and control closed-loop servo motor |
Guide | Taiwan HIWIN guide rail |
Belt | Omron |
Drive mode | Timing belt/screw rod |
Driver | Leadshine |
Alarm function | Floating lock, lock strip, leakage |

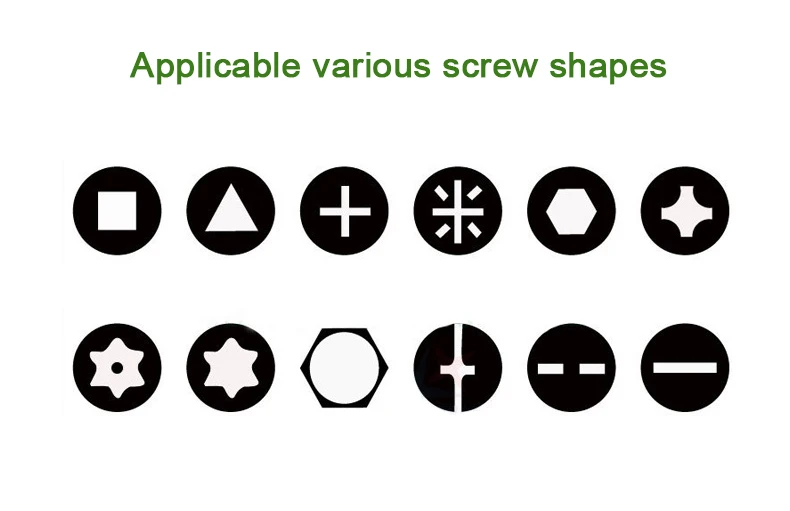

Applicable screw | M0.9-M6.0 |
Input power | Full voltage AC110~220V |
External control interface | RS232 |

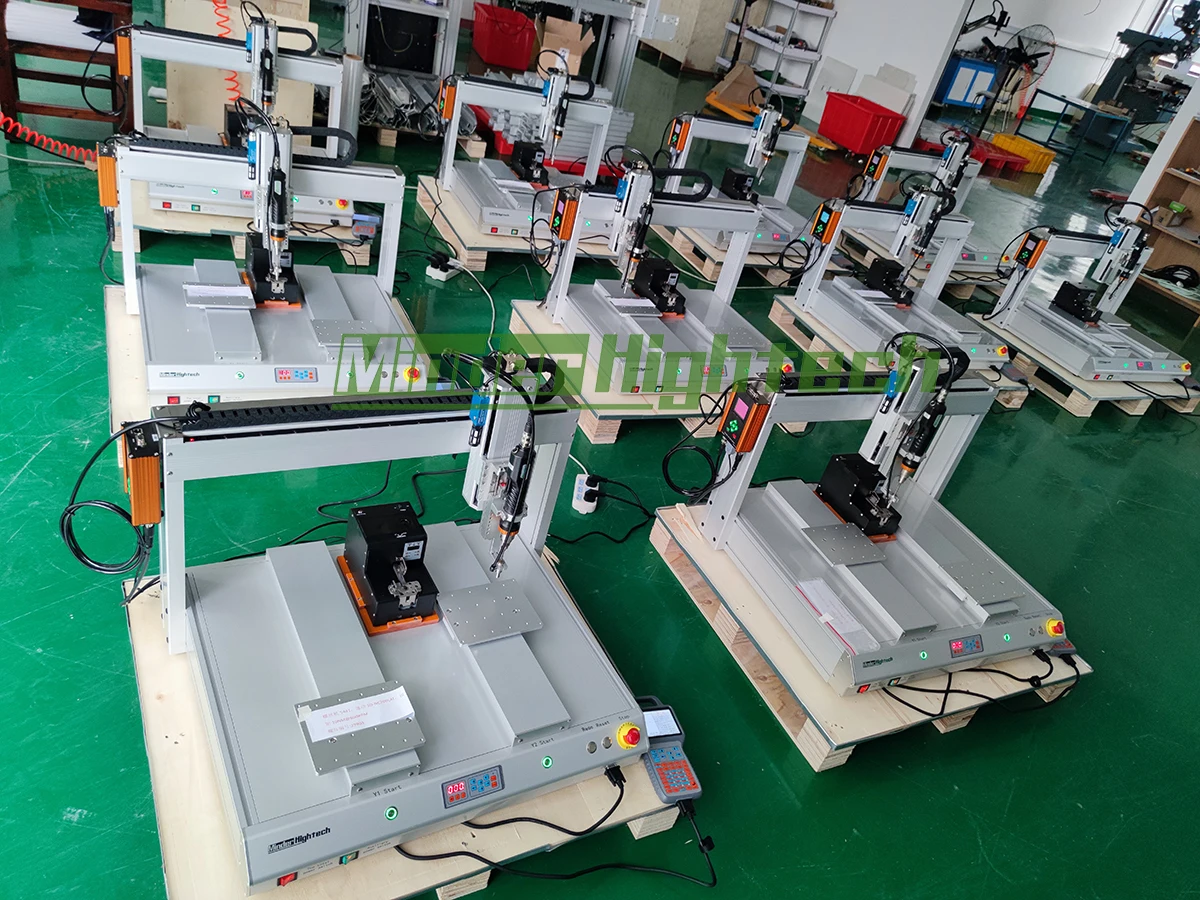

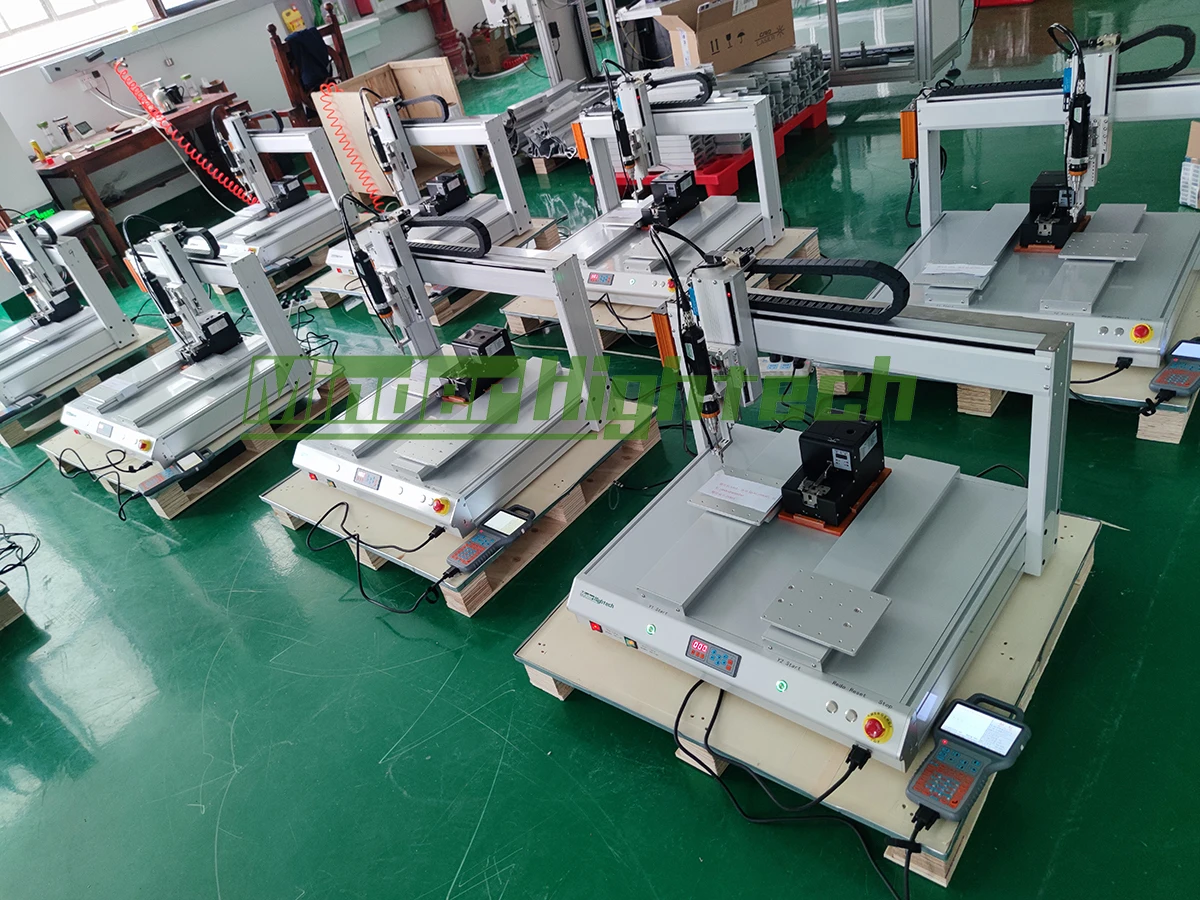

Our Factory
Our services
1. Help customer analyze product project and provide cleaning solution.
2. Freely sample cleaning test.
3. Provide professional cleaning solution.
4. Skilled jig design services.
5. Provide shipping/delivery information checking service.
6. One year guarantee, all life maintain promise.
7. 24 hours feedback speed by email of others.
2. Freely sample cleaning test.
3. Provide professional cleaning solution.
4. Skilled jig design services.
5. Provide shipping/delivery information checking service.
6. One year guarantee, all life maintain promise.
7. 24 hours feedback speed by email of others.
