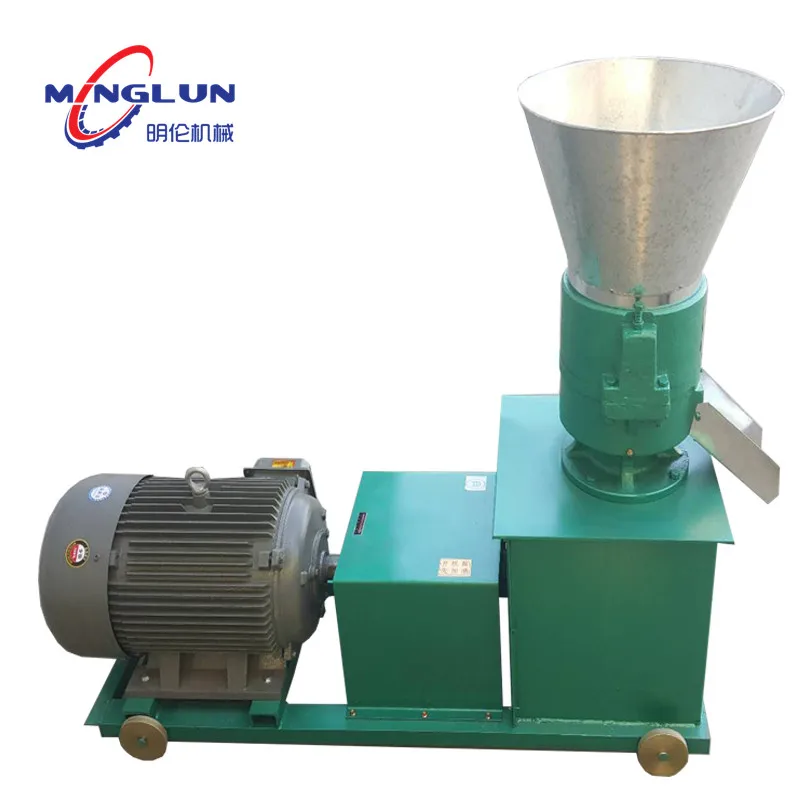

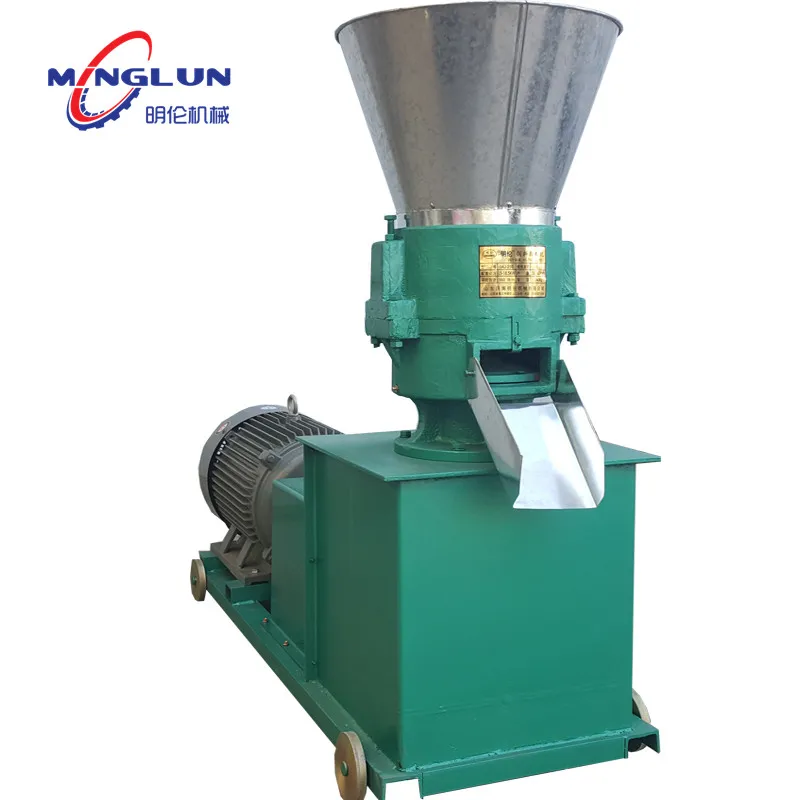

1ton/h organic cow manure fertilizer cow dung chicken manure pellet machine
- Category: >>>
- Supplier: Jinan Minglun Machinery Co. Ltd.
Share on (60838220049):
Product Overview
Description
Goat pellet maker
1. Animal feed pellet machine is flat die type feed machine. It is more easy to be operated compared with horizental ring die pellet machine. It is suitable for small farming machine or small feed processing factory. The small pellet machine has very simple structure, it is very easy to be operated. This small animal feed pellet machine cost is very low. The processing for making pellet machine is very easy simple, no need cooling and crushing sectors.
2. Our Small Animal feed pellet machine capacity range from 100kg per hour to 1500kg per hour. we can also make small animal feed pellet machine as per your wish.

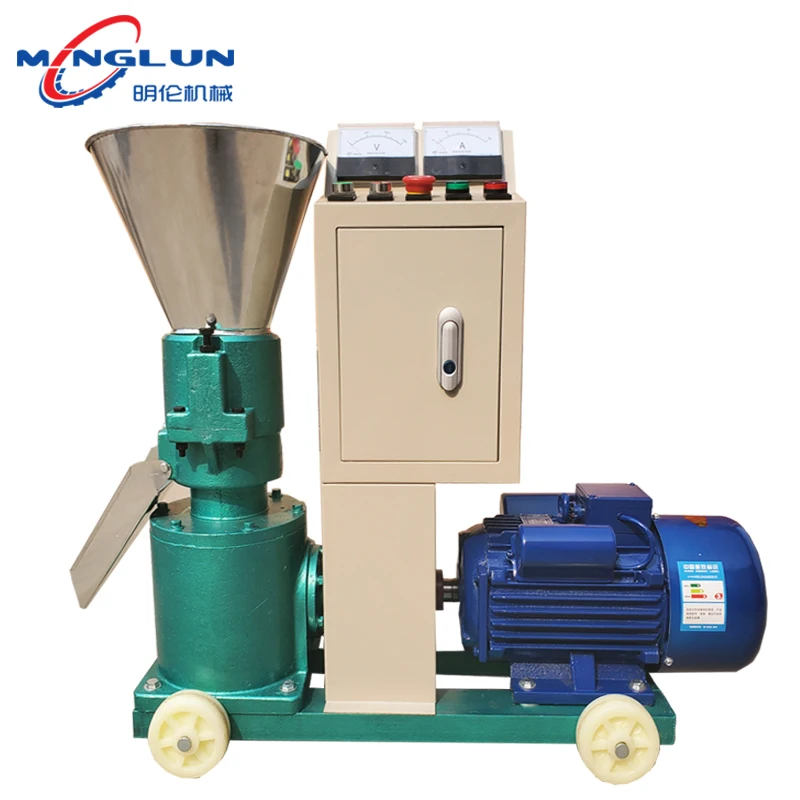

3. Our small animal feed mill machine can be single phase or three phase.
Detailed Images
Model | Power | Size | Capacity | Weight | Pellet size |
ML-120 | 3KW | 75*32*70cm | 50-100kg/h | 90kg | 1.5mm-12mm |
ML-150 | 4KW | 80*36*80cm | 100-200kg/h | 120kg | 2.0mm-12mm |
ML-200 | 7.5KW | 115*42*100cm | 260-400kg/h | 210kg | 2.0mm-12mm |
ML-250 | 15KW | 145*50*115cm | 350-500kg/h | 380kg | 2.0mm-12mm |
ML-330 | 22KW | 155*50*130cm | 500-750kg/h | 750kg | 2.0mm-12mm |
ML-400 | 30KW | 165*60*140cm | 750-1000kg/h | 1000kg | 2.0mm-12mm |
ML-H250 | 22KW+3KW+3KW+1.5KW | 330*270*160cm | 800-1200kg/h | 1200kg | 2.5mm-8mm |
Machine model-120 animal feed pellet machine
Die diameter: 120mm
Capacity: 60-100kg/h
Motor: Single phase and three phase electricity 3 kw Y100-41400R/M
Driving method: gear driving, bearing driving.
Die rotating speed: 366r/m
Pellet size: 2mm-12mm
Machine weight: 88KG-93KG( After packing with wooden case)
Main model-150 animal feed pellet machine
Die diameter: 149mm
Machine capacity: 150-200kg/h
Motor: Single phase and three phase electricity 4/5.5 kw Y100L1-4 1440 R/M
Driving method: gear driving, efficiency bearing driving
Die rotation speed: 366r/m
Pellet diameter: 2-12mm( based on your choice)
Machine weight: 130kg ( after packing with wooden case)
Machine model:-200 animal feed pellet mill
Feature: with univeral driving part
Dia diameter:198mm
Capacity: 260-350kg/h
Motor: 3 phase 7.5kw Y1001-4 1440R/M
Driving method: efficiency gear box driving, bearing driving
Die rotation speed: 366r/m
Pellet diameter: 2-12mm
Machine weight: 200kg(after packing in wood case
Machine model-250 animal feed pelletizer
Dia diameter: 248mm
Machine capacity: 350-500kg/h
Motor: 3 phase 15kw Y100L1-4 970R/M
Driving method:efficiency gear driving, bearing driving
Die rotating speed: 246r/m
Pellet diameter: 2-12mm
Machine weight: 385kg( after packing in wooden case)
Machine model-H250 animal feed pelletizer
Die diameter: 248mm
Machine capacity: 800-1200kg/h
Motor: 3 phase 22kw Y132L1-6 970R/M
Driving method:efficiency gear driving, bearing driving
Die rotating speed: 226r/m
Pellet diameter: 2.5-12mm
Machine weight: 1200kg( after packing in wooden case)
Machine capacity: 800-1200kg/h
Motor: 3 phase 22kw Y132L1-6 970R/M
Driving method:efficiency gear driving, bearing driving
Die rotating speed: 226r/m
Pellet diameter: 2.5-12mm
Machine weight: 1200kg( after packing in wooden case)
Packing & Delivery

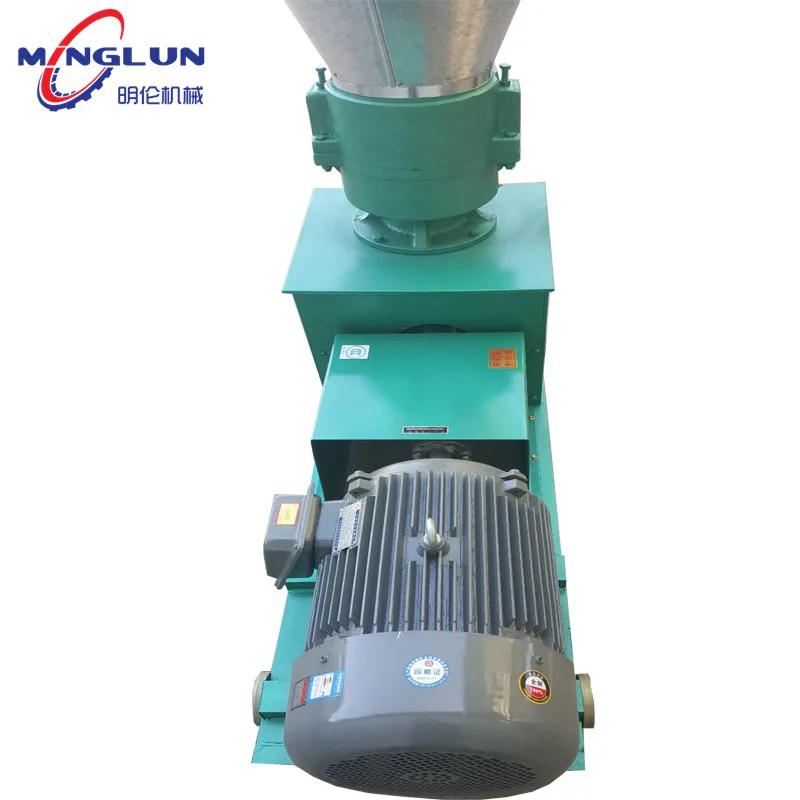

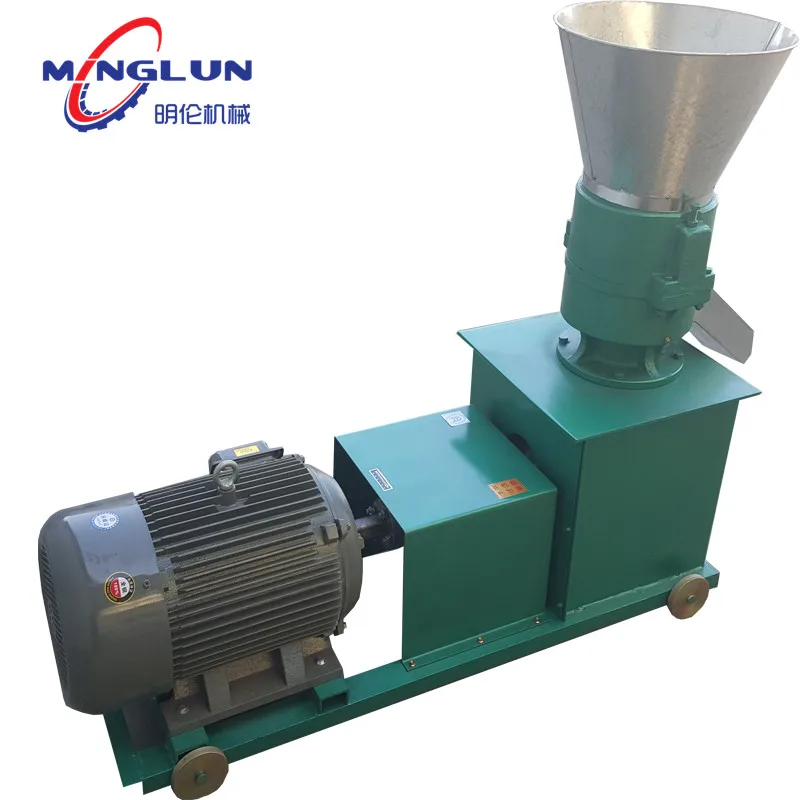

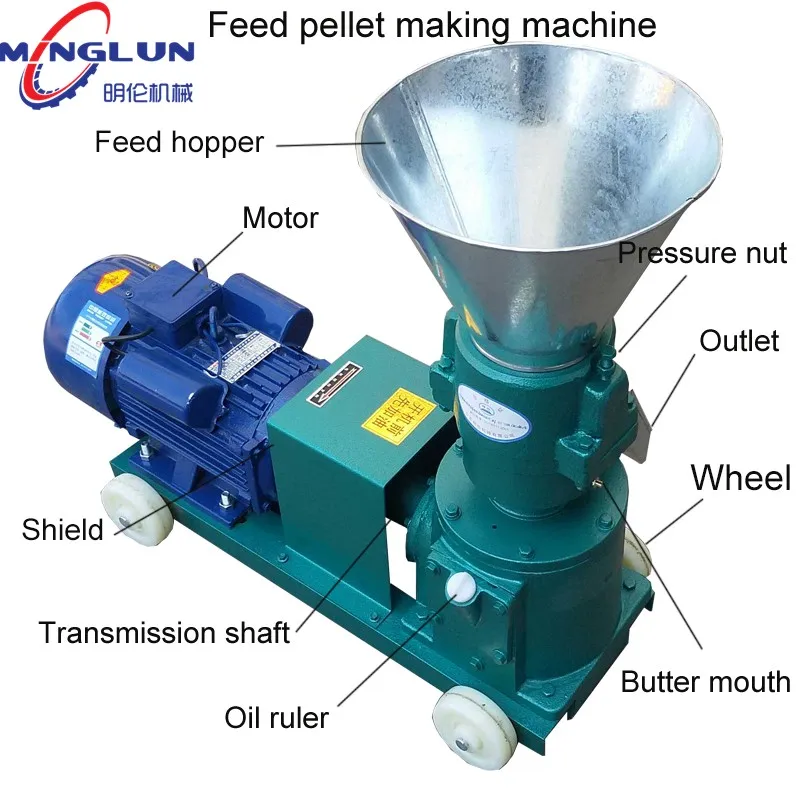

details of pellet machine

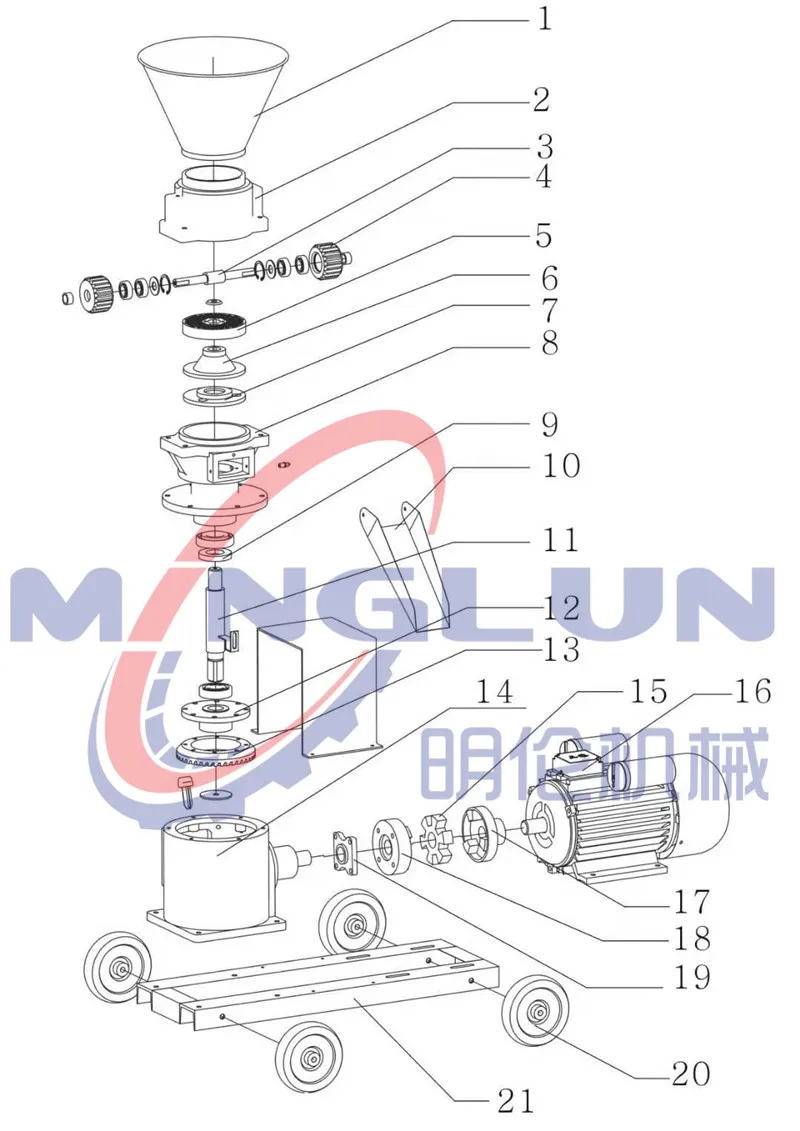

Details of animal feed pellet machine
Organic fertilizer granulator
Packaging | ||
Service | we offer good service | |
Packaging Details | Packed with PE film | |
Packaging | ||
packing fee | we bear packing fee | |
Packaging Details | pe film inside, wooden case outside | |
Feed pellet photo
How to choose die size of feed pellet machine for different animals?
-1.5mm pellet machine die is suitable for breeding minature baird, aqautic animals such as shrimp, crab, small fish and other aquaculture.
-2.0mm pellet machine die are used for feeding parrots, thrushes, finch and other pet birds.
-2.5mm pellet machine die can be used for small rabbite, yong chicken, ducklings, goslings, young birds, young peacocks, yong aquatic fish and other small animals.
-3-4mm pellet machine die used for feeding rabbits, chicken, ducks, geese, pigeons, birds, peacockes, aquatic fish etc.
-5-6mm pellet machine die are used for feeding pigs, cattle, sheep,. dogs, pigs, horses etc.
-7-12mm is used to make feed for large animals such as fishing lures, large biards and mice.
-1.5mm pellet machine die is suitable for breeding minature baird, aqautic animals such as shrimp, crab, small fish and other aquaculture.
-2.0mm pellet machine die are used for feeding parrots, thrushes, finch and other pet birds.
-2.5mm pellet machine die can be used for small rabbite, yong chicken, ducklings, goslings, young birds, young peacocks, yong aquatic fish and other small animals.
-3-4mm pellet machine die used for feeding rabbits, chicken, ducks, geese, pigeons, birds, peacockes, aquatic fish etc.
-5-6mm pellet machine die are used for feeding pigs, cattle, sheep,. dogs, pigs, horses etc.
-7-12mm is used to make feed for large animals such as fishing lures, large biards and mice.

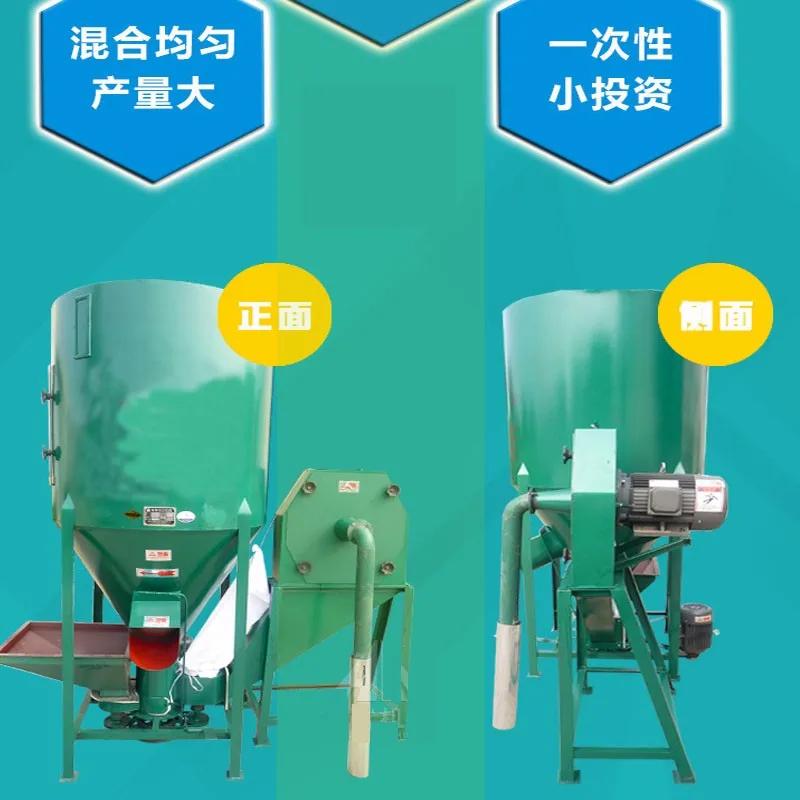

POWDER FEED UNIT
We have have powder feed unit to match our feed mill machines:
1. Our powder feed unit combine crushing and mixing machine together.It is used to mix raw materials for chicken, pig, goat, fish, rabbit etc. This machine has compact structure, less power consumption, cover very small area. It is easy to be discharged, due to there is a bag dust collector, so there are no dust when machine workers. It is mainly used for chicken farm. pig farm etc. It can crushing and mix raw materials in one process , mixing part and crushing part can also work seperately.
2.This machine can be widely used for grains.

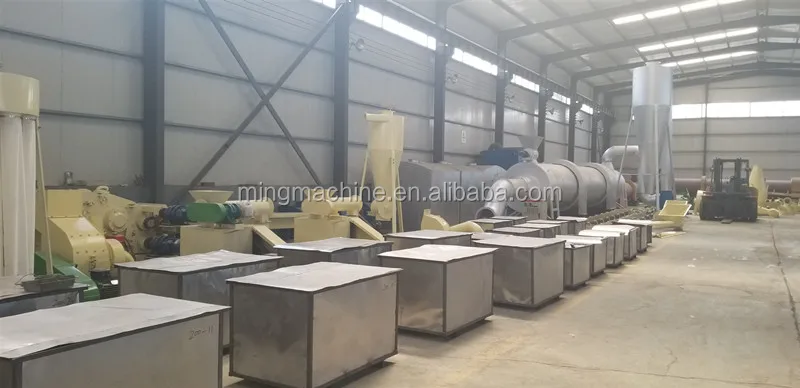

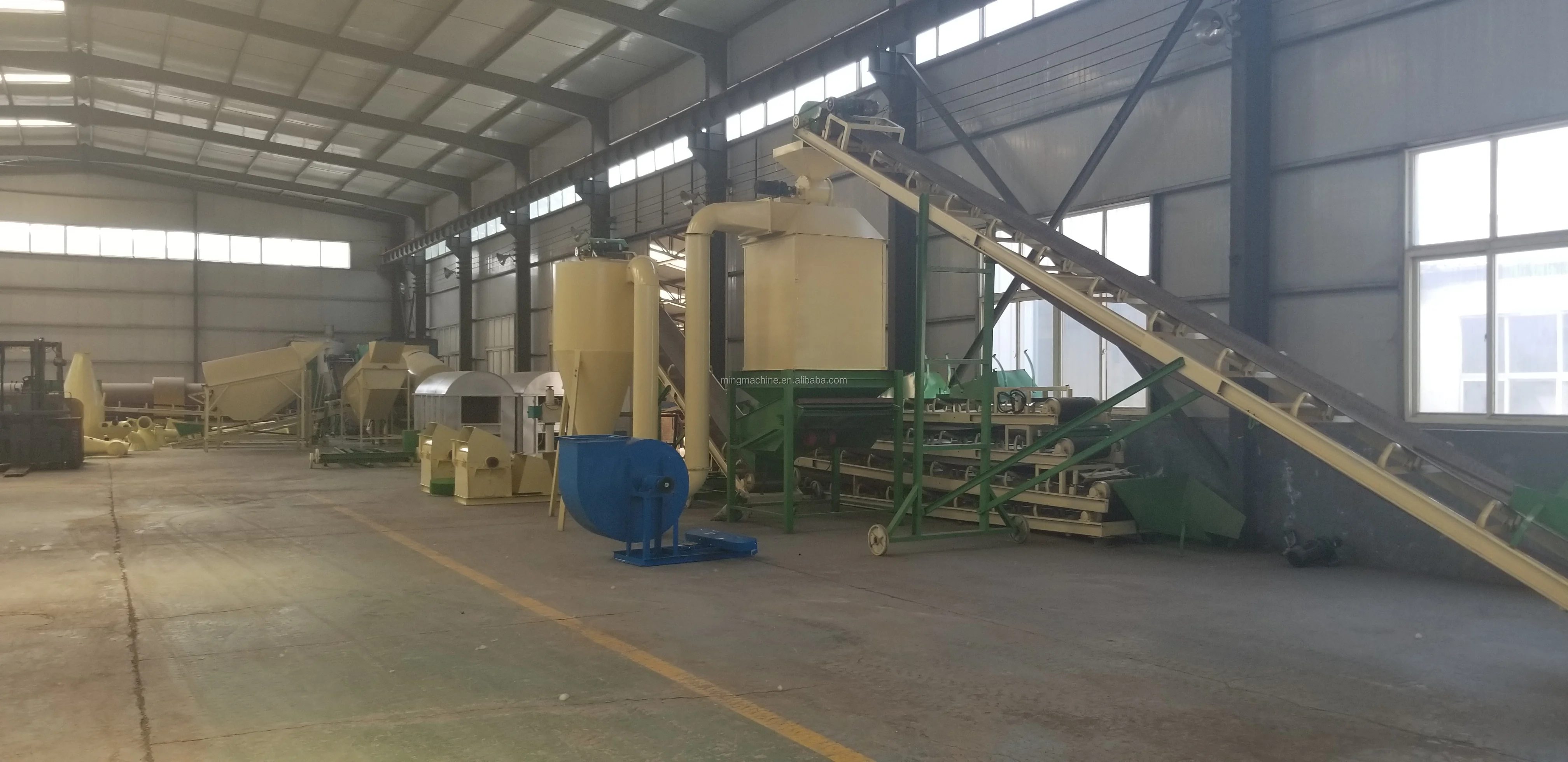

Company Profile
Jinan Minglun Machinery Co., Ltd. is a manufacturer specializing in the production of feed/wood pellet machine. Accessories supply is complete, large, medium and small equipment models are complete. Committed to serving overseas customers, providing excellent after-sales service, professional technical team, complete accessories supply, and hope to cooperate with you for a long time.
FAQ
Q: Are you a manufacturer or an agent?
We are the manufacturer and can supply any spare parts for the machine
Q:Can your company help me design the model of the machine I want?
We can help you design the model and output of the machine you need for free, and put forward our Suggestions scientifically
Q:How long is your after-sales service?
We provide two years of after-sales service, within the warranty period, free of charge to provide related accessories.we can provide free raw material test video and photos, and test the performance index of each machine before delivery.the machine can be packed in wooden cases before leaving the factory and packed in cartons cases for each machine.
We are the manufacturer and can supply any spare parts for the machine
Q:Can your company help me design the model of the machine I want?
We can help you design the model and output of the machine you need for free, and put forward our Suggestions scientifically
Q:How long is your after-sales service?
We provide two years of after-sales service, within the warranty period, free of charge to provide related accessories.we can provide free raw material test video and photos, and test the performance index of each machine before delivery.the machine can be packed in wooden cases before leaving the factory and packed in cartons cases for each machine.
