Optical FAP20 Fingerprint Module Automatic Door Operators Smart Security Devices For Community Company School

Electrical Parameter

Power Voltage

5.0V±5% supplied by USB

Working current

<200 mA

interface

USB 2.0

Working Environment

Temperature

0°C - 55°C

Storage Temp

-10°C - 60°C

Humidity

10% - 90%

Storage humidity

20%(±3) - 90%(±3)

Fingerprint

Resolution

500 DPI (-0.5%~+0.5%)

Capture window size

26mm*19mm

Effective window size

20.32mm*15.54mm

Image size

300*400 pixels

Capture time

≥25 FPS(≤66ms)

Image distortion

≤1%

Grayscale

8-bit, 256

Gray level

225-255

Illumination

≤300lx

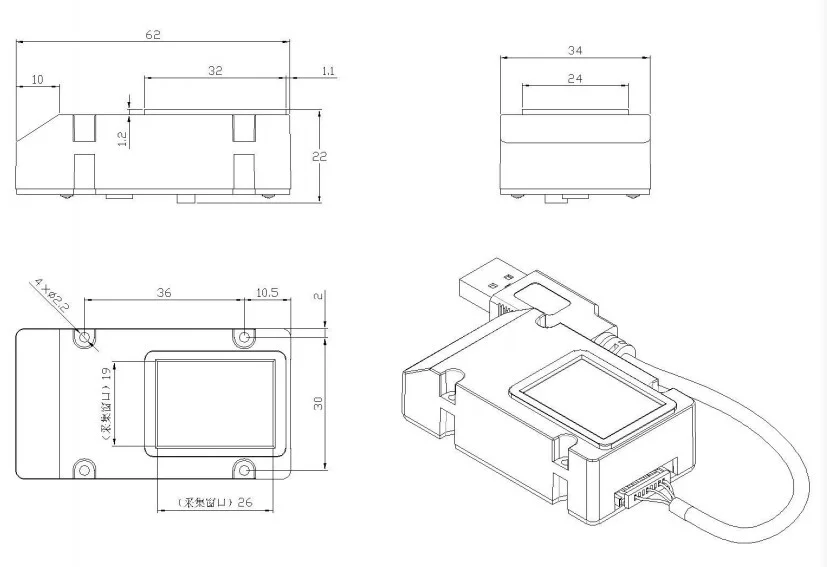

Dimension

62mm(L) *34mm(W) * 22mm(H)
