IBEST C41 2M dc 5V 12V 24V Square ir Infrared Through Beam Break Optical Photoelectric Photo Proximity Switch Sensor

Product Overview

Description

C41 Diffused Photo Electronic Sensor Switch/Photocell Sensor

NPN/PNP  NO or NC Output 3 Wires



 1.Features:

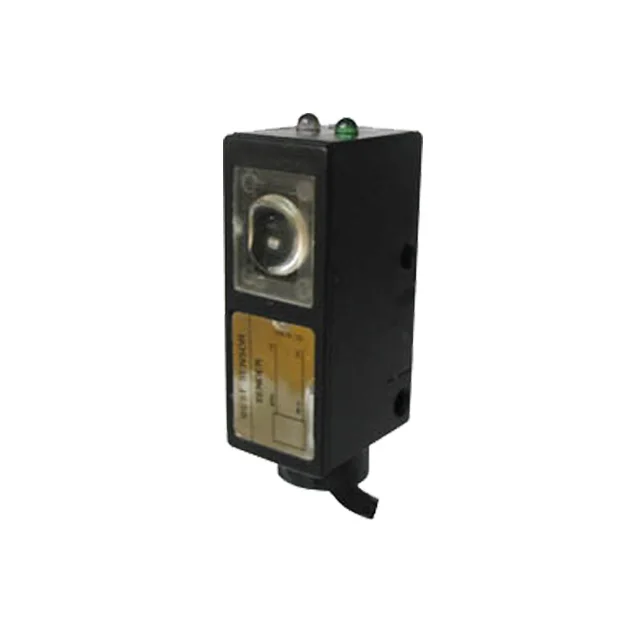

-- C41 Square type photo electric sensor,singled diffused sensor.

-- Our photo sensor available for: Through-beam type(2M) and diffused-reflective type(10CM).

 -- DC 3 wires, with 2M PVC cable.

 -- PNP or NPN; NO or NC output.

-- Light resource: Infrared invisible light, with Red LED lamp.

-- Strong anti-shock and anti-vibration.



-- Fast response: through-beam: <5ms / diffusec-reflective: <3ms

-- Non-contact object detect: avoid the photoelectric sensor to contact the object directly, protect the inducing component from damage and extend the operation life of the sensor.

-- Detect any objects with different materials: detect objects by the light quantities reflected and received, detect objects such as glass, metal, plastic, wood, fluid...etc.

-- Identify object colors: according to the colors' reflectivity and absorptivity, the sensors detect the light that the object reflected and identify the colors.

-- High precision: precise electron circuit, can detect tiny objects with accurate position.

-- IP ratings: IP65 dust resistant.

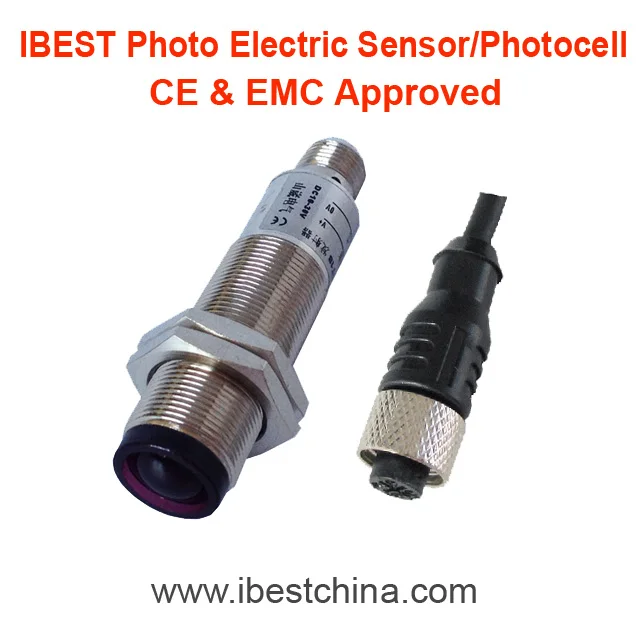

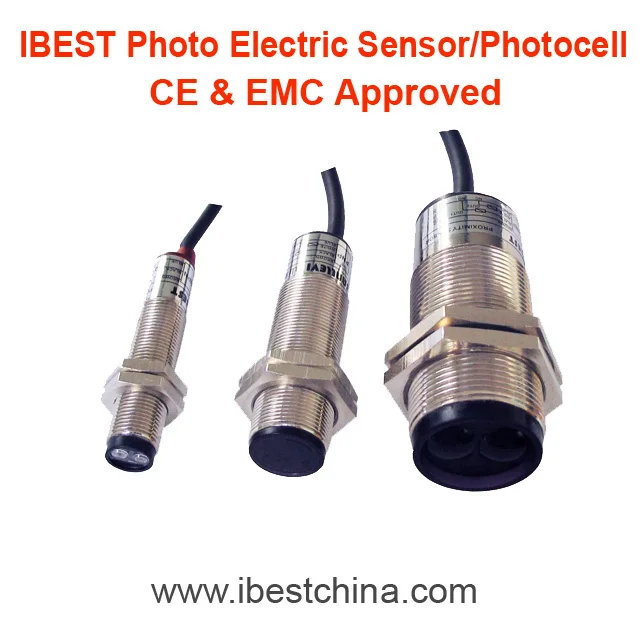

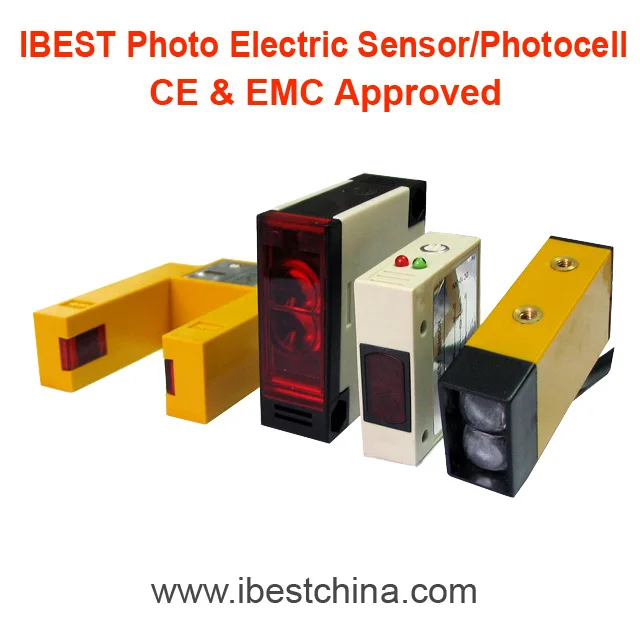

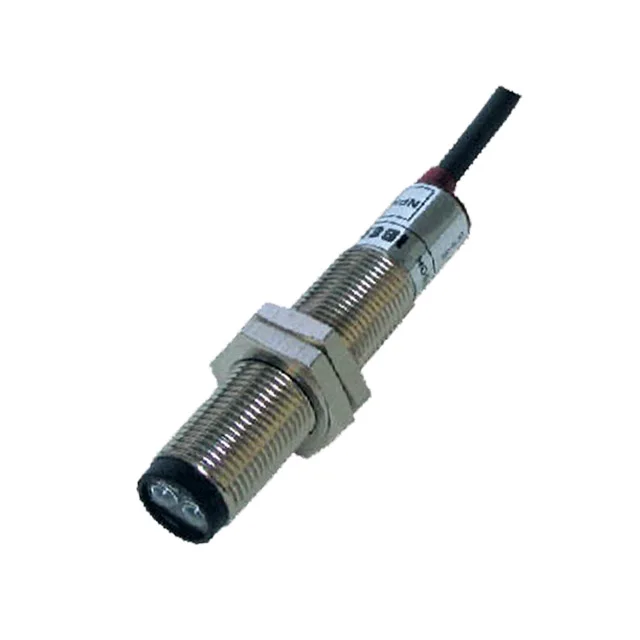

- Various other shapes: M12/M30 and square types.



2. Ordering Code:

Model and Type	Detecing type	Out type	Detecting distance range	Current output	Power supply	Buy
PES-TC41NO2MD	Through-beam	NPN NO	2m	≤200mA	DC 10-30V
PES-TC41NC2MD	Through-beam	NPN NC	2m	≤200mA	DC 10-30V
PES-TC41PO2MD	Through-beam	PNP NO	2m	≤200mA	DC 10-30V
PES-TC41PC2MD	Through-beam	PNP NC	2m	≤200mA	DC 10-30V
PES-DC41NO10D	Diffused-reflective	NPN NO	10cm	≤200mA	DC 10-30V
PES-DC41NC10D	Diffused-reflective	NPN NC	10cm	≤200mA	DC 10-30V
PES-DC41PO10D	Diffused-reflective	PNP NO	10cm	≤200mA	DC 10-30V
PES-DC41PC10D	Diffused-reflective	PNP NC	10cm	≤200mA	DC 10-30V



3. Technical Specifications:

Property project	Specific parameter
Detecting distance range	Through-beam:2m / Diffusec-reflective:10cm
Rated power supply	DC:10-30V / AC:90-250V
Current	DC 3 or 4 wire: ≤200mA
Resonse time	Through-beam:<5ms /  Diffused-reflective:<3ms
Working angle	Through-beam:3°-20°/Retro-reflective:1°-5°
Voltage for transistor	<1.5V
Current consumption	<20mA
Different distance	<15%
Polarity reverse protection	Yes
Ambient light(LUX)	Incandescent lamp:≤3000 / Sunlight:≤10000
IP ratings	IP 65
Material	ABS

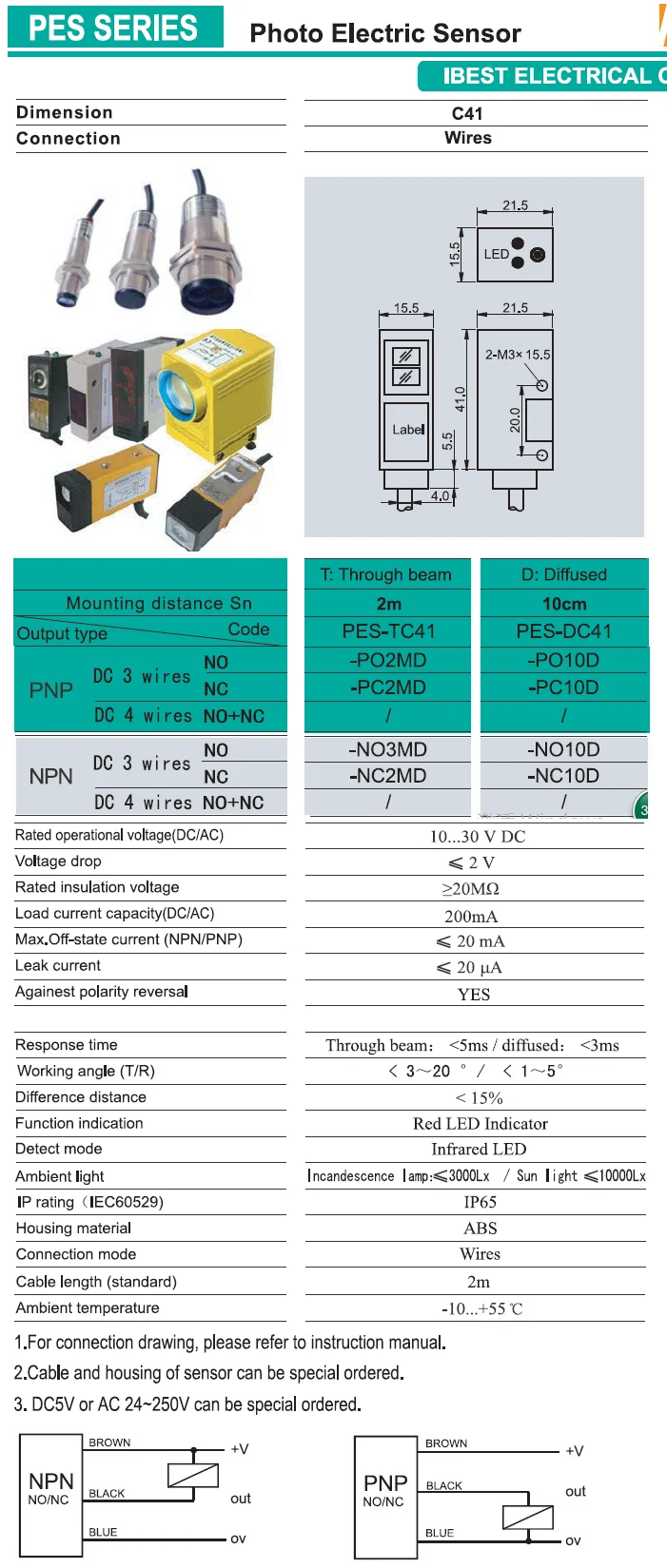

4.Specifications, Dimensions & Connection Wires:
