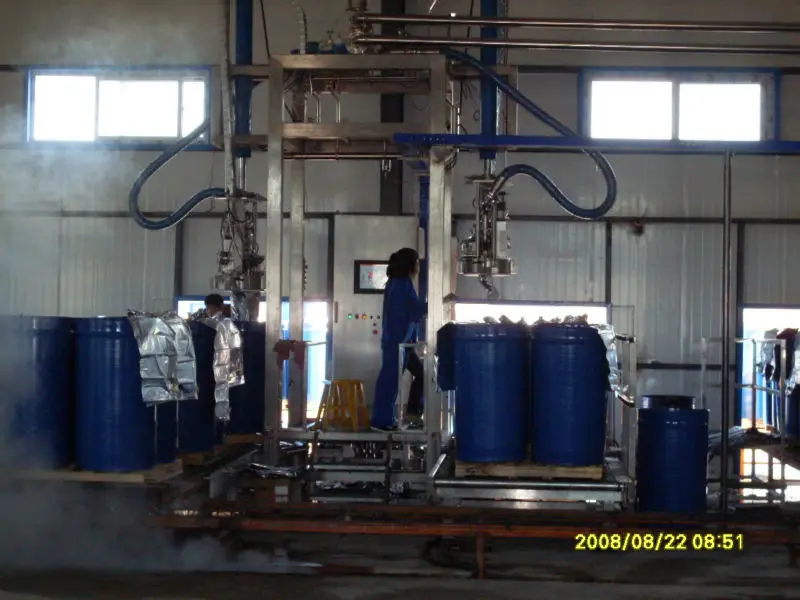

double heads big drum aseptic filling machine filler

1.Double head aseptic filling machine two filling heads alternately continuous filling, to avoid backflow of materials, improve the Utilization rate of sterilizer;

2. Equipped with a sterile room, and the extraction, filling and sealing of sterile bags are carried out in a sterile environment;

3.Using the horizontal filling mode, the condensation water droplet bag produced by steam sterilization in sterile room was effectively solved .

4.Steam was used to sterilize aseptic room and aseptic bag mouth in aseptic room

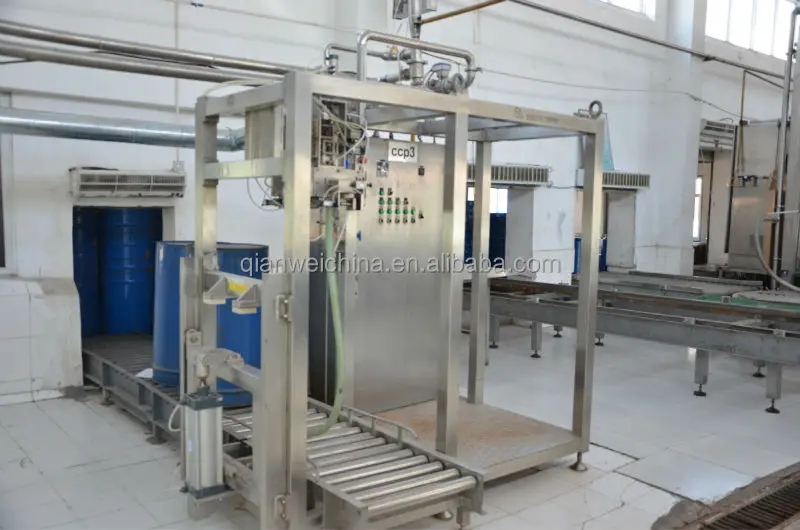

Aseptic filling machine/filler:
1. The unite is consisted of: aseptic filling head, accurate electronic balance, drum conveying roller, PLC Control system, control cabinet, steam barrier and protection system, operation platform, etc.Main characteristic:
2. Provide several security measures(position controlling, computation controlling, temperature controlling) to prevent the machine from destroying and guarantee the product's quality
3. Products' valves, filler head and other moving parts have steam barrier for protection
4. Keep the filling chamber sterilized all the time using steam protection
5. Easily adjustable with simple change parts according to the aseptic bag volume and size
6. When shifting the aseptic bag or some thing wrong with the filler, the product will be auto backtracked into the buffer tank before the UHT sterilizer.
7. Automatically print the black and white label and other data the customer specified such as the filling date, filling time, filling weight, product code or others, if you required.
8. Main structure with SUS304 stainless steel, combined Italy technology and based on Europe standard.
