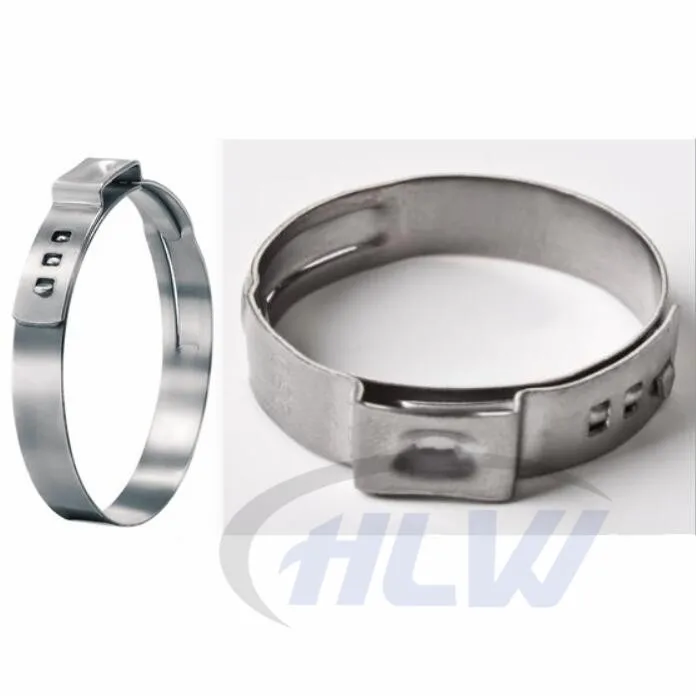

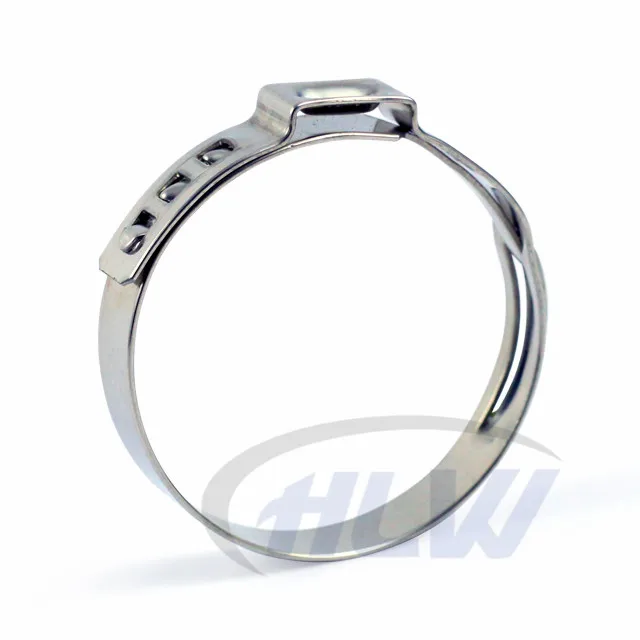

One Ear stepless swivel clamp ASTM F877/F2098 used for beer machine hose

Product Overview

Description

Narrow band for concentrated compression Fast, simple and secure assembly Tamper-detectable design.

Requires only one assembly tool.

Conforms to ASTM F877/F2098.

MODEL	RANGE			BAND WIDTH	BAND THICKNESS
006.5-505R	5.5	-	6.5	5mm	0.5mm
007.0-505R	5.8	-	7.0	5mm	0.5mm
008.0-505R	6.8	-	8.0	5mm	0.5mm
008.7-505R	7.0	-	8.7	5mm	0.5mm
009.0-505R	7.3	-	9.0	5mm	0.5mm
009.5-505R	7.8	-	9.5	5mm	0.5mm
010.0-505R	8.3	-	10.0	5mm	0.5mm
010.5-505R	8.8	-	10.5	5mm	0.5mm
010.9-505R	9.2	-	10.9	5mm	0.5mm
011.3-505R	9.6	-	11.3	5mm	0.5mm
011.8-505R	10.1	-	11.8	5mm	0.5mm
011.9-706R	9.4	-	11.9	7mm	0.6mm
012.3-706R	9.8	-	12.3	7mm	0.6mm
012.8-706R	10.3	-	12.8	7mm	0.6mm
013.3-706R	10.8	-	13.3	7mm	0.6mm
013.8-706R	11.3	-	13.8	7mm	0.6mm
014.0-706R	11.5	-	14.0	7mm	0.6mm
014.5-706R	12.0	-	14.5	7mm	0.6mm
014.8-706R	12.3	-	14.8	7mm	0.6mm
015.3-706R	12.8	-	15.3	7mm	0.6mm
015.7-706R	13.2	-	15.7	7mm	0.6mm
016.2-706R	13.7	-	16.2	7mm	0.6mm
016.6-706R	14.1	-	16.6	7mm	0.6mm
016.8-706R	14.3	-	16.8	7mm	0.6mm
017.0-706R	14.5	-	17.0	7mm	0.6mm
017.5-706R	15.0	-	17.5	7mm	0.6mm
017.8-706R	14.6	-	17.8	7mm	0.6mm
018.0-706R	14.8	-	18.0	7mm	0.6mm
018.5-706R	15.3	-	18.5	7mm	0.6mm
019.2-706R	16.0	-	19.2	7mm	0.6mm



Why choose us

Hose clamps seem insignificant but important,they works as connection and fixture, any problem

may cause big losses,we have:

1.20 years expertise on hose clamps gives you more trust on quality;

2.High cost performance products win high reputation,get the chance for worldwide famous brands;

3.Lead time can be fully guaranteed,free the anxiety of environmental inspecion;

4.After-sale service shares the same importance as quality,you are free to raise your complaint if

    any problem happens.

5.One of the reasons of our good quality is that we take advises of our customers for 20 years, and we respect any feedback of our friends.

6.Professional and effective staffs for any questions you have.
