Chinese price nylon cable tie moulding 125g vertical plastique plastic injection molding machine
- Category: >>>
- Supplier: Guangzhou Rich Union Import And Export Trading Co. Ltd.
Share on (60838332308):
Product Overview
Description
Products Description
Item number | FZY-125B |
Screw Diameter(mm) | 38 |
Theoretical Injection Volume（cm3） | 130 |
(PS)Injection Weight（g） | 135 |
Max.Injection Pressure (Kgf/cm2) | 160 |
Injection Rate (cm3) | 95 |
Screw speed Rotation (r/min) | 0-200 |
Clamping Force (kn(tf)) | 800 |
Clamping Stroke (mm) | 320 |

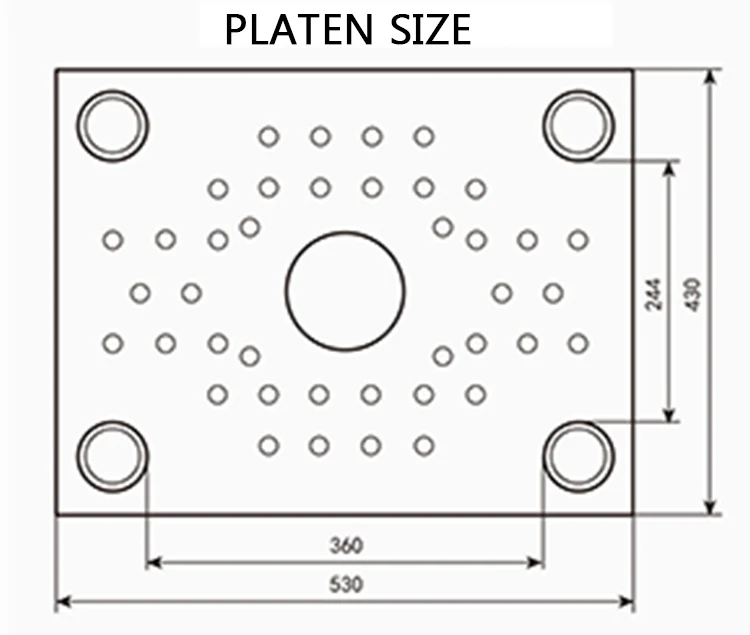

(h*v)Distance Between Tie Bars (mm) | 360*244 |
(l*w)Max. Mould Size (mm) | 530*430 |
Min.Mold Thickness (mm) | 100-330 |
System Pressure (MPA.Kgf/cm2) | 18 |
Eletrice Power [KW(HP)] | 7.5 |
Heating power [KW(HP)] | 4.8 |
Machine Diamensions (l*w*) (m) | 1.3*0.9 |
Machine high (m) | 2.6 |
Machine Weight (T) | 1.2 |

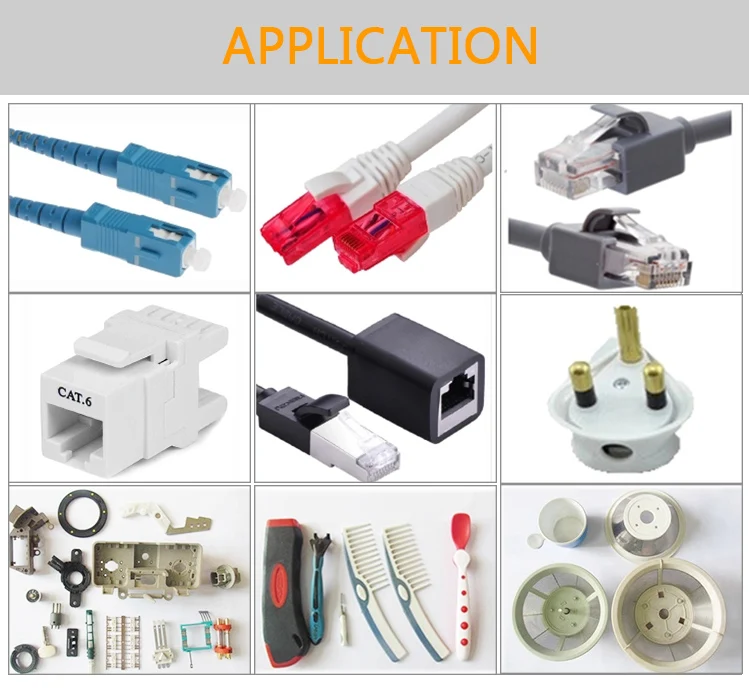

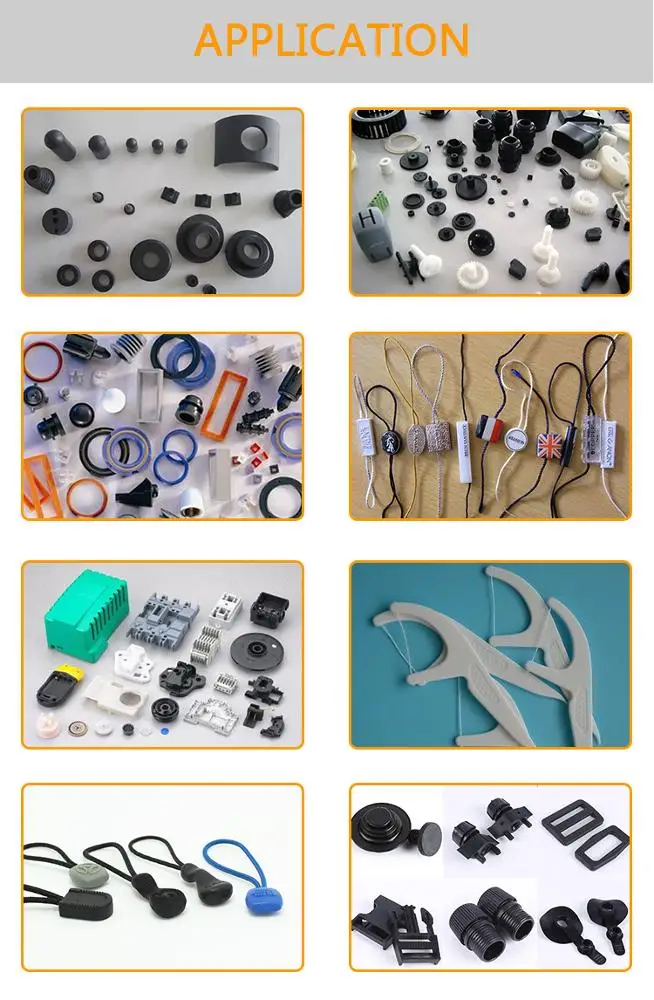

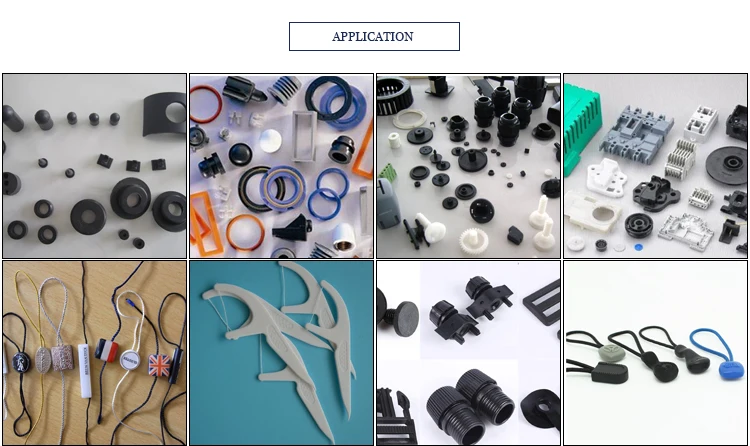

Application
Details
Positioning swivel design
Make the mold installation more convenient and the distant can more accurately.
The crank arm design
Following the machinery rules,let the mode looking more powerful,and extend the life of the machine.
Infrared Sensor
Human body infrared induction installation device can let you more safe when you use it.
Solid press casting mould
Solid press casting mould,withstand voltage,wear-resistant wearproof,and durable.It is high performance cost.
How to choose a right machine
Model(FZY-) | 80 | 100 | 125A | 160 | 200 | 300 | 400 | 500 | ||||||
Screw Diameter(mm) | 35 | 38 | 40 | 42 | 45 | 50 | 55 | 60 | ||||||
Theoretical Injection Volume(cm3) | 130 | 130 | 130 | 130 | 140 | 140 | 140 | 140 | ||||||
(PS)Injection Weight(g) | 100 | 120 | 135 | 170 | 269 | 360 | 420 | 550 | ||||||
Max.Injection Pressure(kgf/cm2) | 130 | 140 | 140 | 180 | 280 | 280 | 280 | 580 | ||||||
Injection Rate(cm3) | 70 | 80 | 90 | 95 | 155 | 155 | 155 | 155 | ||||||
Screw speed Rotation(r/min) | 0-180 | 0-180 | 0-200 | 0-200 | 0-220 | 0-240 | 0-240 | 0-260 | ||||||
Clamping Force(kn(tf)) | 700 | 800 | 800 | 800 | 1000 | 1200 | 1200 | 1300 | ||||||
Clamping Stroke | 250 | 250 | 250 | 320 | 320 | 320 | 320 | 320 | ||||||
(h*v)Distance Between Tie Bars(mm) | 360*244 | 360*244 | 390*285 | 405*296 | 450*325 | 450*325 | 517*339 | |||||||
(l*w)Max. Mould Size(mm) | 525*405 | 525*405 | 530*430 | 565*450 | 625*505 | 625*505 | 710*520 | |||||||
Min.Mold Thickness(mm) | 100-320 | 100-330 | 100-330 | 100-330 | 100-350 | 100-350 | 100-350 | 100-350 | ||||||
System Pressure(mpa.kgf/cm2) | 16 | 16 | 16 | 18 | 18 | 18 | 20 | |||||||
Eletrice Power(kw(hp)) | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 11 | 11 | 13 | ||||||
Heating power(kw(hp)) | 4.8 | 4.8 | 5 | 6 | 6 | 7 | ||||||||
Machine Diamensions (l*w*)(m) | 1.6*0.9 | 1.3*0.9 | 1.6*0.9 | 1.65*0.9 | 1.4*1 | 1.68*1.2 | 1.68*1.2 | 1.68*1.2 | ||||||
Machine high(m) | 2.6 | 2.6 | 2.6 | 28 | 3 | 3 | 3 | |||||||
TMachine Weight(T) | 1 | 1.1 | 1.1 | 1.2 | 1.5 | 1.6 | 1.6 | 2 | ||||||
Double Crane Arm Series
How to become a full-auto production line
Technical Support
Pre‐sale service.
Visiting our factory
If you think you can’t know about the injection molding machine comprehensive, worried about you don’t know how to use,you can come to our factory. We can help you to know about our products including how to use fix and keep it well.We can pick you up when you arrive and offer food but not including accommodation.
Good recommendation
If you are a layman that you don’t know how to choose the most suitable inject machine and let it reach the maximize profits.We can calculate a data for you depend on your information and choose the best one for you.Save you money and time.
Learn online
If you are not convenient come to our factory,we can give you some information and operation vedio, machine’s data for you.We will help you to operate the machine online.
After‐sale service.
Company Profile
About Us
Established in 2010，Hong Kong rich union Industrial Development Co., Ltd，which is a injection molding machine and garment accessories manufacturer that integrate production，sales and R&D. Rich union now have 120 employees，include 10 R&D engineers，10internet marketers，70 production lines and the production workshop area 3000 square meters，4 subsidiary corporations（Guangzhou rich union garment accessories Co.,Ltd Guangzhou rich union import and export trading Co.,Ltd，Guangzhou Lansheng garment accessories Co.,Ltd and Foshan Hede Automation Co.,Ltd）. In addition, we have 10 strategic partners.
With excellent products, no-fuss customer service and environmental awareness, Rich Union has grown rapidly in a decade. We now have certificate of SGS, GRS, CE, RoHS. As a Alibaba quality supplier, our products are export to United States, Britain, Russia, Brazil, Spain, Germany, Middle East, East Asia, Southeast Asia and North America, more than 10 countries and regions.
Customer first. We promise to provide a professional after-sales service team and complete technology export for every customer who use our injection molding machine，including remote technical support，operation training，operating management and so on.
Climate change is a common challenge confronting the entire mankind. Each and every country, enterprise and individual should assume a due share of responsibility in meeting the challenge. In order to reduce pollution，we launch some new products，such as PLA（Polylactic acid） string seal，paper straw，paper straw making machine. We are try our best to keep the balance between corporate interest and environmental protection. Only in this way can we embrace a bright future.
Our Advantages
Resource superiority
Multiple probing, debugging before deliver.We choose the best quality accessory to make and let it have tough quality.Many customers believe us.
Competitive price
Compare with the same quality product, Our price is the cheapest.but you can’t compare with the cheap quality factory,because it’s unreasonable.
Technical superiority
Rich producing experienced,we produce and use by ourselves.Continuous improvement and innovation.Through the cooperation with the university to obtain technical support and technology update.
Certificates
Product packaging
1. Before shippment,we will check and test the machine carefully.
2. We will start to manufacture the machine the day after your confirmation, and the machine will be shipped within 25 working days.
3. We will select the best forwarder according to the country the machine will be shipped; Besides, you can choose your own forwarder, and we will send the machine to your designated warehouse.
2. We will start to manufacture the machine the day after your confirmation, and the machine will be shipped within 25 working days.
3. We will select the best forwarder according to the country the machine will be shipped; Besides, you can choose your own forwarder, and we will send the machine to your designated warehouse.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are the Manufacturer of vertical injection molding machine more than 10 years, and we passed CE & ISO9001 & SGS Certificates.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you the high quality machines. One year warranty of the spareparts, life-time maintenance.
Q3: Why choose Rich Union?
A3: Innovative and creative thinking are forming new ideas that affect our efforts in research and development. Thus machines, processes and entire systems of the highest quality are possible.
A1: We are the Manufacturer of vertical injection molding machine more than 10 years, and we passed CE & ISO9001 & SGS Certificates.
Q2: What's your guarantee or the warranty of the quality if we buy your machines?
A2: We offer you the high quality machines. One year warranty of the spareparts, life-time maintenance.
Q3: Why choose Rich Union?
A3: Innovative and creative thinking are forming new ideas that affect our efforts in research and development. Thus machines, processes and entire systems of the highest quality are possible.
