Special wavelength LED supplier sell water clear lens T1 3mm 1200nm 1550nm 1650nm 1720nm InGaAsP through hole infrared diode
- Category: >>>
- Supplier: Shenzhen Starsealand Opto Electronics Co. Ltd.
Share on (60838345249):
Product Overview
Description
Special wavelength LED supplier sell water clear lens T1 3mm 1200nm 1550nm 1650nm 1720nm InGaAsP through hole infrared diode with ROHS
Shenzhen Starsealand Opto Electronic Co.,LTD deal with special wavelength LEDs from 250nm to 4400nm, if you have any inquires please let me know .
Application:
1.Oxygen meter
2.Gene testing device
3.Motion capture
4.Iris authentication
5.Vein certification
6.Surveillance camera
7.Color selection
8.Encoder
9.Appearance inspection
10.Solar simulation
11.Photo therapy
Product Description
Feature
1) water clear type
2) 3mm standard
3) wavelength range:1550nm ,invisible light
4) work volt:0.6-0.8v 20mA
Item | Symbol | condition | Min | Type | Max | Unit |
DC forward Voltage | VF | I=20mA | 0.6 | ---- | 0.8 | V |
DC reverse Current | IR | V=5V | ---- | ---- | 5 | μA |
wavelength | Wp | I=20mA | 1500 | 1550 | 1600 | Nm |
Spectrum Radiation Bandwidth | Δλ | I=20mA | ---- | 130 | ---- | Nm |
Luminous Intensity | IV | I=20mA | 1.5 | ---- | 4.5 | mw |
50%Power Angle | 2θ1/2 | I=20mA | ---- | 30 | ---- | deg |
also have other wavlength, such as 680nm, 690nm,700nm,730nm,740-750nm,760-770nm,770-780nm,800-810nm,830-840nm,850nm,880nm,900-910nm,960-970nm,970-980nm,1020nm,1050nm,1200nm,1300nm,1450nm,1650nm,1720nm,2000nm,3000nm,4000nm
Appcications:
1)medical facilities.
2)infrared systerm
3)physiotherapeutic instrument
Appearance:

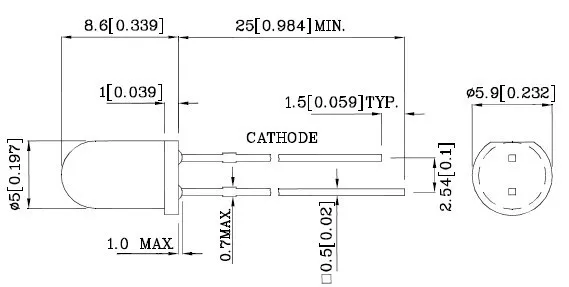

Size drawing :
Packaging & Shipping
Our Services
1. Your inquiry for our products or prices will be replied in 24 hours.
2. We offer the OEM and ODM service, and we have been in this field for 15 years.
3. Protection of your sales area, ideas of design and all your private information.
4. We gurantee both quality and service regardless of your big or small order.
5. Advanced equipment and good materials: ASM machine, good chips and epoxy resin.
Company Information
FAQ
Q:How can I get your pricelist?
A:Please Email us your country name, your detailed contact telephone, fax number, part# you need and how many pieces
you will buy.
Q:If I place an order, how long will it take to delivery it?
A:It usually takes about only 2-3 days on receipt of payment, depends on the quantity ordered and the stock status.
Q:How do you deliver parts to us?
A:Normally sent to you by DHL, UPS,TNT etc Worldwide Express or by shipment. Delivery charge is ofen $35.00 with packaging less than 0.5KG,more depends on its detail weight.
Q:How is the payment made?
A:There are different payment options. You may choose any of following at your convenience.
by western union: you can find your local service from www.westernunion.com.
by T/T (wire transfer) you can pay to our company account for large quality order.
