China factory supplied top quality hydraulic control valve with good after sale service
- Category: >>>
- Supplier: Changzhou Duling Controller Co. Ltd.
Share on (60838362345):
Product Overview
Description
Product Description

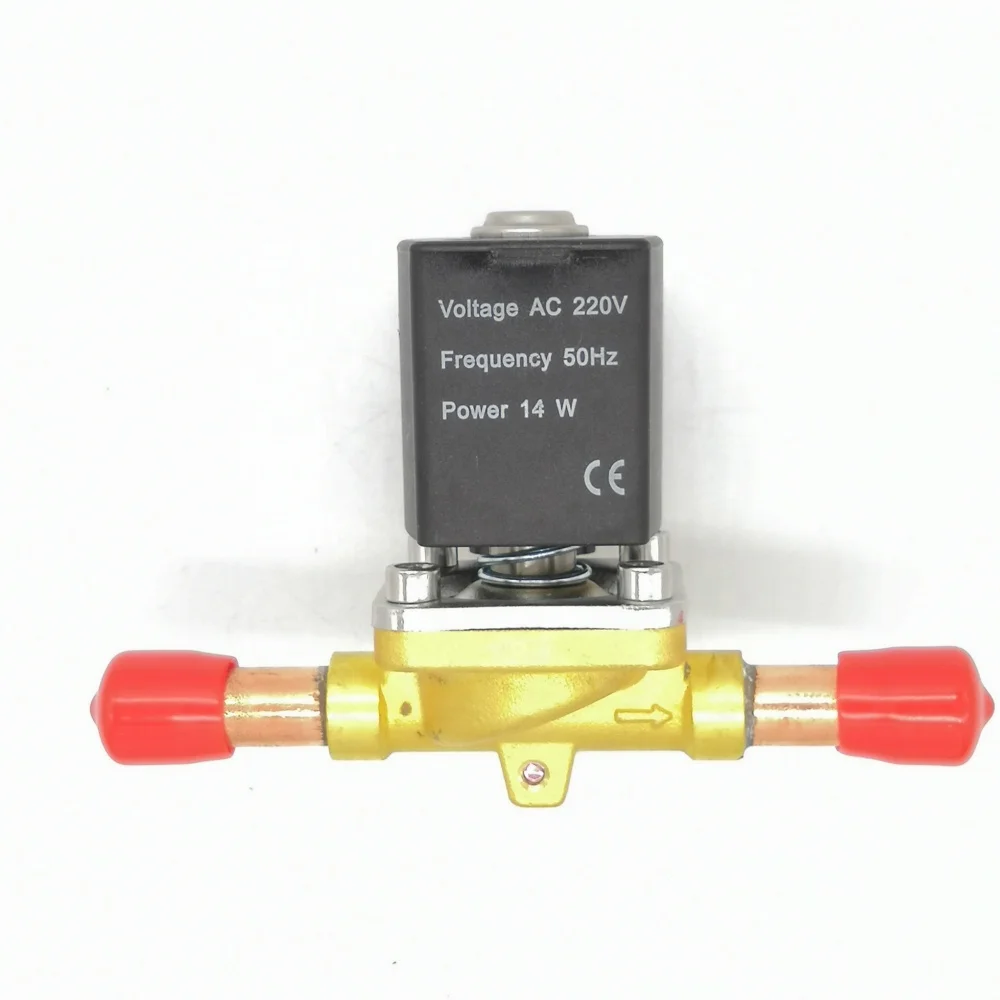

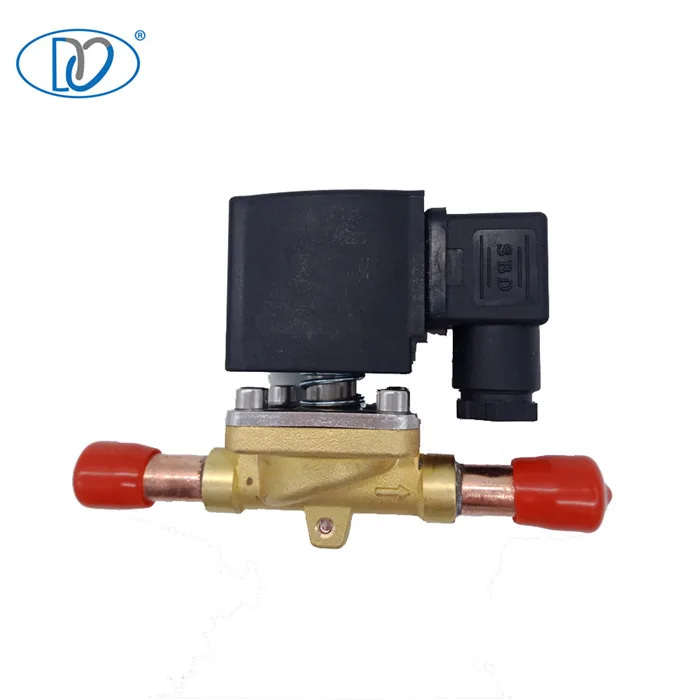

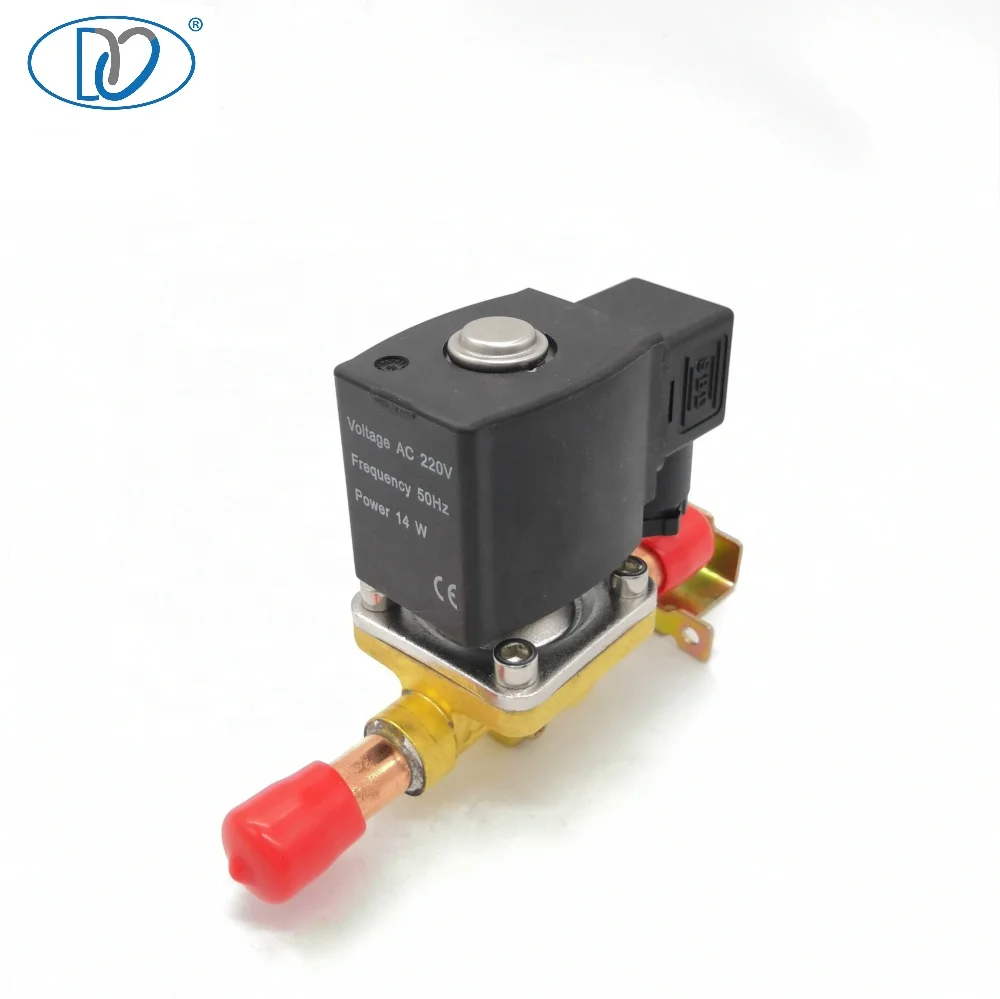

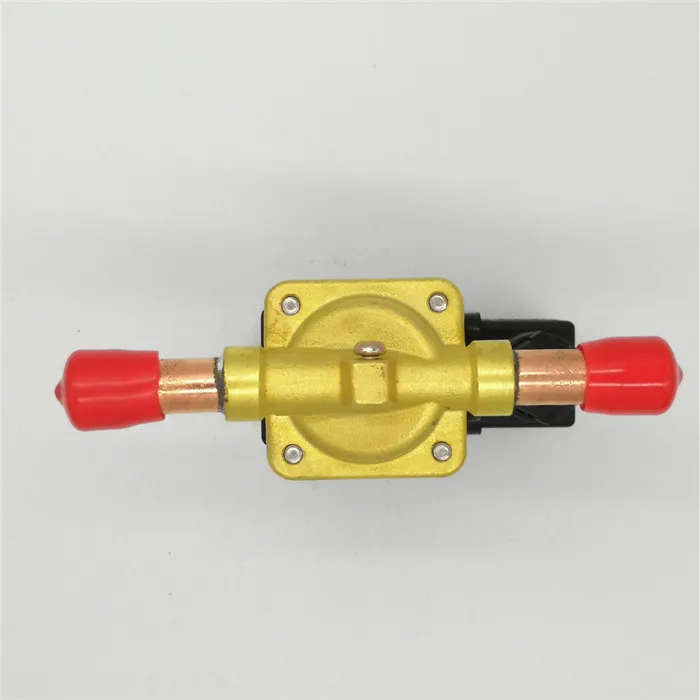

China factory supplied top quality hydraulic control valve with good after sale service
DSV series two ways normal closed solenoid valves with diaphragms can be widely used in refrigeration,pneumatic and hydraulic system,also in boiler and fire-fighting,etc..
Solenoid valves use full-closed magnetic coil and DIN international standard electric plug,so it is characterized by its good insulation,waterproof,moisture proof,anti-vibration and corrosion resistance.
While energized in coil,the electromagnetic power opens the small orifice.Then the pressure in upside of valve reduced, so the pressure difference between both side of diaphragm happen and lead to diaphragm lift to open the main orifice. While de-energized in the coil,plug stem will drop and close the small orifice because of spring force and its weight.The flow media enters into upside of diaphragm through throttle hole,then pressure in both side of diaphragm balance,then the diaphragm will drop and close the main orifice.
Product Detail
| Product name | water solenoid valve |
| Type | Normal Colse |
| Color | Customer Require |
| Rated voltage AC | 24V, 36V, 110V, 220V, 380V |
| Rated voltage DC | 12V, 24V, 110V, 220V |
| Connection dimension | 7/8", 1", 1-1/8" |
| Kv value | 4.5 m3/h |
| Ambient temp. | -20~50℃ |
| Medium temp. | -25~120℃ |
| Application | uni-d solenoid valve |
| Product Keywords | hydraulic control valve |
Packaging & Shipping

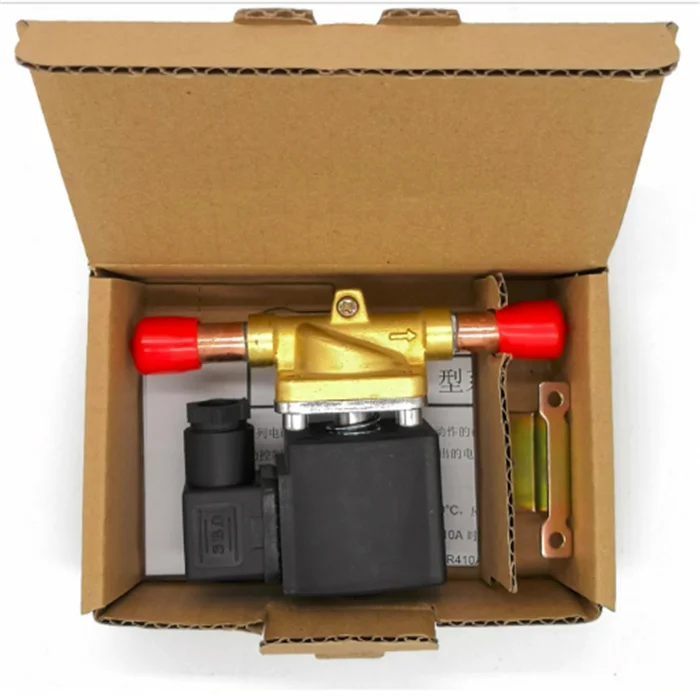

PACKAGE:
One pc in a box
Packed in carton box or customized
Standard export carton packing.
DELIVERY TIME:
7-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
Related Products
Certifications
Company Information
ABOUT US
Company information
Changzhou Duling Controller Co.,Ltd is a collection research and development, production, sales and service in a body's enterprise, has the advances production and testing equipment. The main refrigeration bypass selenoid valve, pressure protection switch, unloading valve, check valve, water valve and other products.
Changzhou Duling since its founding in 2002, has been to provide better products for the society and ceaseless effort, struggle; Duling, the company has always been that guarantee the quality of each product, the best interpretation is a corporate social responsibility. On the basis of constant pursuit of more excellent product quality, to provide more high quality products for the society.
