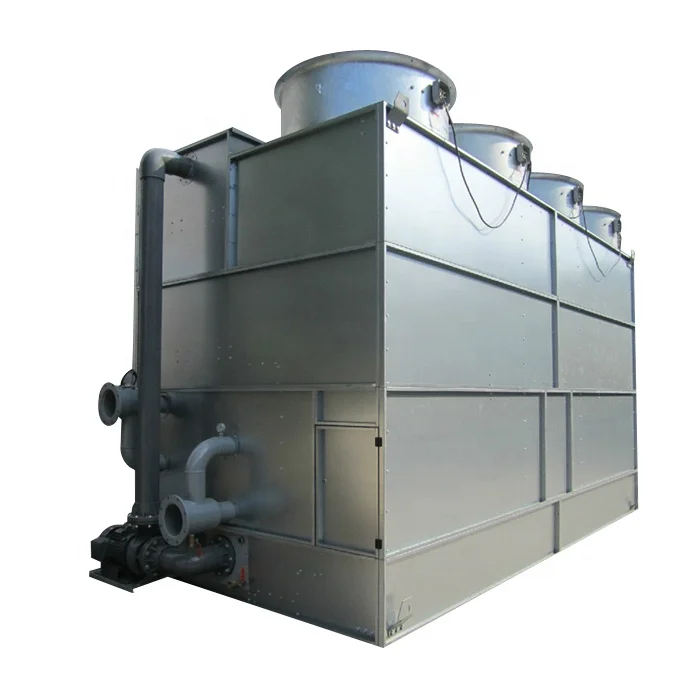

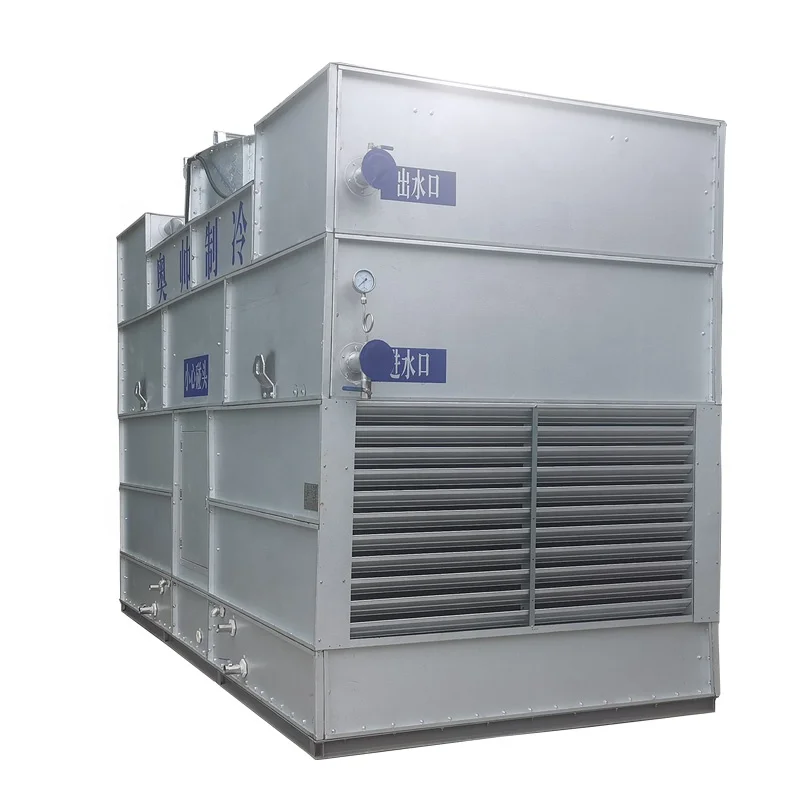

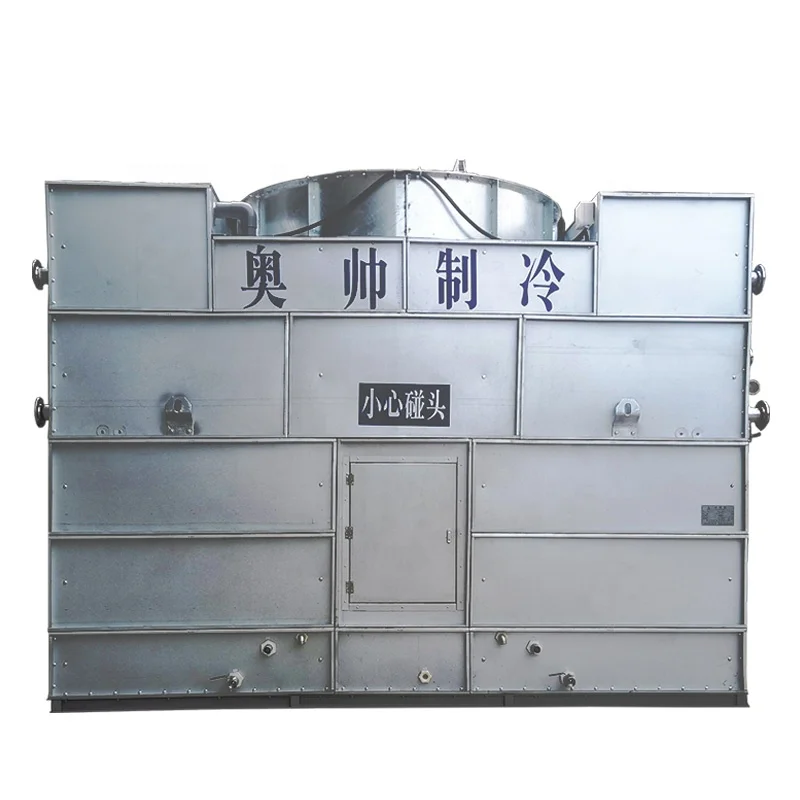

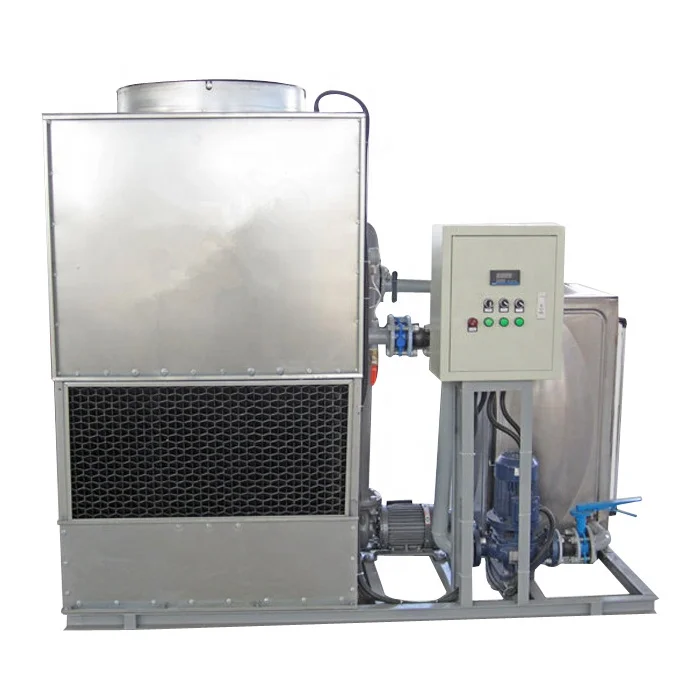

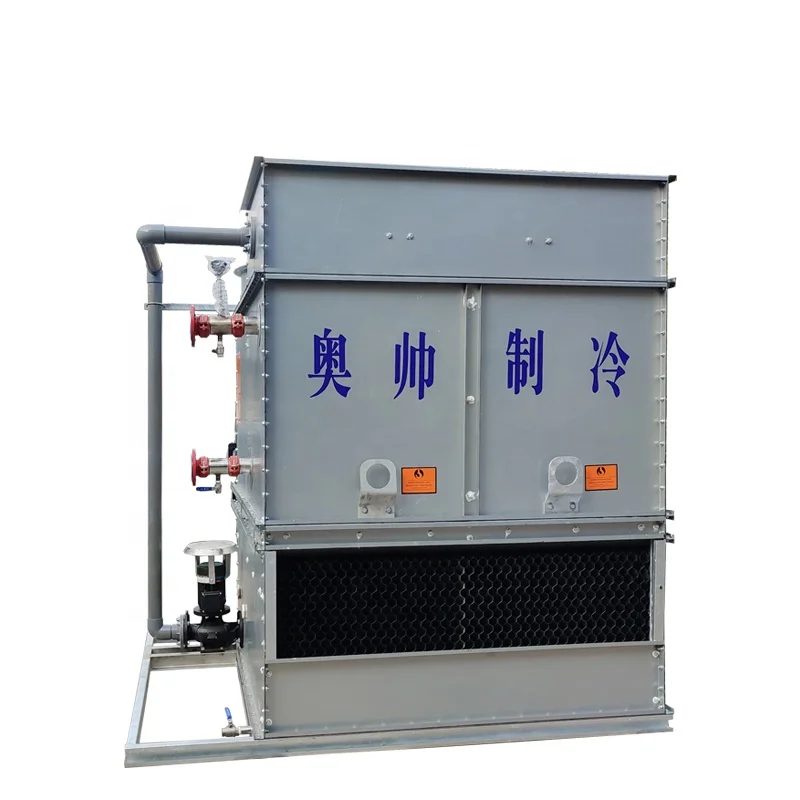

250m3/hr High Efficiency Aluminum zinc Plate Closed Cooling Tower Price
- Category: >>>
- Supplier: Zhejiang Aoshuai Refrigeration Co. Ltd.
Share on (60838391807):
Product Overview
Description
250m3/hr Aluminum-zinc Plate Closed Circuit Cooling Tower
Product Description
| Name: | 250m³/hr Aluminum-zinc Plate Closed Cooling Tower |
| Type: | AFC-250T |
| Unit: | Set |
| Material: | Stainless Steel |
| Usage: | For induction furnace, quench bath,tan, central air-conditioning,hydraulic system, air compressor and so on. |
Water flow rate: | 250m3/hr |
Cooling capacity: | 1250000Kcal/h(1454kw) |
| Fan blowing rate: | 100000*2m3/hr |
| Motor power | 7.5kw(10.2hp) x 2 |
| Spray pump flow | 143m3/hr |
| Spray pump power | 7.5kw(4.08hp) |
| Circulating pump power | 30kw(40.82hp) |
| Water in/out diameter | 200mm(7.87") |
| Brand Name: | Aosua |
| Place of rigin: | Zhejiang,China |
| Minimum Order: | 1 set |
| Packaging Details: | Spare parts packing with wooden case, 20 feet container, 40 feet container |
| Terms of payment: | TT |
| Supply Ability: | 100 sets/month |
| Production date: | Within 30days |
Closed Cooling Tower:
Closed cooling towers are one of the methods of heat transfers. They are hybrids that pass the working fluid through a tube bundle, upon which clean water is sprayed and a fan-induced draft applied. The resulting heat transfer performance is much closer to that of a wet cooling tower, with the advantage provided by a dry cooler of protecting the working fluid from environmental exposure and contamination.
Application:
Closed cooling towers operate similar to open cooling towers, except that the heat load to be rejected is transferred from the process fluid to the ambient air through a heat exchange coil. This creates two separate fluid circuits an external circuit, in which spray water circulates over the coil and mixes with the outside air, and an internal circuit, in which the process fluid circulates inside the coil. The coil isolate the process fluid from the outside air, keeping it clean and contamination free. Heat is transferred from the internal circuit, through the coil to the spray water, and then to the atmosphere as a portion of the water evaporates.
Advantages:
Costs Less to purchase & operate, Less Total HP required, Green solution, open towers use an efficient, simple, and economical design. This is accomplished by combining heat rejection equipment with a heat exchanger in a closed cooling tower
Company Information
OUR FACTORY
Shangyu Aosua Refrigeration Industry Co., Ltd.is a factory.
Membership of CTI(Cooling Technology Institute) and Chinese Association Of Refrigeration.
Approved by ISO9001:2008,IAF(International Accreditation Forum)and UKAS it is how we can provide high quality and service for global customers.
Our Services
1.Provide install video if necessary.
2.Quality guarantee is 12 months.
3.If it was proved due to the quality problem,we will bear all cost for replace during quality guarantee time.
4.Oversea technical guidance.
FAQ
1)Q:Are you a factory or a trading company?
A:cooling tower manufacturer with 50 works.
2)Q:What's your MOQ of this term?
A:1 SET.
3)Q:Where is your Loading port?
A:Ningbo and Shanghai port,China
4)Q:What's your company's available production capacity?
A:100 SETS per month.
5)Q:How about the packing of this model?
A:Spare parts packing with wooden case, 20 feet container, 40 feet container
