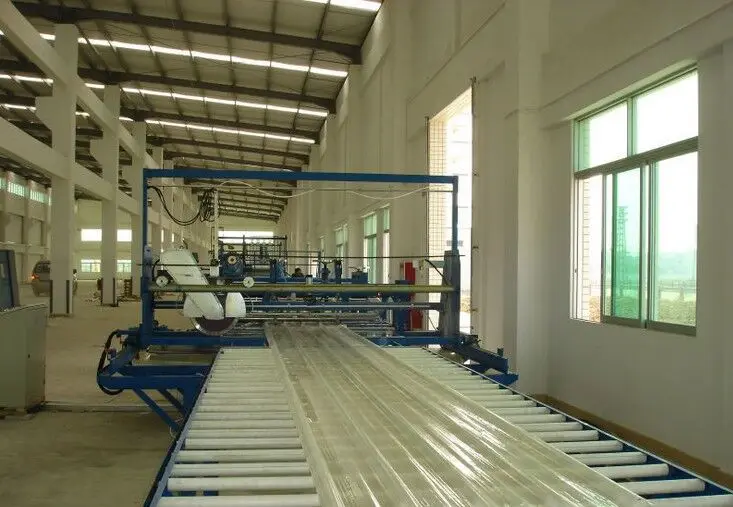

The complete continuous corrugated/flat FRP sheet production line special for manufacturing clear or color high light transmission FRP sheet. This production line adopts automatic charging, batching and automatic temperature control systems as well as automatic cutting system for trimming and cross cutting. The hauling speed is step-less variable drive. Those technologies make the production line to be of features such as high efficient productivity, automatic control, advanced processing technology and easy operation etc.

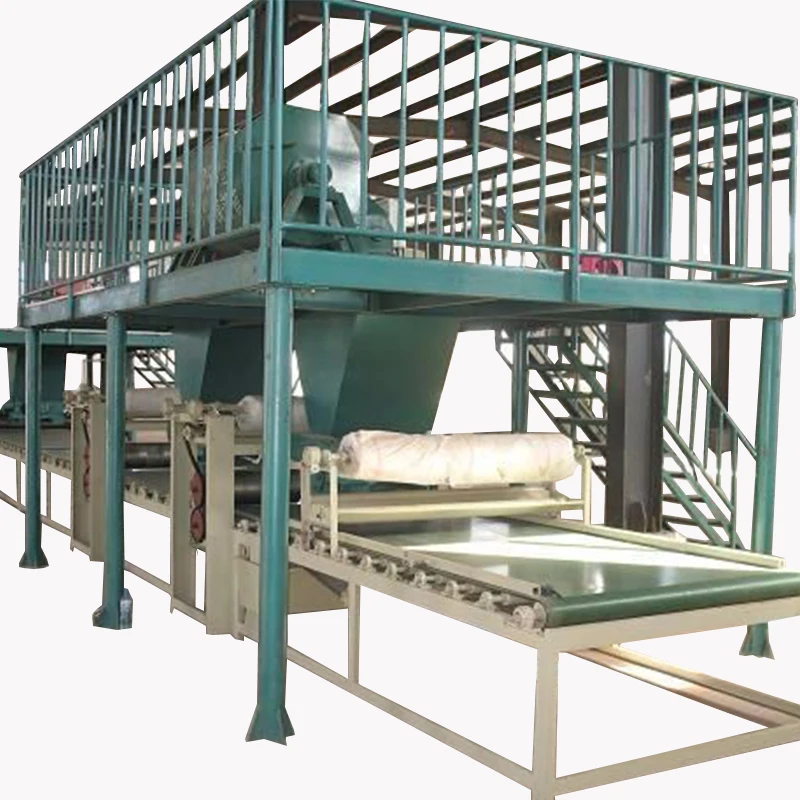

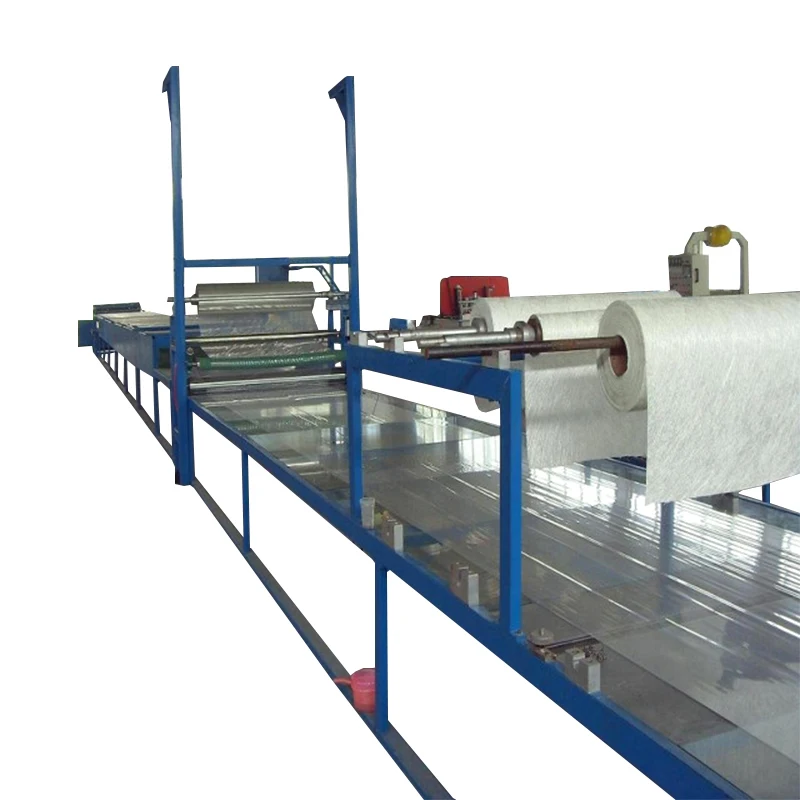

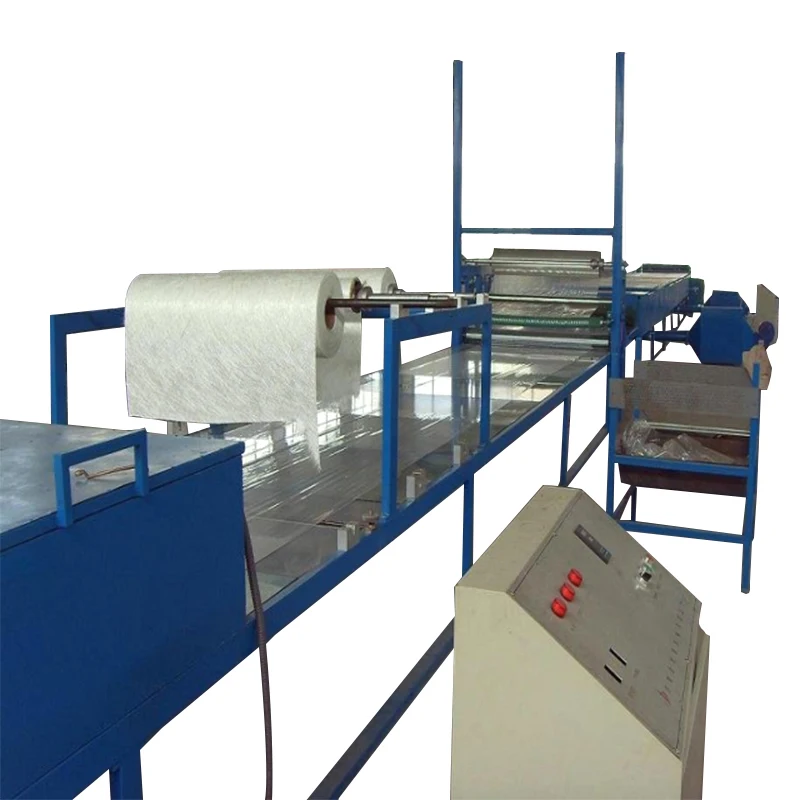

FRP roofing sheets making machine
Model Parameter
ZLRC-4.5
ZLRC-8
ZLRC-12
ZLRC-15
ZLRC-25
Pulling force(Ton)
4.5
8
12
15
25
Pulling speed(m/min)
0.1-2.0
0.1-1.5
0.1-1.5
0.1-1.5
0.05-1.5
Profile(W*H)m
0.45*.013
0.5*0.2
0.5*0.3
0.8*0.35
1*0.5
Motor Power(Kw)
6
7
11
15
22
Heating Power(Kw)
9.6
9.6
12
18
18
Dimension(L*W)m
8.25*0.85
7.5*0.9
7.5*0.9
11*1.12
13*1.5
Weight(Ton)
2.5
3
3.5
4
5
Driving Type
Hydraulic
Control System
Relay&PLC&Touch Screen
Options:
Relay&PLC&Touch Screen frp plane skylight
Heated platen mould with mechanical asjustment frp plane skylight
Programmable velovity encoder system frp plane skylight
Company Information

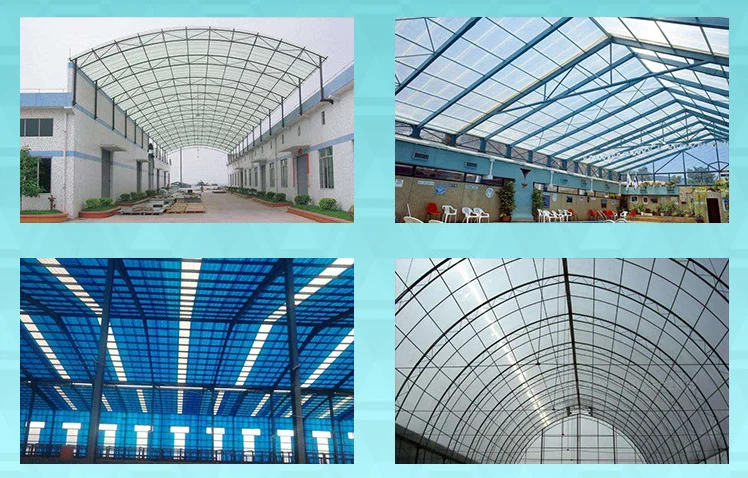

APPLICATION
Design advantages of FRP lighting panels: 1. The raw material glass fiber yarn gives the product good impact resistance and bending resistance, and can withstand hail and typhoon attacks without being easily broken. Compared with glass, it guarantees safety and reduces maintenance costs. 2. Select the appropriate raw material resin to control the light transmittance of the FRP lighting board to between 25 and 85%. The special process technology makes the incident light very soft and creates a comfortable working environment. Moreover, as a non-uniform material composite material, scattering occurs when light passes through, so that the indoor light is uniform, no light spots, and no glare. (The manufacturer can choose the FRP lighting board with different transmittance according to the specific needs) 3. The raw material resin and glass fiber yarn used in the production are combined with each other, the structure is stable, and the heat resistance is superior, which can effectively reduce the water leakage at the joint due to the stress caused by the change of cold and heat. 4. The forming process of FRP lighting board adopts continuous forming process. Through the adjustment of the formula and process parameters, a variety of different color products can be obtained, which is suitable for decorative engineering.
