single effect fruit juice vacuum concentration evaporation machine/single effect evaporator

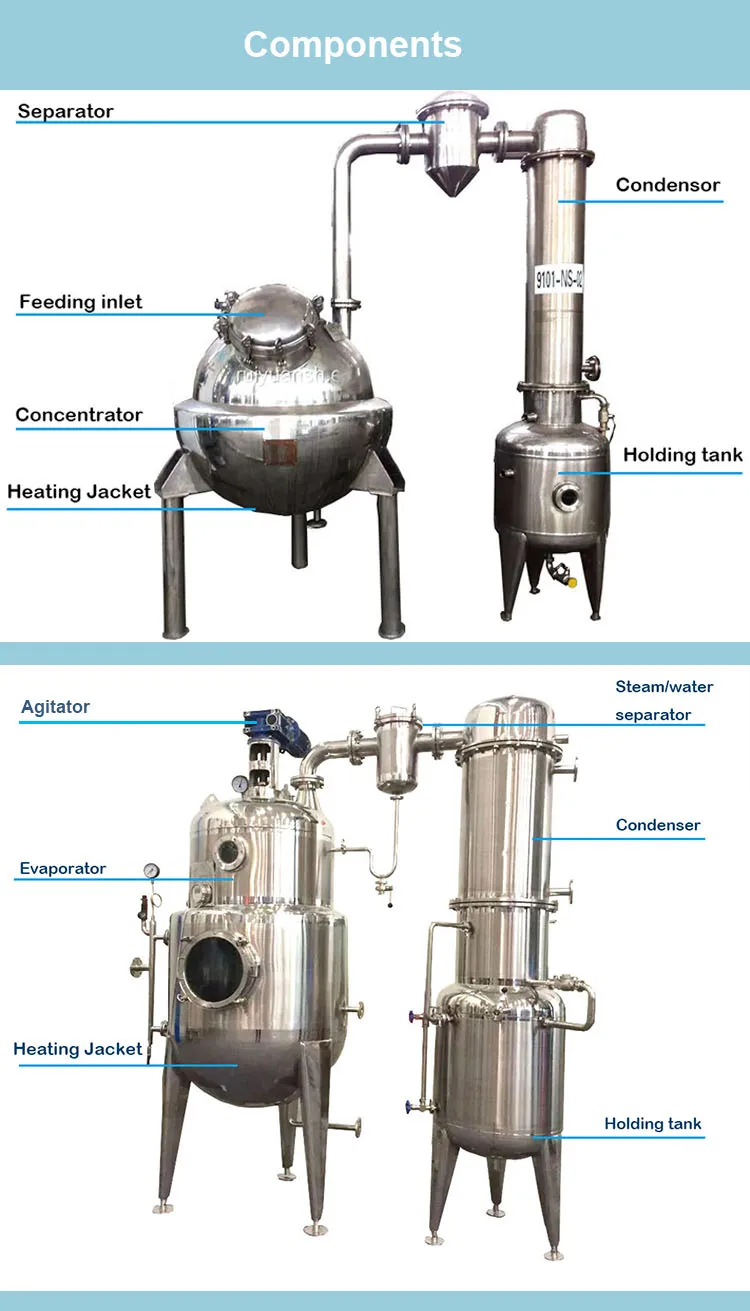

1. single effect fruit juice vacuum concentration evaporation machine/single effect evaporator makes use of the methods of vacuum evaporation or mechanical separation to concentrate the materials. this is composed of heater, evaporation chamber, foam remover, condenser, cooler and liquid receiver, etc. All the parts contacting with materials are made of SUS304/316L.
2.single effect fruit juice vacuum concentration evaporation machine/single effect evaporator is suitable for the liquid evaporation&concentration in the
industries of pharmacy, food, chemical, light industry, etc. This equipment features short concentration time, fast evaporation time and can protect the thermal sensitivity materials well.

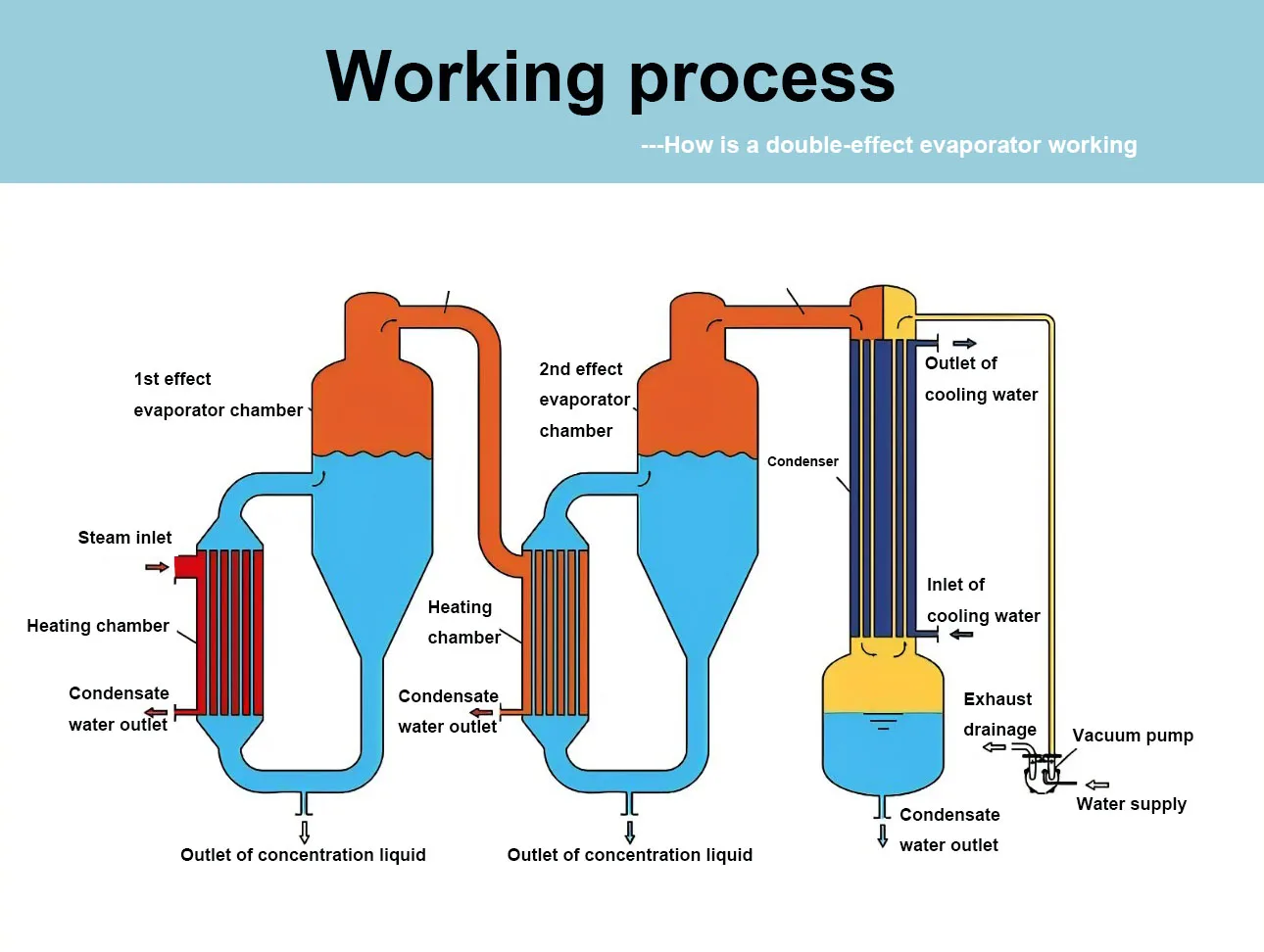

3. At present, in order to improve the concentrated products’ quality, concentrator widely adopts vacuum concentration process.Usually, under 18-8Kpa low pressure state, it heats up the liquid materials by indirect steam heating to make it evaporate under low-temperature. So, the temperature difference between heating steam and liquid materials is larger. Under the same heat transfer condition, its evaporation rate is higher than atmospheric evaporation, which can reduce the liquid nutrition loss.






Specification


Profile type
vacuum evaporator concentrator
Material
SS304 or SS316L
Capacity
0.1T/H-5T/H (Customized)
Heater type
Electric heating / Steam heating
The Working Temperature
40°C~80°C
The Working Pressure
-0.08Mpa
Power
0.55KW-30KW
PARTS DETAILS
1.Quick open manhole / Pressure manhole
2.Various types of CIP cleaners
3.Sterile respirator
4.Adjustable Legs
5.Inlet and Outlet sanitary valve
6.Thermometer (According to customer requirements )
7.Scraped wall mixer .(According to customer requirements)
8.Liquid level meter and lever controller (According to customer requirements)




Company Profile








Certifications




Packing & Delivery






FAQ


1. who are we?
We are based in Shanghai, China, start from 2011,sell to North America(20.00%),South America(10.00%),Southeast
Asia(10.00%),Africa(10.00%),Mid East(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Domestic Market(10.00%),Central
America(5.00%),South Asia(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
essential oil distiller,herb extraction tank,concentration machine,lab spray dryer,fall film evaporator

4. why should you buy from us not from other suppliers?
Ruiyuan Machinery--High-tech Enterprise Professional--Made high quality Service--To customer satisfaction

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,MoneyGram,PayPal,Western Union,Cash;
Language Spoken:English
