0.18mm Hot 3 Axis CNC Controller EDM Wire Cutting Service EDM Machine Price

In wire electrical discharge machining (WEDM), also known as wire-cut EDM and wire cutting, a thin single-strand metal wire (molybdenum wire in this case), is fed through the workpiece, submerged in a tank of dielectric fluid, typically deionized water. Wire-cut EDM is typically used to cut plates as thick as 300mm and to make punches, tools, and dies from hard metals that are difficult to machine with other methods. The wire, which is constantly fed from a spool, is held between upper and lower diamond guides. The guides, which is CNC-controlled, move in the x-y plane. On the most models, the upper guide can also move independently in the z-u-v axis, giving rise to the ability to cut tapered and transitioning shapes (circle on the bottom, square at the top for example).

SPECIFICATIONS FOR WIRE CUT EDM MACHINE
Worktable Size	635 x 1025 mm
Traverse of X, Y Axis	630 x 800 mm
Taper / Workpiece Thickness	3 degree / 80mm
Max. Workpiece Thickness	600 mm
Max. Workpiece Weight	1000 Kg
Diameter of Wire	0.1 - 0.2 mm
Max Machining Speed	170 square meters / min
Surface Finish	≤1.2 μ Ra
Vertical Accuracy	≤0.015mm
Max Machining Current	7A
Total Power	2.5Kw
Size of Controller	850 x 750 x 1900 mm
Weight	2800 Kg
Size of Machine	2100 x 1940 x 1980 mm

OTHER SPECIFICATION

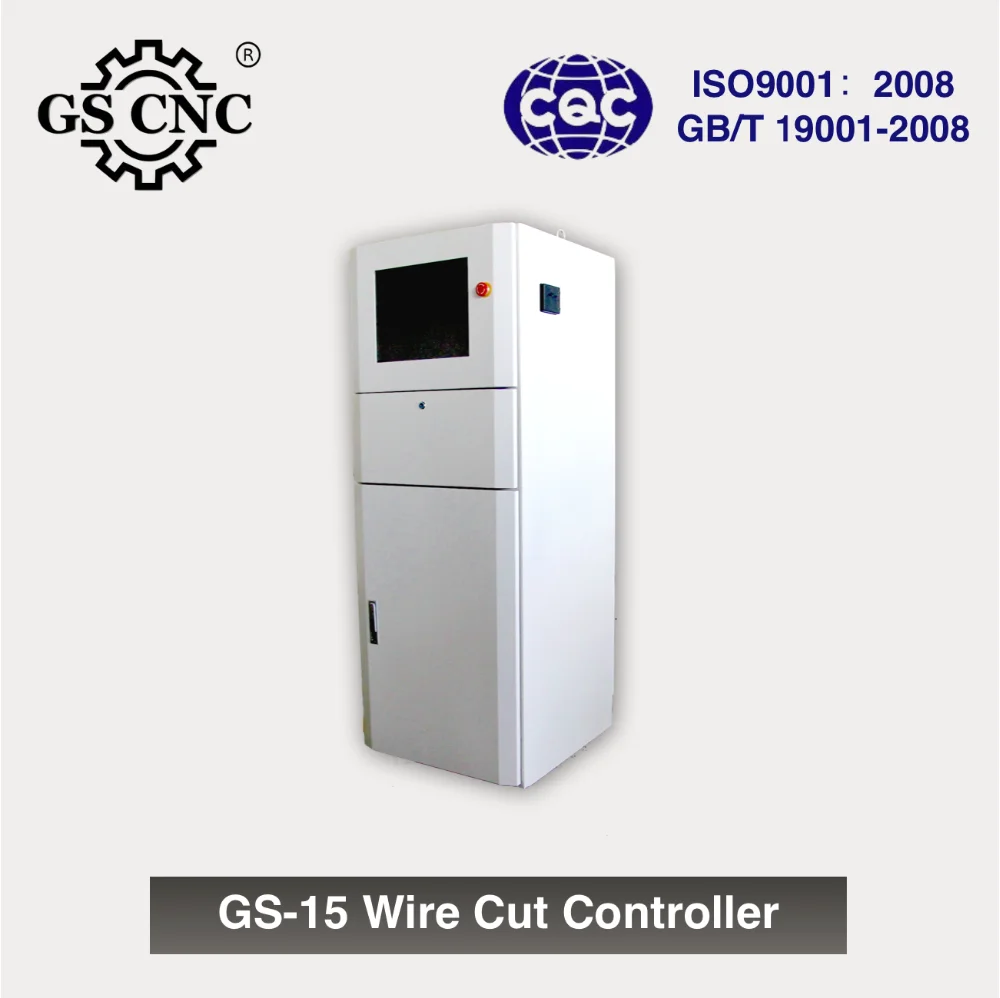

Controller

PC with 17 inch LCD (industrial computer is optional)

Multiple cut function support

USB & LAN data transmission support

Wire-drum variable frequency speed control function support

Standard Accessories

Wire vertical calibrator - 1 pc

Dia. 0.18mm molybdenum wire - 1 box

Wire tention block - 1 pc

Wire drum coupling - 1 pc

Guide wheel & Guide wheel handing tool - 1 set

Conductive Alloy - 2 pcs

Top and bottom water nozzle block - 1 set

Filter for coolant tank - 1 pc

Working fluid (Ointment) - 2 bottles

Clamping Tool - 1 set

Hex Screwdriver - 1 set

Tool box - 1 set

English user manual book in DVD - 1 set

OPTIONAL

Taiwanese industrial computer

Three layer work table

X / Y axis linear guide

Automatic lubricator

Diamond water nozzle block

Main Features

1) Machining complex shapes that would otherwise be difficult to produce with conventional cutting tools.,
2) Machining extremely hard material to very close tolerance.
3) Machining very small workpieces where conventional cutting tools may damage the part from excess cutting tool pressure.
4) There is no direct contact between tool and workpiece. Therefore delicate sections and weak material can be machined without any distortion.
5) A good surface finish can be obtained.
6) Very fine holes can be drilled.

Our Company

Our Service

Certifications

FAQ

Q1: Are you trading company or manufacturer?

A: Manufacturer.

Q2: How long is your delivery time?

A: 35-60 days for general model. If it needs customized production, it will be longer. Delivery time depends on product changes.

Q3: Do you provide samples ? is it free or extra ?

A: Yes, we could provide samples. Sample fee and freight cost are paid by your side.

Q4: What is your terms of payment ?

A: T/T or L/C is ok. T/T is 30% after PI confirmation, 70% before shipment.
