1000l steel frame plastic ibc tote tank for caustic soda storage
- Category: Chemical Storage Equipment >>>
- Supplier: Weihai,Forward,Hydraulics,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

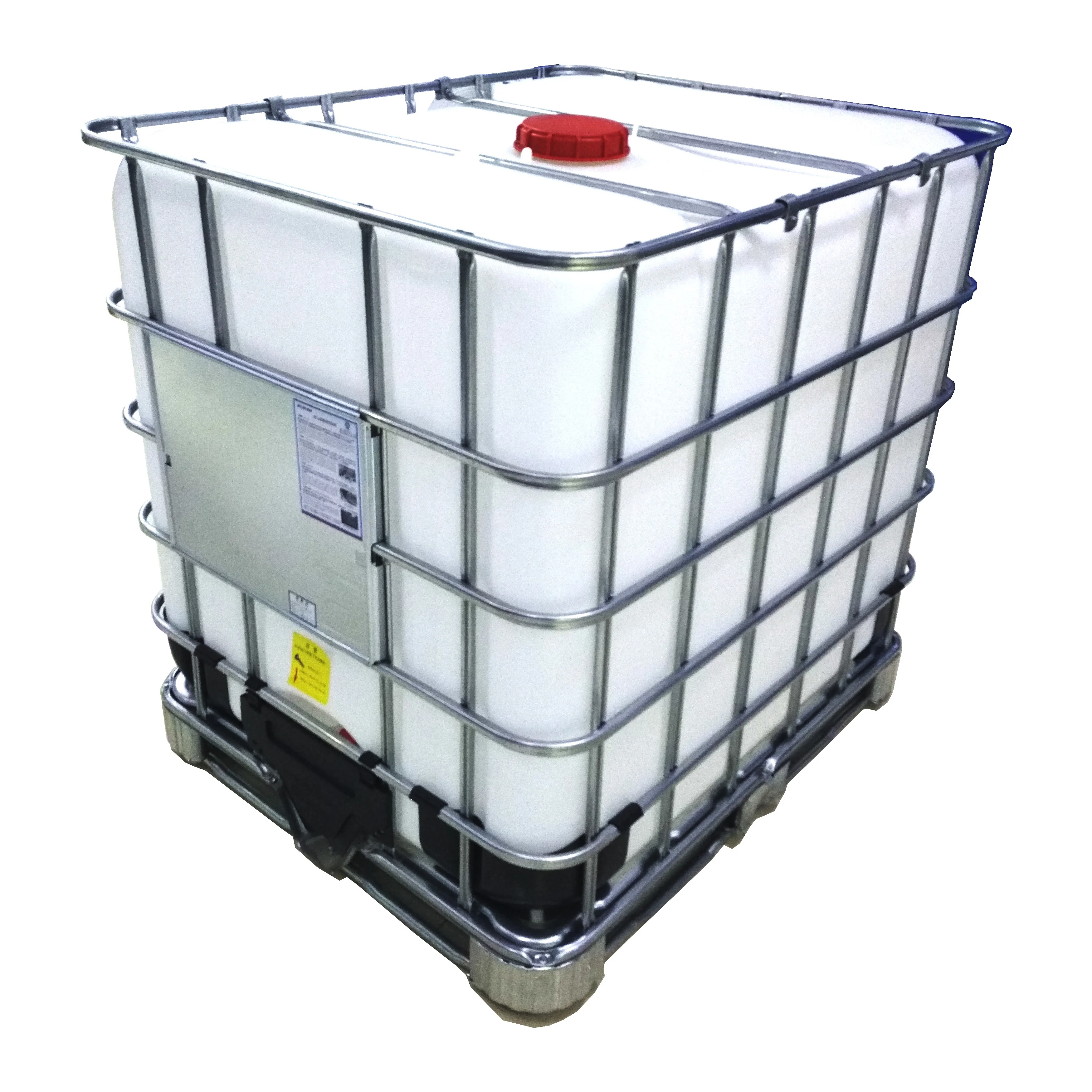

1000l steel frame plastic ibc tote tank for caustic soda storage
The IBC composite intermediate bulk container is the best choice of liquid packaging materials.
Compound medium size bulk container (IBC), has a history of more than 30 years in the world. In the last century 90's, it began to spread rapidly, and has been widely used.
Safe and environmental friendly, easy to mechanical loading and unloading, saving storage and transportation space and convenient filling and discharge, IBC has now become a new generation of liquid packaging products after the steel drums and plastic barrels, so it is praised by customers.
IBC is widely used in chemical, pharmaceutical, oil and food industries, and is suitable for the transportation of dangerous goods of Ⅱ,Ⅲ class and non dangerous goods.
Detailed Images
IBC tank Advantages
IBC filling port 150mm to realize quick and high flow rate filling,and 1000L can be filled or drained for one time.
200L round barrel's filling port is normally less than 70mm, flow rate is just 1/5 of IBC barrel. 1000L volume will be respectively filled or drained for 5 times.
IBC can be transported and loaded as a whole by forklift.Inner container is transparent and marked with volume scale to facilitate volume and weight calculation.Round barrels normally need manual handling.Usually tray and manual fixation are needed for machinery handling.Round barrel is not transparent and no volume scale.
IBC tank is cubic,its clearance is very small after stacking which can save transportation and storage space.20% unuable space remained after stacking of round barrels.
IBC filling is very quick,liquid is only exposed to air for a short time.Residual liquid is less than 200ml after IBC draining.every component can be recycled.200L round barrel's low filling flow rate result in liquid's long exposure to air.Residual liquid of five 200L barrel is normally exceeds 500ml.
1000L IBC barrel material consumption only equals 1.6 times of 200L plastic resin consumption and 2.3 times of 200L steel barrel's steel consumption,but the latter's filling volume is only 780L.Compared with IBC, for the same volume of liquid,200L round barrel needs 20% more material.
Why you choose us
1.Kautex large-capacity blow molding machine
Kautex large-capacity blow molding machine has a three-layer co-extrusion system which is unique in China to ensure the multi-functions of our products. The 128-spot radial wall thickness control device could ensure the uniform wall thickness and improve the strength of our products. The automatic control system has high accuracy, and could be able to control and manage the movements and temperatures of the equipment comprehensively.
2.Full-automatic assembly line of finished IBC products
The full automatic assembly line independently developed by our company from frameworks to finished products could improve the production efficiency while ensuring the constant product quality.
The full automatic assembly line independently developed by our company from frameworks to finished products could improve the production efficiency while ensuring the constant product quality.
3.All the accessories are made by ourselves.
■ It has the precise plasticizing and mold temperature control, stable and reliable quality and strong durability.
■ Excellent injection mold and the accurate size ensure the matching precision of products between the parts, making it easy to open and without leakage.
■ It chooses the highest level and suitable sealing materials according to different holding things to ensure the safety of materials.
■ The highest level design ensures safety of the products in the maximum.
■ The constant temperature and clean working environment ensure the products are clean and have the stable size.
■ The patent replaceable conjoined ball valve, the integral structure of valve and the inner container makes it impossible to leak and it can be replaced if it is accidentally damaged.
■ There are all kinds of specifications and the connection matching degree is high, so it can meet various requirements.
■ It has the precise plasticizing and mold temperature control, stable and reliable quality and strong durability.
■ Excellent injection mold and the accurate size ensure the matching precision of products between the parts, making it easy to open and without leakage.
■ It chooses the highest level and suitable sealing materials according to different holding things to ensure the safety of materials.
■ The highest level design ensures safety of the products in the maximum.
■ The constant temperature and clean working environment ensure the products are clean and have the stable size.
■ The patent replaceable conjoined ball valve, the integral structure of valve and the inner container makes it impossible to leak and it can be replaced if it is accidentally damaged.
■ There are all kinds of specifications and the connection matching degree is high, so it can meet various requirements.
4.Offline products are tested one by one, the whole visualization of data will be preserved and it ensures that each product quality can be traced back.
Shipping&delivery
Shipping
Usually by sea. 20GP container will be loaded 20pcs, 40GP container will be loaded 42pcs.
Delivery
The goods will be ready in 3 days after receiving the money.It is very short delivery
