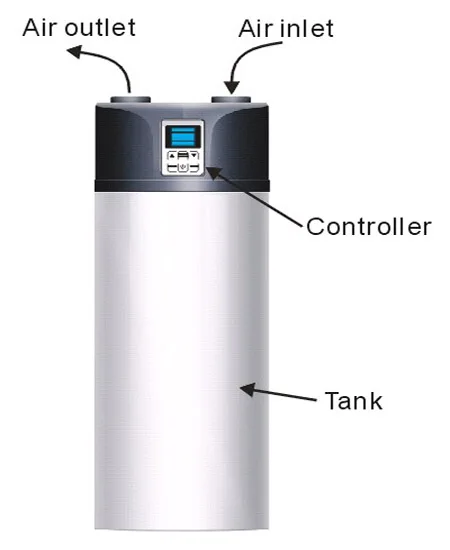

Sacon 200 Liter all-in-one combo type with Wifi function heat pump air to water home heating
All in one YT series heat pump water heater is a very smart design to provide domestic hot water for the house. With all in one type and water tank inside, it is very easy for installation and convenient for users.

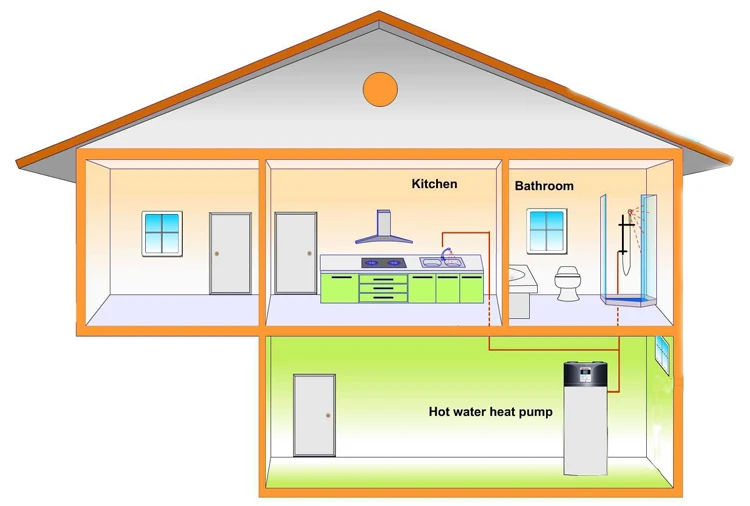

Where to Use
YT Series Heat Pumps water heater are widely used in home and some small public places like hotels, restaurant, aqua parks, gyms, etc.

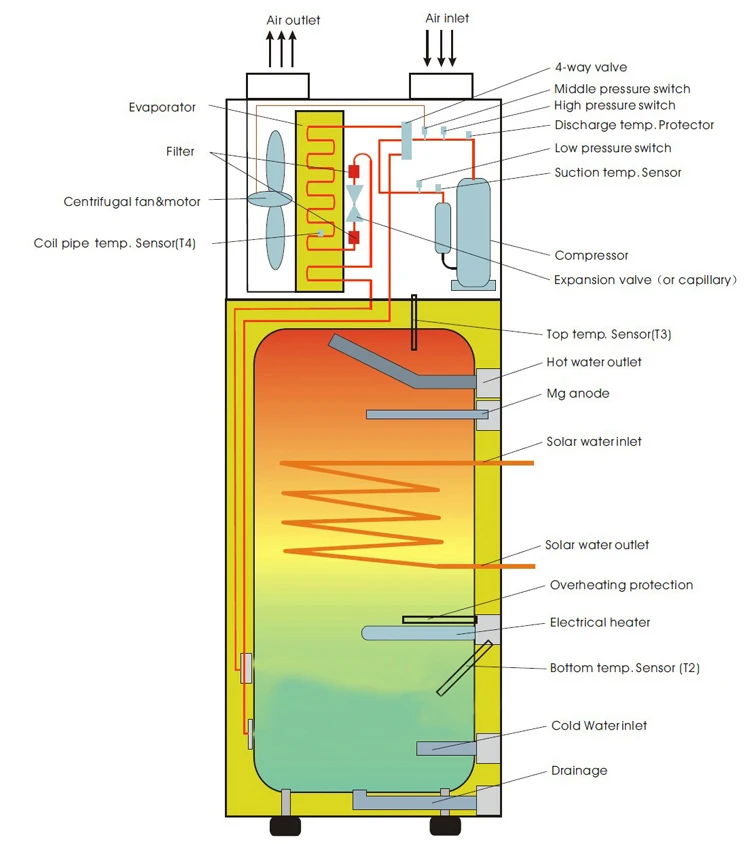

The structure for the All-in-one series heat pump
YT Series Features
High COP
With COP of 4.2 at working condition of 20oC/15oC(DB/WB), the YT Series has high efficiency for hot water supply.
Quality Enamel tank inside with long lifespan
The quality enamel tank make sure the life time for the tank and keep it health for hot water.

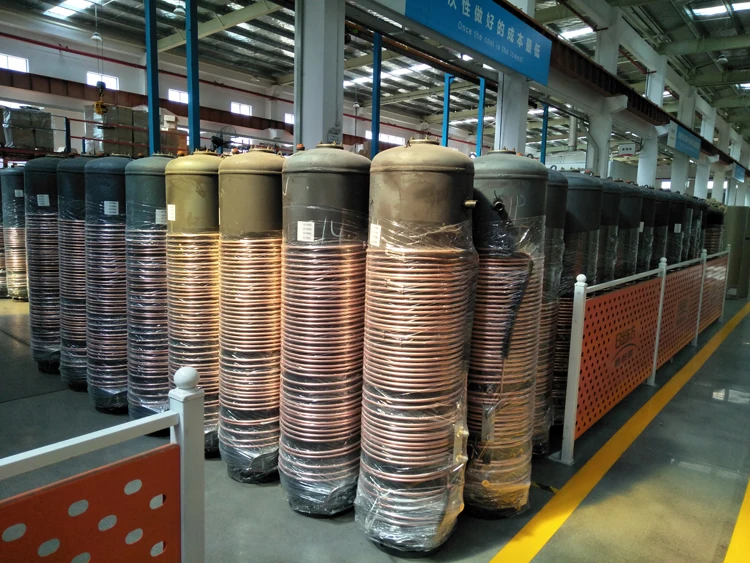

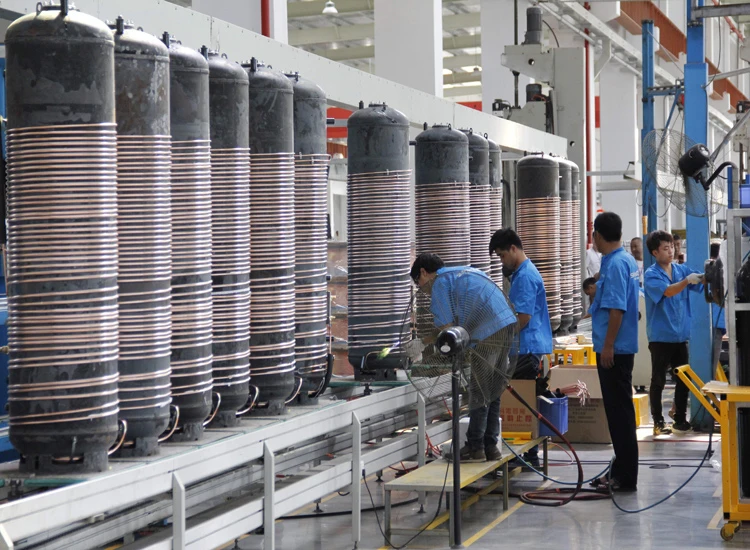

High Efficient Coil Heat Exchanger outside on the tank
The coil outside of the inner tank, separate the Refrigerant with the tank water to keep it safety for the water quality. The quality coil heat exchanger make sure the high efficient for the heat pump water heater.
Famous Brand Quality Compressor
Compressor with precise energy stage setting ensures that the working unit to achieve the desired energy saving effect.
Variable Speed Fan
The working units can adjust the fan speed at any time to reduce the input power, meanwhile, reduce noise to achieve energy saving and silent running.
Electric Expansion Valve
The units automatically adjust the refrigerant flow rate, ensuring that the units operate with high efficiency in all weather conditions.
Fin Heat Exchanger
Highly customizable, at least three kinds of fin heat exchangers can be opted, including the golden fin heat exchanger, blue fin heat exchanger, hydrophilic fin heat exchanger.
Parameters
| Model No. | YT-200 | YT-300 |
| Heating capacity at air 20℃/15℃, water temperature from 15℃ to 55℃ | ||
| Heating Capacity(KW) | 2.2 | 2.2 |
| Power Input(KW) | 0.53 | 0.53 |
| COP | 4.16 | 4.16 |
| Max Power Input(KW) | 3000 | 3000 |
| Rated Current(A) | 2.9 | 2.9 |
| Max Current(A) | 15 | 15 |
| Power Supply | 220V 50Hz | 220V 50Hz |
| Backup Electric Heater(W) | 2000 | 2000 |
| Refrigerant | R134a | R134a |
| Product Dimension(mm) | φ620x1750 | φ620x1950 |
| Package Dimension(mm) | 700x700x1930 | 700x700x2130 |
| Net Weight(kg) | 105 | 130 |
| Gross Weight(kg) | 115 | 140 |
| Noise(dB) | 48 | 48 |
| Water Tank Volume(L) | 200 | 300 |
| Working Temperature Range(℃) | -7~43 | -7~43 |

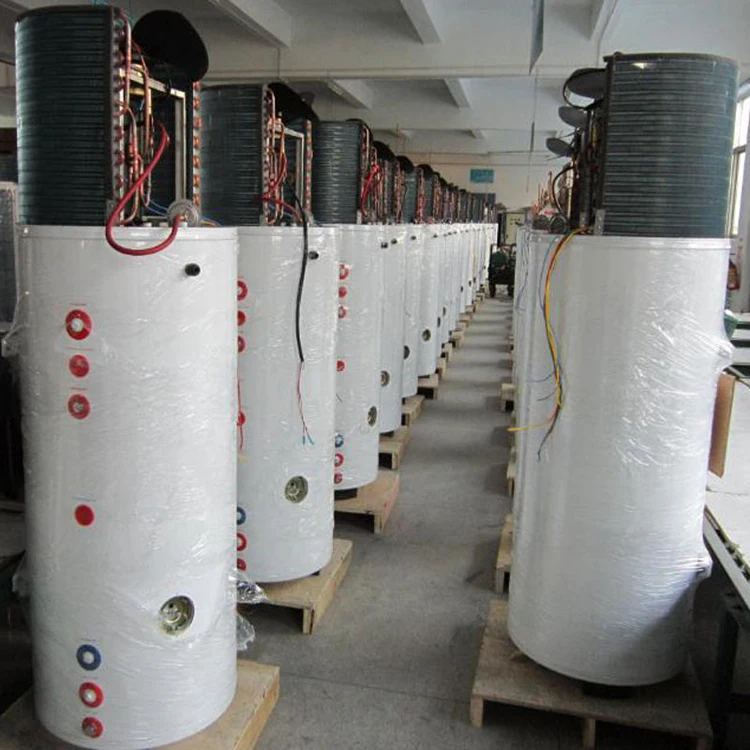

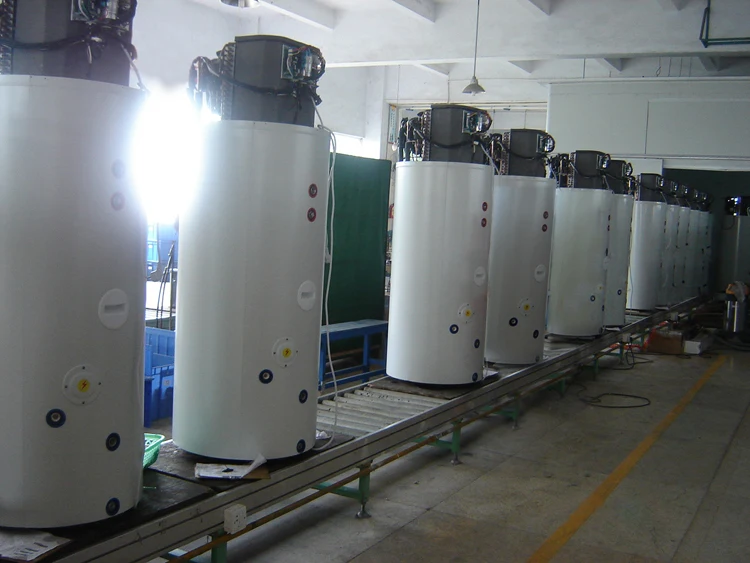

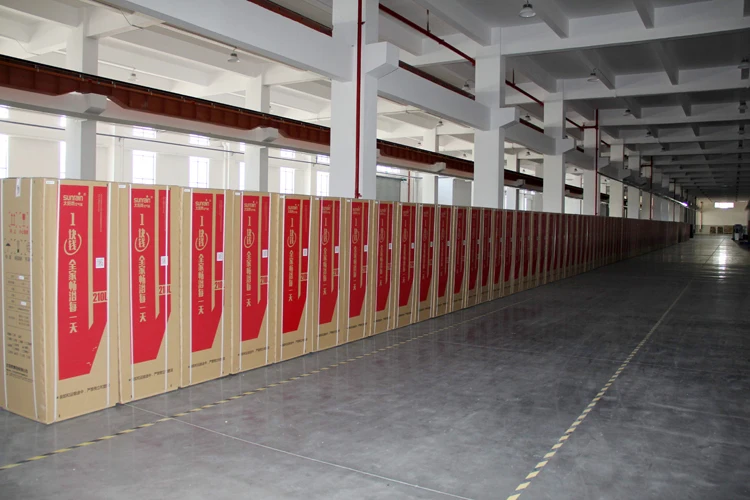

Product in workshop
