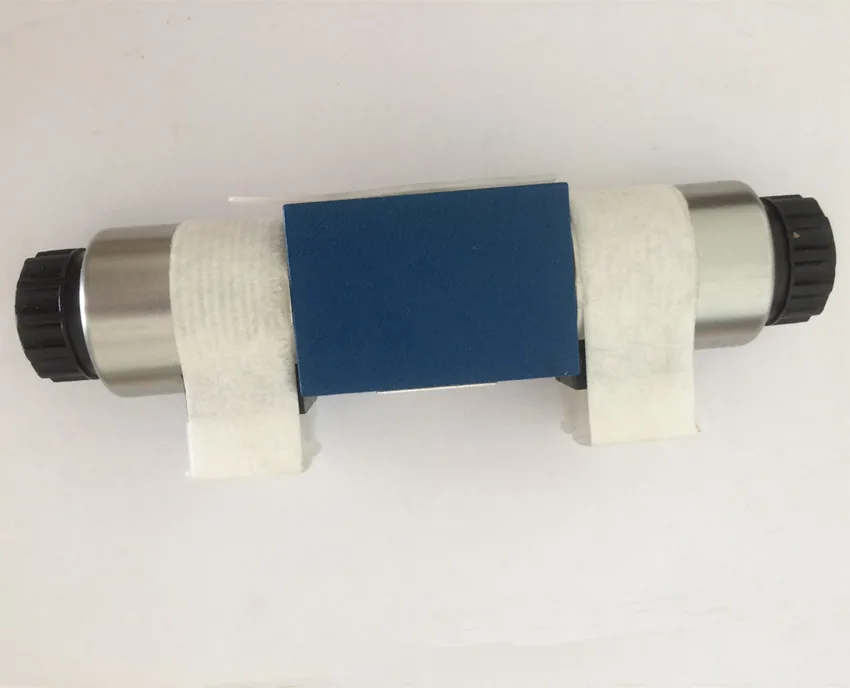

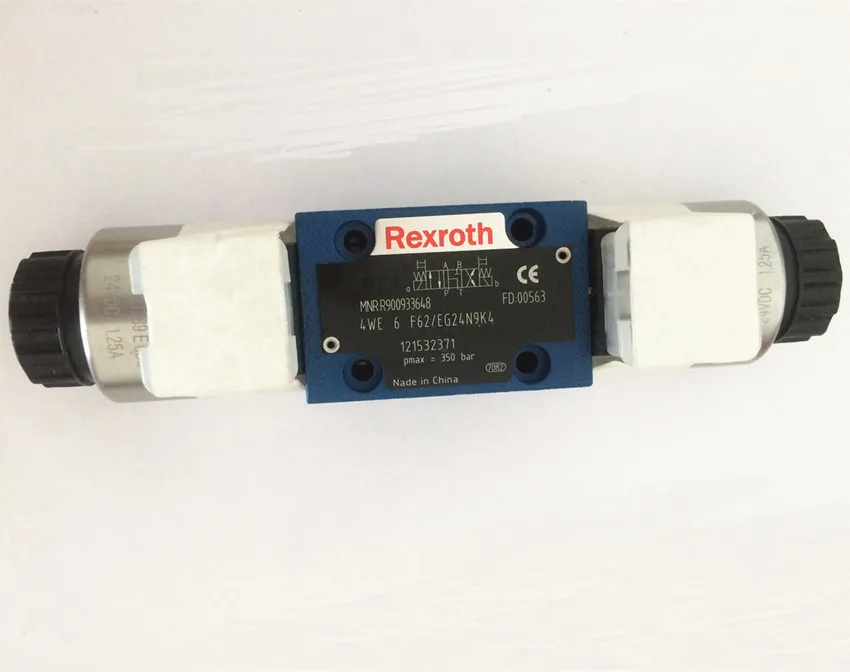

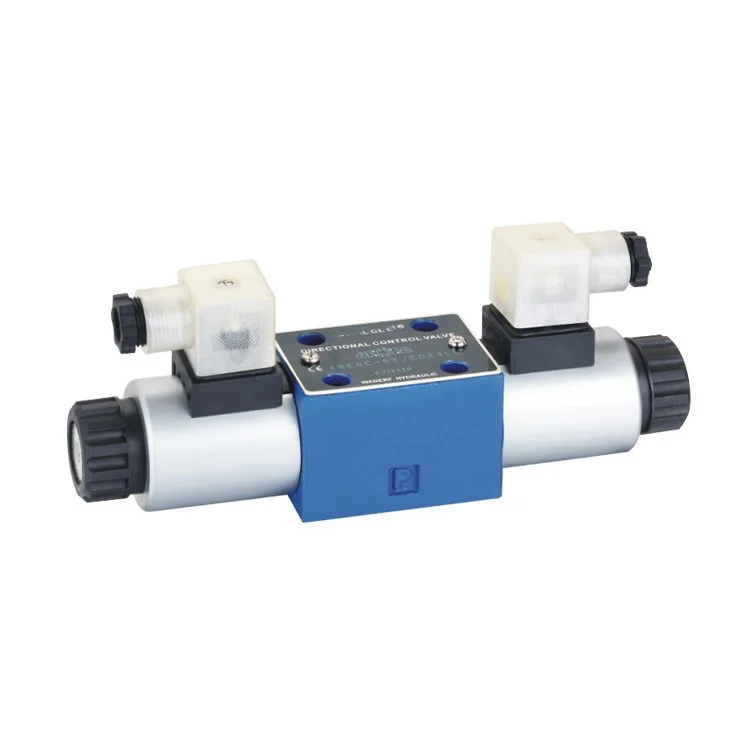

Hydraulic solenoid valve 4WE6D61 /CW220,REXROTH type 4WE6E 4WE6G 4WE6J 4WE6H 4WE6H 4WE6 series

Connection: Thread

Applicable medium: hydraulic oil

Nominal diameter: 6 \\ 10mm

Structure: plate installation

Pressure environment: 31.5Mpa

Operating temperature: room temperature

Standard: American Standard

Flow direction: commutation

Drive mode: AC220V, DC24V

Parts and accessories: body, solenoid

Form: control valve

Type (channel position): 3-position 4-way
