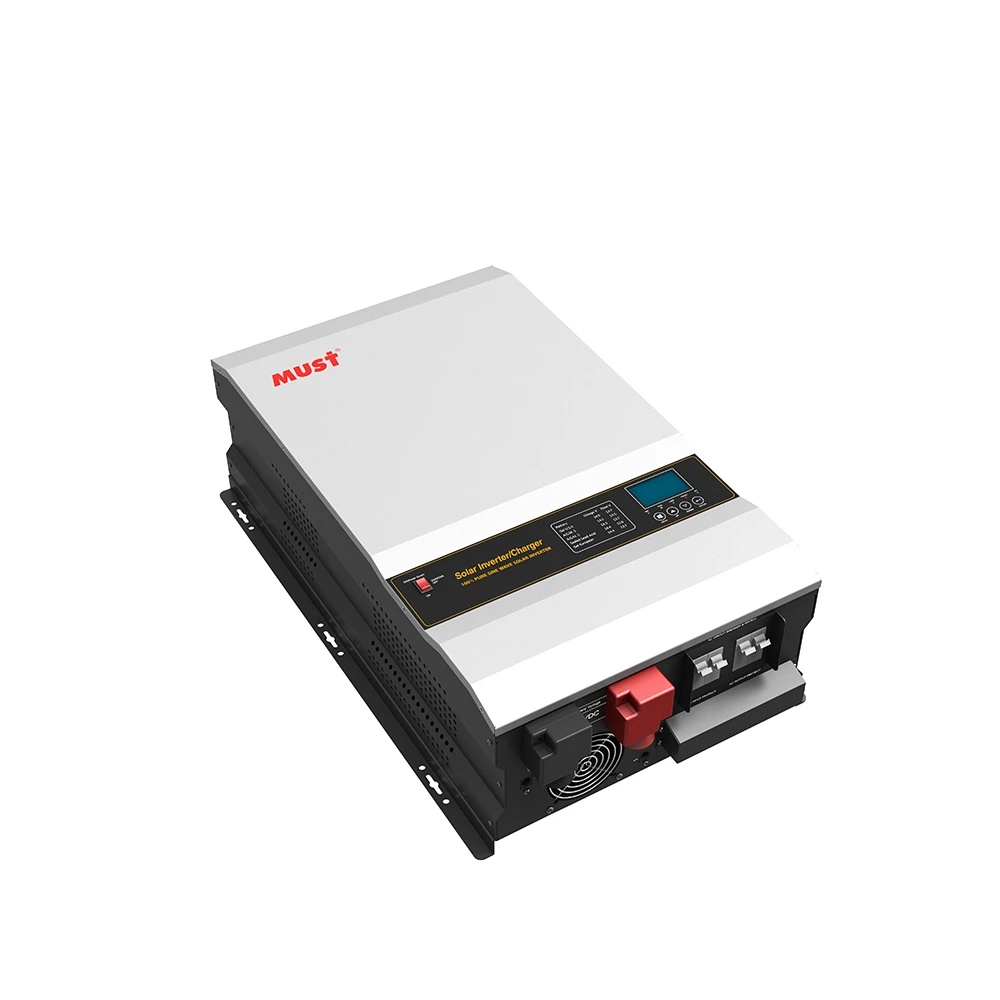

MUST Transformer Based Heavy Duty Hybrid Inverter 10KW 12KW in Solar System
- Category: >>>
- Supplier: Shenzhen Must Power Limited
Share on (60838551610):
Product Overview
Description
Smart Home Inverter 8kw 10kw 12kw Single Phase Output Off Grid Solar Inverter
Sales M: Angel Lee
Phone /Wechat / WhatsApp number: +86 13823339627
Skype: mustupsl
Product Description
PV3500 series is a multi-function inverter ,combining functions of inverter and mppt solar charger controller, solar charger and battery charger to offer uninterruptible power support with portable size. The comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and selectable input voltage based on different applications.

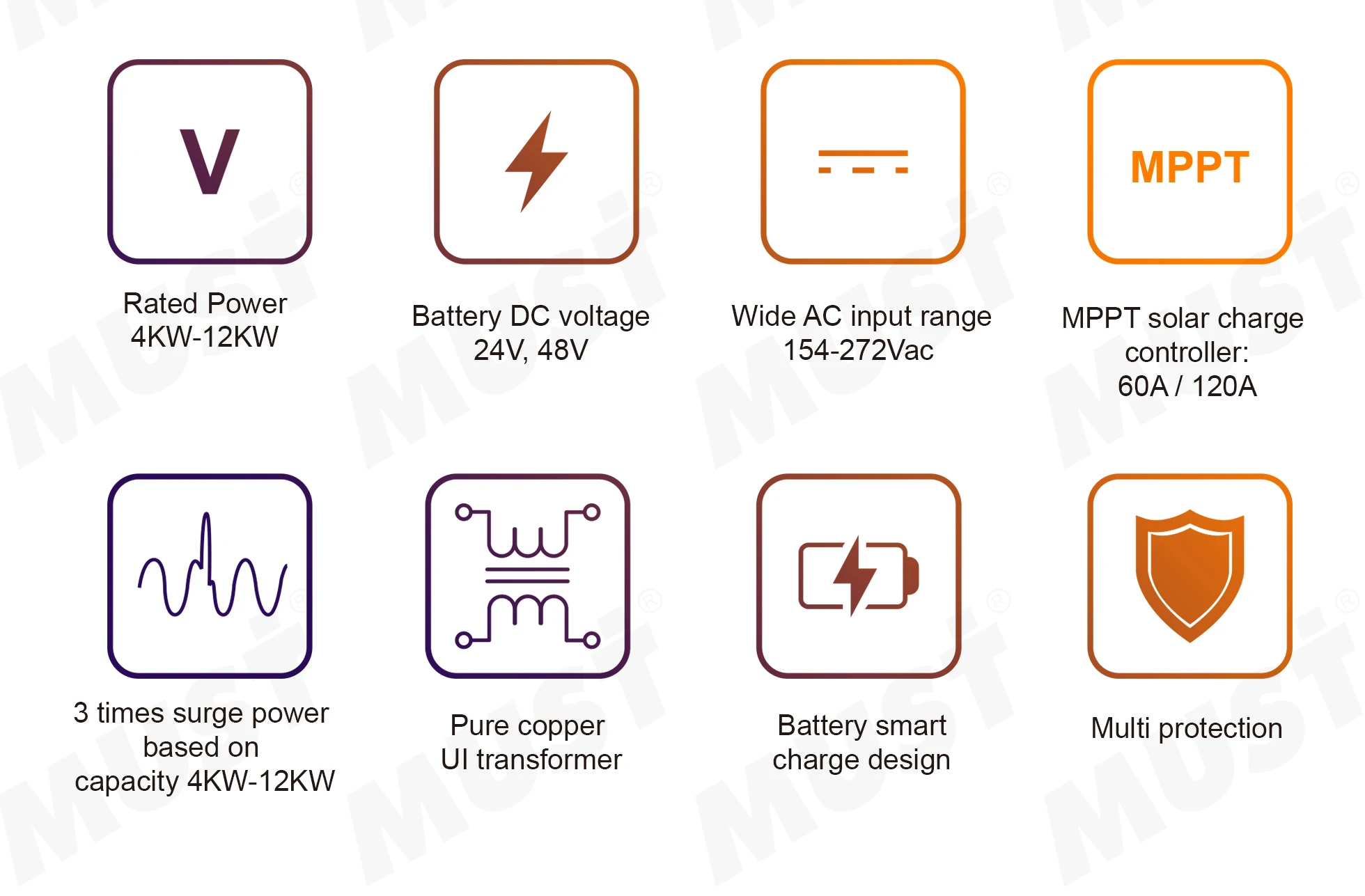

| Main advantages |
- Smart LCD setting(Working modes, Charge Current, Charge voltage, etc.)
- Built-in MPPT solar charge controller 60A/120A
- MPPT efficiency max 98%
- Powerful charge rate up to 100Amp
- Built-in pure copper UI transformer
- DC start &Automatic Self-Diagnostic Function

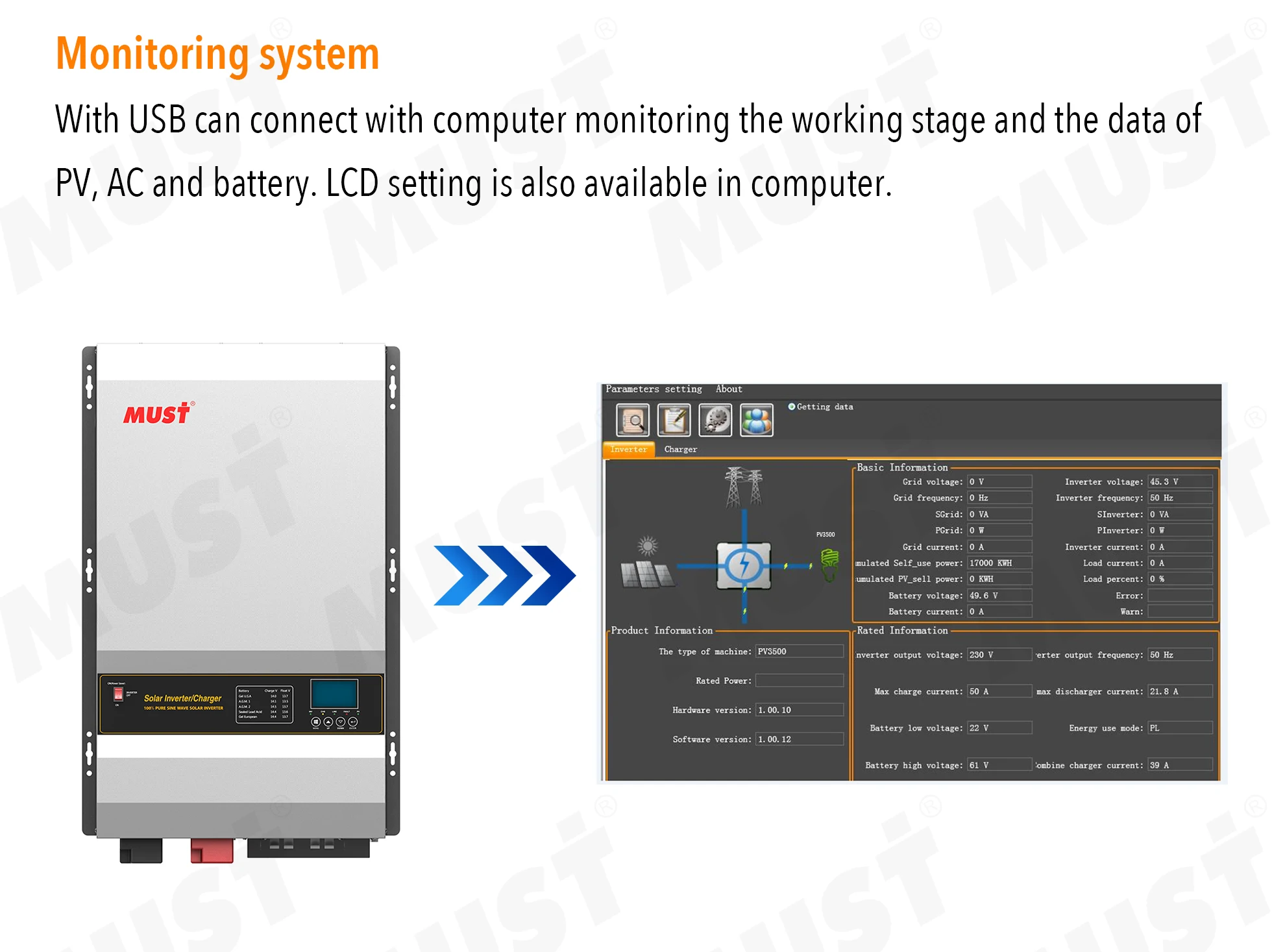

- RS485/USB monitoring function with free CD
- Supporting AGS, BTS port
- Compatible to generator

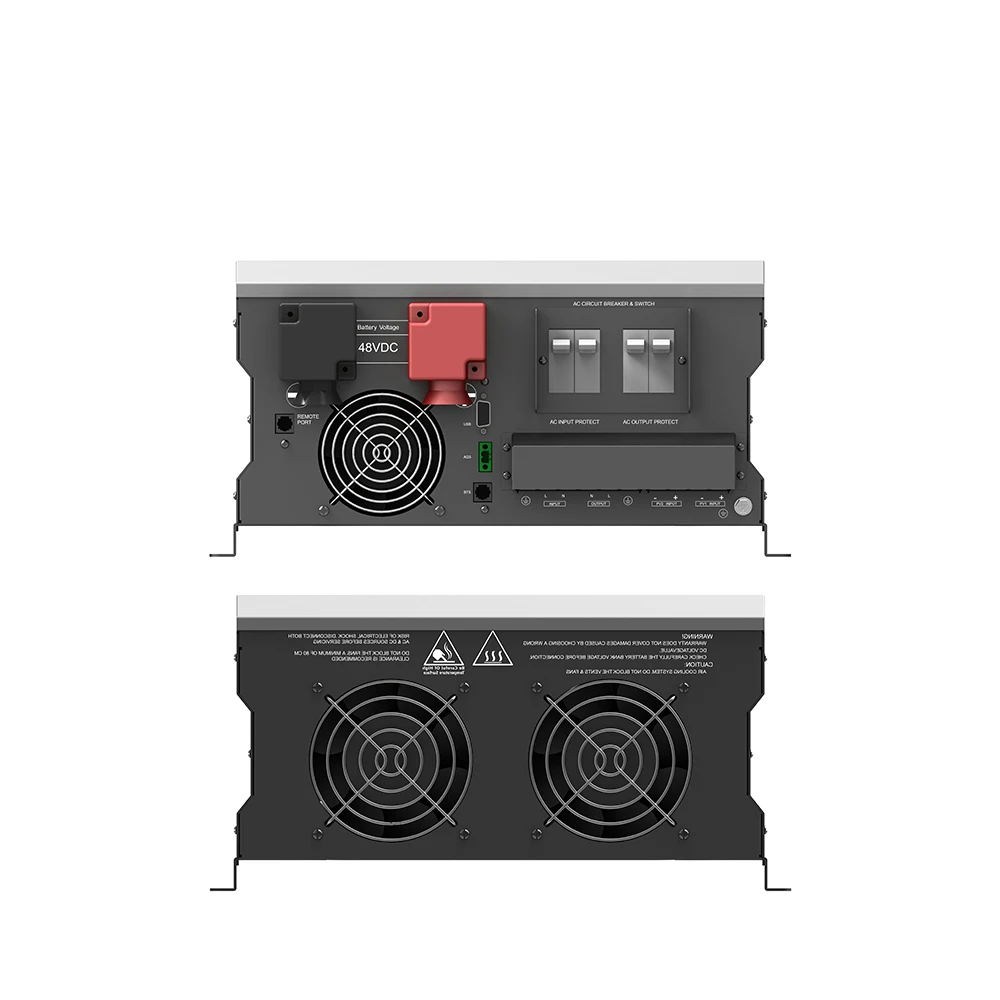

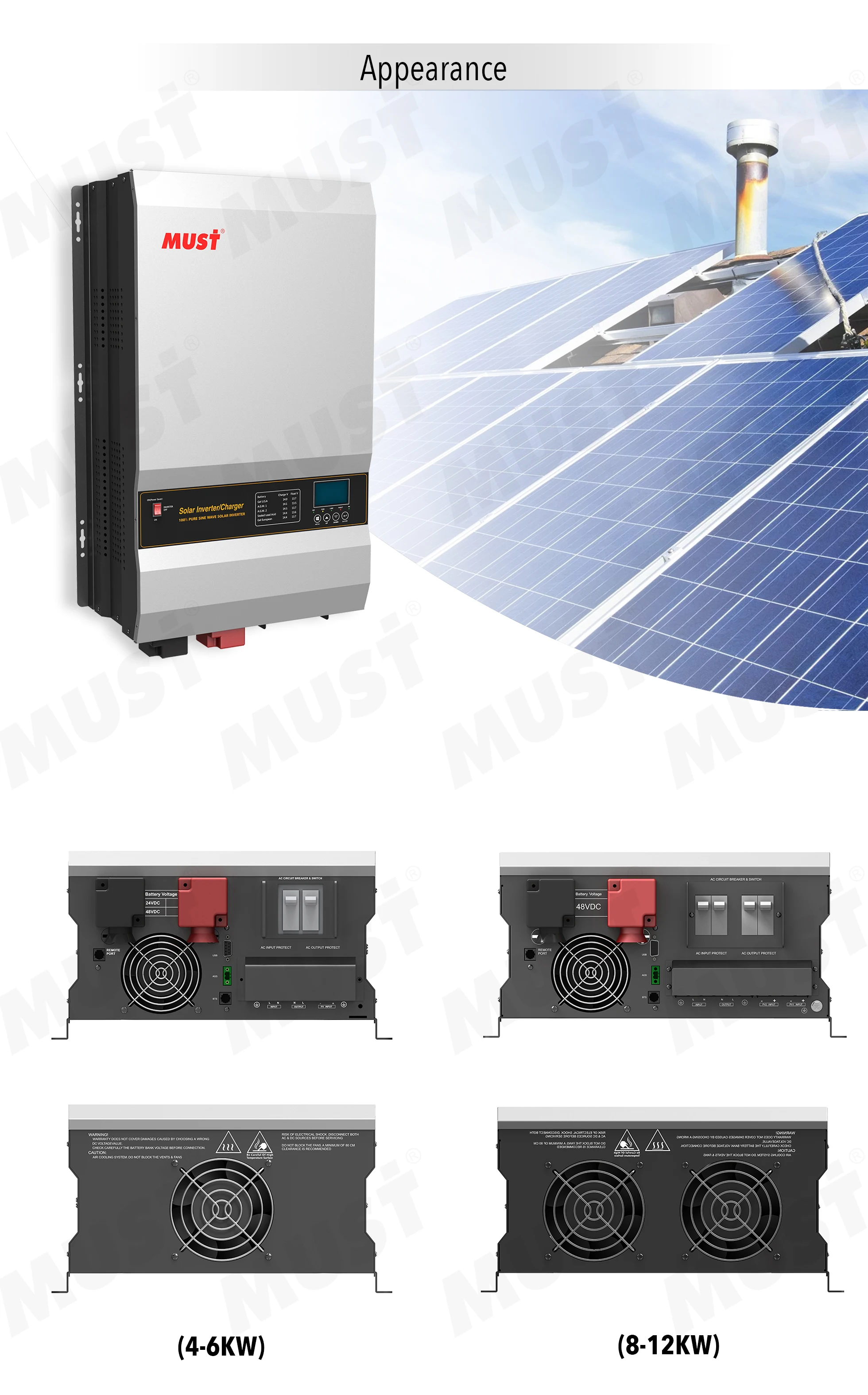

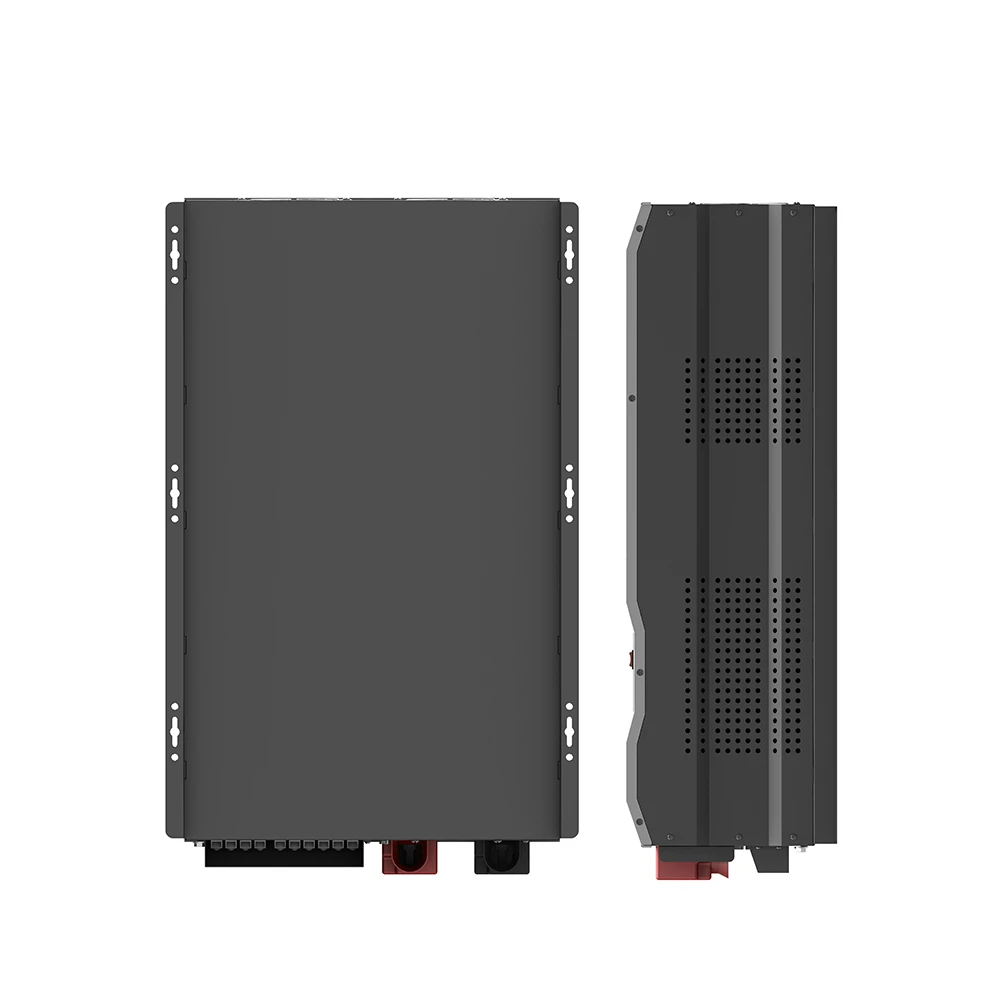

| Appearance |
| Product features |

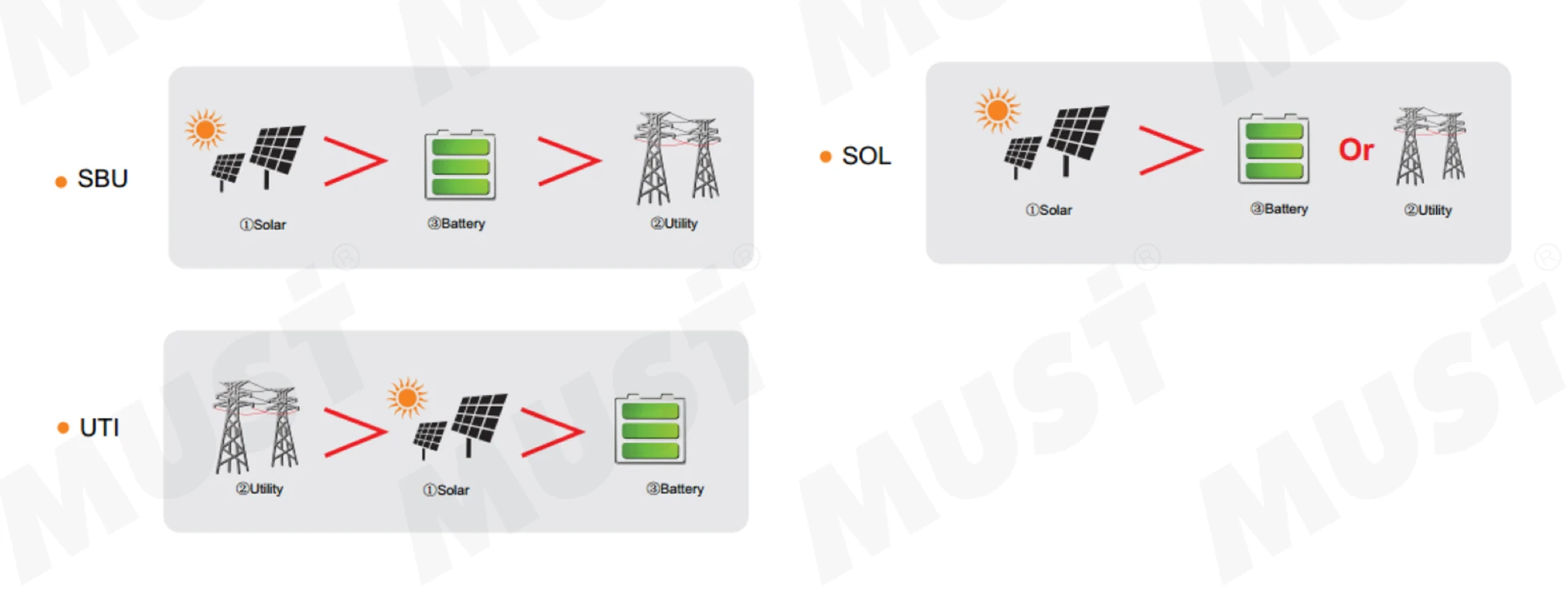

Different working modes
Different working modes (the sequence that the load get power from)You can choose different working mode based on your need.

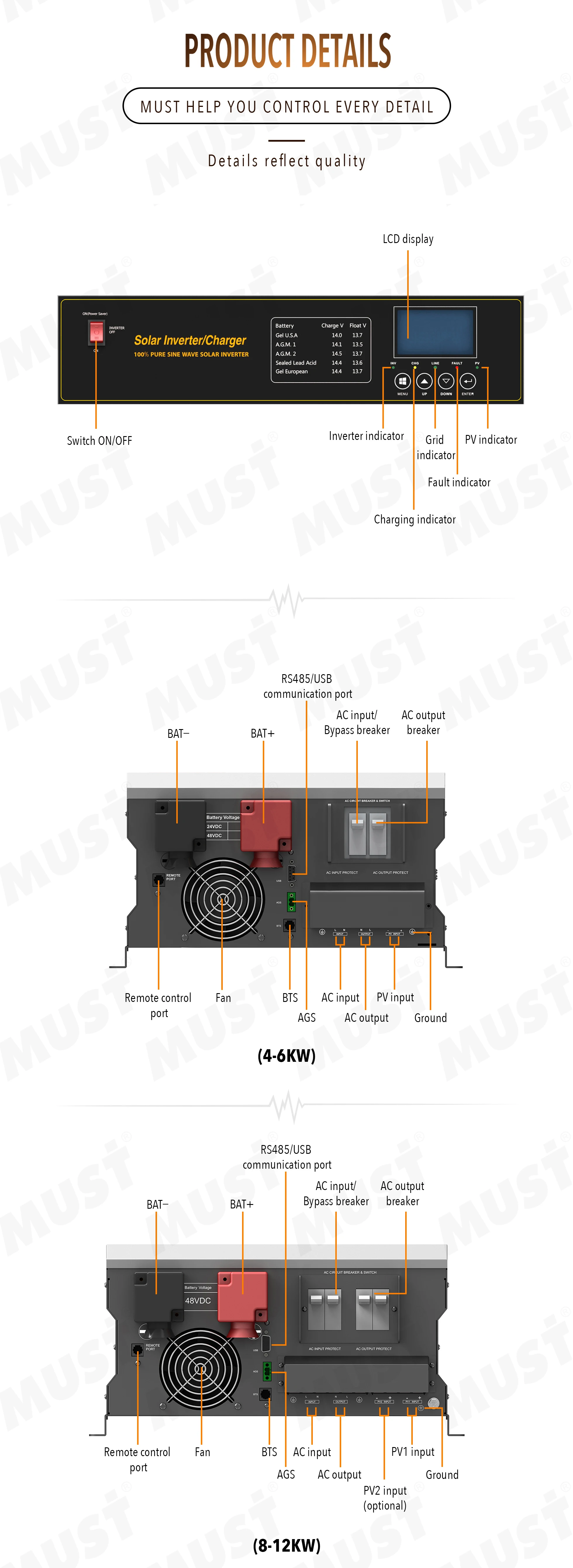

| Product details |
| Product parameters |
| MODEL | PV35 PRO- 4K | PV35 PRO- 5K | PV35 PRO- 6K | PV35 PRO- 8K | PV35 PRO- 10K | PV35 PRO- 12K | ||
|---|---|---|---|---|---|---|---|---|
| Nominal Battery System Voltage | 24V | 48V | 24V | 48V | 48V | 48VDC | 48VDC | 48VDC |
| INVERTER OUTPUT | ||||||||
| Rated power | 4KW | 5KW | 6KW | 8.0KW | 10.0KW | 12.0KW | ||
| Surge rating(20ms) | 12KW | 15KW | 18KW | 24KW | 30KW | 36KW | ||
| Capable of starting electric motor | 2HP | 2HP | 3HP | 4HP | 5HP | 6HP | ||

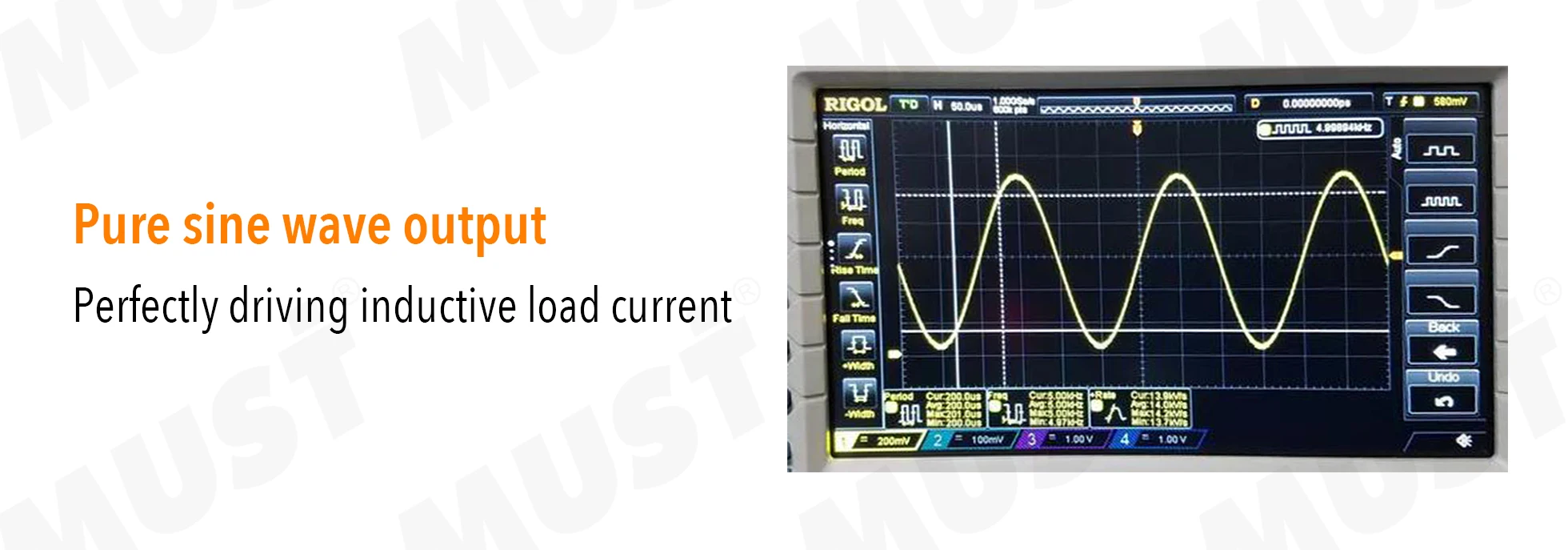

| Waveform | Pure sine wave / same as input (bypass mode) | |||||||
| Nominal output voltage RMS | 220V / 230V / 240VAC (+/-10%RMS) | |||||||
| Output frequency | 50Hz / 60Hz +/- 0.3Hz | |||||||
| Inverter effciency(peak) | >85% | >88% | ||||||
| Line mode efficiency | >95% | |||||||
| Power factor | 1.0 | |||||||
| Typical transfer time | 20ms(max) | |||||||
| AC INPUT | ||||||||
| Voltage | 230VAC | |||||||
| Selectable voltage range | 90-280 VAC (APL) | |||||||
| Frequency range | 50Hz / 60Hz | |||||||
| BATTERY | ||||||||
| Low battery voltage cutoff | 20-24VDC for 24VDC mode (40-48VDC for 48VDC mode) | |||||||
| Low battery voltage recover | 21-25VDC for 24VDC mode (42-50VDC for 48VDC mode) | |||||||
| High battery voltage cutoff | 30VDC for 24VDC mode (60VDC for 48VDC mode) | |||||||
| High battery voltage recover | 28.5VDC for 24VDC mode (57VDC for 48VDC mode) | |||||||
| Idle consumption-search mode | <30W when power saver on | <60W when power saver on | ||||||
| AC CHARGER | ||||||||
| Output voltage | Depends on battery type | |||||||
| Charger AC input breaker rating | 40A | 40A | 50A | 80A | 80A | 80A | ||
| Overcharge protection S.D. | 31.4VDC for 24VDC mode (62.8VDC for 48VDC mode ) | |||||||
| Maximum charge current | 80A | 60A | 100A | 70A | 80A | 100A | 120A | 140A |
| BTS | ||||||||
| Continuous output power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature | |||||||
| BYPASS PROTECTION | ||||||||
| Input voltage waveform | Sine wave (grid or generator) | |||||||
| Nominal input frequency | 50Hz or 60Hz | |||||||
| Overload protection (SMPS Load) | Circuit breaker | |||||||
| Output short circuit protection | Circuit breaker | |||||||
| Bypass breaker rating | 40A | 63A | 63A | 63A | ||||
| Max bypass current | 40Amp | 80Amp | ||||||
| SOLAR CHARGER | ||||||||
| Maximum PV charge current | 80A | 100A(200A optional) | ||||||
| DC voltage | 24V/48V Auto work | 48V | ||||||
| Maximim PV array power | 2000W | 4000W | 2000W | 4000W | 4000W | 5000W(10000W for 200A optional) | ||
| MPPT range @ operating voltage(VDC) | 32-145VDC for 24V mode,64-147V for 48V mode | 64~147VDC | ||||||
| Maximum PV array open circuit voltage | 147VDC | |||||||
| Maximum effciency | >98% | |||||||
| Standby power consumption | <2W | |||||||
| MECHANICAL SPECIFICATIONS | ||||||||
| Mounting | Wall mount | |||||||
| Dimensions (W*H*D) | 620*385*215mm | 670*410*215mm | ||||||
| Net weight (solar CHG) (kg) | 36 | 41 | 41 | 69+2.5 | 75.75+2.5 | 75.75+2.5 | ||
| Shipping dimensions (W*H*D) | 755*515*455mm | 884*618*443mm | ||||||
| Shipping weight (Solar CHG) (kg) | 56 | 61 | 64 | 82.5+2.5 | 89+2.5 | 92+2.5 | ||
| OTHER | ||||||||
| Operation temperature range | 0°C to 40°C | |||||||
| Storage temperature | -15°C to 60°C | |||||||
| Audible noise | 60dB MAX | |||||||
| Display | LED+LCD | |||||||
| Loading (20GP/40GP/40HQ) | 140pcs / 280pcs / 320pcs | |||||||

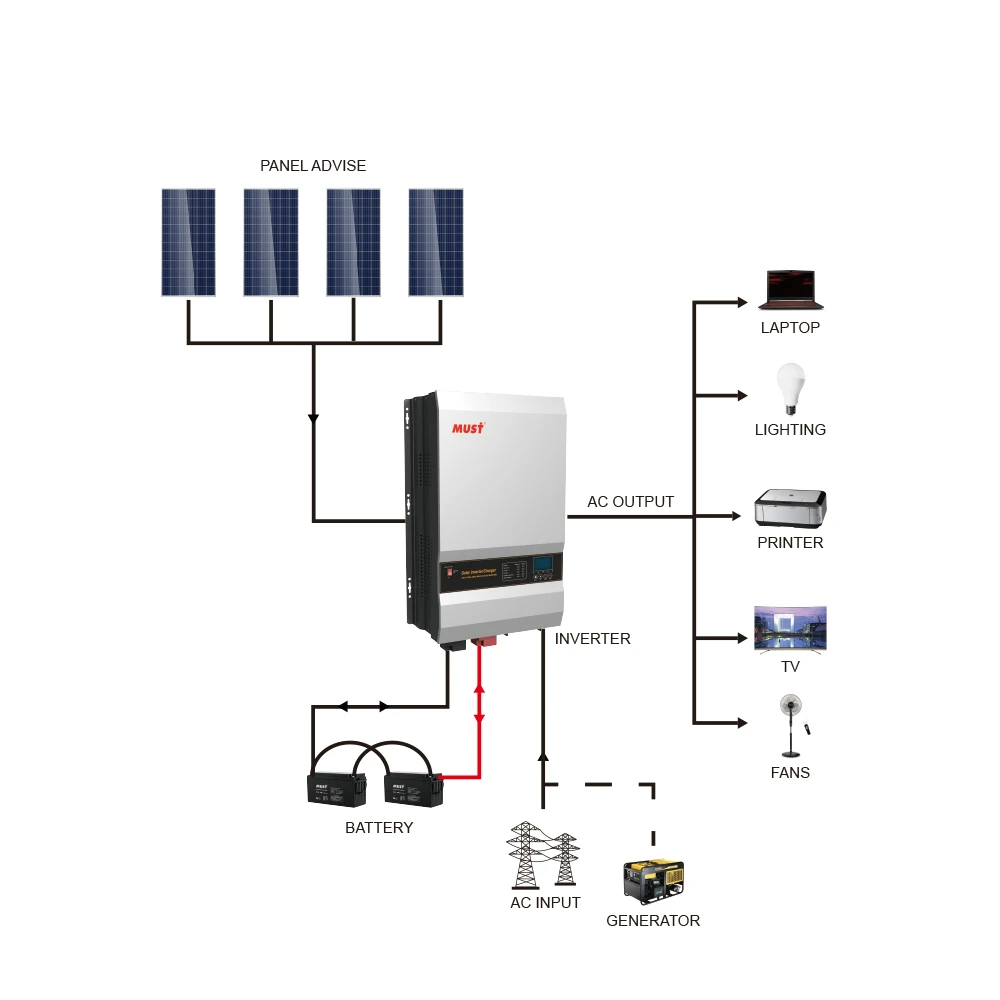

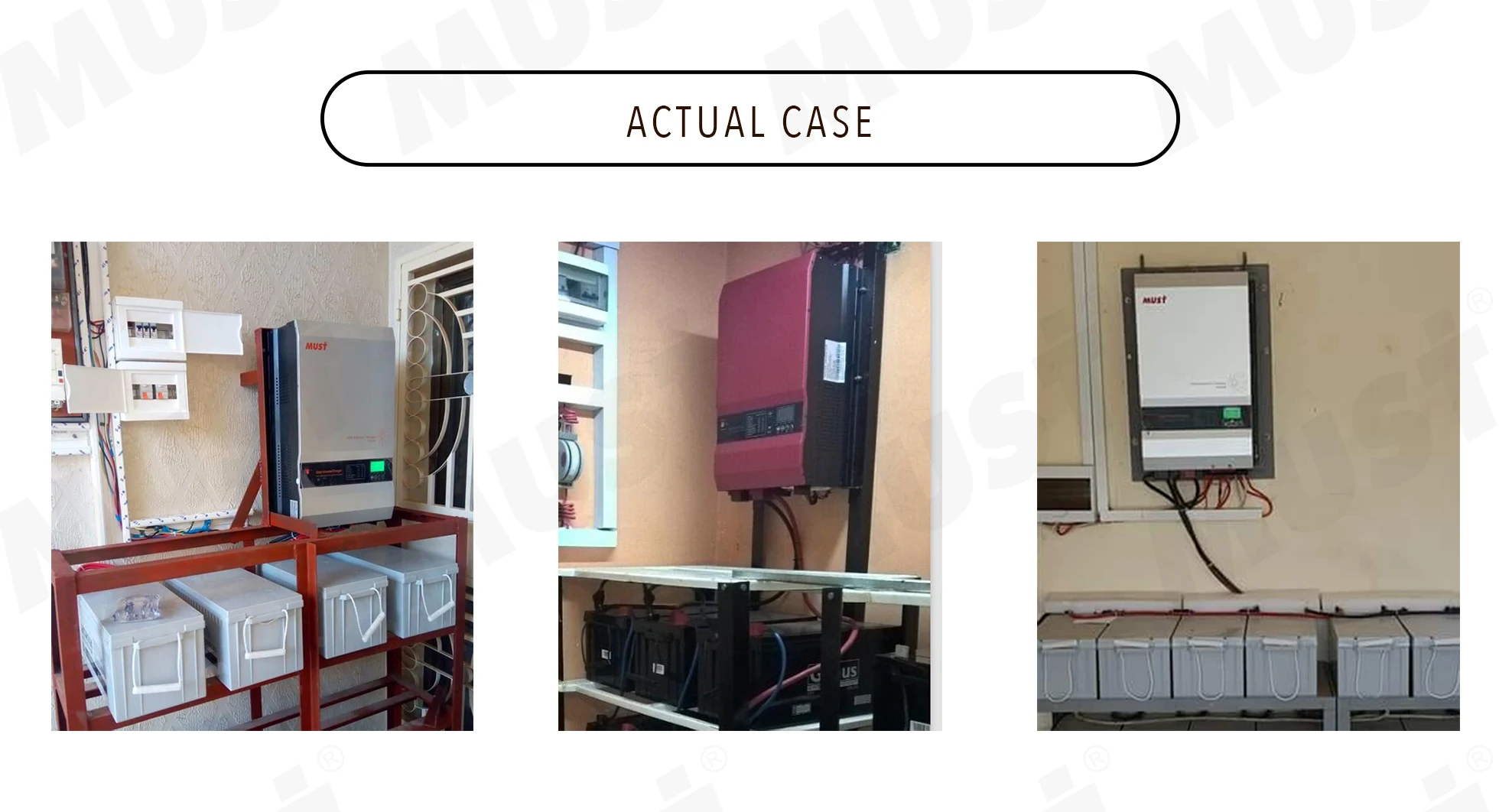

| Installation feedback |
Related product without MPPT solar charge controller:
Packaging & Shipping
| Product Size |

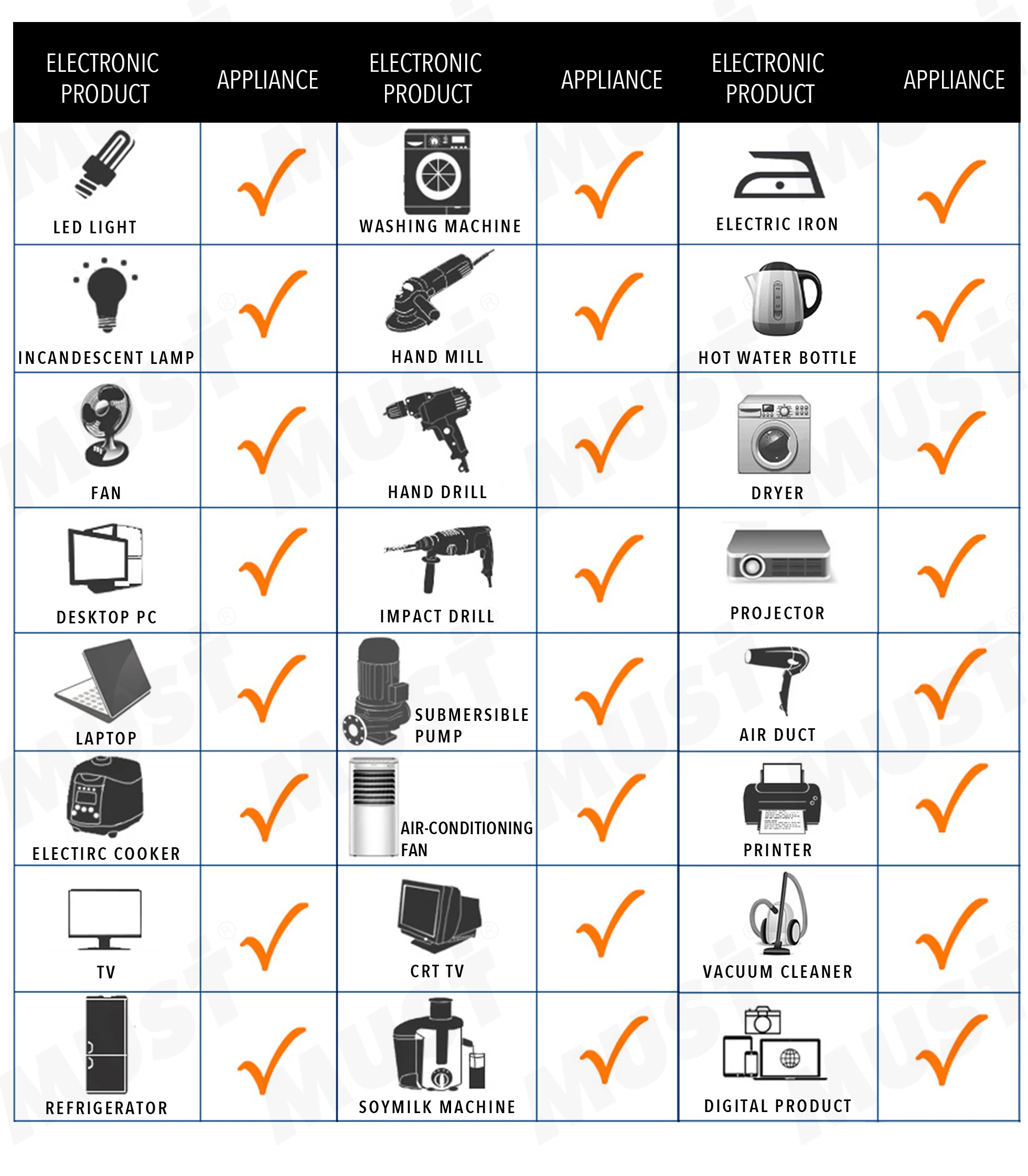

| Applicable appliances |
Company Information
| Why choose MUST |
we have rich experience in handiling orders for heavy buyers with professional process.
- Stable raw material purchasing
- Favorable orders follow-up management
- Laudable lead-time & shipment control
- Traceable quality evaluation
- Flexible payment terms
- Remarkable after-sale service
MUST certificates and patents: MUST got the National High-tech Enterprise in 2016, and Shenzhen High-tech Enterprise, the ISO9001, CE, SAA, CONCAP, etc. And also MUST has software and hardware patents.
MUST production equipments: crest welder, ATE, Aging testing equipment, etc.
Our Services
24 hours Online----You will get my quotation and response within 24hours
12 months warranty----You will get the spare parts and maintaince guides if any break dowm
Available spare parts----You will get the spare parts for after-sale service
After-sale service----You will be servised by the professional after-sale service center if any problems
To be regular clients or Agents of MUST----You will get the beautiful gifts and many Preferencial Policy
24 Hours After-service consultancy just for you and to make your problems to solve easily.(Angel Lee Skype:mustupsl Whatsapp:+86 13823339627)
FAQ
Q: MUST main products?
A: 1) solar inverter, such as 1KW to 12KW off grid solar inverter with controller inside, on & off grid solar inverter 5000W, pure on grid inverter
2) home power inverter, such as 1000W to 12KW home inverter with AC charger
3) UPS
4) MPPT solar charge controller from 40A to 80A
Q: OEM service is available?
A: it would be warmly welcome for bulk order
