Factory price sticker adhesive label automatic tin can labeling machine for all kind aerosol/jerry/paint can/metal can
- Category: >>>
- Supplier: Guangzhou Transocean Advanced Equipment Co. Ltd.
Share on (60838552799):
Product Overview
Description
welcome to send sample to us
In order to ensure zero-risk purchase of this machine, we have standard model in stock, welcome customers to send samples to us, free trials, and take video to you for confirm. Place an order after you appropriate.

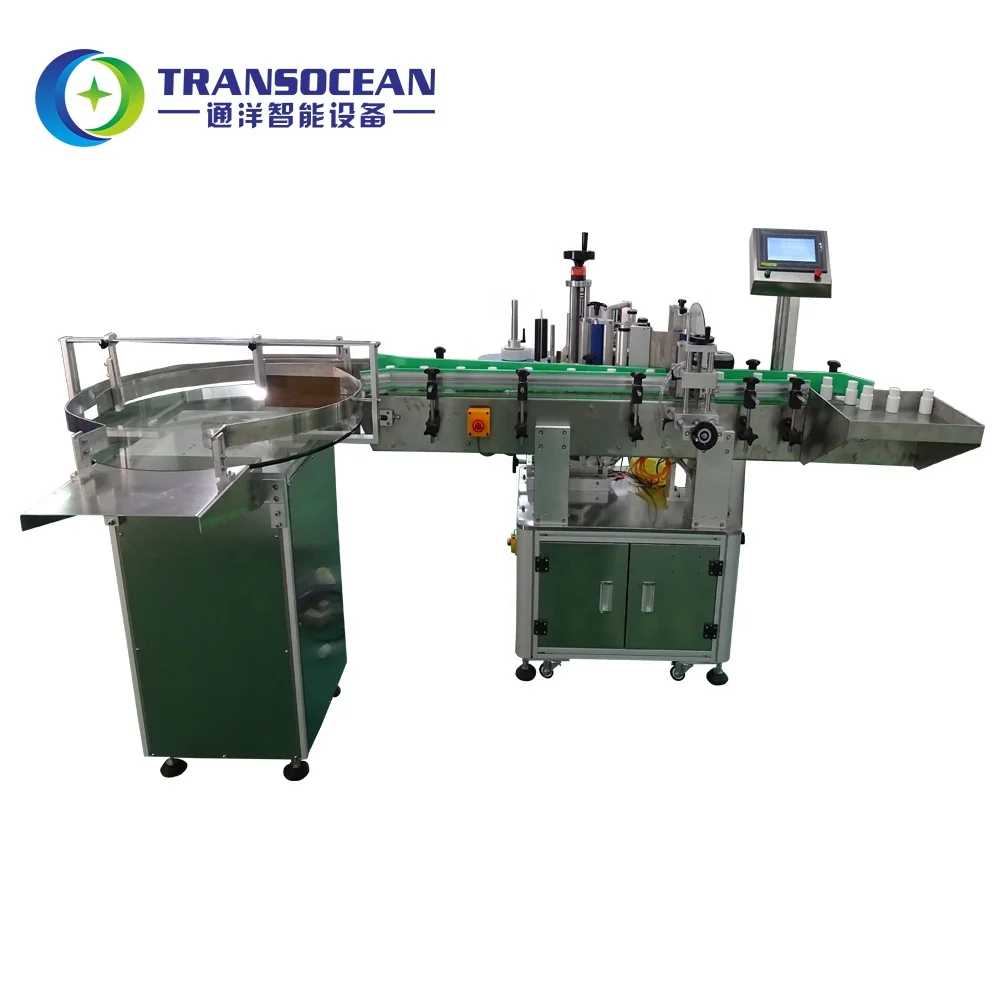

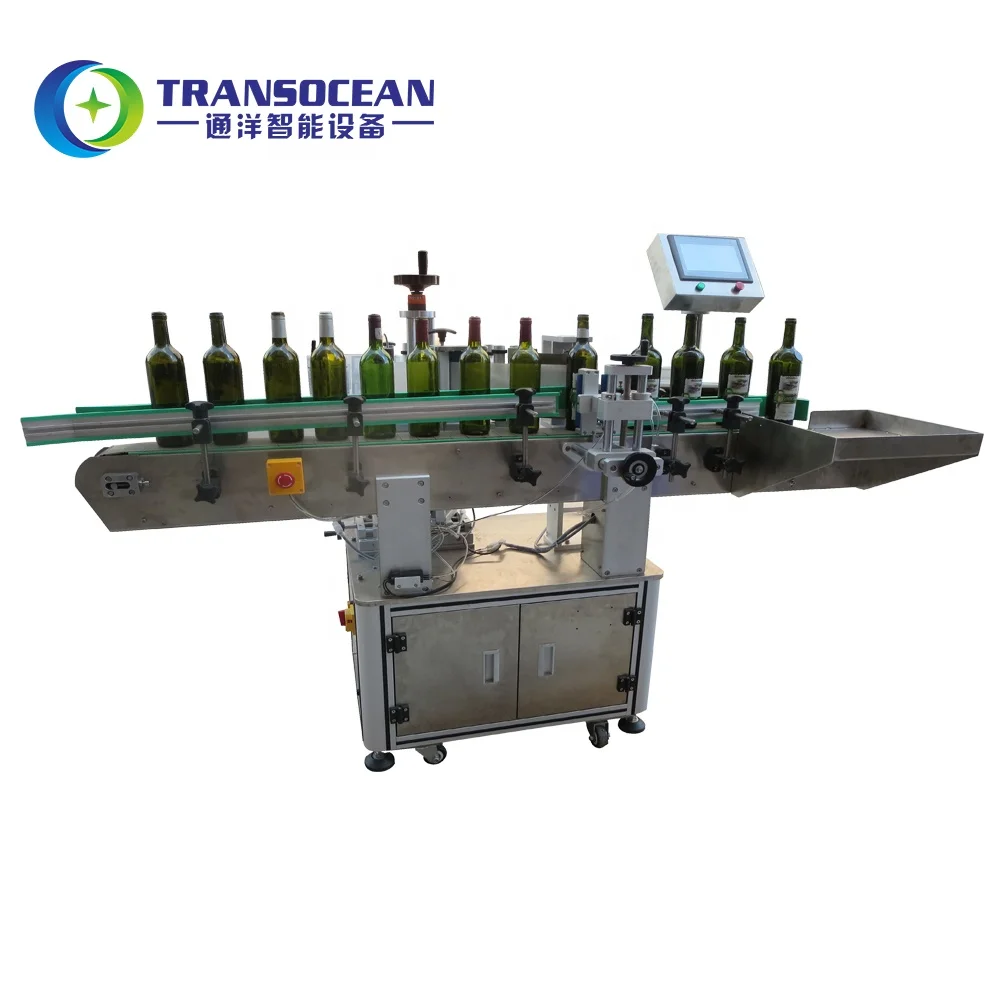

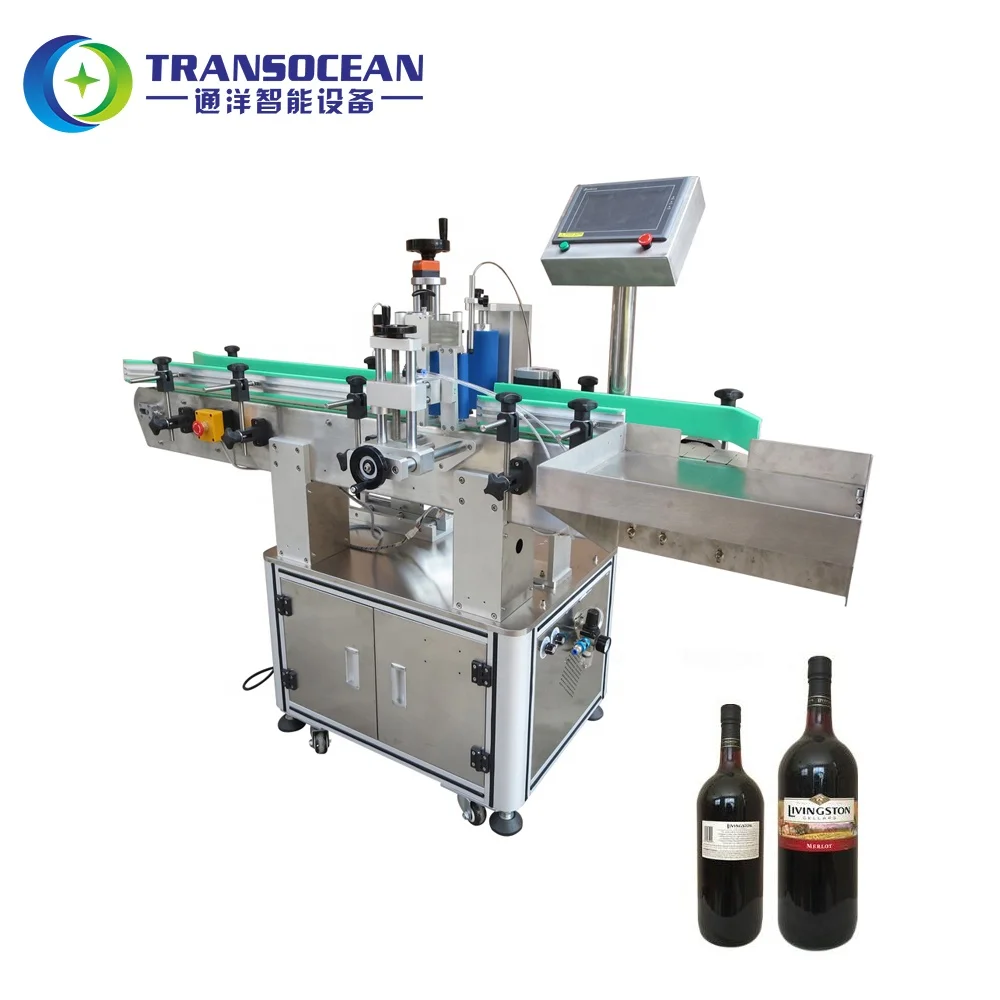

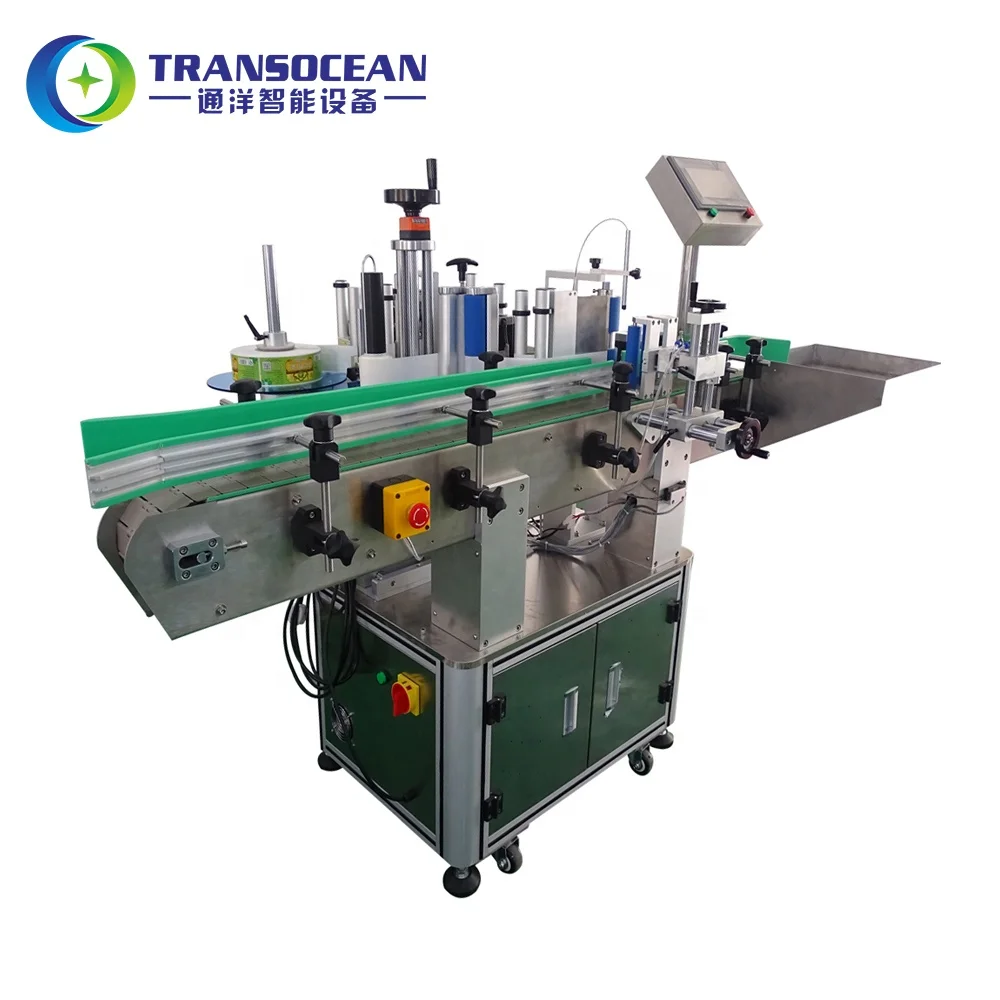

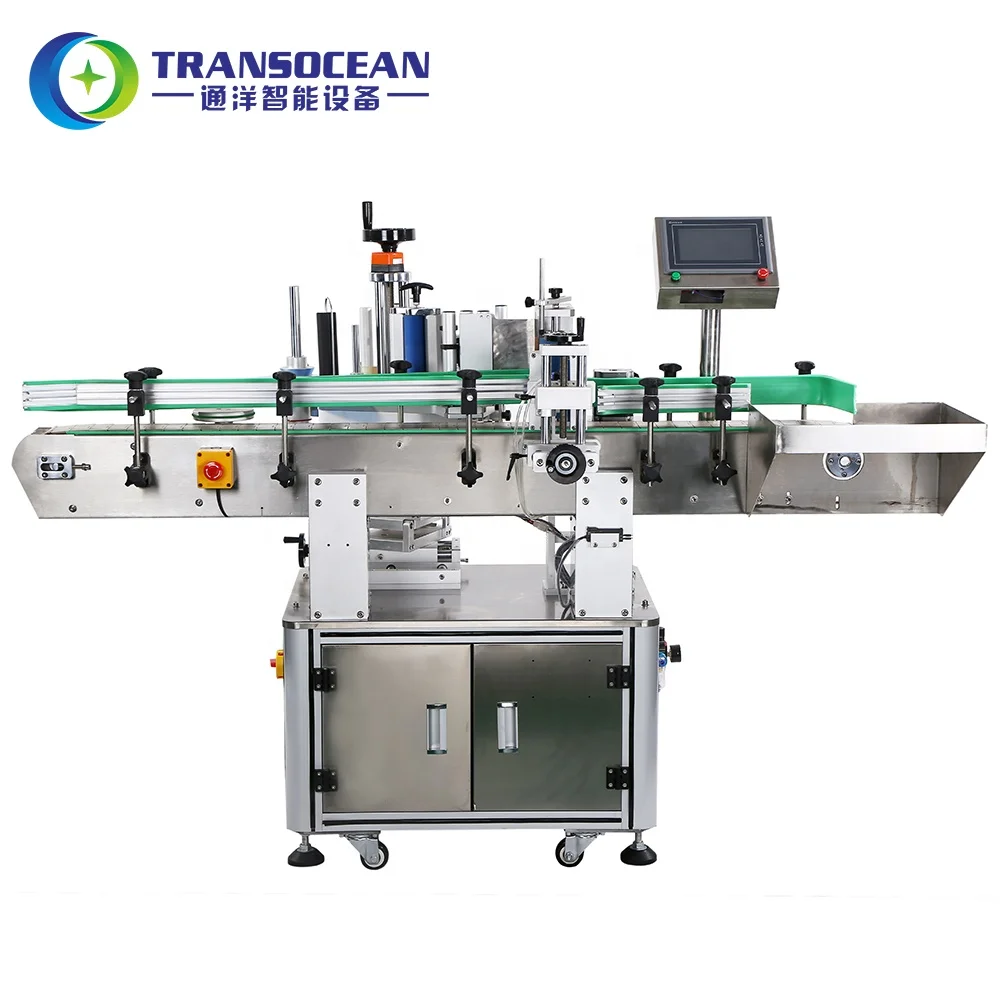

TY-603 Automatic round bottle positioning labeling machine
1.Applicable labels: stickers labels, stickers film, electronic monitoring code, bar code and so on.
2. Apply product: all kind round bottle, or cylindrical products which can standing steady. Particularly suitable for labeling
transparent label.
SPECIFICATIONS | ||||||
Labeling accuracy | ±1mm (excluding products, labels, error) | Labeling speed | 20-60 pcs/min (related to the product and label size) | |||
Apply the product diameter | 25--120mm;(Can be customized) | Apply label size | Length:20 -300 mm; Width: 20-170 mm (Can be customized) | |||
Applicable to the power supply | 220V/50HZ (Need to add a voltage converter, according to the local voltage of different country) | Apply labels inside diameter | ￠76mm | |||
Apply labels outside diameter | ￠240mm | Voltage | 220V | |||
Power consumption | 865W | Air pressure | 0.3---0.6Mpa | |||
size (L*W*H) | Machine size: 1935*1250*1470mm Packing size: 1985*1300*1520mm | Weight | About 200Kg | |||
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
can be connected to automatic production line
in the front side, it can be connected to automatic production line. like:
bottle unscramble machine
filling machine
capping machine
an so on.
auto sub-bottle function
with automatic sub-bottle function, let bottles separate one by one.
three-bar adjustment mechanism
Using three-bar adjustment mechanism, make full use of the stability of the triangle, the machine solid and durable
Import label sensor
1. Germany LEUZE transparent label sensor
2. Italy Data logic sticker label sensor
3. Germany sick all-purpose label sensor, can use for transparent and sticker label
Color touch screen in English
Panasonic PLC, Simple operation, do not need high-quality technical workers, easy to get started.
Other languages available: such as: Spanish, Arabic, French. and so on.
testing product sensor
Japan Panasonic testing product sensor, Automatic photoelectric tracking, with no bottle no labeling function.
Micro adjustment seat
can adjust the multi-dimensional angle of the labeling head.
Hot coding machine
1. code content usually be:
MFD(manufacture date)
EXD(expiry date)
BATCH( batch lot)
can printing 3 lines content, Area can not be greater than length: 3.5cm, width:2.5cm.
2. Ribbon specifications: 30*100mm-2 rolls
3. Number character 0-9 freely. But English alphabet, punctuation should be customized, Price calculation separately.
For example: a, A, E, /, =, -, &. And so on.
Thermal transfer Printer
The code content usually be :MFD(manufacture date),EXD(expiry date) and BATCH(batch lot)
Bar code
Data field
Pattern: JPG, BMP, GIF, PNG format
Rotary printing: 0°, 90°, 180°, 270°
Mirror printing
positioning detecting device
The circumferential positioning detecting device can be added, and labeling can be performed at a specified position on the circumferential surface.
pay before send out the good or see the scan bill of lading.PRE-SALES SERVICE
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AFTER-SALES SERVICE
1.Manules / Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happened and you can not find out the solutions, Telecom or Online face to face communication available 24
hours.
3. Core tamp engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have One year guaranty for machine, During the warranty year if any of the parts broken not by man-made. We
will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
5. Core tamp has an independent team for after-sale service. Any emergency please call the salesman or our after-sale's manager.
Plastic Film 5) Packing Modules Into Plywood Cases 6)mark Shipping Mark In The Cases If Any Special Requirements, We Will Pack It
As Requested.
Shipping.
Upon receipt of payment , delivery date will be in 5-15 days, standard model with in stock. By Air, by Sea or by Express (DHL
etc), Shipment cost will depend on the destination, shipment way and the weight of the goods.
Rotary&Linear OPP hot melt glue labeling machine
Rotary&Linear self-adhesive/sticker labeling machine
mixing--filling--capping-whole packing line solutions,
we have professional sales team and engineer team to present you best technical project and help you solve problems, we verify
believe that buy from us, you not only get quality Product but also best service together.
Factory Location
Factory Location
Reception
Foreign Trade Department
Production Workshop
Production Workshop
FAQ
Q1: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q2. How can we make sure about the machine quality after placing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q3. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q4. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 40% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
