Low Cost OV3660 3MP VGA 76Degree Wide Angle Mini USB CMOS Sensor Camera Module fpc pcb
- Category: >>>
- Supplier: Shenzhen City Haozhou Technology Co. Ltd
Share on (60838664184):
Product Overview
Description

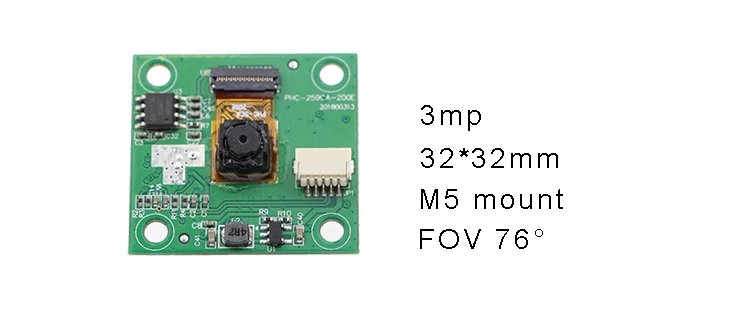

Module No. | 003-0429 | |
Module Size | 32*32mm | |
Object distance | 15CM-130CM | |
Resolution | 700LW/PH (Center) | |

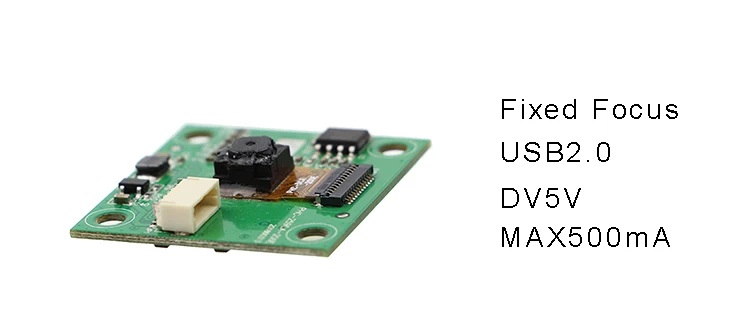

Focus | Fixed Focus | |
Audio | / | |
Interface | USB 2.0 | |
Voltage | DC5V | |
Temperature (Operation) | -30°C to 70°C | |
Temperature (Stable Image) | 0°C to 50°C | |
Assembly technique | SMT (ROSH) | |
PCB printing ink | Green | |
Operating system request | Windows 2000 ,Windows XP/ 7 / 8 /10 /Linux or OS with UVC Driver | |
Package | Anti-electrostatic tray | |
Sensor Type | ||
Sensor No. | OV3660 | |
Sercor Type | 1/4” | |
Active Array Size | 2052x1536 | |
Sensitivity | 600mV/(Lux·sec) | |
Pixel Size | 2.2μm x2.2μm | |

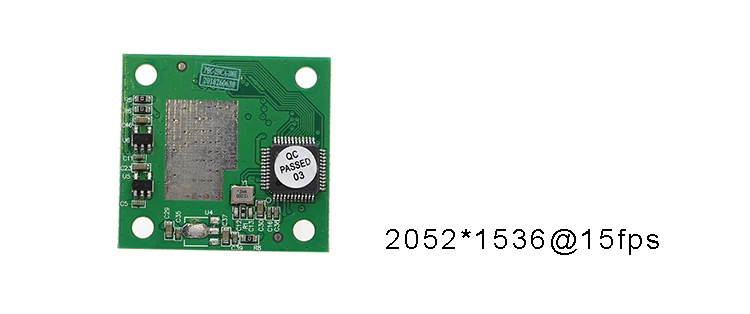

Maximum Image Transfer Rate | 2052*1536@15fps | |
Dynamic Range | / | |
LENS | ||
Lens Type | 5P | |
Data Format | YUY/MJPG | |
Image Circle | CSP | |
FOV | D=76° | |
IR Filter | 0.81mm | |
Mount | M5*P0.5mm | |
DSP Type | ||
AGC/AEC/Whiter balance | <1.0% | |
Output Formats | >48% | |
Fixed Pattern Noise | ||
Application | ||
Application | HD Video / Education / Medical / Beauty/ Video Meeting / VR/ AR / AI / FR / SPY | |
OEM&ODM

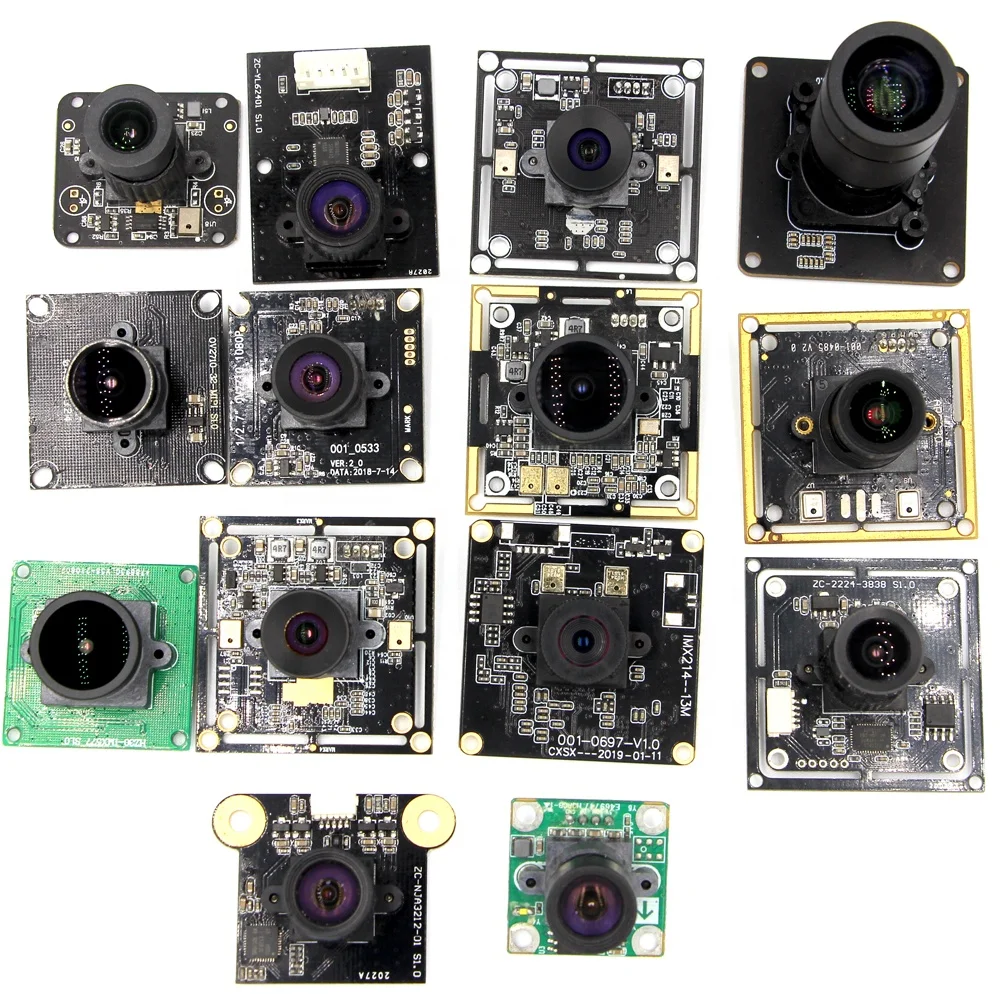

Customizable usb2.0 & usb3.0 camera module / mipi camera module / binocular camera module / endoscope camera module / HDMI camera module / infrared camera module / global shutter camera module etc.
Application Field
More Applications: bar code scanning machine, license plate recognition, eye tracking, smart home, access control system, driving recorder, notebook computer, all-in-one machine, iris scanning, AR, VR, robot, machine vision, industrial inspection, ATM machine, automatic vending machine, face recognition, unmanned aerial vehicle, security gate machine, pc multimedia, attendance machine, endoscope, security monitoring, pos machine, conference camera, video doorbell, motion camera, 3D vision, arcade game machine, automatic terminal equipment Wait for more applications
Main Pixel
3mp ( VGA ) pixels, 1mp ( 720P) pixels, 1.3mp (960P) pixels
2mp(1080P)pixels, 3mp (1080P)pixels, 4mp (2KP) pixels
5mp ( 2KP) pixels, 8mp ( 4KP ) pixels, 12mp (4KP) pixels,
13mp (4KP) pixels, 16mp (4KP) pixels, 20mp pixels
2mp(1080P)pixels, 3mp (1080P)pixels, 4mp (2KP) pixels
5mp ( 2KP) pixels, 8mp ( 4KP ) pixels, 12mp (4KP) pixels,
13mp (4KP) pixels, 16mp (4KP) pixels, 20mp pixels
Interface
·FPC interface: DVP, MIPI;
Using CSP (BGA chip technology), COB, PLCC, CLCC process
AV output interface: CVBS, AHD analog signal output
·USB output interface: free drive, plug and play, monocular, binocular;
Starlight level, wide dynamic H.264, IR-CUT infrared, global exposure, AF focus, high-speed frame, and other USB camera modules for various applications
Using CSP (BGA chip technology), COB, PLCC, CLCC process
AV output interface: CVBS, AHD analog signal output
·USB output interface: free drive, plug and play, monocular, binocular;
Starlight level, wide dynamic H.264, IR-CUT infrared, global exposure, AF focus, high-speed frame, and other USB camera modules for various applications
Lens / Angle
Composition material: 2P3P 4P 5P 6P IG2P 2G2P 4G 5G 6G7G 8G 9G.etc
Focus: FF MFAF. (according to customer demand)
Angle of view: 5 degrees -240 degrees panorama
Focus: FF MFAF. (according to customer demand)
Angle of view: 5 degrees -240 degrees panorama
HOW TO CHOOSE THE LENS
It is a close-focus lens; in a camera, the smaller the focal length, the larger the imaging range, the smaller the image of the object in the screen, the larger the focal length, the smaller the imaging range, and the larger and clearer the image of the object in the screen, this is a far-focus lens
