High speed 40ton power punching press machine/sheet metal parts stamping machine 40ton
- Category: >>>
- Supplier: Maanshan Jiashida Machine Tool Company
Share on (60838672615):
Product Overview
Description
High speed 40ton power punching press machine/sheet metal parts stamping machine 40ton .
1. Main Features:

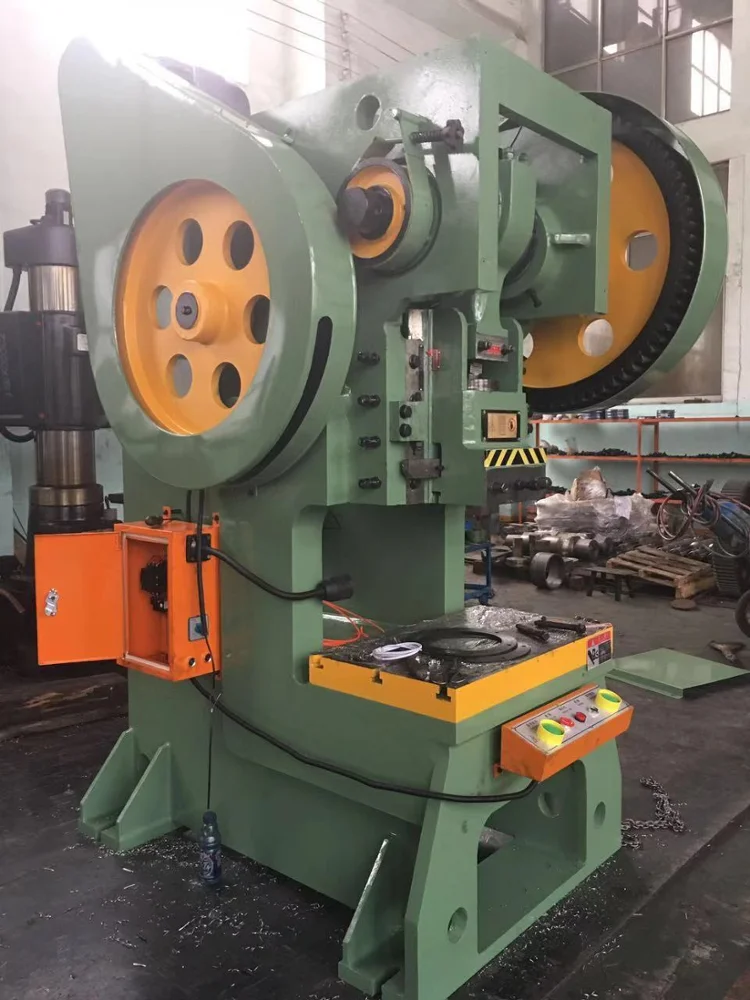

J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.

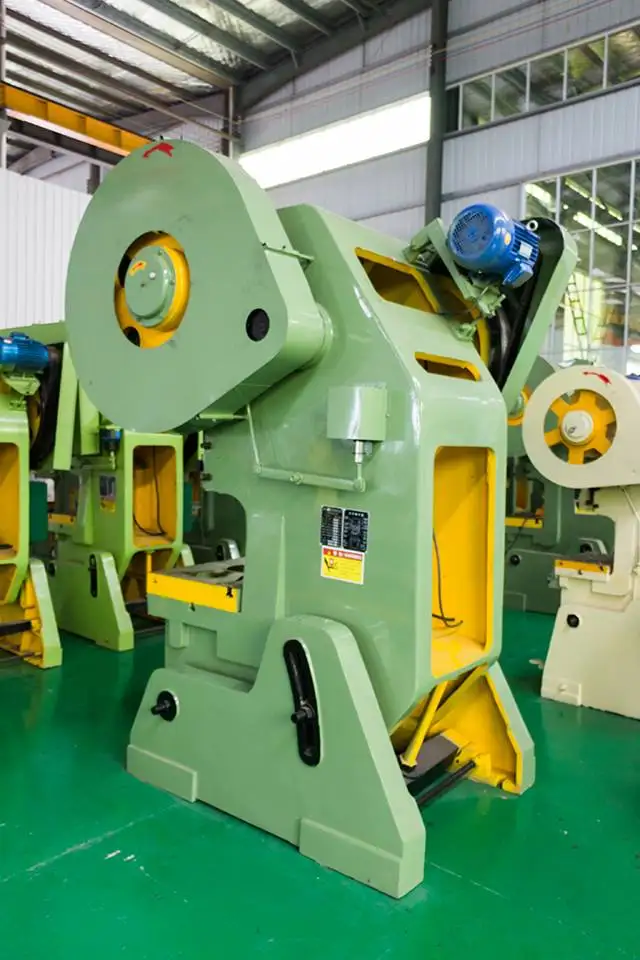

C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.

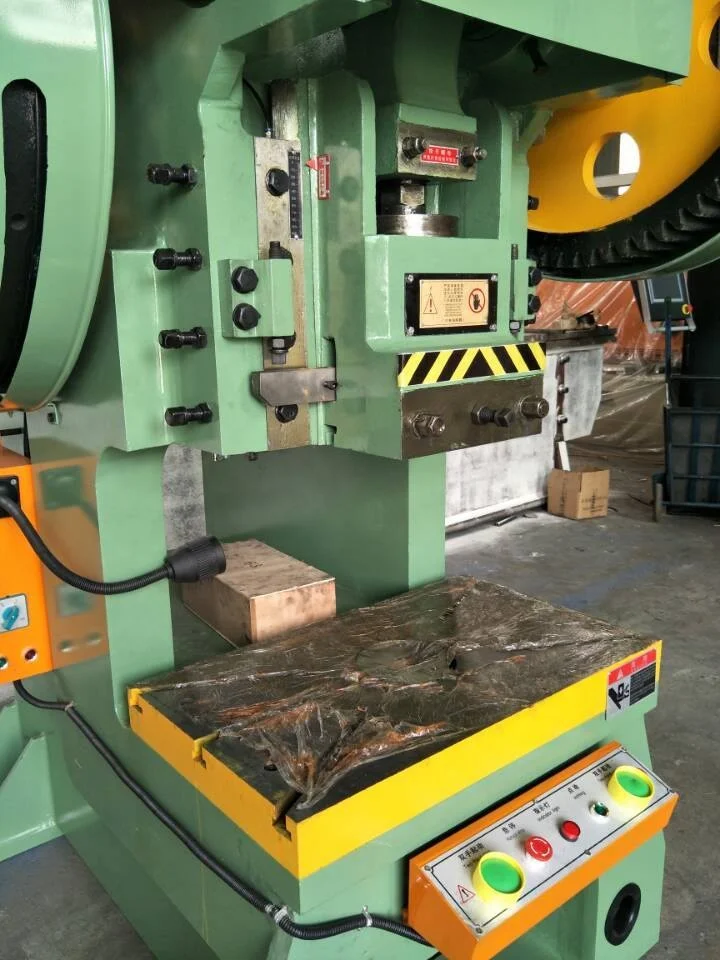

Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
Company Information
Features
1.> This series press by rigid turn key clutch, simple structure, operation, maintenance is convenient. Adopt bevel gear transmission, the work is smooth. J23-25 type open type tilting press for the first domestic will drive gear sliding bearing (i.e. copper tile) instead of rolling bearings, transmission gear wear resistance, after changed to avoid the quick wear of copper tile and cause of gear noise.
2.> J23-35 open type tilting press is unique in the industry, and other domestic manufacturers of 35 tons of machine body basic with 25 t of the machine body, drive adopts copper tile. But we will redesign fuselage, 35 t fuselage far heavier than 25 t fuselage (airframe strength), at the same time using rolling bearing transmission (gear noise is small), equivalent to a general sense of light 40 t press.
3.> J23-80t and above tonnage press adopts pneumatic double balanced structure, balance force fluctuation is small, balance the weight of the slide block and the upper die, to avoid the shaking due to the weight of machine tools. Can prevent transmission gear in the reverse force caused by the impact and noise, can eliminate the connecting rod and the slide block because of brake failure or connecting rod broken, slider falling accident.

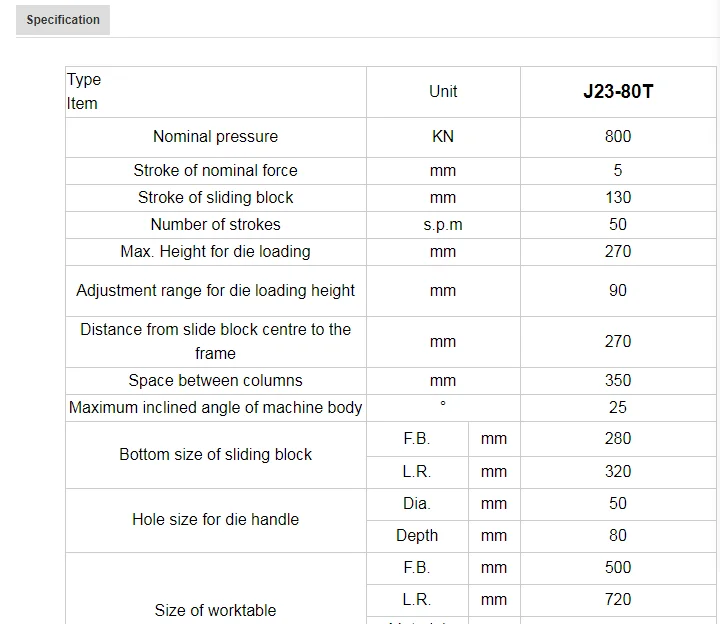

Technical parameter
Advantages
1.> Specialized in this field for more than 5 years with good quality and competitive price.
2.> Convenient transportion, 40 min away from Nanjing city.
3.> Professional engineer, the machine can be customized.
4.> One year guarantee, except the easy-wear parts. Perfect after-sale service.
5.> The engineer available to service oversea. About the charges we can discuss together.
Our Services
Any interest pls feel free to contact with us!
Mr Kevin (sales manager)
Mob/Whatsapp: +86 15156139286
Skype:cncsolution95 Wechat;cnctool2004
Tel (fax): +86-0555 6766721/6766722
Web:en.cnc-jsd.com
