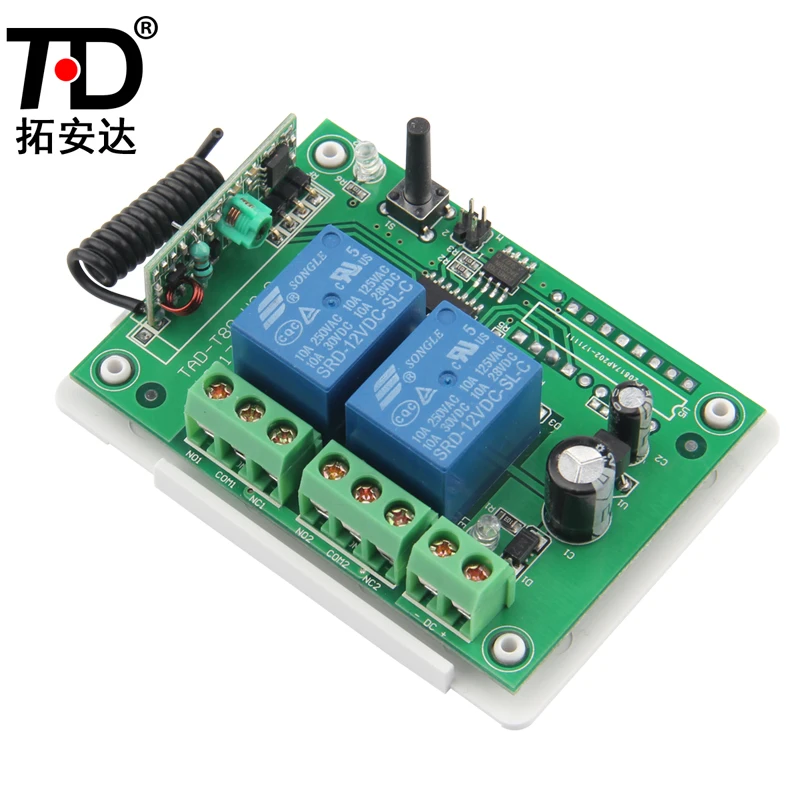

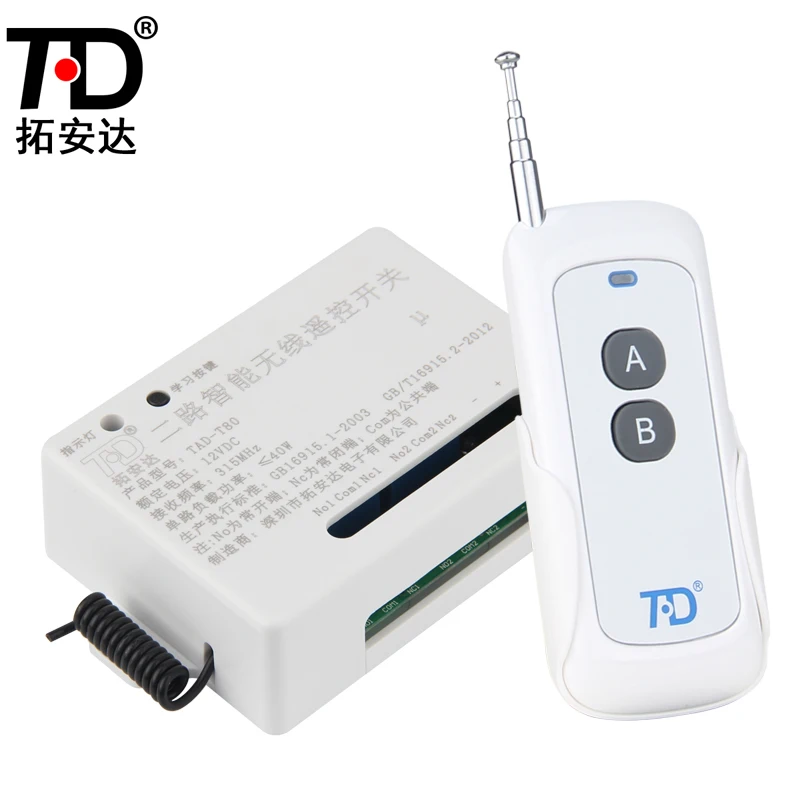

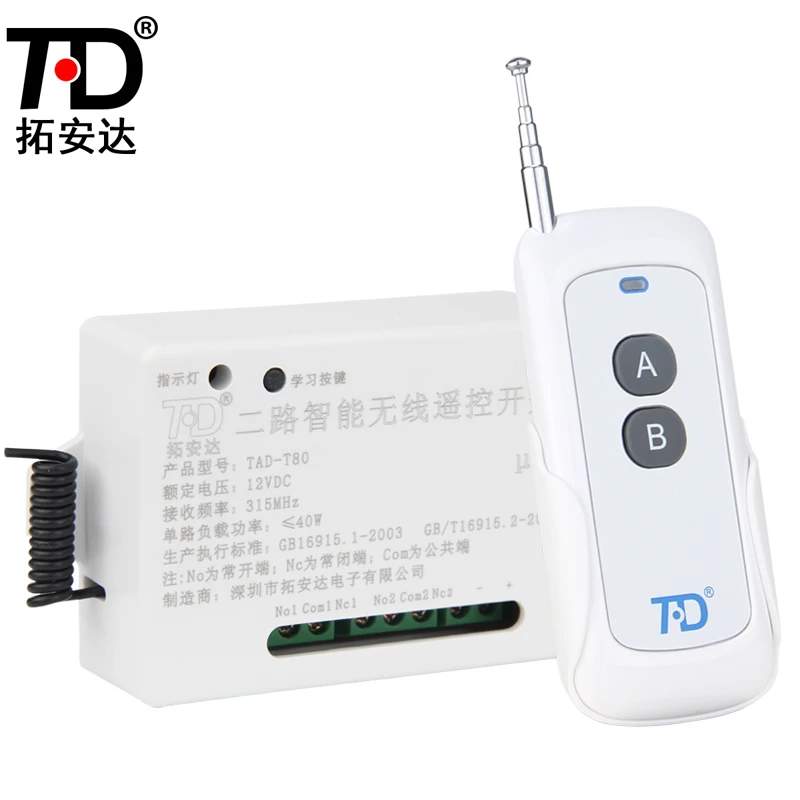

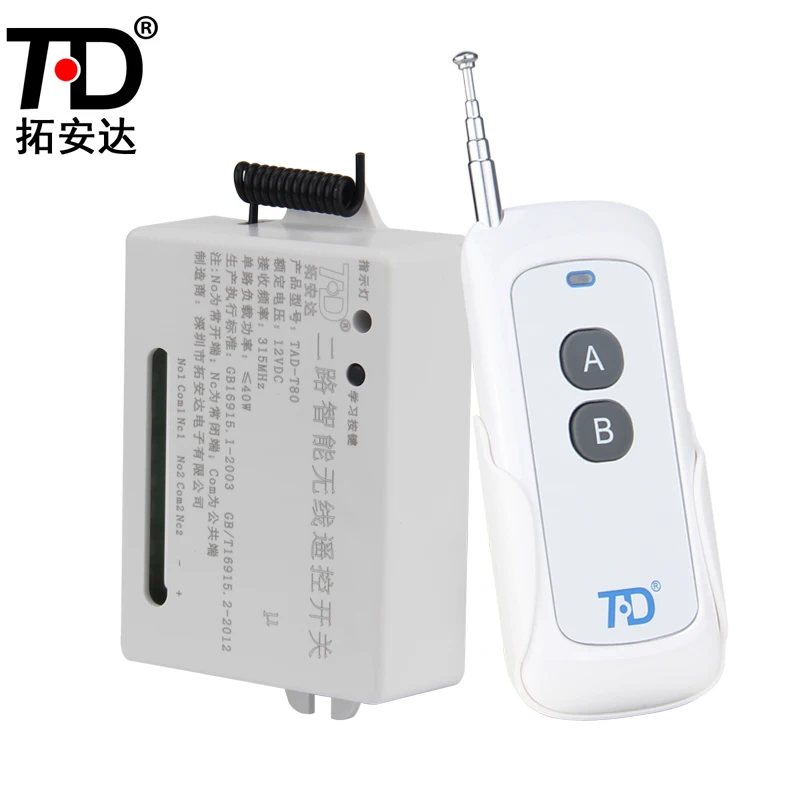

DC12V/24V 2 Channel 315Mhz adjustable remote control using universal rolling code gate remote control gas pump remote control

Features:

1.     Each independently controllable channel can be set to operate in either latch/toggle/momentary mode.

2.      Controlling distance range up to 300 meters (open area).

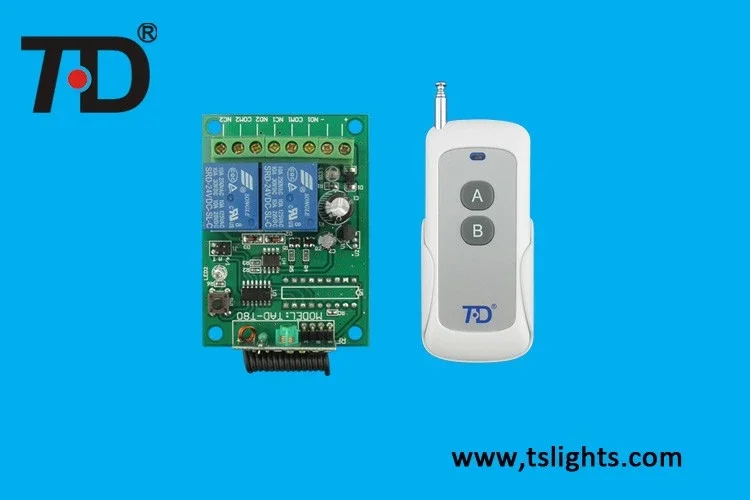

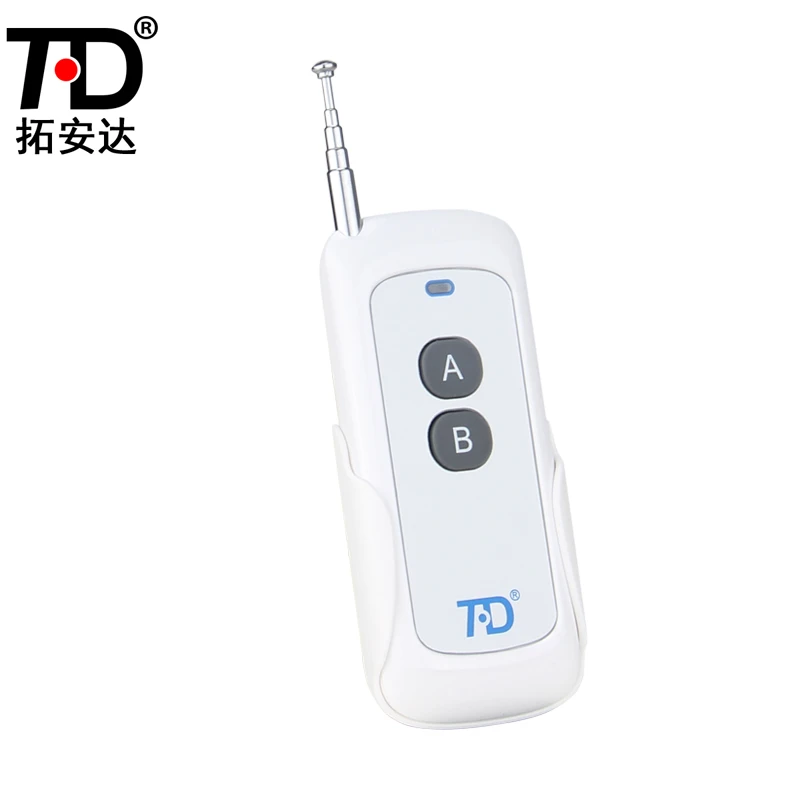

3.      2channel complete remote control system supplied with one keyfob transmitter.

4.      Easy learn keyfob transmitter.

5.      Adjustable working mode, toggle, latch and momentary.

6.      Independent receiver or transmitter is available.

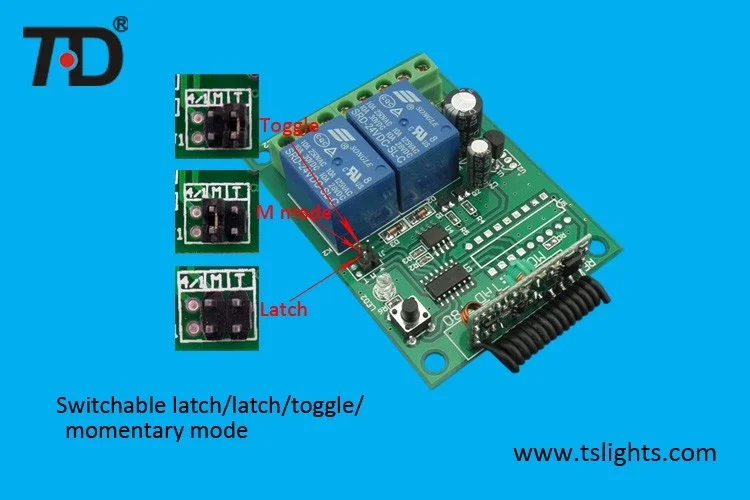

Operating mode:

Adjustable operating mode, Toggle mode: short link jumper cap with T;

Momentary mode: short link jumper cap with M.

Latch mode: no short link between T and M.

Note: Please power off before changing the operating mode.

Operating channel: 2

Notes:

Toggle mode: Self-locking contact. A contact holds until press the same transmitter button again. A, B channels work independently. Just like the power key of TV remote controller, when you press it, TV on, press again, TV off.

Momentary mode: Press the transmitter button, the relay is on until you release it.

Only one channel can be on at any time. Just like the button of Klaxon, if you press it, Klaxon on, and will turn off once you release it.

Latch mode: Press the transmitter button, the relay is on till you press another one. Two channels latch each other and only one channel can be on at any time. Just like the wind-speed buttons of electronic-fan, press a wind-speed button, the fan runs at a certain speed until you press another button.

Learning a new transmitter:

1) Press the learn button until the indicator light turn on then release the button.

2) Press any transmitter button within 15 seconds, the indicator will flicker fast, that means the learning is successful. If there is no any input within 15 seconds, transmitter will automatically escape from learning after the indicator light fast flicker.

Note: Each system can only support for 30 pairing, when learningthe 31^st one, system will automatically delete paring of first transmitter.

Deleting pairing code:

1)      Constantly press the Learn button until the indicator light turn on.

2)      After 8 seconds, the indicator light will turn off, release the learn button. Then encode have been deleted.

Encode type:

Fixed code, soldered.

Ideal for use with:

    Vehicle central locking systems
    Garage doors
    Electronic gates
    Electrical appliances
    Electric windows
    Car sunroofs
    Televisions
    Lights
    Fans
    Heating systems
