All in one Android OS 8.10 RK3399 signage tablet android mother board controller board with Ethernet RJ45
- Category: >>>
- Supplier: CND Electronic Technology (shenzhen) Co. Ltd.
Share on (60838753564):
Product Overview
Description
Product Description
Contact US:
Whatsapp:+86 18682001573
Skype wechat: mariageng
Email: maria @cndlcd.com

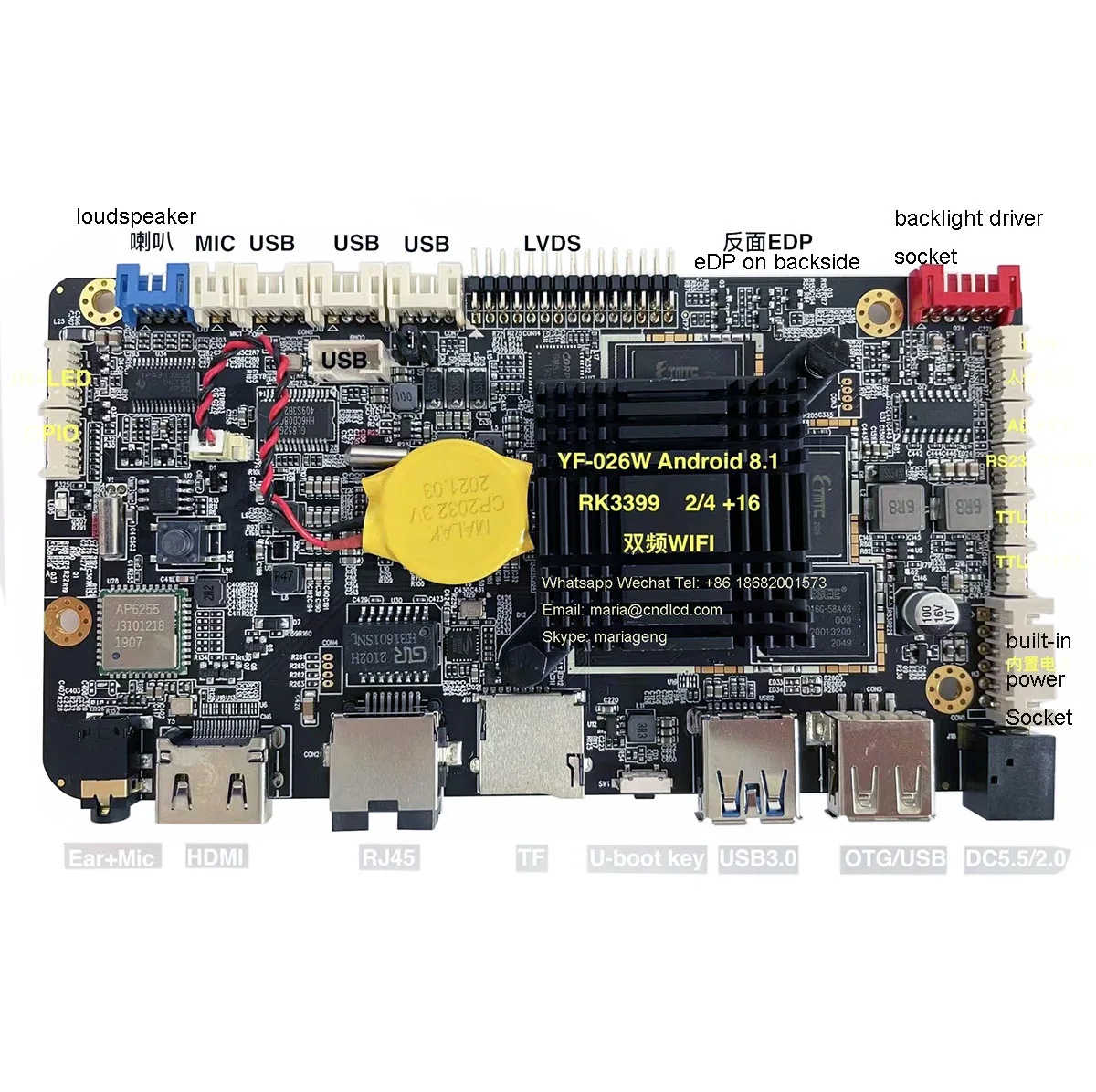

Product Name: RK3399 6core Android AD Controller driver Mother board for Digital Signage, Interactive machine, self-service machine O2O smart device
Model No.: YF-026W
- Dual A72 + Quad A53 + MCU
- Mali-T860MP4
- DDR3 / LPDDR3 / LPDDR4
- 4K H265 / VP9 / H264
- HDMI 2.0 with HDCP2.2
- USB3.0 / Type-C
- Display Port PCle
- Wifi AP6255, 2.4GHZ+5.8GHZ
- Blue-tooth v4.2.
- support body sensor
- output LVDS / eDP / MIPI
- Support Dual Panel Display and Dual Panel different Display (eDP and LVDS)
- Apply to Financial mahcine ,Advertising Machine, self-service device Vending machine etc. temperature-detection module, access system, entrance guardence, and other Industrial use
Key Features
- High Integration: Integrated with USB LVDS Ethernet HDMI WIFI, All-in-one, Simplifies Integral Machine design, with TF card slot.
- Android 8.1 Operation System, 4G+16G/ 4G+32G
- High Resolution: Supports 1080P/H.265(4K2K) Video decoding and various LVDS output LCD Display Screen.
- With Audio Amplifier: Supports Dual channel amplifier 3W*2
- Rich Interfaces: Support USB, Serial Port, , ADC, suitable for mainstream AD machine in the market.
- Full Function, Support display screen both landscape and portrait, Video split screen, rolling word screen, On/Off Timing,Data Transfer through USB.
- Easy Management:Humanization software for playlist making, for advertising-display management and control easily. With advertising-display record, which make it easy to check AD display status.
Application
RK3399 is mart commercial self-service terminal board, mainly applied for interactive commercial advertising machine, interactive digital signage board, smart self-service terminal machine, smart retail terminal, O2O smart device, industrial control host, ETC
Key Hardware Specification | |
CPU | Dual Cortex-A72 large core + quad Cortex-A53Cortex-A53,up to 1.8GHz |
GPU | Mali-T864GPU, support AFBC(frame buffer compression) |
Internal Memorizer | 4G+16G /32G memory |
Decoding Resolution | 1080P video coding,support H.265,VP8 fomat |
Touch screen | two-way I2C, multi-way USB interface;capacitor touch screen |
Operation System | Android 8.0 |
Display Mode | Support Recycling, timing, inserting play mode |
Internet Interface | Ethernet, WIFI,Wireless Extending |
Video Format | Support wmv,avi,flv,rm,rmvb,mpeg ,ts,H.265,mp4 |
Image Format | Support BMP,JPEG,PNG,GIF etc. |
LVDS Output | Drive 50/60Hz LCD Panel |
support | dual USB3.0 +6 extended USB2.0 |
support | Open GL ES 1.1/2.0/3.1, OpenCL, DX11 |
support | lvds /EDP output |
Real-time-clock | Support |
Hardware Watch-dog | Support |
On/Off Timing | Support |
