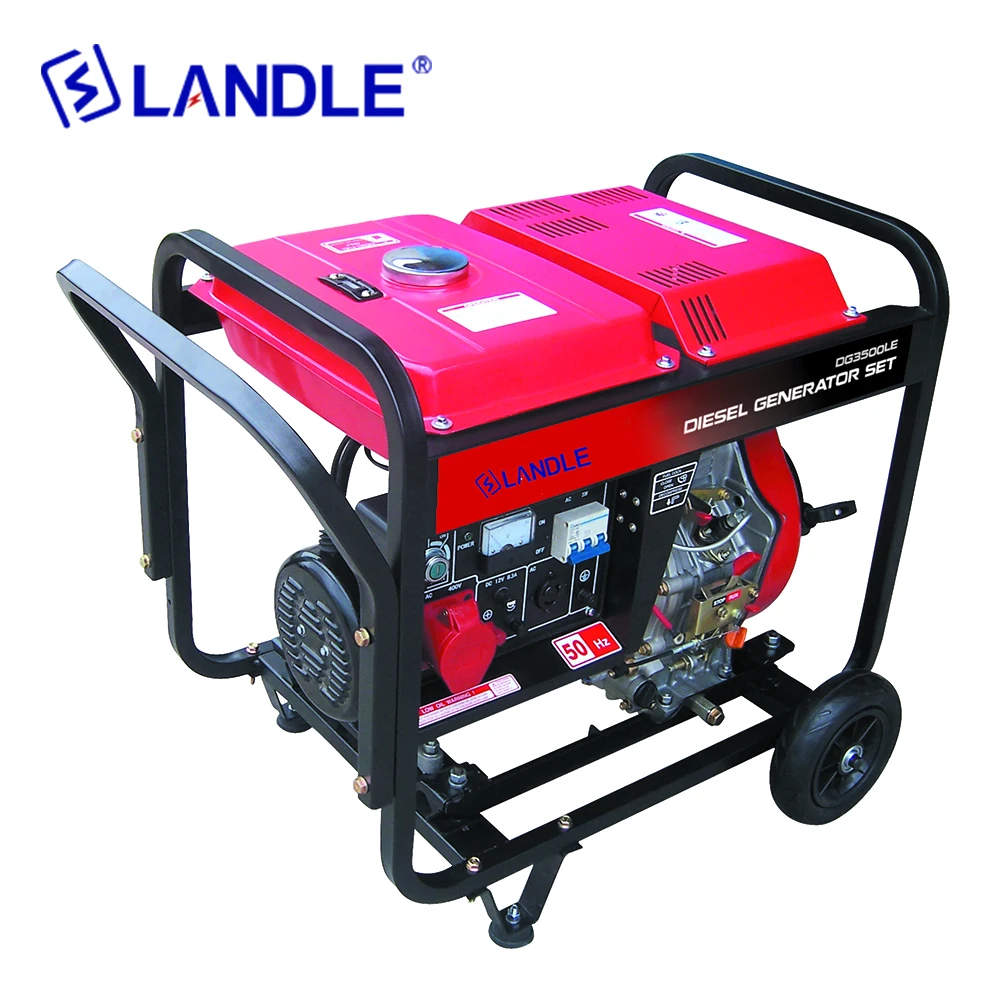

Air Cooled Single Phase Diesel Generator & Welding Sets Manufacturer
- Category: >>>
- Supplier: New Landle Technology Co. Ltd.
Share on (60838773826):
Product Overview
Description
Air Cooled Single Phase Diesel Generator & Welding Sets Manufacturer
Feature
- Constant voltage AVR control germany technology
- Heat insulation F class insulation heat resistant 155 citidegree
- Security intelligence smart oil alarm automatic locking waterproof plug
| Model | NL2500CLE | NL3500CLE | NL3500SE | NL5500CLE | NL5500SE | NL6500CLE | NL6500S | NL6500SE-N | ||||||||
Rated frequency (hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
Rated rotation speed (rpm) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
Rated voltage (v) | 230 | 240/ 120 | 230 | 240/ 120 | 230 | 240/ 120 | 230 | 240/ 120 | 230 | 240/ 120 | 230 | 240/ 120 | ||||
Rated current (a) | 7.4 | 8.3/ 16.7 | 12.2 | 27.5/ 13.8 | 12.2 | 27.5/ 13.8 | 18.3 | 19.2/ 38.4 | 18.3 | 38.3/ 19.2 | 19.6 | 20/ 40 | 19.57 | 40/ 20 | 19.57 | 20/ 40 |
Rated output power (kva) | 1.7 | 2.0 | 2.8 | 3.0 | 2.8 | 3.0 | 4.2 | 4.6 | 4.2 | 4.6 | 4.5 | 4.8 | 4.5 | 4.8 | 4.5 | 4.8 |
Max output power (kva) | 2.0 | 2.3 | 3.0 | 3.3 | 3.0 | 3.3 | 4.5 | 5.0 | 4.5 | 5.0 | 4.5 | 5.3 | 5.0 | 5.5 | 5.0 | 5.3 |
| Dc output | 12v8.3a | 12v8.3a | 12v8.3a | 12v8.3a | 12v8.3a | 12v8.3a | 12v8.3a | 12v8.3a | ||||||||
Power factor (cosφ) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||||||||
| Phase number | Single phase | Single phase | Single phase | Single phase | Single phase | Single phase | Single phase | Single phase | ||||||||
Noise level (db@7m) | 78-79 | 78-79 | 70-74 | 84-85 | 70-74 | 84-85 | 70-74 | 66-68 | ||||||||
Overall dimension (l*w*h) (mm) | 660*480* 540 | 700*500* 575 | 880*565* 770 | 740*500* 660 | 950*565* 770 | 740*500* 660 | 950*565* 770 | 920*560* 770 | ||||||||
Dry weight (kg) | 53 recoil 60 electric | 73 recoil 80 electric | 130 | 95 recoil 100 electric | 141 | 95 recoil 100 electric | 141 | 141 | ||||||||
| Structure type | Open-frame type | Open-frame type | Silent type | Open-frame type | Silent type | Open-frame type | Silent type | Silent type | ||||||||
| Engine mode | 170f/e | 178f/e | 178f/e | 186f/e | 186f/e | 186fa/e | 186fa/e | 186fa/e | ||||||||
Displacement (ml (cu in)) | 211 (12.88) | 296 (18.07) | 406 (24.78) | 406 (24.78) | 418 (25.5) | |||||||||||
| Lube | Sae10w30 (above cc grade) | Sae10w30 (above cc grade) | Sae10w30 (above cc grade) | Sae10w30 (above cc grade) | Sae10w30 (above cc grade) | |||||||||||
| Low oil pressure alert system | With (electric) | With (electric) | With | With | With | With | With | With | ||||||||
| Battery | With 12V-32Ah | With 12V-36Ah | With 12V-36Ah | With 12V-36Ah | ||||||||||||
Application
Agricultural Machinery AIR-cooled Diesel generator 8500E mainly apply to small tractors, farm vehicles, small generators, air compressors, inland shipping and power plant of agricultural processing (such as threshers, rice mills, milling machines, feed crusher, etc.).
