Product Overview

Description

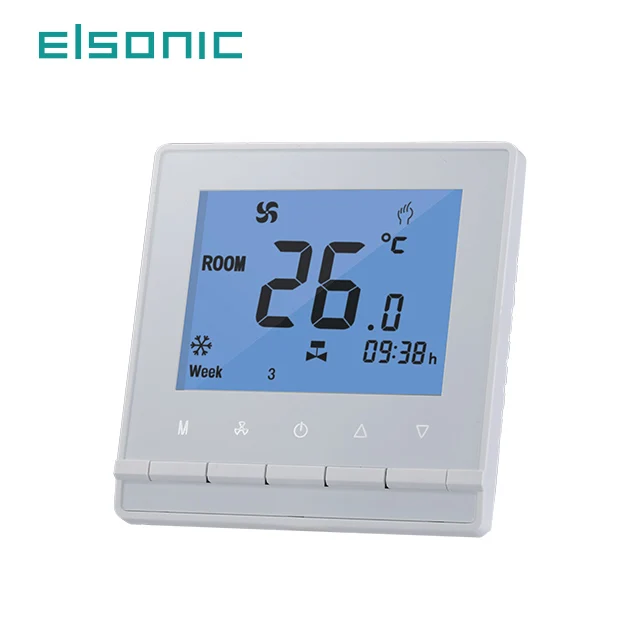

AC330 HVAC air conditioning room thermostat



Acrylic frame



Succinct design



Easy application



High reliability MCU



Apply to 2/4 pipe FCU system



Large-screen LCD display, blue backlight





General

AC330 Digital Fan Coil Thermostats apply to temperature control

for Fan Coil Units, Motorized Valves, Motorized Damper Valves,

Dampers, or Heating Equipment. It is with Large-screen LCD Display

measuring the ambient temperature by inbuilt NTC sensor and com-

paring it with set-point. AC330 Digital Fan Coil Thermostats

automatically adjust the air inflow volume of cooling/heating, or switch

on/off motorized valves to keep a constant ambient temperature.

Recommended match with V2016, V4016, V6016, and V8016 Series

motorized valves.



Technical Data

Power Supply

AC 100 ~240V, 50/60HZ

Temperature Range

10°C~30°C

Temperature Control Accuracy

±1°C

Self-Power consumption

<1.5W

Time Error

<1%

Load Current

1A (Inductive Load) 2A (Resistive Load)

Sensing components

NTC

Size

86mm×86mm×15mm(H×W×T)





Characteristics

lAcrylic frame.

lSuccinct design.

lEasy application.

lApply to 2/4 pipe FCU system.

lLarge-screen LCD display.

lLCD screen shows exactly the room temperature and the desired temperature.

lRoom temperature compensation and correction(by panel directly).

lTime display function,free choice of a variety modes.

lWith infrared remote control interface,remote optional.

 QQ20181203084307_05_06_07_08_09QQ20181130195908
